Blade

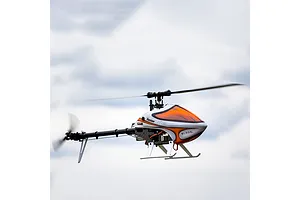

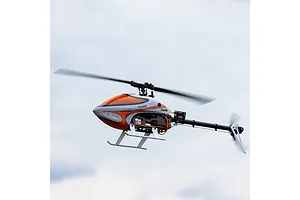

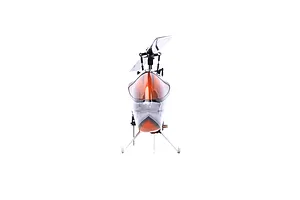

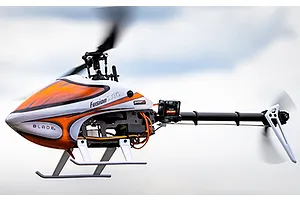

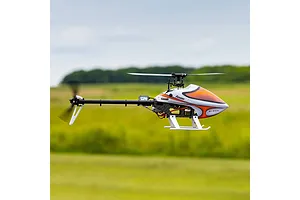

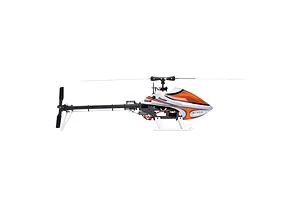

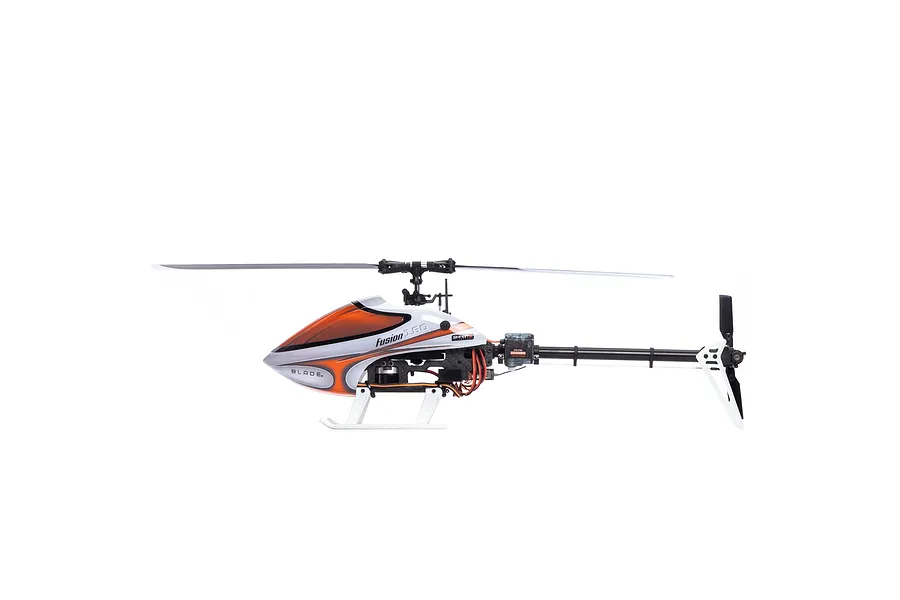

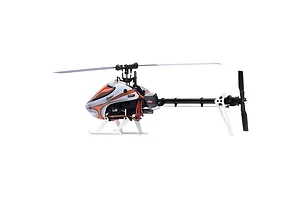

Blade 180 Fusion Smart Basic BNF RC Helicopter

  • BNF

Part no. BLH05850

DiscontinuedNo reviews yet
1 / 15
1 / 15

This product has been discontinued.

Contact us

Part Support

Replacement & upgrade parts that fit this model

Overview

Please check your local council or flying club for laws regarding recreational flying before your first flight.

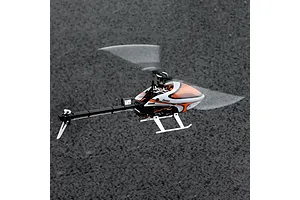

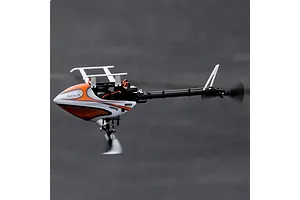

Featuring the latest advancements in Spektrum™ technology, the Blade® Fusion™ 180 Smart helicopter continues the legacy of the Blade Fusion line and is the perfect first high-performance collective pitch helicopter for intermediate heli pilots. With the popular 180 size, Blade has taken a fresh approach by adding integrated SAFE® and Smart technology, all-carbon fibre and aluminium construction, an improved power system, and more. Easy to fly and easy to see in the air, it is designed to help pilots progress from simple manoeuvres to advanced 3D stunts with confidence.

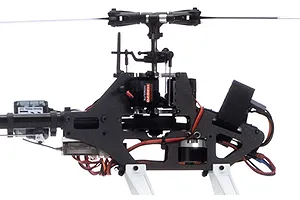

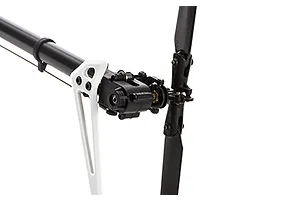

The carbon fibre main frame takes rigidity to another level for a rock-solid flight experience. An oversized tail boom eliminates the need for boom supports and is crowned by an ABS plastic tail case improving vibration damping and performance. The belt-driven tail improves durability and tail performance.

The expertly tuned Spektrum flight controller is ready for a non-computer transmitter such as a DXS and expands its capability with a more advanced Spektrum aircraft transmitter. Pilots get kit level quality in a Bind-N-Fly package.

Features

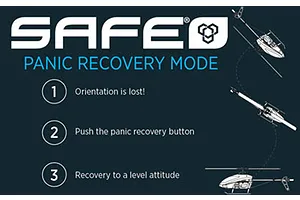

  • SAFE® (Sensor Assisted Flight Envelope®) technology with Panic Recovery mode for confident flying
  • All-carbon fibre and anodised aluminium main frame for exceptional rigidity and durability

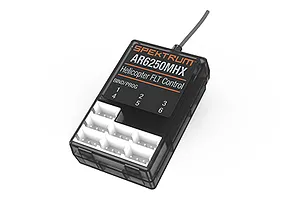

  • Spektrum AR6250MHX flybarless controller with advanced adaptive flight control algorithms and 6-axis M.E.M.S. inertial sensor
  • Spektrum Avian Smart ESC with one-wire telemetry for current, voltage, temperature and RPM data
  • Belt-driven tail for improved durability and tail performance
  • Expertly painted plastic canopy and matching tail fin with bright, easy-to-see colour scheme
  • Updated landing gear for a better stance on take-off and landing
  • H2070 cyclic and H2070T tail servos with Optimised Servo Geometry

In the box

  • 1x 180mm Plastic Main Rotor Blade
  • 2x 65mm Composite Plastic Tail Rotor Blades
  • 1x Spektrum 4651T 2.4GHz DSMX® Receiver with Telemetry
  • 3x Micro Digital Metal Geared Heli Cyclic Servos
  • 1x Spektrum AR6251MHX Flybarless Flight Controller
  • 1x Spektrum™ Avian™ Smart 20 amp ESC
  • 1x Brushless Outrunner Motor
  • 1x Product Manual

You'll need

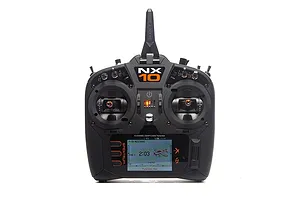

  • Full-range 6+ channel Spektrum™ 2.4GHz DSM2®/DSMX® Transmitter
  • 3S 11.1v 30C+ LiPo Battery with EC3™ or IC3™ connector
  • Compatible LiPo Charger

Specifications

Skill/Completion LevelLevel 2 Bind-N-Fly Basic
Swashplate Type120 Degree CCPM
Product Length/Width/Height394mm (15.5in) / 65mm (2.55in) / 118mm (6.64in)
Product Weight280g (9.8oz)
Main Rotor Head TypeCollective Pitch Flybarless
Main Motor Size/Type4004-650KV
Tail DriveBelt Driven
Main Rotor Diameter/Blade Length400mm / 180mm (15.74in / 7.08in)
Tail Rotor Diameter75mm (2.95in)
Main Frame/Blade MaterialCarbon Fibre
Canopy/Body MaterialPlastic
