CaddxFPV Walksnail Avatar Video Repeater

Part no. WN02-FP005

2 in stockNo reviews yet
1 / 7
1 / 7

$799.99

or 4 fortnightly payments of $200.00 with afterpay or PayPal, or zip

Maximise Flight Range Using The CaddxFPV Walksnail Avatar Video Repeater Featuring Adjustable Power Outputs And A Built In Hardware Filter

  • Built-In Hardware Filter Reduces Channel Interference
  • Supports 1080p FPV Resolution At 100 Frames Per Second
  • Extend Flight Range With 7dBi High-Gain LHCP Antennas
  • Features Adjustable Power Output For All Environments
  • An Essential Video Transmission Upgrade
  • 2 in stock ยท Order in 5h 06m, dispatched today

  • Checking delivery datesโ€ฆ

  • Free 60-day returns ยท 12,000+ 5-star reviews ยท 03 5292 1101 ยท

$799.99

Overview

The CaddxFPV Walksnail Avatar Video Repeater is the first high-definition digital video transmission repeater engineered specifically for the FPV drone community. Designed to maximise the performance of your aerial platform, this system effectively extends your operational range and delivers significantly smoother, clearer video feeds during long-distance flights. Measuring a compact 119.5mm (4.70") in length and weighing 145.9g (5.14oz) without antennas, the unit is easily transportable for outdoor photography, commercial film production, and remote explorations. The system relies on adjustable power outputs to meet varying environmental demands, ensuring a solid connection whether you are flying through dense foliage or wide-open spaces.

At the core of the repeater is a built-in hardware filter that actively reduces adjacent channel interference, providing improved reliability and highly stable transmission performance. The package operates across both 5.2G and 5.8G frequencies, utilising high-gain 7dBi directional antennas with LHCP polarisation to push the signal further than a standard setup. Setting up the system is incredibly straightforward; simply power on your ground unit, repeater, and air unit, press the respective pairing buttons, and wait for the indicator light to turn green. Once the process is complete, the repeater seamlessly pushes 1080p resolution feeds directly to your screen at up to 100 frames per second.

Expanding your operational radius opens up completely new possibilities for aerial cinematography and freestyle exploration. Integrate the repeater into your existing setup and push your CaddXFPV system further than ever before!

Features

  • Industry first high definition digital video transmission repeater system
  • Operates across 5.15-5.30GHz and 5.50-5.85GHz communication frequencies
  • Included 5.2G and 5.8G high gain directional antennas boost overall range
  • Built in hardware filter reduces adjacent channel interference significantly
  • Adjustable power outputs accommodate different outdoor flying environments
  • Supports smooth 1080p and 720p resolutions at up to 100 frames per second
  • Compatible with Walksnail Goggles X, Avatar VRX, and Avatar VTX units
  • Simple four step pairing process connects the ground and air units quickly
  • Wide 9V to 26V power input range allows for flexible battery configurations
  • Compact aluminium housing ensures durability during outdoor travel photography
  • Features standard LHCP antenna polarisation for reliable signal penetration
  • Genuine CaddxFPV Product

In the box

  • 1x CaddxFPV Walksnail Avatar Video Repeater
  • 1x 5.2G High Gain Directional Antenna
  • 1x 5.8G High Gain Directional Antenna

You'll need

  • 1x Compatible Walksnail Avatar VTX
  • 1x Compatible Walksnail Avatar VRX Or Goggles X
  • 1x 9V-26V LiPo Power Source
  • 1x Compatible LiPo Battery Charger
  • 1x LiPo Safe Charging/Storage Bag

Highlights

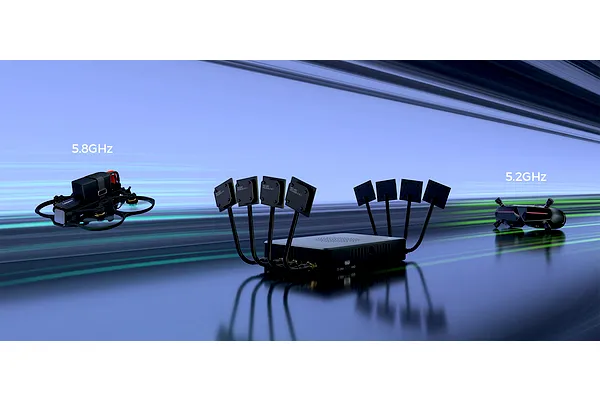

High-Power Signal Amplification and Extension

High-Power Signal Amplification and Extension

The 5.2GHz and 5.8GHz high-power transmission systems utilise high-gain directional antennas to significantly boost your video signal. This setup provides a reliable, long-range connection for your drone, ensuring clear and consistent video feedback during your flights.

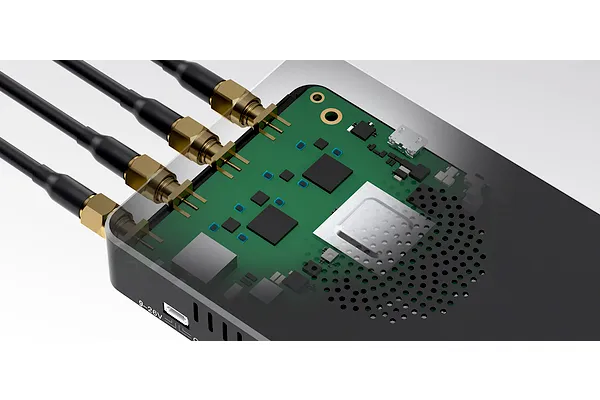

Built-In Hardware Filter for Stable Transmission

Built-In Hardware Filter for Stable Transmission

A built-in hardware filter actively reduces adjacent channel interference. This technology ensures a highly stable video transmission by minimising signal disruption, giving pilots a clear and dependable feed even in environments with heavy electronic noise.

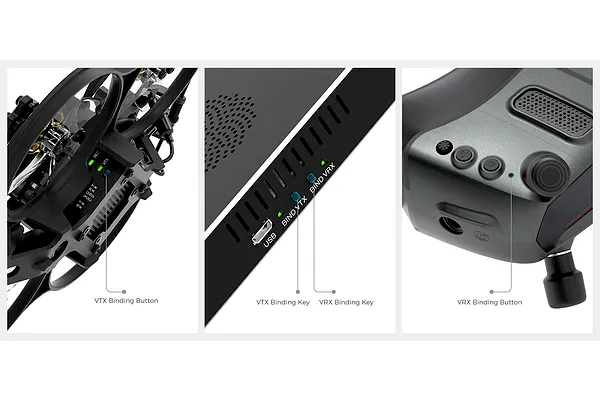

Quick and Easy Four-Step Pairing Process

Quick and Easy Four-Step Pairing Process

Setup is simple and gets you flying faster. Just power on the ground unit, repeater, and air unit, then press the pairing buttons. Once the indicator light turns green, the binding process is complete, and your VRX will immediately display the video feed.

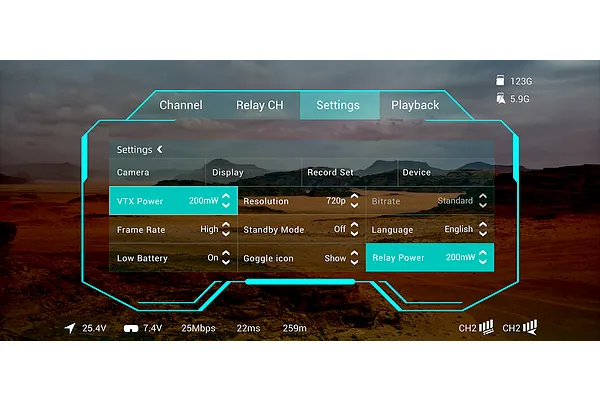

Adjustable Power Settings for Greater Range

Adjustable Power Settings for Greater Range

The Walksnail Avatar Repeater features adjustable power output to suit various environmental conditions. Easily modify your transmission strength to extend your flight range or conserve battery, ensuring optimal video performance no matter where you choose to fly.

Suited for Diverse Environments and Applications

Suited for Diverse Environments and Applications

Whether you are working on film and media production, capturing outdoor travel photography, or embarking on long-range adventures, this repeater handles it all. It provides the dependable video link required for professional-grade aerial imaging and demanding drone operations.

Broad Compatibility with Walksnail Avatar Gear

Broad Compatibility with Walksnail Avatar Gear

Designed to integrate smoothly into your existing setup, the repeater is fully compatible with Goggles X, the Avatar VRX, and all Walksnail video transmitters. This ensures a straightforward upgrade path for your current FPV equipment without complicated workarounds.

Specifications

SystemWalksnail Avatar HD System
Power Input9V-26V
Dimensions119.5mm x 72mm x 18.6mm (4.70" x 2.83" x 0.73")
Weight145.9g (5.14oz) (Without Antennas)
I/O InterfaceUSB, 4-Pin 1.0mm Port
Transmission Resolution1080p/100fps, 1080p/60fps, 720p/100fps, 720p/60fps
Communication Frequency5.15GHz-5.30GHz, 5.50GHz-5.85GHz
Transmitter Power (EIRP)FCC <30dBm, CE <14dBm, SRRC <20dBm, MIC <25dBm
5.2G Antenna5.15GHz-5.30GHz, 7dBi (AVG) Gain, LHCP Polarisation
5.8G Antenna5.50GHz-6.00GHz, 7dBi (AVG) Gain, LHCP Polarisation
