Futaba 10J 2.4Ghz 10ch Radio w/ R3008SB Receiver - Mode 2
Futaba 10J 2.4Ghz 10ch Radio w/ R3008SB Receiver - Mode 2
Brand:
Futaba
|
MPN: FUT07007159-3
$503.42
or 4 fortnightly payments of $125.86 with
Futaba 10J 10-channel 2.4GHz T-FHSS Air radio system with telemetry, diversity antenna, S.BUS2, and R3008SB receiver — Mode 2.
- 10-channel 2.4GHz T-FHSS Air system with bidirectional telemetry
- Speech function — hear telemetry data via earphones
- Built-in diversity antenna
- S.BUS/S.BUS2 compatible; switchable to S-FHSS
- 30-model memory with wireless model data transfer to 10J or 8J transmitters
Pay later with
Want more than 1?
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Description
The Futaba 10J is a 10-channel digital proportional RC system using the 2.4GHz T-FHSS Air protocol. It includes a bidirectional telemetry system, built-in diversity antenna, S.BUS/S.BUS2 compatibility, 30-model memory, and supports fixed wing, helicopter, glider, and multi-copter mixing types.
Features
- T-FHSS Air 2.4GHz 10-channel transmitter: Futaba 2.4GHz T-FHSS Air system.
- Telemetry system: Bidirectional T-FHSS Air communication; displays battery voltage, altitude, speed, temperature, and other data at the transmitter during flight (optional sensors required for altitude, speed, temperature).
- Speech function: Telemetry data can be heard by plugging commercial earphones into the transmitter.
- Built-in diversity antenna: Provides a simple appearance and improves handling ease.
- S.BUS/S.BUS2 system: Servo channel and various functions can be set by connecting the servo to the transmitter.
- Power-saving transmitter: Runs on four AA alkaline batteries. Optional HT5F1800B (NiMH 6.0V, 1800mAh) or FT2F2100BV2 (lithium-ferrite 6.6V, 2100mAh) batteries can also be used.
- Vibration alert: Transmitter vibrates to alert the operator of various alarms.
- 30-model memory: Stored in the transmitter body.
- Mixing type selection: Fixed wing, helicopter, and glider; 8 swash plate types for helicopters; multi-copter selection also possible.
- Digital trim: Trim position displayed on LCD; step size adjustable; audible centre indicator.
- Lever head length adjustment: Adjustable lever head length with new shape to reduce slip.
- Switch/VR position and AUX channel function change: AUX channels 5–10 can be reassigned; programmable mixing available.
- Model data transfer: Wireless model data transfer between 10J or 8J transmitters.
- Compatible receivers (T-FHSS Air default): R3001SB, R3004SB, R3006SB, R3008SB. Compatible receivers (S-FHSS switchable): R2001SB, R2008SB, R2006GF, R2106GF.
Included Items
- T10J Transmitter (Air version includes ratcheting throttle; Helicopter version includes smooth throttle)

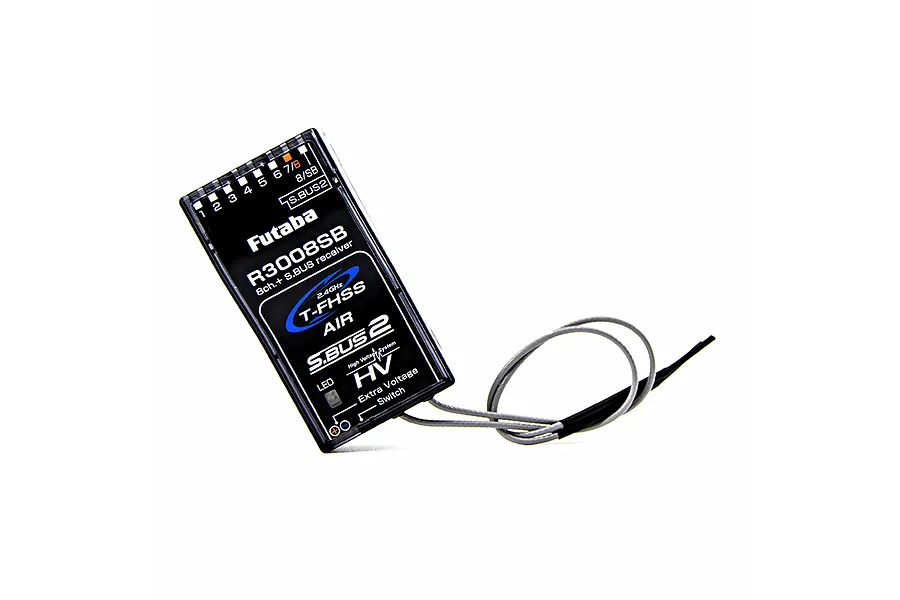

- R3008SB Receiver
- Switch Harness
- Neck Strap
Specifications
-
Transmitter frequency
- 2.4GHz band
-
System
- T-FHSS Air / S-FHSS, switchable
-
Power supply
- 6.0V dry battery
-
RF power output
- 100mW EIRP
-
Receiver (R3008SB) size
- 24.9 × 47.3 × 14.3mm (0.98 × 1.86 × 0.56 in)
-
Receiver weight
- 10.1g
-
Receiver rated voltage
- DC 4.8–7.4V
-
Receiver operating voltage
- DC 4.0–8.4V
-
Receiver features
- T-FHSS Air S.Bus compatible, EXT battery terminal, battery fail-safe function
Transmitter
-
Channels
- 10Ch
-
Layout
- Stick
-
Mode
- 2
-
Operating Frequency
- 2.4Ghz
-
Telemetry Capable
- Yes
-
Programmable Failsafe
- Yes
