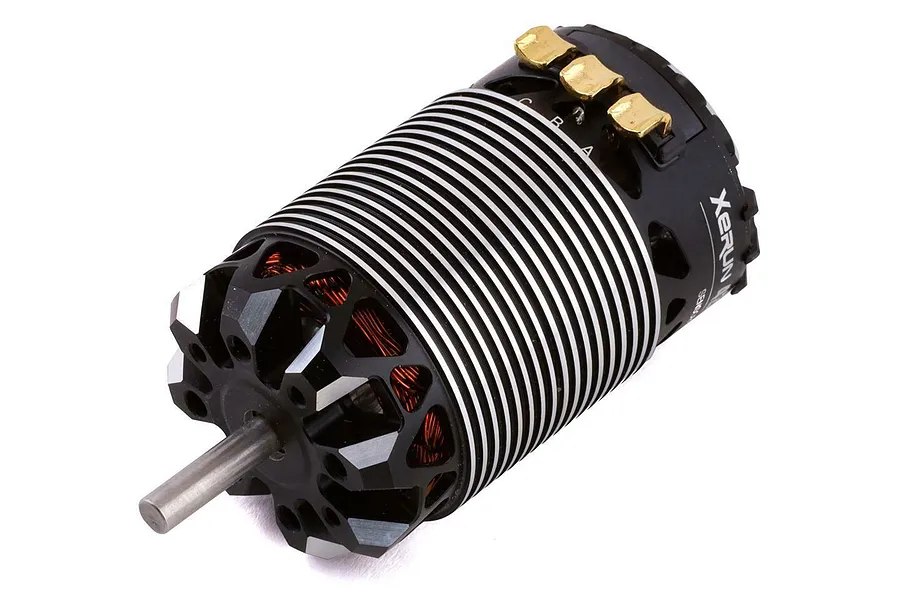

Hobbywing XeRun 4268SD G3 2400Kv On Road Sensored Brushless Motor

  • 1/8
  • Brushless

Part no. 30401910

1 in stockWrite a review

Now $235.83was $258.36 You Save $22.53

Sale now on

or 4 fortnightly payments of $58.96 with afterpay

Want more than 1? and we'll email you when they're here.

Pay later with afterpay zip PayPal

  • 1 in stock · Ships Monday · order by Monday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Overview

The Hobbywing XeRun 4268SD G3 2400KV is a 1/8-scale on-road sensored brushless motor featuring a pure signal sensor mode circuit. When paired with Hobbywing's XeRun XR8 series ESC, the motor operates in Pure Sensored mode at all times, providing a smoother throttle response. Turbo Timing technology can also be used with the XR8 series, increasing maximum speed by as much as 50% over the previous G2 series motors.

The G3 series uses Hobbywing's patented error-free Hall sensor technology with an independent high-speed, high-precision encoder that outputs a pure and accurate rotor position signal and isolates external interference. Mechanical turbo timing is adjustable between 20–40° in both directions (CW/CCW).

Features

  • Pure signal sensor mode circuit — operates in Pure Sensored mode when paired with XeRun XR8 series ESC
  • Turbo Timing technology increases maximum speed by up to 50% over the G2 series when used with the XR8 series
  • Mechanical turbo timing adjustable between 20–40° (CW/CCW)
  • Efficiency improved by 6% or more compared to XeRun 4268/4274 G2, reducing motor temperature increase
  • Patented error-free Hall sensor technology with independent high-speed, high-precision encoder
  • Motor weight reduced vs peers: 1900KV/2200KV versions weigh 315g/285g; 4268 weighs 330g
  • Minimised low-RPM cogging for smoother performance at low speeds
  • CNC-machined single-piece 7075 aluminium can body with zero surface gaps or screws; silicone dustproof ring seal at sensor base
  • Front case bell has two pairs of M3 and two pairs of M4 screw holes for various mounting bases
  • Widened U-shaped/90° gold-plated curved copper outlet terminals with very low internal resistance
  • R-class insulation material rated at 240°C; special high-strength adhesive rated at 340°C
  • Available in multiple KV ratings covering 1/8 On-Road (2000KV, 2800KV) and Off-Road (1900KV, 2200KV) plus 4274 2250KV for Truggy

Specifications

Scale1/8 On Road
BrushlessYes
SensoredYes
Pole Count4
KV Rating2400KV
LiPo Cells2–4S
No-Load Current4.3A
Outer Diameter42mm (1.654in)
Length67.8mm (2.669in)
Shaft Diameter5.0mm (0.197in)
Weight276g
Timing20–40 Degrees (Adjustable)
