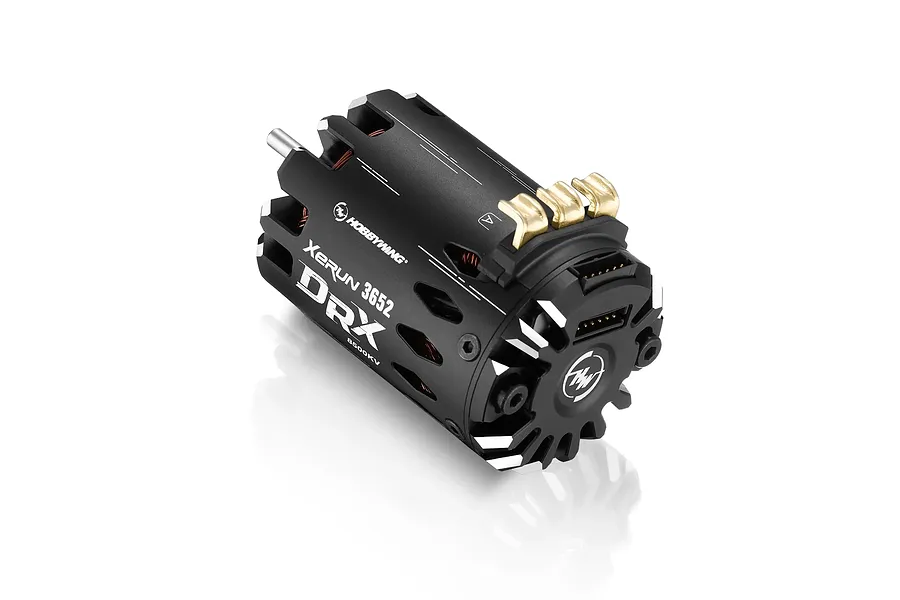

Hobbywing Xerun DRX 3652SD 9500kV Sensored Brushless Motor

  • Brushless

Part no. 30401062

Sold outWrite a review

$196.13

or 4 fortnightly payments of $49.03 with afterpay

Select Motor & ESC Wires Soldered

Ordered 3 Nov · we're waiting on our supplier

In stock now: similar

Overview

Designed specifically for drag racing, the Hobbywing 3652 Brushless motor provides a colossal 9500Kv for extremely fast and high top speed runs.

Built to be as durable and long-lasting as possible with a steel rotor sleeve and high level of efficiency, the motor has also been crafted in a modular design allowing easy assembly and disassembly for regular maintenance, further prolonging the life of the motor.

Features

  • Modular design for easy routine maintenance
  • Dual sensor port for multiple mounting choices
  • CNC machined aluminium shell dissipates heat
  • High performance iron core with steel sleeve design
  • 200°C high temperature wiring
  • UU shaped gold plated curved copper bar for lower internal resistance
  • 9500Kv speed

In the box

  • 1x Hobbywing Xerun DRX 3652SD 9500kV Sensored Brushless Motor

Specifications

Length53 mm (2.09 in)
Diameter36 mm (1.42 in)
Shaft Diameter3.175 mm (0.12 in)
Weight177 g (6.24 oz)
Max Voltage7.4V
SensoredYes
WaterproofNo
Pole Count4

Motor

TypeSensored
KVRPM (Revolutions Per Minute) per Volt9500KV
LengthLength of the motor can in mm52mm
DiameterDiameter of the motor can36mm
Shaft Diameter3.175mm (1/8")
