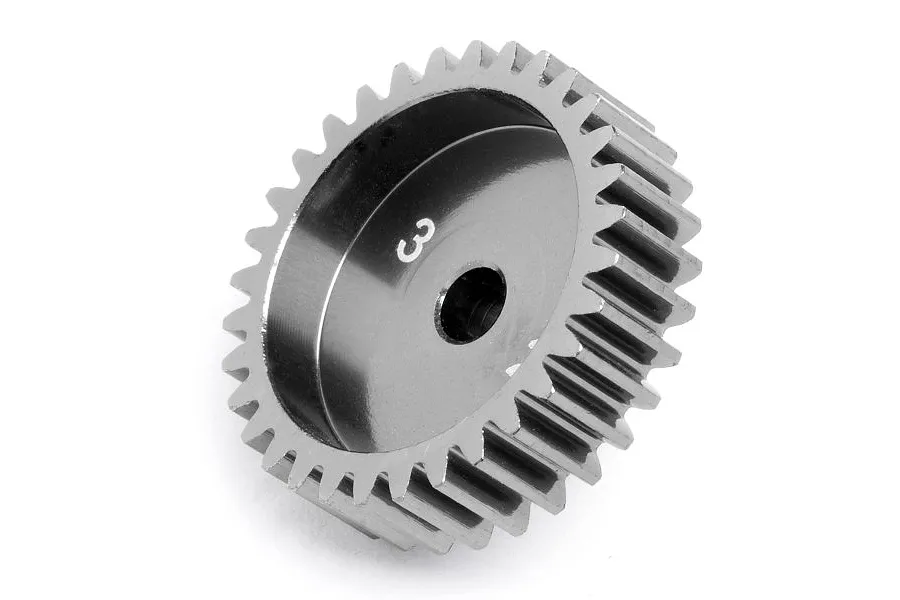

HPI E10 32T 0.6Mod Pinion Gear
Learn how to set your gear mesh correctly to increase reliability and avoid stripping gears out prematurely due to an over-tight or loose gear mesh.
Optional tuning gear for the E10. A lower tooth count on the pinion gear will give you more acceleration, while a higher tooth count will give you extra top speed. Have a selection of pinion gears available so you can tune the speed of your car as desired!
Note: not compatible with 48-pitch and 64-pitch spur gears. A full selection of 0.6M pinion gears are available to tune the gearing of your E10 for any track type: #88020 PINION GEAR 20 TOOTH (0.6M) #88021 PINION GEAR 21 TOOTH (0.6M) #88023 PINION GEAR 23 TOOTH (0.6M) #88024 PINION GEAR 24 TOOTH (0.6M) #88025 PINION GEAR 25 TOOTH (0.6M) #88026 PINION GEAR 26 TOOTH (0.6M) #88027 PINION GEAR 27 TOOTH (0.6M) #88028 PINION GEAR 28 TOOTH (0.6M) #88029 PINION GEAR 29 TOOTH (0.6M) #88030 PINION GEAR 30 TOOTH (0.6M) #88031 PINION GEAR 31 TOOTH (0.6M) #88032 PINION GEAR 32 TOOTH (0.6M) #88033 PINION GEAR 33 TOOTH (0.6M) #88034 PINION GEAR 34 TOOTH (0.6M) #88035 PINION GEAR 35 TOOTH (0.6M)
| Pinion & Spur Gear | |
|---|---|
| Pitch: | 0.6Mod |
| Tooth Count: | 32Tooth |
| For Shaft Diameter (mm): | 3.175 (1/8")mm |
| Gear Type: | Pinion |
