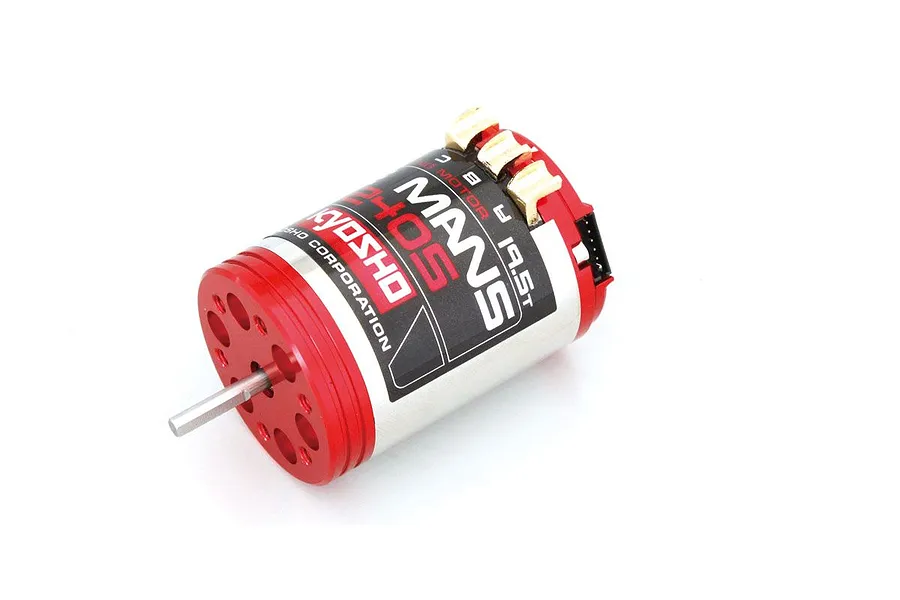

Kyosho 540 Size 19.5T LE MANS 240S Brushless Motor
Kyosho 540 Size 19.5T LE MANS 240S Brushless Motor
Brand:
Kyosho
|
MPN: 37031
This product has been replaced by the product below.
Compatible with
43 products.
See Compatibility
Recommended Products
Related Products
Description
Sensored brushless 19.5T motor in the style of the legendary LeMans 240S.
Specifications
-
Turns
- 19.5T
-
Operating Voltage
- 1-3S / 12.6V
-
RPM @ 7.4V
- 19092
-
KV (RPM/V)
- 2580
-
Max Current
- 33A
-
Max Power
- 280W
-
Efficiency
- 89%
-
Weight
- 172g
-
Motor Diameter
- 35.8mm
-
Motor Length
- 51.2mm
-
Shaft Length
- 15mm
-
Shaft Diameter
- 3.175mm
Motor
-
Type
- Brushless
-
KVRPM (Revolutions Per Minute) per Volt
- 2580KV
-
LengthLength of the motor can in mm
- 51.2mm
-
DiameterDiameter of the motor can
- 35.8mm
-
Shaft Diameter
- 3.175 (1/8")mm
-
TurnsTurns affect speed and torque: low = fast, high = strong
- 19.5
