Kyosho Electronics set with 2.4Ghz 3ch Transmitter, Receiver, ESC and Servo

Kyosho Electronics set with 2.4Ghz 3ch Transmitter, Receiver, ESC and Servo

Videos

Kyosho Electronics set with 2.4Ghz 3ch Transmitter, Receiver, ESC and Servo

Brand: Kyosho | MPN: 82145
sold out
$184.43
or 4 fortnightly payments of $46.11 with Afterpay

Kyosho electronics starter pack with 2.4GHz 3-channel transmitter, KSS gyro receiver, 60A ESC, and waterproof steering servo for electric R/C cars.

  • Complete electronics starter pack: 2.4GHz 3-channel transmitter, gyro receiver, ESC, and steering servo
  • KSS (Kyosho Stability System) built into receiver for beginner-friendly stability control
  • 60A ESC compatible with both Ni-MH and Li-Po batteries
  • Waterproof servo with 6.0kg·cm torque
Add to Wishlist
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Description

This starter pack includes the key R/C components in a single set, making it easier and cost-effective for newcomers to R/C cars. The 2.4GHz transmitter and receiver automatically manage frequency bands across multiple cars and combine with an ESC and steering servo to deliver optimal control and powerful running performance.

Control stability is further enhanced with the KSS (Kyosho Stability System), which detects imbalances in vehicle posture and automatically corrects with steering and throttle to support beginner drivers in maintaining stable manoeuvrability. Only a battery for the chassis, 4 x AA size batteries for the transmitter, and a brushed motor are required to get up and running.

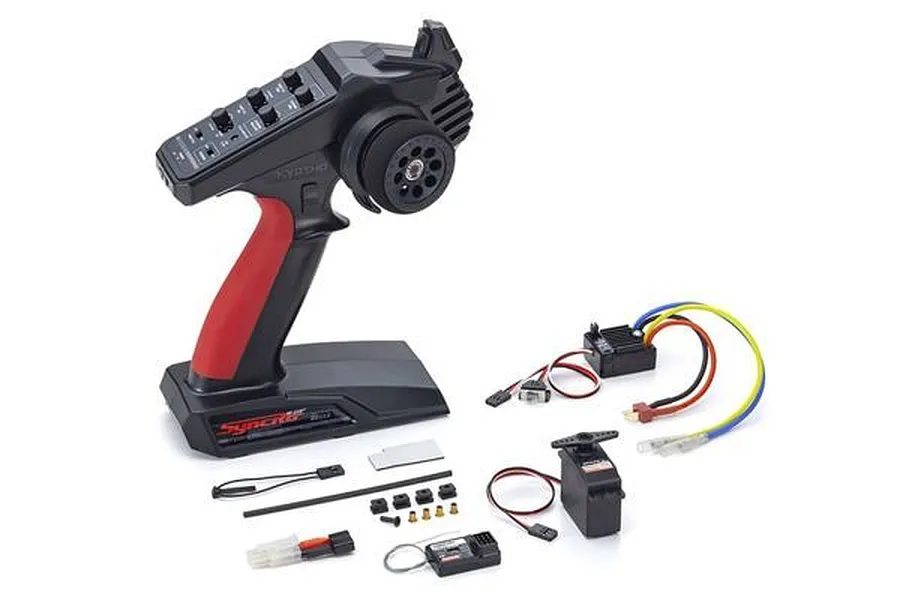

Transmitter Receiver Servo ESC Bundle
Transmitter Receiver Servo ESC Bundle

This starter pack includes key R/C components: a 2.4GHz transmitter, receiver with built-in gyro, steering servo, and 60A ESC.

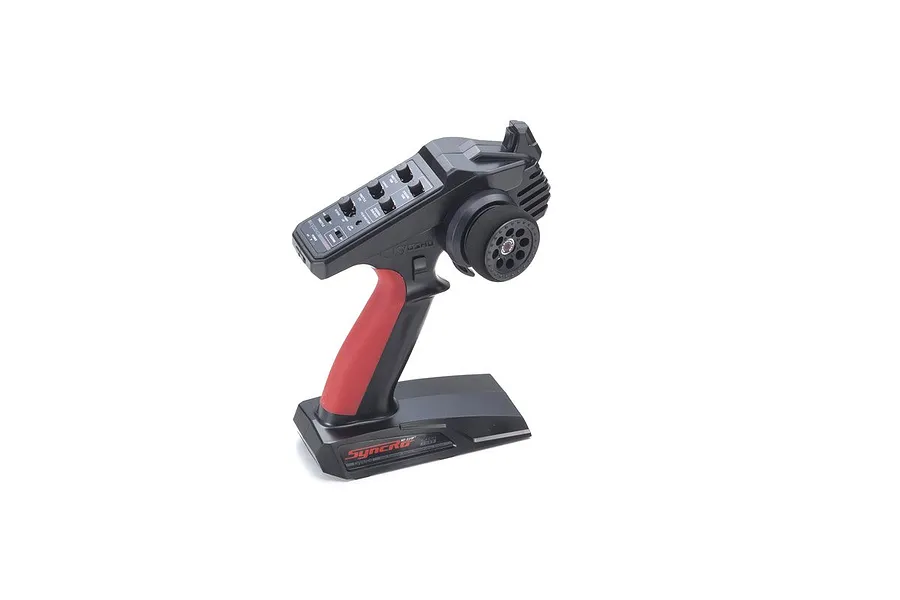

KT-231P+ 2.4GHz Transmitter
KT-231P+ 2.4GHz Transmitter

The 3-channel KT-231P+ transmitter operates on 2.4GHz and features non-stepped adjustment for throttle trim, steering trim, throttle endpoint, and steering D/R.

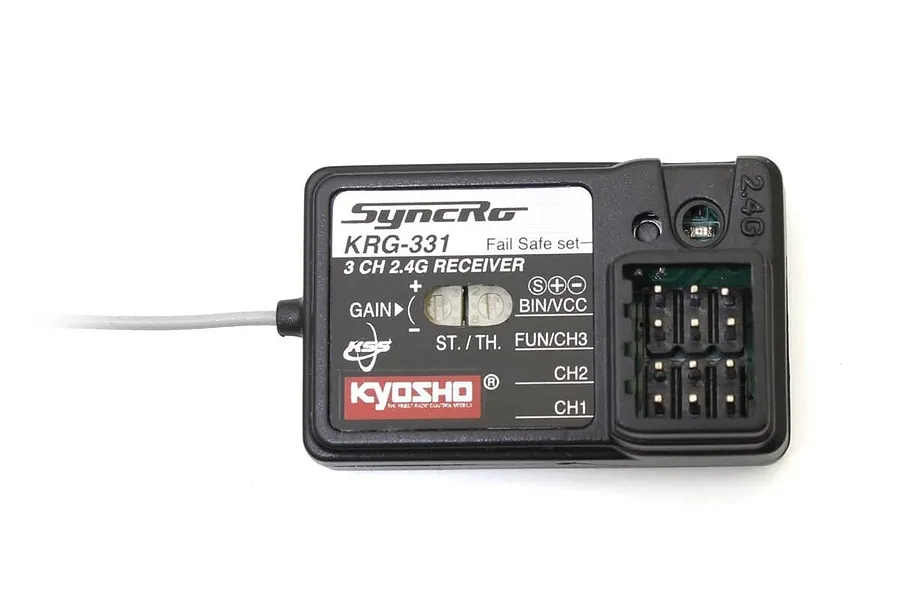

KRG-331 Gyro Stability Receiver
KRG-331 Gyro Stability Receiver

The KRG-331 receiver with built-in gyro features the KSS (Kyosho Stability System), which straightens driving lines on slippery or uneven roads.

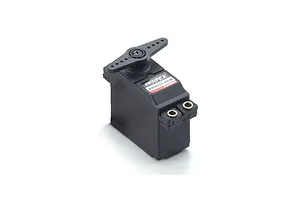

KS4081-06W Waterproof Steering Servo
KS4081-06W Waterproof Steering Servo

The KS4081-06W waterproof servo delivers fast response speed and sharp steering characteristics.

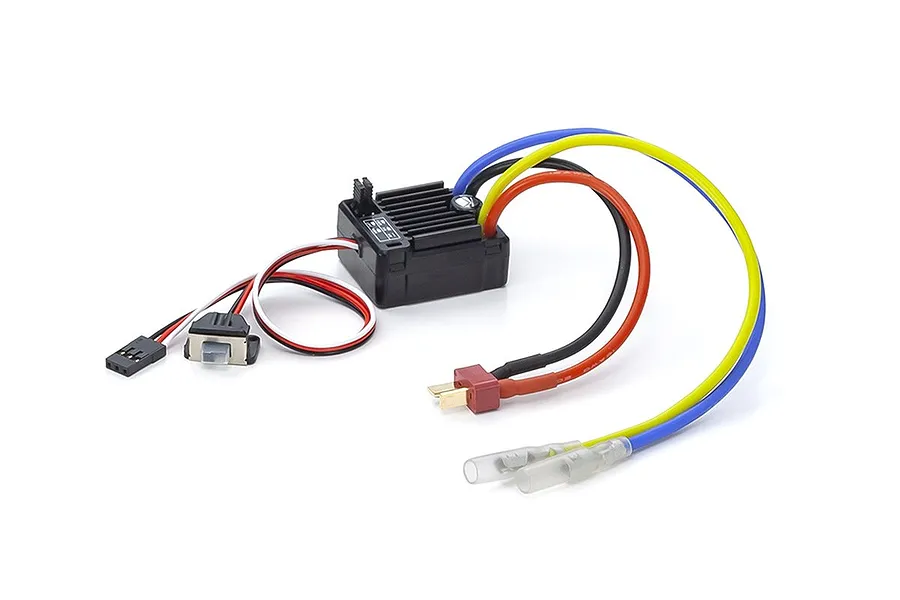

60A Dual-Chemistry Speed Controller
60A Dual-Chemistry Speed Controller

The large 60A capacity KYOSHO SPEED HOUSE ESC supports three operation modes and is compatible with both Ni-MH and Li-Po batteries.

Features
  • Transmitter KT-231P+: 3-channel, 2.4GHz, no frequency band control required. Non-stepped adjustment for Throttle Trim, Steering Trim, Throttle Endpoint Adjust, and Steering D/R Adjuster. Requires 4 x AA size alkaline batteries.
  • Receiver KRG-331: Built-in gyro with KSS (Kyosho Stability System) — straightens driving lines on slippery or uneven roads, prevents spinouts during cornering, and includes a traction correction function for higher corner exit speeds. Correction rate is user-adjustable.
  • Servo KS4081-06W: Waterproof steering servo with fast response speed. Speed: 0.15sec/60°, Torque: 6.0kg·cm.

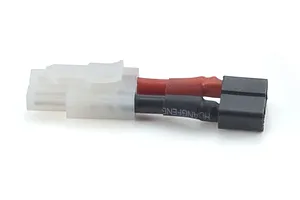

  • ESC: Large 60A capacity Kyosho Speed House ESC. Supports Forward/Brake/Backward, Forward/Brake, and Forward/Backward operation modes. Compatible with Ni-MH and Li-Po batteries. Includes battery conversion connector (T connector to super plug).
Included Items
  • 1x KT-231P Transmitter
  • 1x KRG-331 Gyro Receiver
  • 1x KS4031-06W Servo
  • 1x 60A ESC
Videos
Specifications
Channels
3
Frequency
2.4GHz
Modulation System
FHSS telemetry system
Transmitter Size
W105mm x L175mm x H230mm
Receiver Size
W37.9mm x L22.5mm x H13mm
Transmitter Weight
390g / Receiver Weight: 5.7g
ESC Power Source
2–3S Li-Po / 5–9 cell Ni-MH
ESC Continuous Current
60A
Range
100m

Transmitter
Channels
3Ch
Layout
Pistol
Operating Frequency
2.4Ghz
Telemetry Capable
No
Programmable Failsafe
Yes
