Kyosho

Kyosho Mini-Z 2018 Mercedes-AMG GT3 Nurburgring RC Car Electric RWD RTR - HTP Motorsport No.47

  • RTR
  • Brushed

Part no. 32338FRS

Sold outNo reviews yet
1 / 7
1 / 7

Videos

$287.78

or 4 fortnightly payments of $71.94 with afterpay or PayPal, or zip

Kyosho Mini-Z RWD 2018 Mercedes-AMG GT3 Nurburgring HTP Motorsport No.47 — MR-03 RWD chassis, Syncro KT-531P transmitter, 17km/h top speed, RTR.

  • MINI-Z RWD MR-03 chassis with new circuit board and improved control program
  • Syncro KT-531P transmitter with steering/throttle trim, dual rate, LED control, and Training Mode
  • Highly detailed, fully factory-finished display-standard body
  • Full ball bearing specifications (7 bearings)
  • Compatible with all MINI-Z Racer body styles and optional gyro unit (MZW446)

Part Support

Replacement & upgrade parts that fit this model

Videos

Overview

With just 8 x AAA-size batteries, the MINI-Z Racer allows anyone to enjoy the style and performance of R/C cars. Kyosho has renewed the MINI-Z Racer Sports MR-03 concept with the MINI-Z RWD series. The set includes the Syncro KT-531P transmitter with steering trim, throttle trim, dual rate, and LED control function. The included car body is finished to display-model standard. A new control program on the circuit board provides linear handling characteristics and can be further enhanced by installing the optional gyro unit (MZW431). The front tread can be set to either narrow or wide by replacing the front lower and upper plates and steering tie rod; wheelbase can still be adjusted to suit certain body types (wheelbase change requires optional parts).

Note

Syncro KT-531P transmitter uses FHSS 2.4GHz and is not compatible with existing ASF/MHS/FHS 2.4GHz systems.

Features

  • New series includes the newly developed Syncro KT-531P transmitter with multiple setting options
  • New circuit board with newly developed control program realizes dramatically improved steering feel
  • Highly detailed display-standard body is fully factory finished
  • Full ball bearing specifications include 7 bearings
  • Compatible with all MINI-Z Racer body styles (motor case and diff gear assembly to suit body required, purchased separately)
  • Front suspension incorporates VCS that optimizes camber angle with suspension stroke
  • Compatible with optional gyro unit (MZW446); gyro sensitivity adjustable by volume dial on chassis
  • Settings can be adjusted from the transmitter if using KT-432PT transmitter (sold separately)
  • Transmitter includes Training Mode which limits speed of the car for easy learning

In the box

  • 1x Factory assembled chassis
  • 1x Pre-painted plastic body, complete with markings
  • 1x 2.4GHz Perfex KT-531P transmitter
  • 1x Front tread adjustment parts set
  • 1x Pinion gears 6T, 7T, 8T, 9T
  • 1x Wheel wrench
  • 1x Pinion gear tool
  • 1x Spare nuts set
  • 1x Mini pylons

You'll need

  • 4 x AAA Batteries for transmitter
  • 4 x AAA Batteries for chassis

Highlights

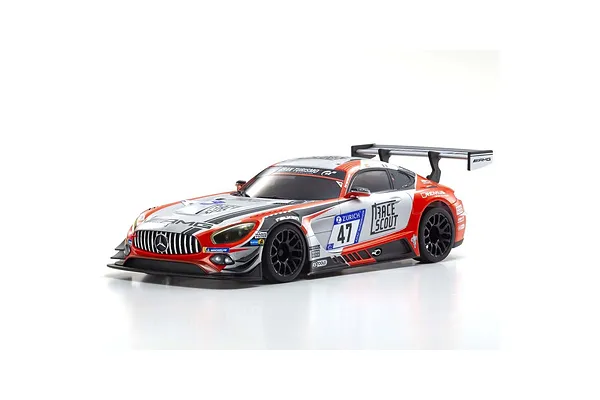

Mercedes-AMG GT3: Nürburgring Endurance Racer

Mercedes-AMG GT3: Nürburgring Endurance Racer

The Mercedes-AMG GT3, fielded by HTP Motorsport in the grueling 2018 Nürburgring 24-hour race, is faithfully recreated in miniature form. This model captures the car's distinctive long-nose design and aerodynamic elements, showcasing its impressive performance and endurance racing pedigree.

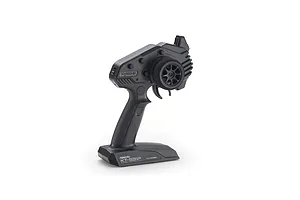

Syncro KT-531P Transmitter

Syncro KT-531P Transmitter

The included Syncro KT-531P transmitter boasts a stylish design and packs a punch with features: fine-tune your car's handling with steering and throttle trim, adjust steering sensitivity with dual-rate adjustment, and customise the flashing speed of optional LEDs. Plus, the built-in Training Mode limits the car's speed, making it perfect for beginners to learn the ropes safely - it's even activated by default!

Upgrade-Ready MR-03 Chassis

Upgrade-Ready MR-03 Chassis

The RWD chassis is based on the proven MR-03 platform. Enhance your control with the optional Gyro Unit (MZW446 - sold separately), further customising your Mini-Z for optimal performance.

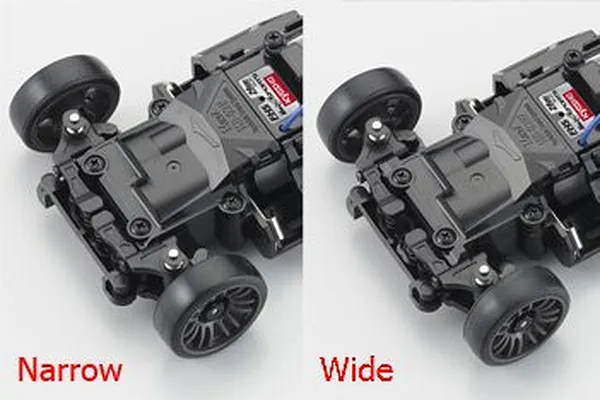

Adjustable Wheel Offset

Adjustable Wheel Offset

The tread can be set to narrow or wide by changing steering tie rods on front lower and upper plates, and the wheelbase can also be changed to suit body styles. (Changing requires parts to be purchased separately).

Extensive Customisation Options

Extensive Customisation Options

Enhance your Mini-Z experience with a wide array of optional parts designed for the MR-03 chassis. Upgrade your machine to match your skill level, unlocking even greater performance and personalisation.

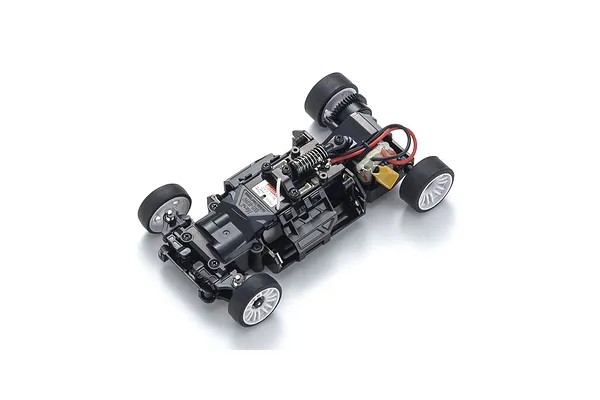

Kyosho Mini-Z Mercedes-AMG GT3 product photo (angle 3)

Kyosho Mini-Z Mercedes-AMG GT3 product photo (angle 3)

Highly detailed display-standard body is fully factory finished.

Kyosho Mini-Z Mercedes-AMG GT3 product photo (angle 4)

Kyosho Mini-Z Mercedes-AMG GT3 product photo (angle 4)

Highly detailed display-standard body is fully factory finished.

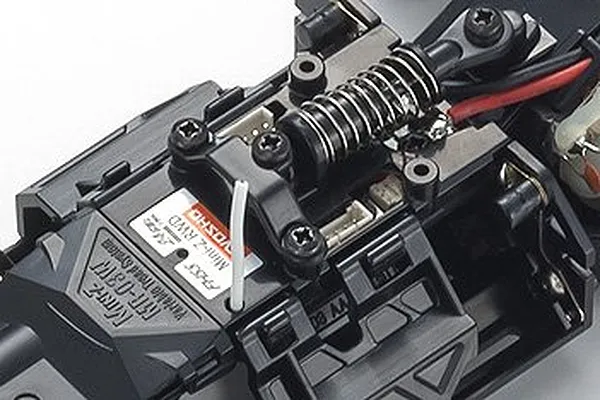

Kyosho Mini-Z Mercedes-AMG GT3 product photo (angle 5)

Kyosho Mini-Z Mercedes-AMG GT3 product photo (angle 5)

Highly detailed display-standard body is fully factory finished.

Kyosho Mini-Z Mercedes-AMG GT3 product photo (angle 6)

Kyosho Mini-Z Mercedes-AMG GT3 product photo (angle 6)

Highly detailed display-standard body is fully factory finished.

Kyosho Mini-Z Mercedes-AMG GT3 product photo (angle 1)

Kyosho Mini-Z Mercedes-AMG GT3 product photo (angle 1)

The set includes a car body finished to display-model standard that matches stunning style with the performance, reliability and durability of the MR-03 chassis.

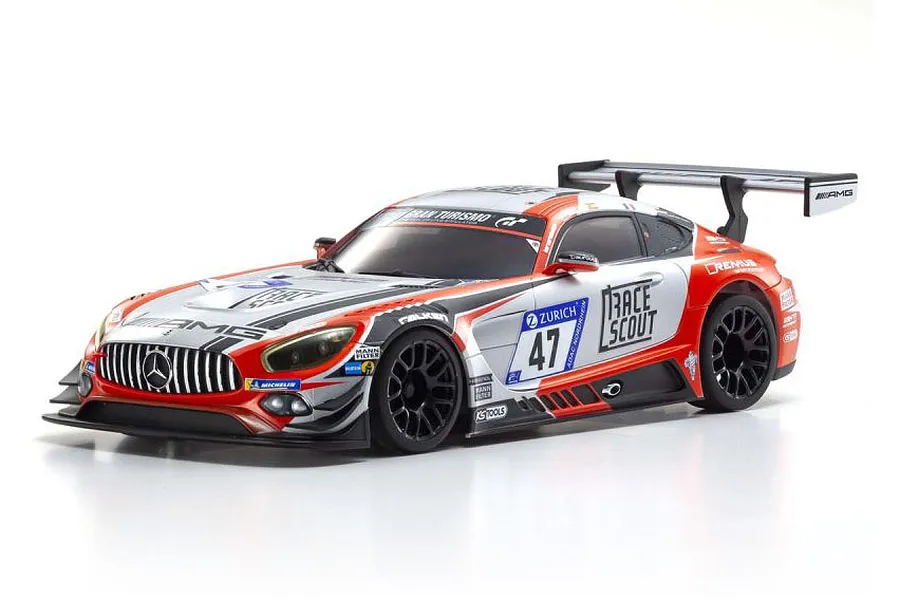

Kyosho Mini-Z Mercedes-AMG GT3 product photo (hero/main)

Kyosho Mini-Z Mercedes-AMG GT3 product photo (hero/main)

The set includes a car body finished to display-model standard that matches stunning style with the performance, reliability and durability of the MR-03 chassis.

Specifications

DrivetrainRWD
Motor MountMM
Radio SystemSyncro KT-531P
Top Speed17km/h
Chassis TypeMR-03
Length177mm (6.96")
Width78mm (3.30")
Height47.5mm (1.87")
Wheelbase98mm (3.85")
Weight130g (0.286 lbs)
Front Tread67.5mm (2.65") | Wheel Offset: +3mm
Rear Tread65mm (2.55") | Wheel Offset: +3mm

RC Car

ScaleMini-Z
CompletionReady to Run
Skill LevelBeginner
Power SourceElectric Brushed
Chassis TypeCar
On/Off RoadOn Road
DrivetrainRWD

Factory Specs

Battery ConnectorAAA
Pinion Gear6T, 7T, 8T, 9T
