Name: Kyosho Mini-Z Toyota 86 RC Car Electric RWD RTR - Pearl White
Brand: Kyosho
SKU: KYO-32336PW
Price: 278.31 AUD
Availability: OutOfStock

Overview

The MINI-Z RWD series is a Rear-Wheel Drive design that emphasises superior handling paired with the Syncro KT-531P Transmitter. With just 8 x AAA-size batteries, the MINI-Z Racer allows anyone to enjoy the beautiful style and advanced performance of R/C cars. First launched in 2013, Kyosho renewed the MINI-Z Racer Sports MR-03 concept to be even more user-friendly and appealing to more drivers with the MINI-Z RWD series.

Still popular even today, the spirit of the Corolla Levin and Sprinter Trueno AE86 (nicknamed Hachi-Roku) was captured in the 2012 release of the Toyota 86. The unique 'low', 'fun', and 'beautiful' aspects of sports cars have been reproduced in the functional beauty of MINI-Z size. The set includes a car body finished to a display-model standard that matches stunning style with the performance, reliability and durability of the MR-03 chassis. This series represents the perfect package for a deep dive into the amazing world of R/C cars.

Note

Syncro KT-531P transmitter uses FHSS 2.4GHz and is not compatible with existing ASF/MHS/FHS 2.4GHz systems.

Features

Newly developed Syncro KT-531P transmitter with multiple setting options including steering/throttle trim, dual rate, LED control function, and Training Mode
New circuit board with newly developed control program realizes dramatically improved steering feel and linear handling characteristics
Highly detailed display-standard body is fully factory finished
Full ball bearing specifications include 7 bearings, previously an optional upgrade
Compatible with all MINI-Z Racer body styles (motor case and diff gear assembly to suit body required, purchased separately)
Front suspension incorporates VCS (Variable Camber Suspension) that optimizes camber angle with suspension stroke
Compatible with optional gyro unit (MZW431) — gyro effect volume adjustable on chassis; settings adjustable from transmitter if using KT-432PT (sold separately)

In the box

1x Factory assembled chassis
1x Pre-painted plastic body, complete with markings
1x 2.4GHz Perfex KT-531P 2.4GHz transmitter
1x Front tread adjustment parts set
1x Front suspension adjustment spacers
1x Pinion gears 6T, 7T, 8T, 9T
1x Wheel wrench
1x Pinion gear tool
1x Spare nuts
1x Pairing stick
1x Tyres and wheels
1x Mini pylons

You'll need

4 x AAA Alkaline/Ni-MH Batteries (for car)
4 x AAA Alkaline Batteries (for transmitter)

Highlights

Toyota 86: Capturing the Hachi-Roku Spirit

The 2012 Toyota 86, a spiritual successor to the legendary AE86 Corolla Levin and Sprinter Trueno, embodies the essence of a true sports car: low, fun, and beautiful. This meticulously detailed Mini-Z model captures the 86's functional beauty and exhilarating driving experience in miniature form.

Syncro KT-531P Transmitter

The included Syncro KT-531P transmitter boasts a stylish design and packs a punch with features: fine-tune your car's handling with steering and throttle trim, adjust steering sensitivity with dual-rate adjustment, and customise the flashing speed of optional LEDs. Plus, the built-in Training Mode limits the car's speed, making it perfect for beginners to learn the ropes safely - it's even activated by default!

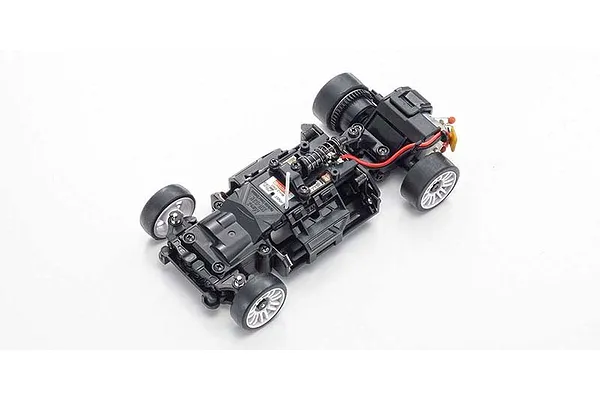

Upgrade-Ready MR-03 Chassis

The RWD chassis is based on the proven MR-03 platform. Enhance your control with the optional Gyro Unit (MZW446 - sold separately), further customising your Mini-Z for optimal performance.

Customisable Wheelbase and Tread Width

Tailor your Mini-Z to perfection with adjustable wheelbase and tread width options. By simply replacing the front lower and upper plates and steering tie rod (optional parts sold separately), you can switch between narrow and wide treads to suit your driving style and track conditions. Fine-tune your Mini-Z's handling and achieve the ultimate driving experience.

Extensive Customisation Options

Enhance your Mini-Z experience with a wide array of optional parts designed for the MR-03 chassis. Upgrade your machine to match your skill level, unlocking even greater performance and personalisation.

Pre-Painted Display-Standard Body

The MINI-Z RWD Toyota 86 features a pre-painted body finished to display-model standard, matching stunning style with performance and durability.

Improved Steering Circuit Board

The new circuit board with newly developed control program realises dramatically improved steering feel on the MR-03 RWD chassis.

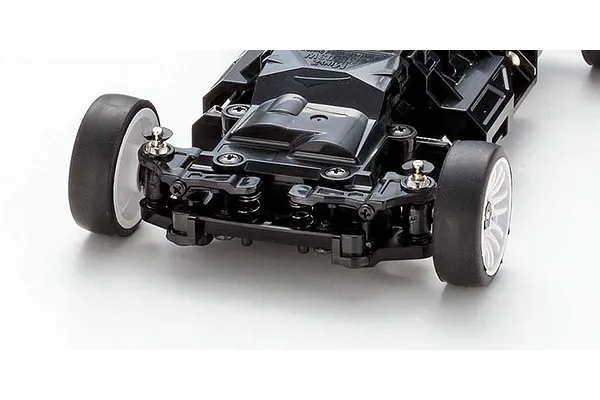

Full Ball Bearing Suspension

Full ball bearing specifications include 7 bearings, and the front suspension incorporates VCS that optimises camber angle with suspension stroke.

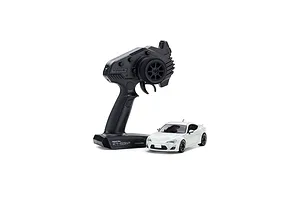

Kyosho Mini-Z Toyota 86 – Syncro KT-531P transmitter

The Syncro KT-531P transmitter includes steering trim, throttle trim, dual rate, LED control, and a Training Mode that limits car speed for easy learning.

Specifications

Length	162.0mm (6.37")
Width	70.8mm (2.78")
Height	48.5mm (1.91")
Wheelbase	94.0mm (3.7") L
Tread Front/Rear	59.5mm / 58.6mm (2.34" / 2.30")
Chassis	RWD (MR-03)
Motor Mount	RM
Front Wheel Offset	Narrow +1.5mm (0.059") for RWD
Rear Wheel Offset	Wide -0.8mm (0.031") for RWD
R/C System	Syncro KT-531P
