MST MGX Gyro
MST MGX Gyro
Brand:
MST
|
MPN: 841015
No longer made. In stock now: similar
$36.78
Compatible with
66 products.
See Compatibility
Alternative Products
Description

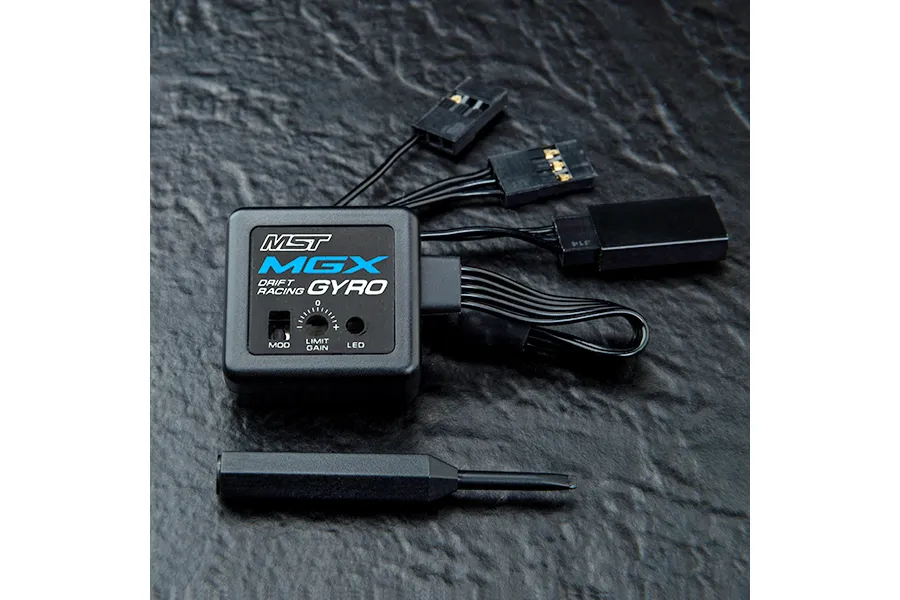

The MST MGX drifting gyro is an ultra-high-performance steering gyro suitable for a wide range of needs and players of all levels. It provides dual sensitivity mode (Normal / AVCS sensitivity) and supports EPA stroke setting and wireless sensitivity adjustment.
Features
- Super light-weight plastic case provides exceptional protection
- Reliable and high-performance gyroscope sensor
- Compact size allows simple and quick installation
- High voltage 2S LiPo capable
- Compatible with latest Futaba S.BUS2 protocol
- EPA feature for matching different scale cars
- Easy adjustment with dual gain modes of Normal / AVCS (Normal mode is recommended for RC drift)
- Fits on RC Drift / Racing cars
- Switchable for digital / analog servo
Included Items
- 1x MGX Gyro
Specifications
-
Operating Voltage
- 3.7 – 8.4V
-
Current Drain
- 20mA / 6V
-
Operating Temperature
- -10°C – +50°C
-
Input Signal
- PWM (50–333Hz) / SANWA SHR; SSR / FUTABA S.BUS2
-
Output Signal
- 1520µS (50Hz / 333Hz) / SANWA SSR
-
Control System
- PID Control System
-
Dual Mode Gain
- Normal / AVCS Mode
-
Shell Material
- ABS
-
Weight
- 10g
-
Dimensions
- 25.7 × 24.7 × 9.5mm
