RC Maker SP2 EP RC Touring Car Electric 4WD 1/10 Scale Kit - Carbon Fibre

1/10
4WD
Kit
Brushless

Part no. RCM-SP-0005

newSold outWrite a review

1 / 15

Videos

$1,149.95

or 4 fortnightly payments of $287.49 with afterpay

Take To The Track With The RC Maker SP2 1/10 Scale EP Touring Car Featuring A Precision 2.2mm Carbon Fibre Chassis Coaxial Shock Geometry And Optimised Suspension Kinematics

2.2mm Carbon Fibre Chassis Provides Ultra-Lightweight Balance
Coaxial XS Shock Geometry Lowers Unsprung Weight
Raised Motor Mount Optimises Dynamic Chassis Flex
Longer Suspension Arm Kinematics Increase Corner Speed
Great For Advanced Skill Levels Seeking Competition Touring Cars

Ordered 31 Jul · we're waiting on our supplier

Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

In stock now: similar

Videos

Overview

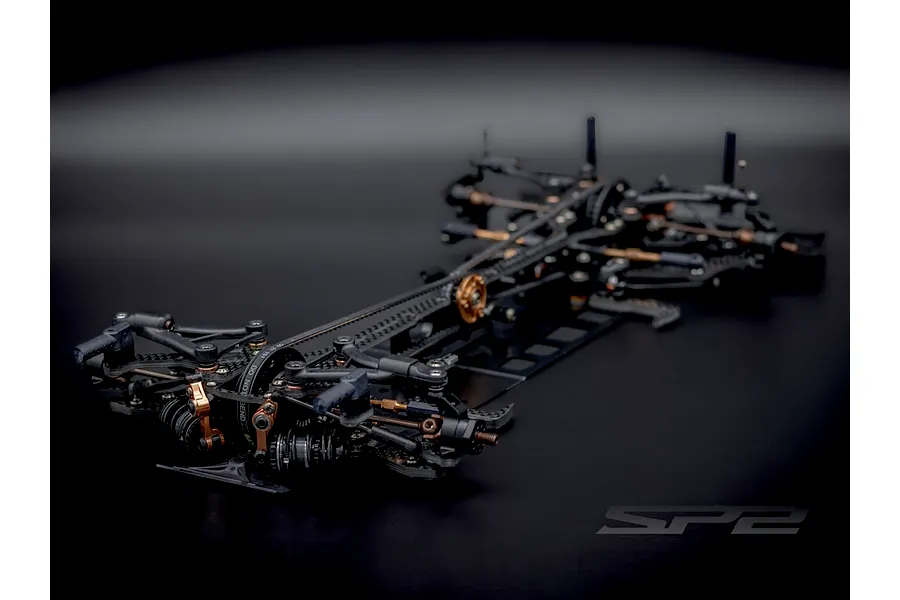

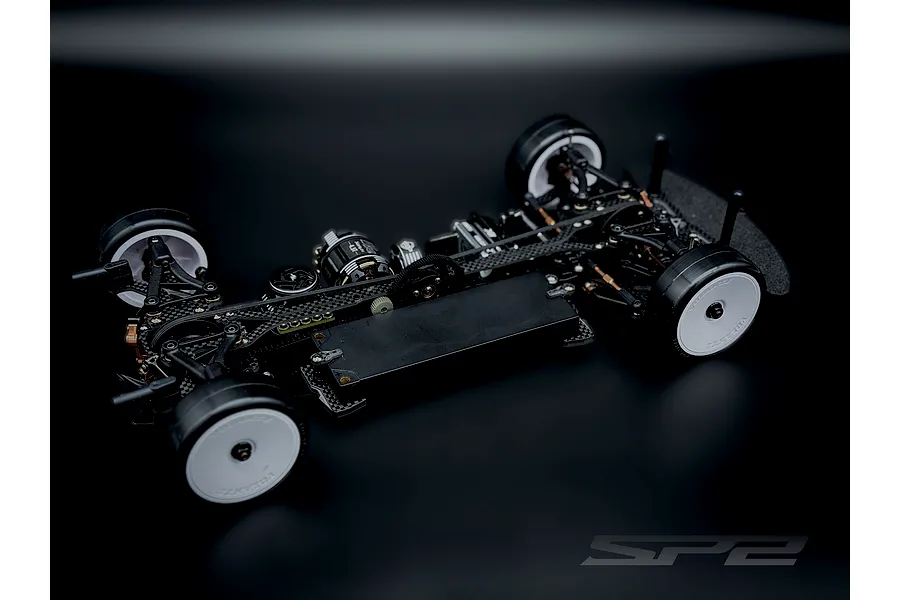

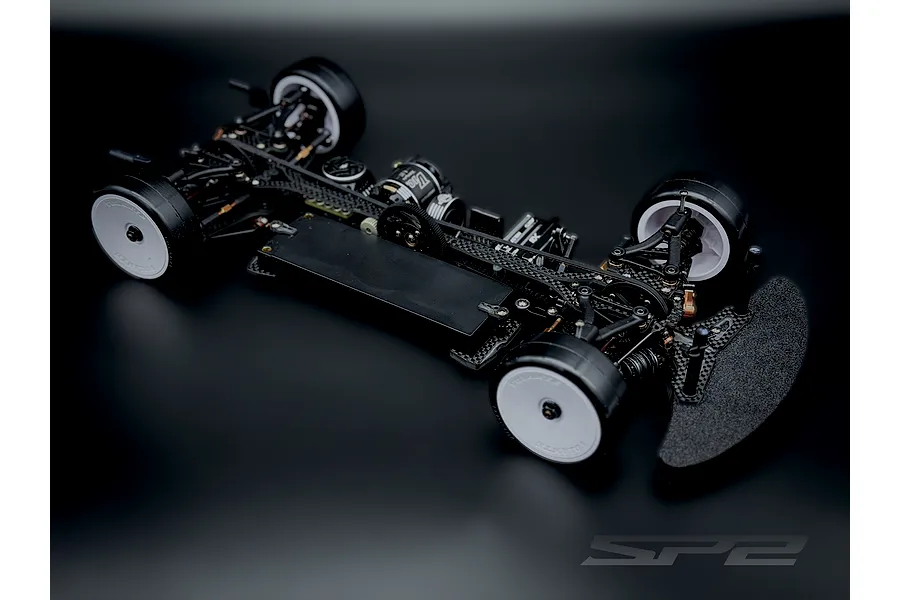

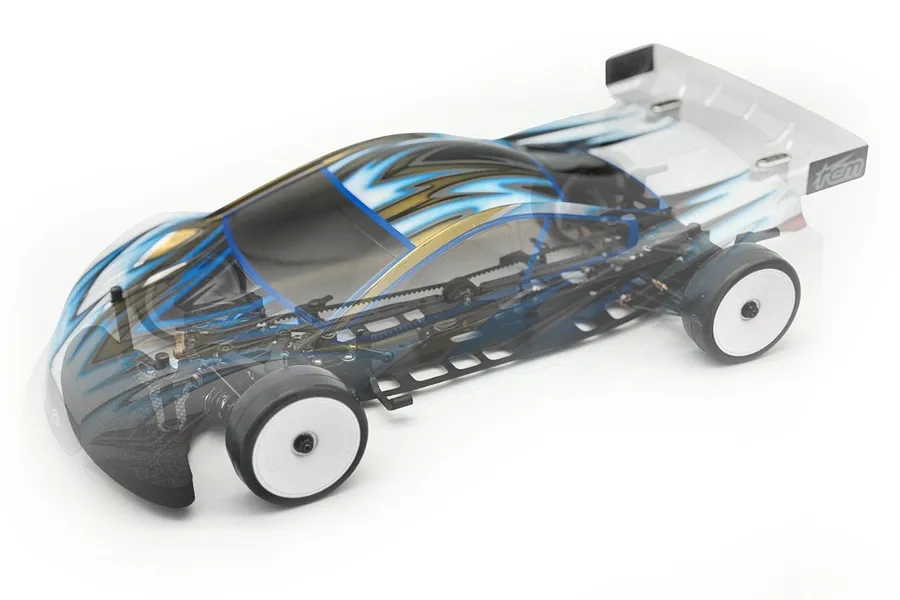

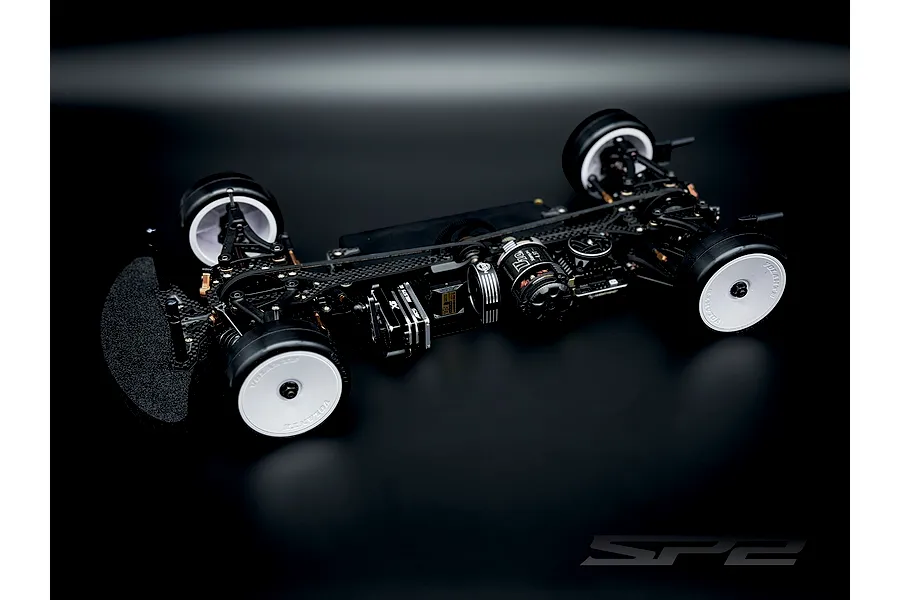

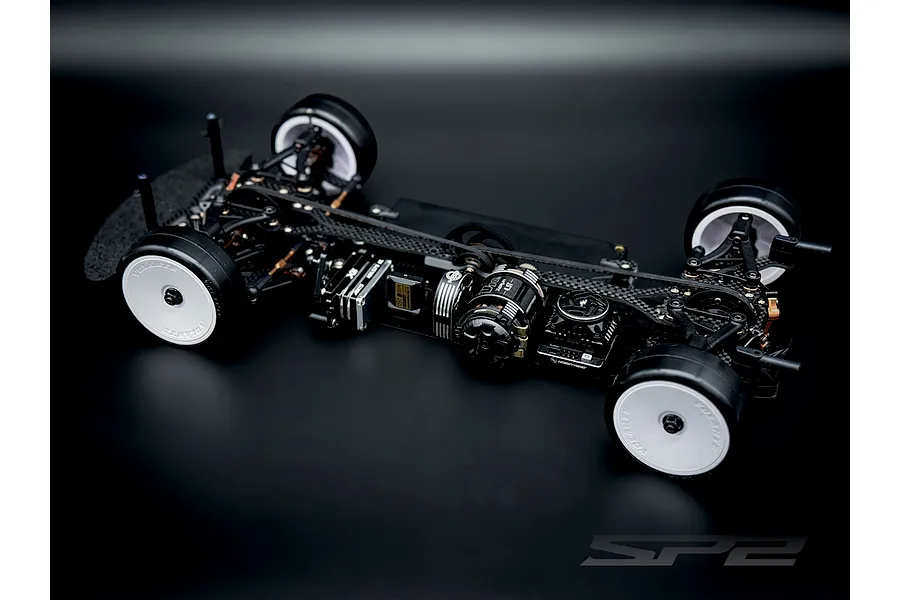

Designed for serious competition racers, the RC Maker SP2 EP RC Touring Car brings innovative engineering and refined handling dynamics to the 1/10-scale on-road racing scene. Built around a precision 2.2mm carbon fibre chassis platform weighing approximately 63g, this high-end competition kit incorporates brass front and rear centre weights to achieve optimal balance across high-grip track surfaces. Re-engineered from the ground up over 18 months of intensive development, the SP2 chassis combines low unsprung weight with centralised mass to deliver exceptional cornering stability and immediate steering response.

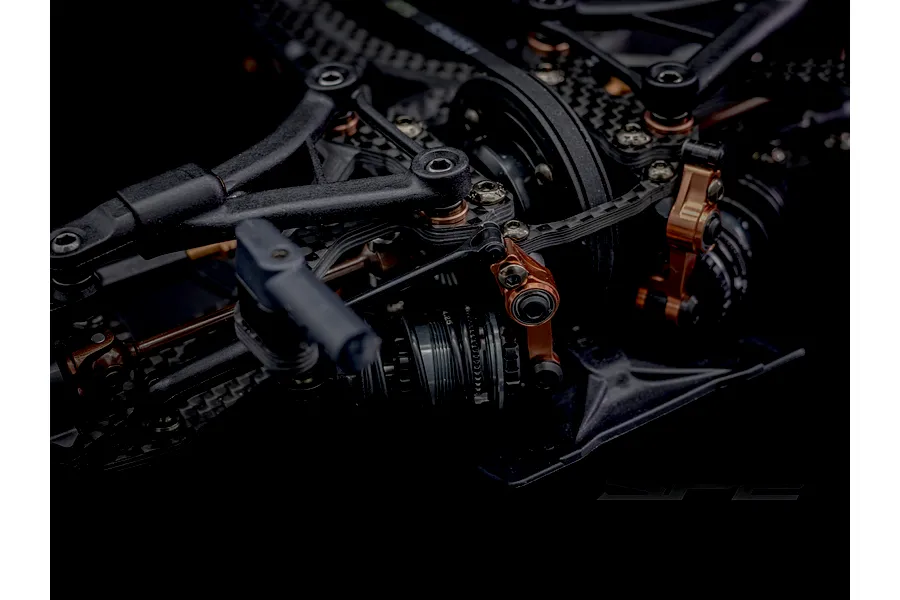

At the heart of the chassis architecture is a coaxial shock and pushrod geometry paired with XS shocks, fixing the shock body directly to the bulkhead to reduce friction and lower the overall centre of gravity. The drivetrain features a raised spool and differential layout, threaded aluminium diff halves, and a 0.5mm raised motor mount that improves chassis flex underneath the motor pocket. Equipped with 3mm longer suspension arms, an 8mm steering rack, ultra-lightweight ball-raced sway bars, and adjustable top deck flex tabs, this RC touring car offers extensive tuning capability for competitive track conditions. Just add your preferred electronics, motor, ESC, body shell, and wheels to build an elite racing machine.

Features

Competition 1/10 Scale EP RC Touring Car Kit
Lightweight 2.2mm Carbon Fibre Chassis Weighing Approximately 63g
Coaxial Shock And Pushrod Geometry Reduces Friction And Play
Compact XS Shocks And Springs Lower Unsprung Weight
3mm Longer Suspension Arms Mounted 6mm Closer For Speed
Raised Differential And Spool Position Improves Driveability
Motor Raised 0.5mm For Optimal Chassis Material Flex
Ball-Raced Lightweight Sway Bars Adjustable From Above

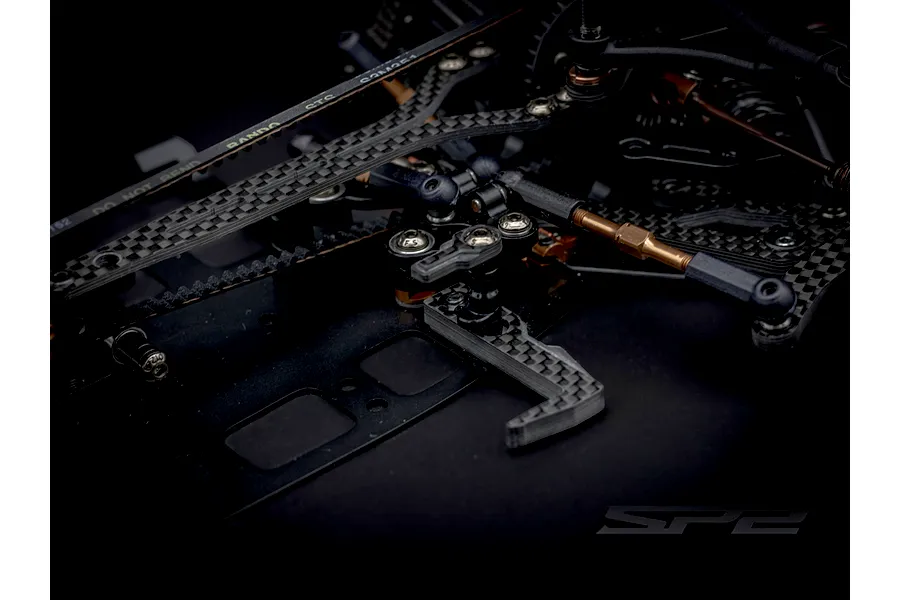

8.0mm Steering Rack With Low Centre Of Gravity Servo Mount
Includes Brass Centre Weights, Diff Tools And Sway Bars
Genuine RC Maker Product

In the box

1x RC Maker SP2 1/10 EP Touring Car Carbon Chassis Kit
1x Instruction and Set Up Manual
1x Differential Tool Set
1x 1.1mm Sway Bar Set
1x 4.25 Coil Shock Spring Pair
1x 4.50 Coil Shock Spring Pair

You'll need

1x 2-Channel Radio Transmitter & Receiver
1x Low-Profile Steering Servo
1x 1/10 Scale Brushless Motor & ESC Combo
1x 2S 7.4V Hardcase LiPo Battery Pack
1x Compatible LiPo Battery Charger
1x 1/10 Scale Touring Car Body Shell & Polycarbonate Paint
4x 1/10 Scale Touring Car Tyres & Wheels
1x Pinion Gear & Spur Gear
1x LiPo Safe Bag

Highlights

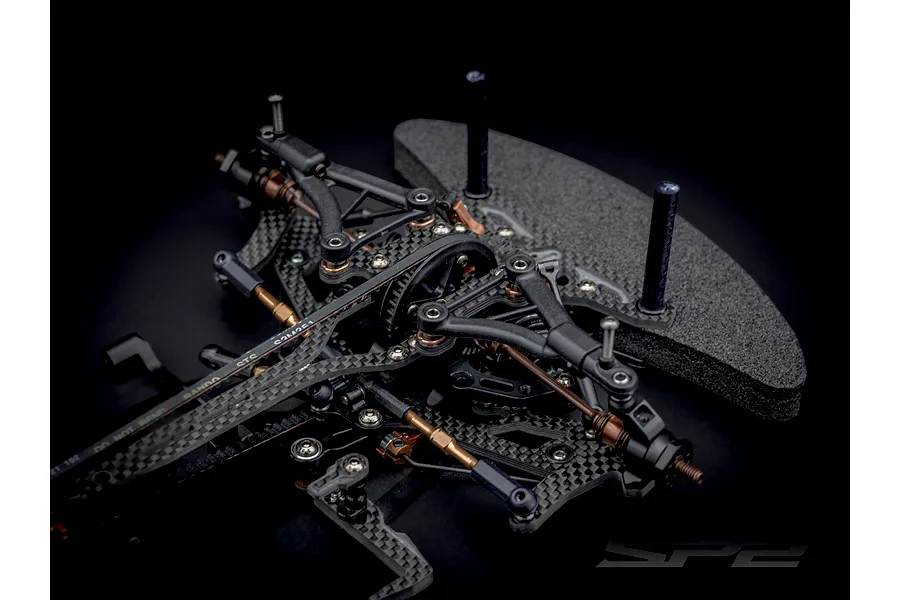

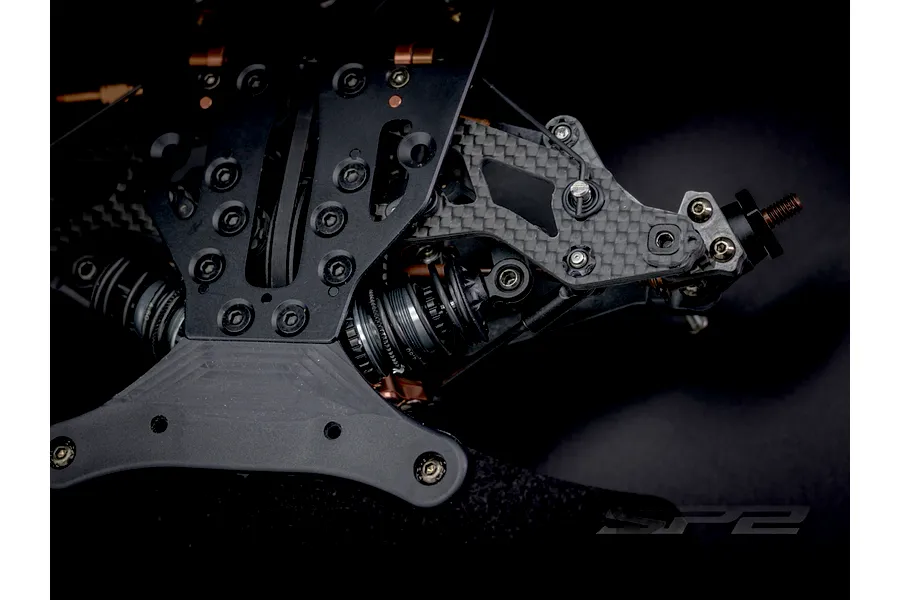

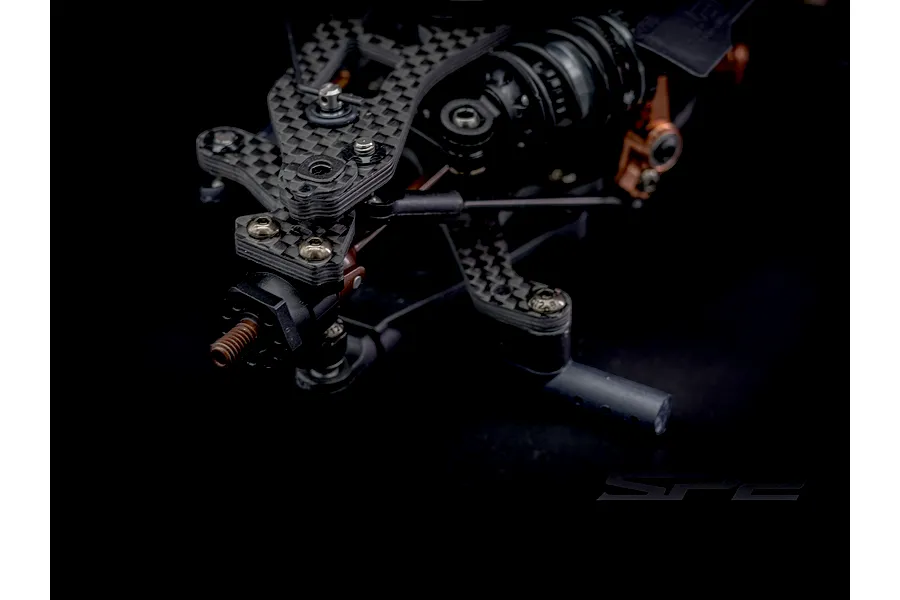

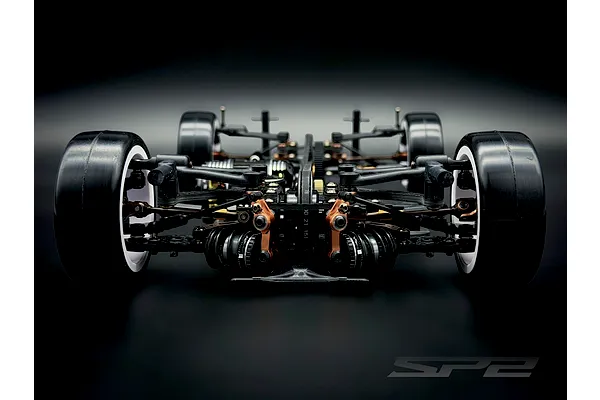

Coaxial XS Suspension System

Smooth shock performance and razor-sharp cornering response. Featuring XS shocks and springs, coaxial pushrod geometry, and 3mm longer suspension arms with closer mounting points, this setup reduces unsprung weight while offering fast slider rocker adjustments for precise track tuning.

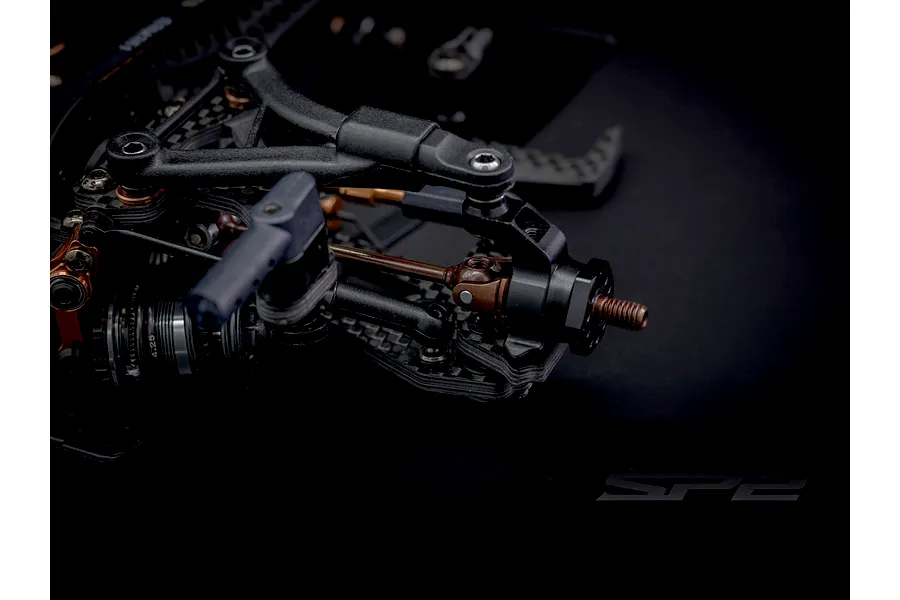

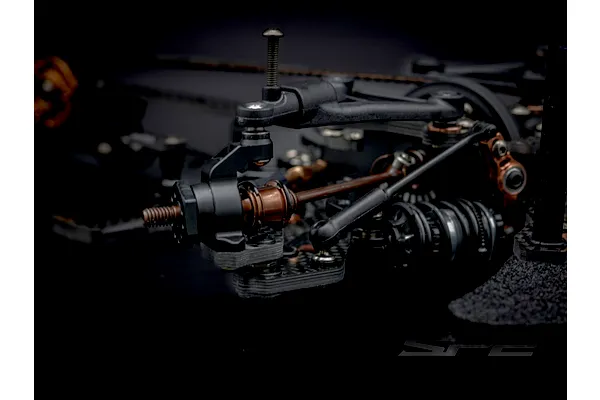

Precision Steering & Low-CG Hubs

Carve through tight technical corners with an aggressive steering response. Lowered axle heights widen your setup window, while oversized 6x11x4mm inner bearings deliver long-lasting durability and minimal play across all track surface

Optimised Chassis Flex & Bulkheads

Unlock higher corner speed with re-engineered bulkheads and a raised motor mount. Featuring a 4mm raised top deck and elevated diff position, the architecture provides progressive chassis flex and maximum clearance for higher roll centres.

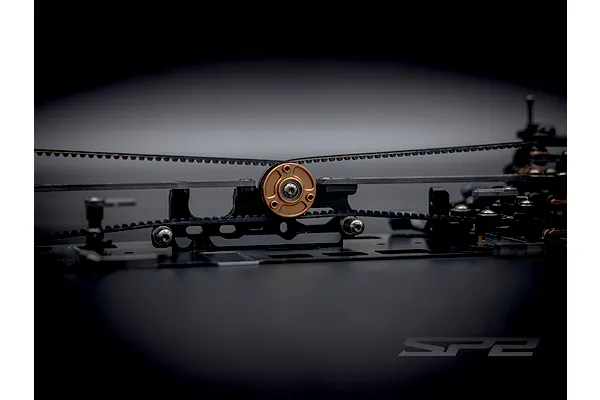

Low-Friction Race Drivetrain

Put down power cleanly with hardened outdrives and threaded aluminium diff halves. Larger driveshaft bearings eliminate the need for couplers, lowering rolling resistance and keeping drivetrain operation silky smooth under high loads.

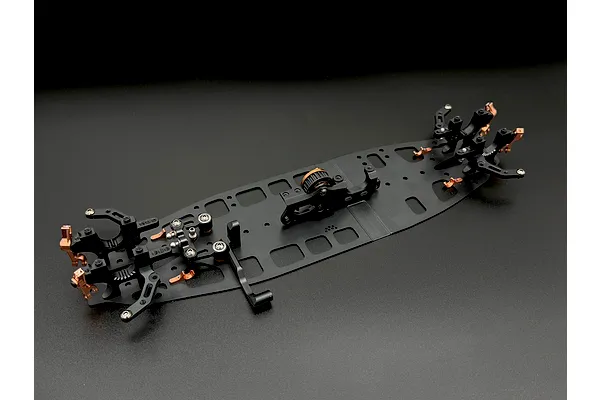

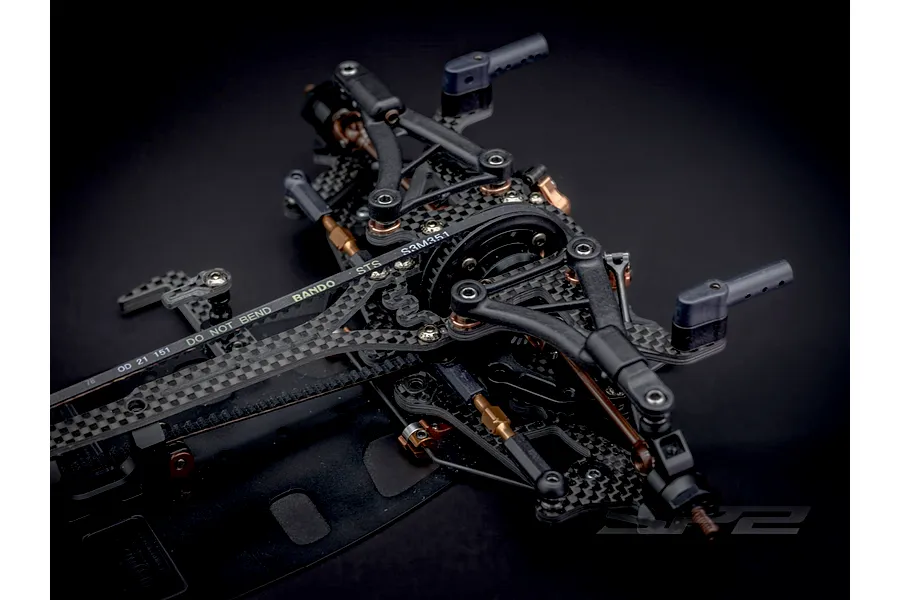

Lightweight 2.2mm Carbon Chassis

Built on a 2.2mm carbon fibre plate weighing just 63 grams, this kit provides a lightweight footprint designed to eliminate corner scrubbing. Included brass front and rear centre weights allow easy balance tuning to hit minimum weight limits effortlessly.

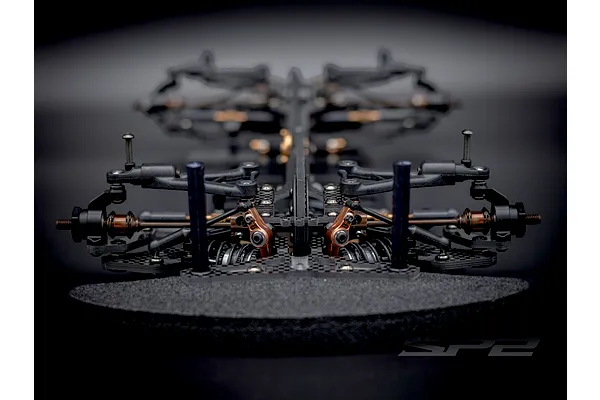

Low-CG Bumper & Split Body Mounts

Maintain optimal handling balance with a low-centre-of-gravity front bumper assembly and split rear body mounts. Integrated bulkhead stoppers allow quick bumper removal without interrupting natural chassis flex during hard cornering.

Specifications

Scale	1/10
Length	N/A
Width	N/A
Height	N/A
Wheelbase	257mm (10.12")
Weight	N/A
Chassis	2.2mm Carbon Fibre
Suspension	Four-Wheel Independent Coaxial Pushrod Suspension
Drivetrain	Dual Belt-Driven 4WD
Motor	Not Included
ESC	Not Included

RC Car

Scale	1/10
Max LiPo Power	2S (7.4v)
Completion	Kit
Skill Level	Intermediate, Experienced
Power Source	Electric Brushless
Chassis Type	Touring Car
On/Off Road	On Road
Drivetrain	4WD
