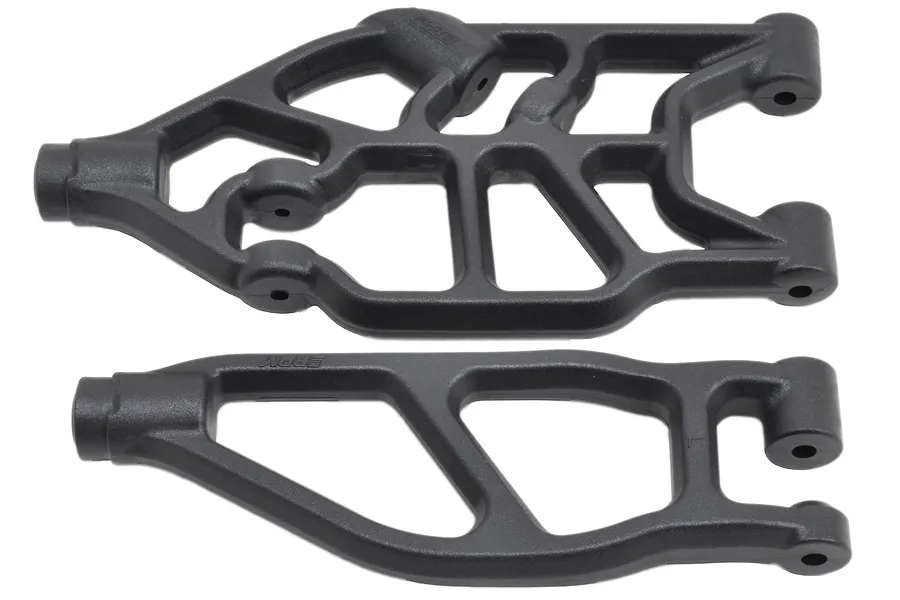

RPM Black Kraton 8S Upper & Lower Front Left Suspension Arm Set

RPM Black Kraton 8S Upper & Lower Front Left Suspension Arm Set

RPM Black Kraton 8S Upper & Lower Front Left Suspension Arm Set

Brand: RPM RC | MPN: 81522
3+ in stock
4.0
1 reviews
$38.83
or 4 fortnightly payments of $9.71 with Afterpay

RPM Black front left upper & lower A-arm set for ARRMA Kraton 8S — triple beam lower, dual beam upper, made in the USA. Not for EXB models.

  • Triple beam lower A-arms spread impact energy across all three beams
  • Dual beam upper A-arms with beefed-up leading edge hinge pin support
  • Fingernail slots allow easy pivot ball support ring removal
  • Made in the USA from RPM's ultra durable materials
  • Not compatible with the EXB version of 8S models without arm modification
Add to Wishlist
Pay later with
Afterpay Zip Paypal
We'll send it today
When ordered within the next hms
What does Next Dispatch mean?
Pay before 1:00pm Melbourne time on a dispatch day and your order ships the same day.
This is dispatch time, not delivery time — couriers still take their usual transit days.
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Description

The ARRMA Kraton 8S is 26 lbs. (12kg.) of high-flying, dirt shredding, jump-killing fun! If your A-arms aren't up to the abuse this massive monster can dish out, look no further than RPM. RPM's replacement front A-arms are designed with the backyard basher in mind and can handle some serious abuse and come back for more.

Features
  • Lower A-arms: triple beam construction designed to spread impact energy across all three beams; each beam's cross-section is 5/8" (15.8mm) tall x 3/8" (9.5mm) wide; inner cross brace moved away from chassis, eliminating the droop stop entirely
  • Upper A-arms: dual beam construction; each beam is 1/2" (12.7mm) tall x 3/8" (9.5mm) wide; tube shape over hinge pin eliminated to remove built-in molding stresses; leading edge hinge pin support beefed up
  • Both upper and lower A-arms molded with fingernail slots for easy access to remove the aluminum support ring at the pivot ball
  • Made in the USA from RPM's trademark blend of ultra durable materials
Note

Installation: Like stock A-arms, RPM Kraton 8S versions are sold without threads. If the pivot ball hole is difficult to thread using the pivot ball, RPM recommends thread tapping (tap not included) the hole for 2–3 threads, but do not tap any further. Additional cut threads will negate the thread-locking capability of RPM's materials.

Compatibility: RPM does not recommend use of this product on the EXB version of the 8S models. The EXB spring perch will cause fitment issues with the sway bar and lower shock mount, therefore requiring modification to the arms for proper fitment.

Specifications
Replaces upper A-arms from stock ARRMA #ARA330561
Replaces lower A-arms from stock #ARA330589
This kit
Left set — upper #81522 + lower (see right set #81562 for right side)
Sold as one upper and one lower per kit; one left and one right kit needed to complete the front end
