Spektrum DSMX SRXL2 Remote Receiver
Spektrum DSMX SRXL2 Remote Receiver
Spektrum DSMX SRXL2 remote receiver with integrated antenna and MultiLink technology for long-range path diversity.
- Provides path diversity via Spektrum MultiLink technology to avoid signal fading at long range
- Integrated antenna eliminates fragile wire antennas
- SRXL2 bi-directional protocol for richer, more responsive telemetry
- DSMX and DSM2 compatible
- Lightweight at 0.1oz (3g) with full-range performance

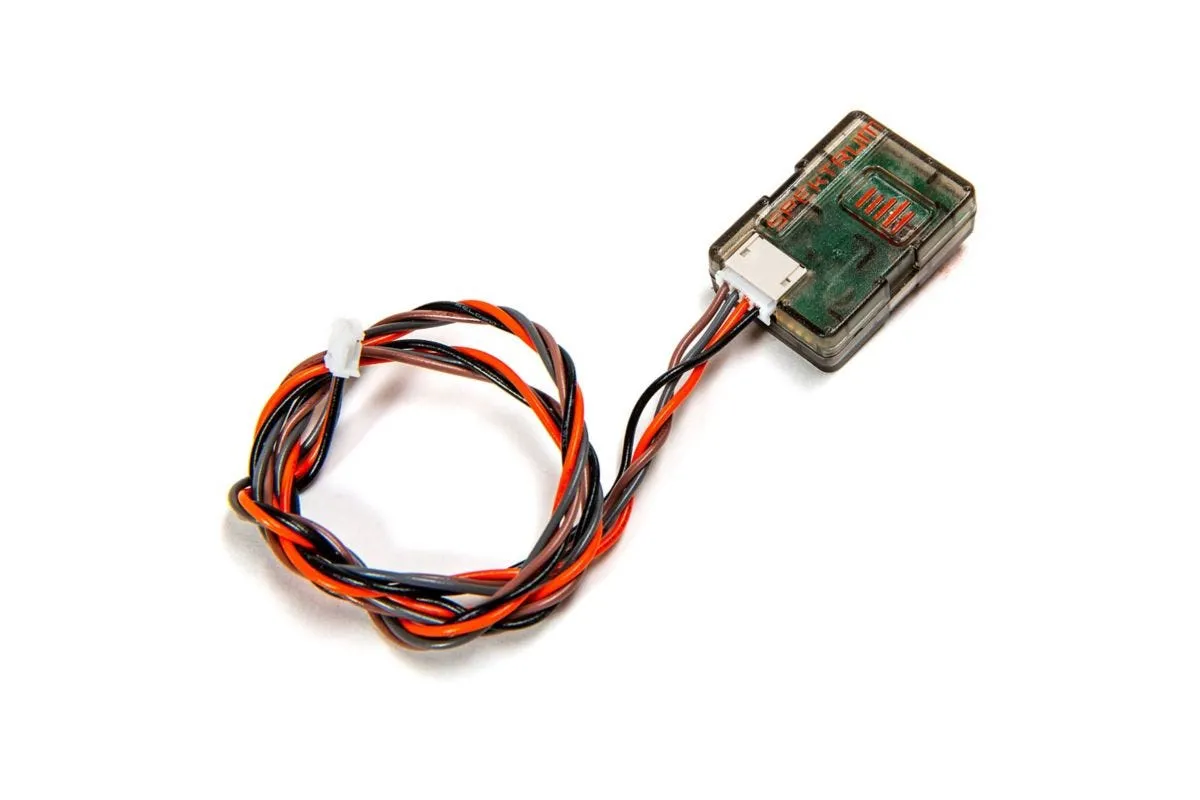

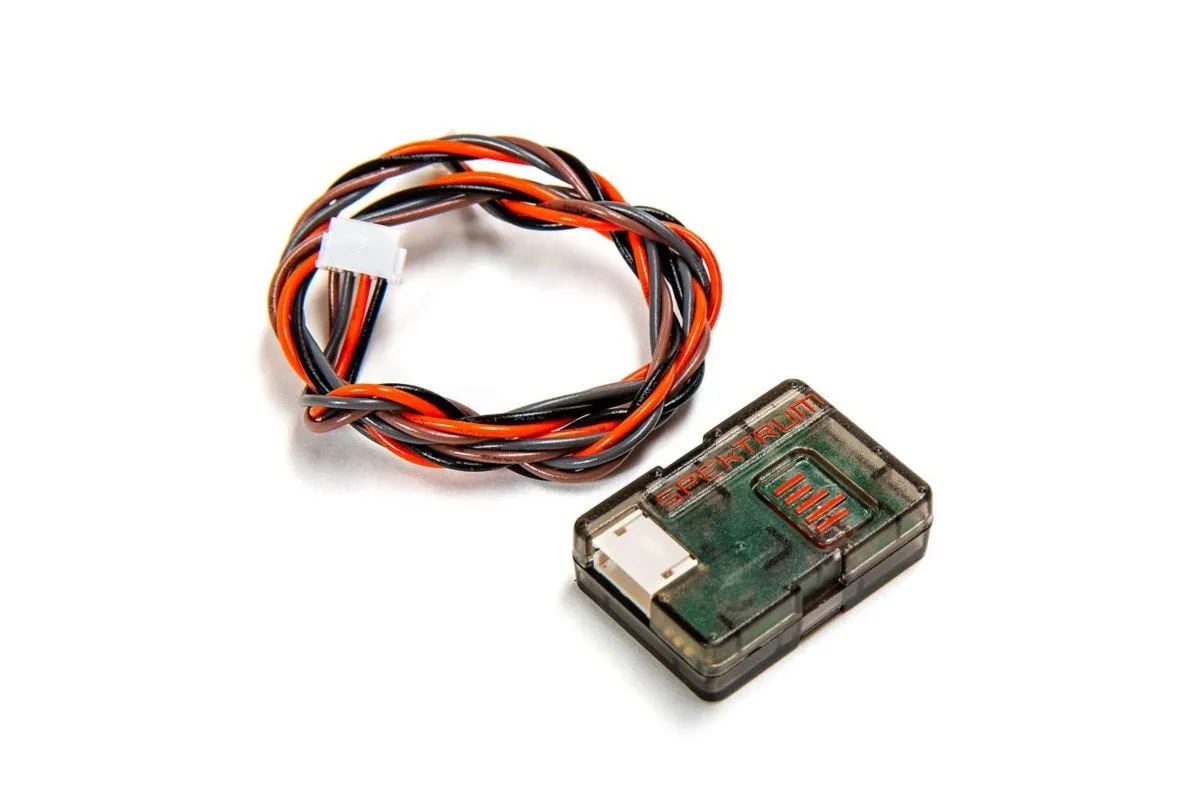

The Spektrum SPM9747 DSMX SRXL2 Remote Receiver uses Spektrum's patented MultiLink technology to provide additional path diversity, avoiding reflected signal fading and polarization blind spots at long range from the transmitter. Its integrated antenna design inside the case allows for quick installation without external wire antennas, and its bi-directional SRXL2 protocol delivers improved speed, security, and richness of data transfer with compatible devices such as flight controllers and Smart ESCs.
- SRXL2 Technology
- Integrated antenna design for easy installation
- DSMX and DSM2 compatible
- Lightweight
- 22ms and 11ms compatible
- Includes 12 inch extension (other lengths are available)
The SPM9747 DSMX SRXL2 Remote Receiver is not compatible with receivers that use 3-wire remote receivers. The main receiver unit must be compatible with a 4-wire SRXL2 remote receiver. The SPM9747 is only compatible with receivers that feature SRXL2, such as the AR637T and AR6610T receivers.
-
Type
- DSMX SRXL2 Serial "Fly By" Telemetry Receiver
-
Band
- 2.4GHz
-
Input Voltage
- 3.3 - 8.4V
-
Weight
- 0.1oz (3g)
-
Length
- 1" (25.4mm)
-
Width
- 0.71" (18.11mm)
-
Height
- 0.30" (7.52mm)
-
Range
- Full
-
Telemetry
- Integrated
-
Bind Method
- Bind Button
-
Failsafe
- Yes
-
Number of Receivers
- One
-
Data Port
- No
-
Rev Limiter
- No
-
Governor
- No
$1,042.79
