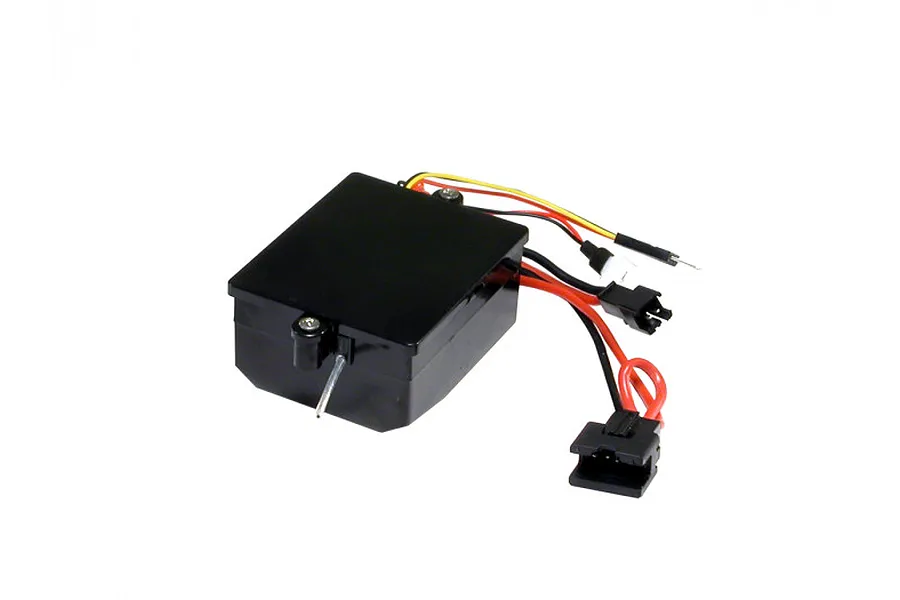

UDI 2.4ghz Receiver & Brushed ESC Main Board

  • Brushed

Part no. UDI009-11

1 in stockNo reviews yet

$30.39

or 4 fortnightly payments of $7.60 with afterpay or PayPal, or zip

Want more than 1? and we'll email you when they're here.

  • 1 in stock · Order in 12h 12m, dispatched today

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Overview

The UDI 2.4GHz Receiver & Brushed ESC Main Board is a versatile all-in-one unit designed for UDI RC vehicles. It features an integrated receiver for reliable control and a brushed ESC for smooth power delivery. This waterproof and compact design simplifies installation and is suitable for a variety of RC models.

Note

Designed for the UDI 009 RC boat.

Features

  • Integrated 2.4GHz receiver for reliable, interference-free operation
  • Brushed ESC provides smooth and responsive throttle control
  • Waterproof design for all-weather adventures
  • User-friendly, plug-and-play setup
  • Genuine UDI product

In the box

  • 1x UDI 2.4GHz Receiver & Brushed ESC Main Board

Specifications

Length55mm (2.17 in)
Width45mm (1.77 in)
Height25mm (0.98 in)
Weight112g (3.95 oz)
Continuous/Peak CurrentN/A
WaterproofYes
Motor LimitN/A
BECN/A
Voltage Limit7.4V (2S LiPo)
ProgrammableNo
SensoredNo

Receiver

Channels3Ch
Suited Vehicle TypeWater
TelemetryNo
Operating Frequency2.4Ghz
FailsafeWhen connection is lost with the remote the fail safe will stop the vehicle.No

ESC (Electronic Speed Controller)

For Motor TypeBrushed
Max Voltage7.4V
Waterproof DesignYes
Motor ConnectorsPH 2.0
Battery ConnectorDeans
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodWater
Dual MotorNo
