How to: Replace an Axle

How ToAaron2 min read

How to: Replace an Axle
In this article (4)

G’day everyone, Aaron here, and today I’ll show you how to change the axle on an HSP 2 wheel drive car, and a lot of others as well. If you prefer, you can watch this guide in it's original video form, here.

The Mongoose, Crusher, Viper and Storm represent some of the best value for money cars in the RC world. We’ve already done videos on how to change out the steering servo, how to change the spur, the idler gear, and more! But how does one go about changing the wheel axle? Read on:

Here’s what we need:

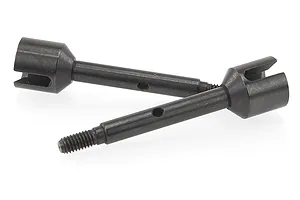

  • The replacement axle of course. We have our own brand of HD spring steel upgrade axles – and that’s exactly what’s going on.

  • Some kind of wheel wrench

  • Some pliers and a small flathead screwdriver.

A pack of Hobbies Direct steel axles, a cross wrench, a nut driver, long-nose pliers and a small flathead screwdriver

Start by removing the wheel with the wrench.

Taking the wheel nut and the wheel off the axle

Now we’re gonna take off the wheel hex. Use a small flathead screwdriver to prise the hex off, revealing the drive pin.

Prising the wheel hex off with a small flathead screwdriver to show the drive pin

Carefully take out the drive pin, use pliers if you like. Don’t drop it, or it’ll somehow scoot 20 metres away into another room under a cabinet, or possibly through a wormhole into another dimension.

Pulling the drive pin out with pliers, then a joke frame of the pin vanishing into a wormhole

Now using the pliers, pop the upper link off the balljoint on the hub. Some cars will have an upper hinge pin screw to remove, but these HSP cars just have a ball joint.

Popping the upper link off the ball joint on the hub with pliers

Swap the axle

You can now take out the old axle and replace it with the new one. This is also a great chance to quickly inspect the hub bearings and add a couple of drops of oil if you feel like it.

Sliding the old axle out of the hub

Put it back together

Put in the drive pin, and when putting the hex on, line it up in the proper position.

Refitting the drive pin and pushing the wheel hex back on

If you feel like it, this is a good opportunity to upgrade to aluminium hexes. These are tougher, and you can tighten your wheels down harder (but not too tight!) without them binding up on the hub. This can help prevent rounding out the hexes and damaging the wheel.

Two blue aluminium wheel hexes

Take a moment to admire your mechanical genius, and make sure everything is together properly. That’s it – with the wheels back on, it’s time to go for a bash!

An RC buggy in mid-air over a dirt jump
