Longer Wider Tougher Chassis
This new version marks the next evolution of the capable ARRMA 4X4 4S platform — longer, wider, and tougher than the previous chassis.

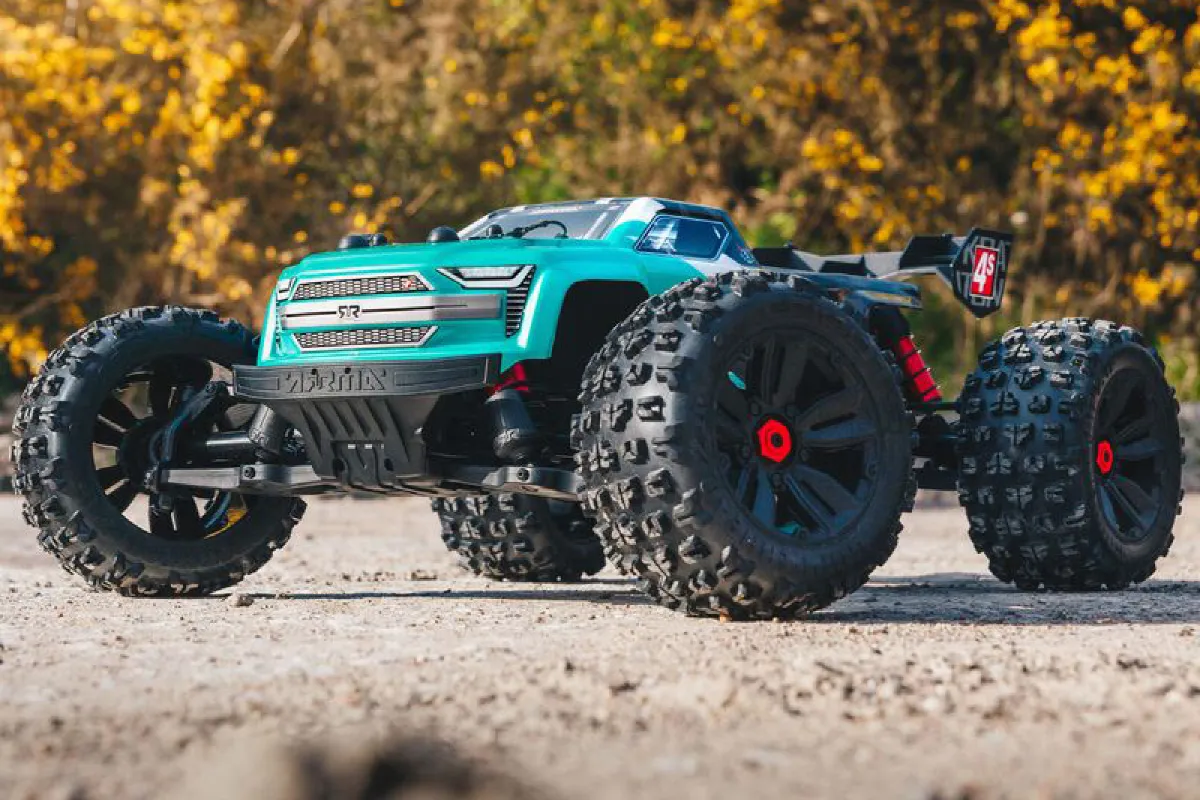

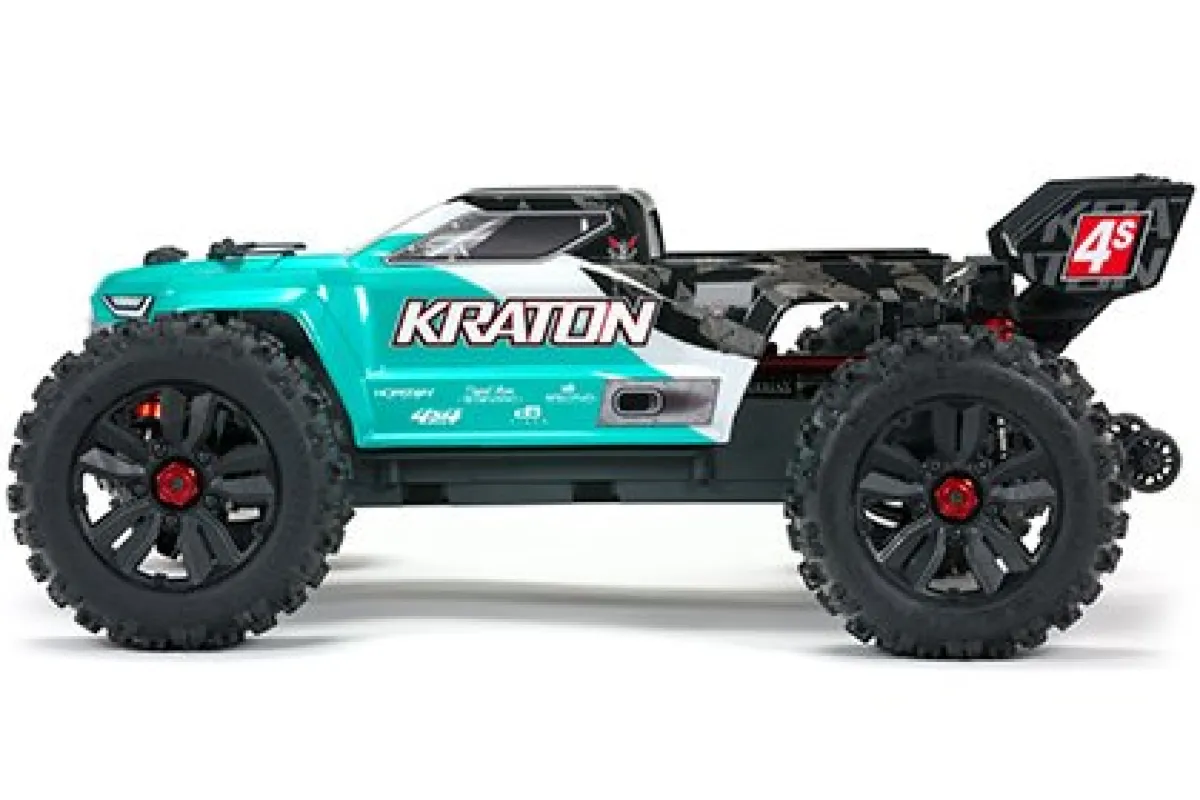

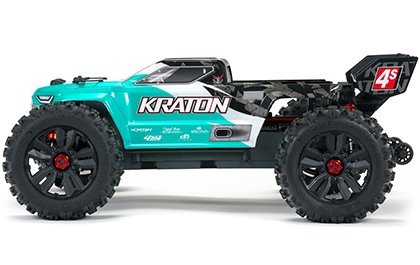

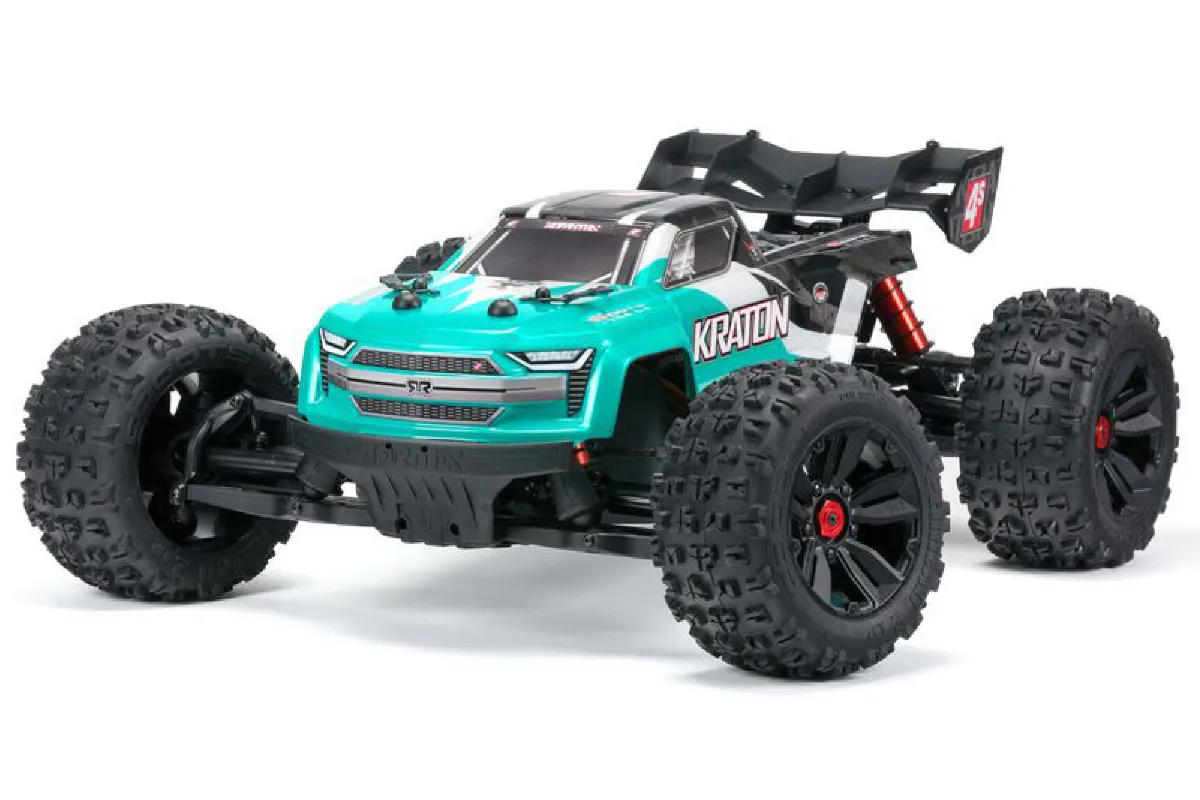

ARRMA Kraton 4x4 4S V2 BLX Speed RC Monster Truck Electric Brushless 4WD 1/10 Scale RTR - Teal
- 1/10
- 4WD
- RTR
- Brushless
Part no. ARA4408V2T1
DiscontinuedWrite a review
Overview
The original ARRMA KRATON 4X4 4S BLX Speed Monster Truck provided the perfect middle ground between the agile 3S BLX vehicles and bigger, more powerful 6S BLX machines. This new version marks the next evolution of the capable ARRMA 4X4 4S platform — longer, wider, and tougher than the previous chassis for even greater stability and control. It also includes a full package of Spektrum radio electronics and is the first ARRMA 4X4 to come equipped with a Spektrum 4S brushless power system.

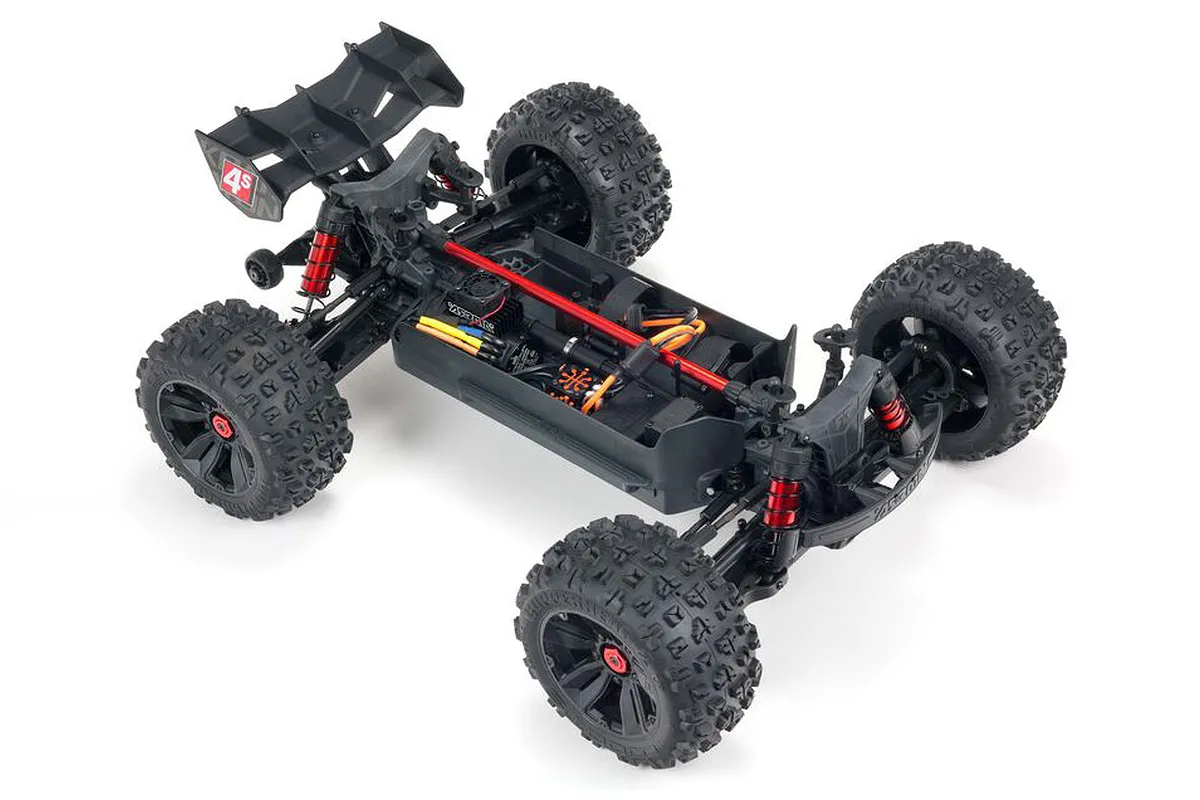

The footprint of this KRATON 4X4 4S BLX Speed Monster Truck is 16% larger than the previous model, with higher shock towers, longer shocks, and wider suspension arms for longer, more plush suspension travel. The strength of the transmission has been bolstered with steel gearbox input gears, steel main diff gears and CVD driveshafts. The KRATON 4X4 4S BLX incorporates the signature ARRMA easy-access modular design to make routine maintenance fast and simple.
Features
- New Features:
- 16% larger footprint — longer and wider than the previous KRATON 4X4 4S platform for added stability
- Tough new suspension arms that increase vehicle width
- Durable steel 1.35 module main diff gears and input gears in front and rear gearboxes
- Strong CVD telescopic driveshafts front and rear

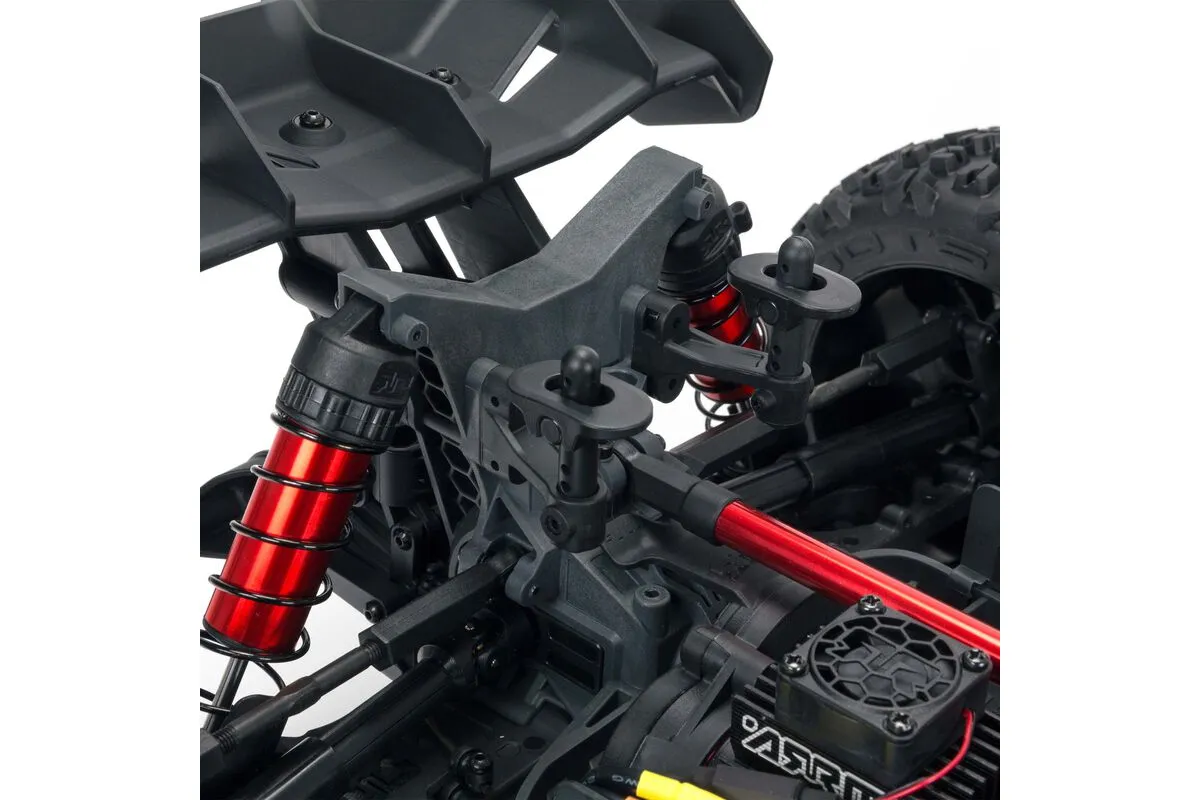

- Higher shock towers, longer shocks and wider suspension arms for longer, more plush suspension travel
- Aluminium big bore shocks included as standard
- CNC machined, red anodized 17mm wheel hubs
- Steel slipper hub strengthening ring
- Spektrum Firma 120A brushless ESC and 3668 2400Kv motor
- Spektrum 2.4GHz SLT3 transmitter and SR315 receiver

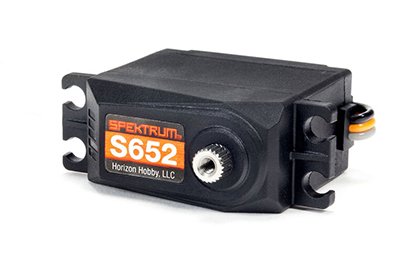

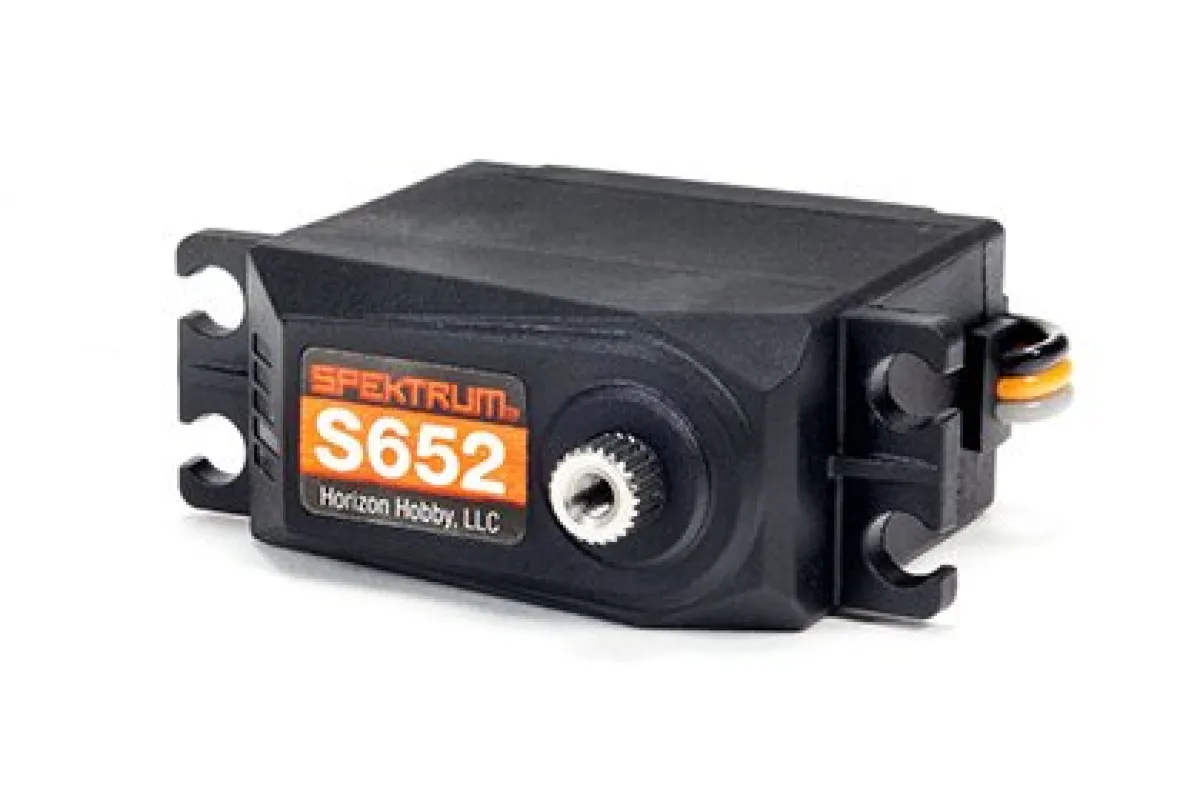

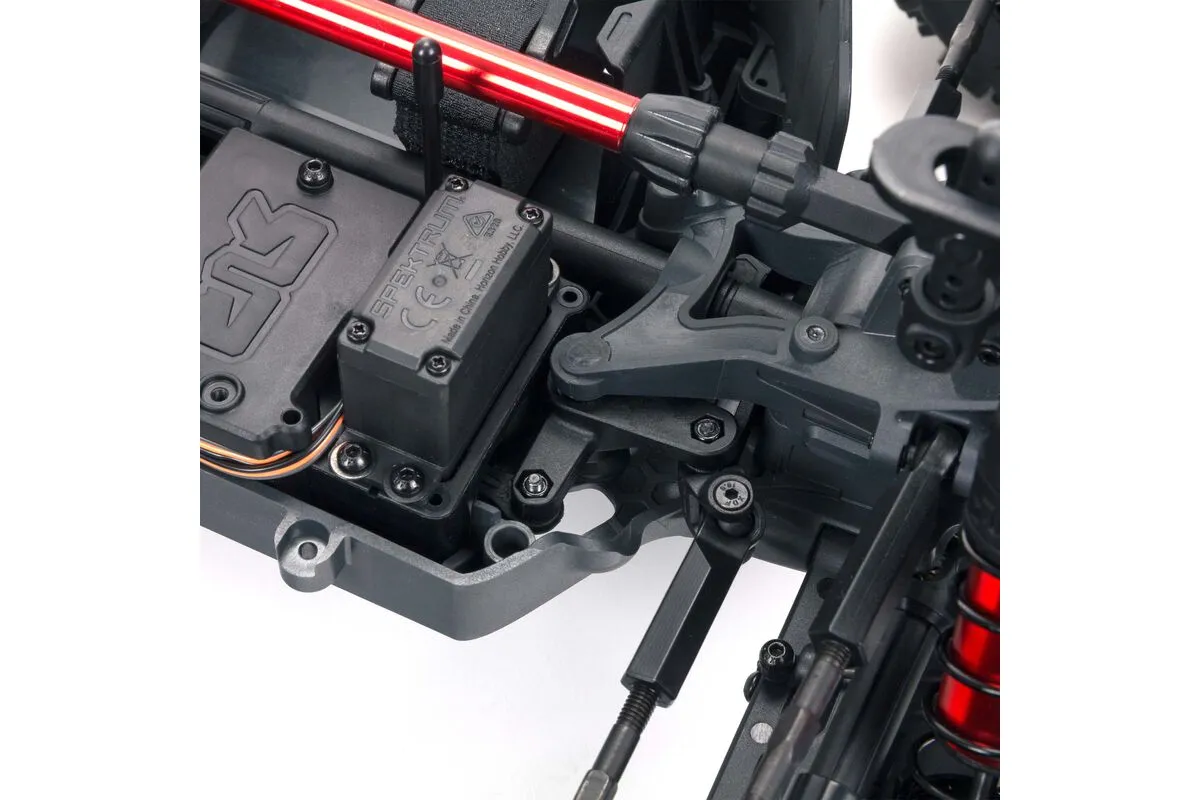

- Spektrum S652 steel metal-geared, waterproof digital servo with 232 oz-in of torque
- Sway bars fitted front and rear for improved cornering dynamics
- Wheelie bar with rubber tires
- Low-profile dBoots Copperhead 2 LP tires with vents to disperse water for improved durability
- Proven 4X4 Platform Features:
- Rubber shielded bearings
- Metal internal-geared diffs
- Steel spur gear
- Strong composite chassis with extended height dirt defenders
- Adjustable turnbuckles
- Steering system with stone clearance
- ARRMA motor heatsink and cooling fan
- Easy-access modular design — power, diff and electronics modules removable for maintenance

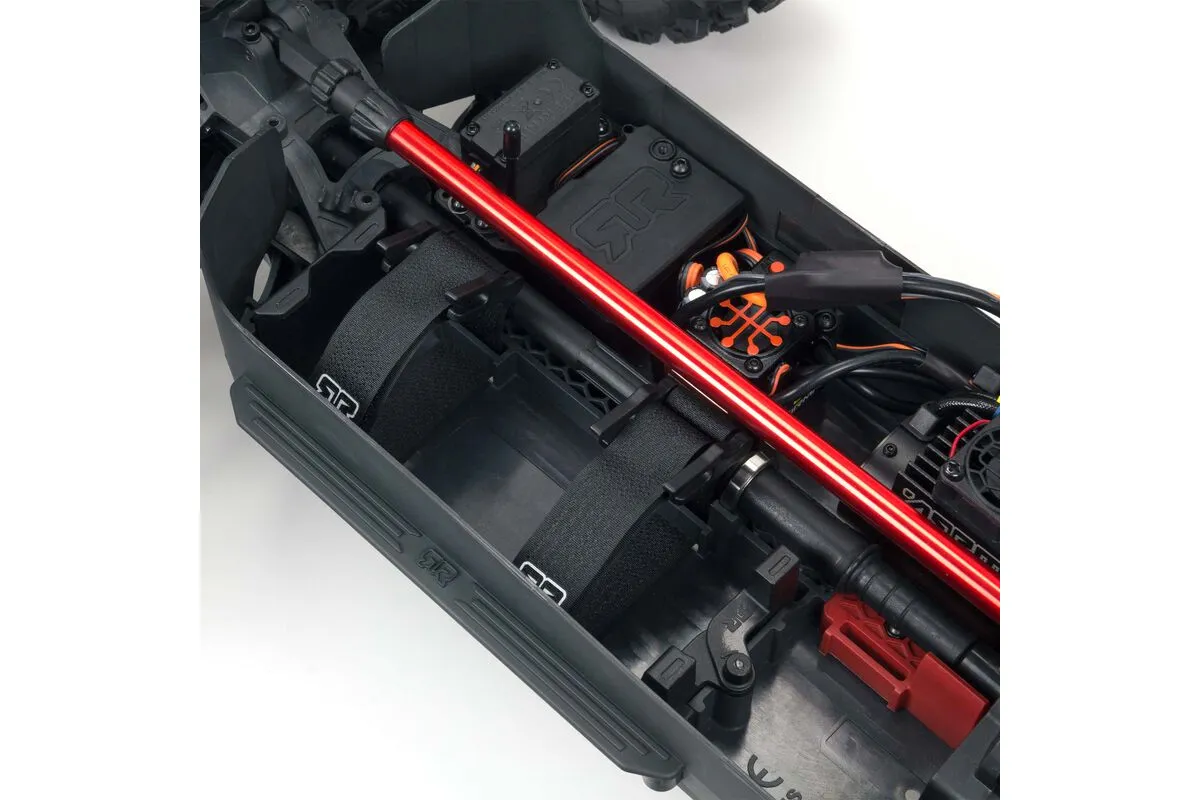

- Battery retention system including wire clips
- 2-year limited warranty

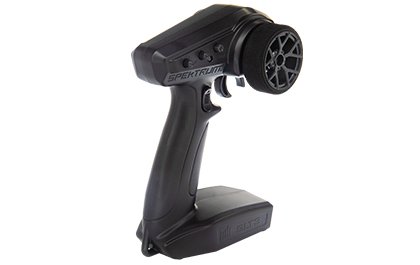

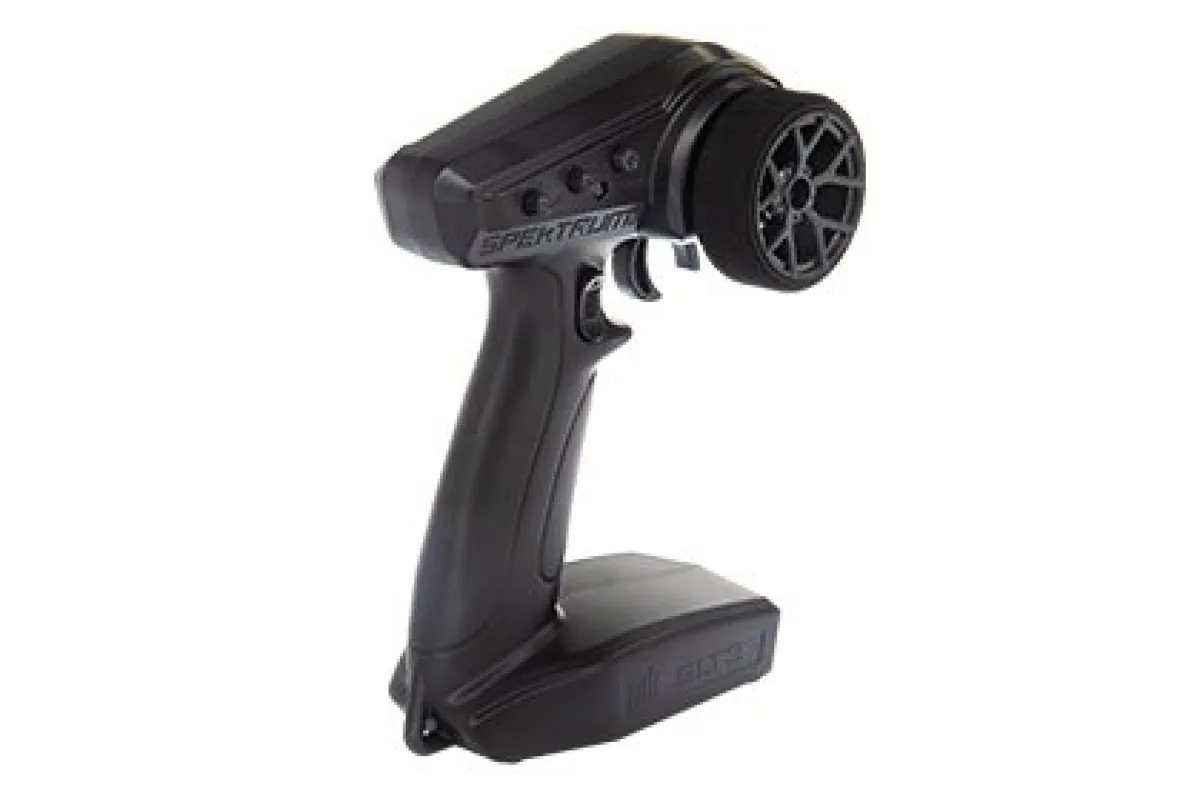

- Spektrum SLT3 2.4GHz 3-Channel Transmitter: Fast response SLT protocol; foam wheel; 50% and 75% throttle mode for beginners; Tactic SLT receiver compatible.

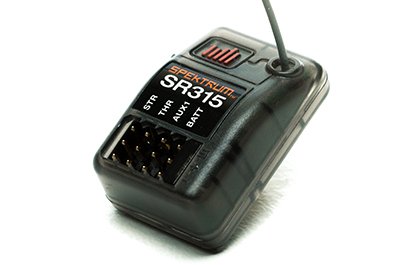

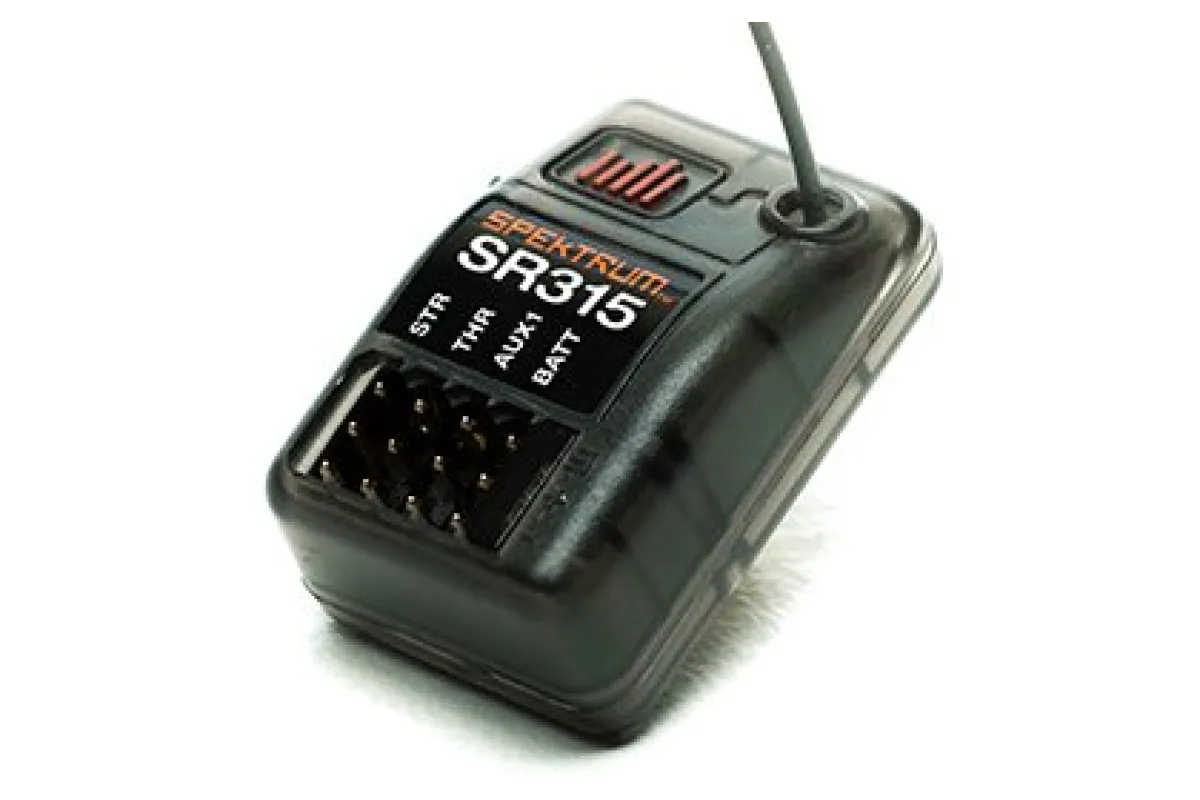

- Spektrum SR315 3-Channel Dual Protocol Receiver: SLT and DSMR protocol compatible; no-tool binding and protocol switching; Spektrum Smart telemetry compatible in DSMR mode.

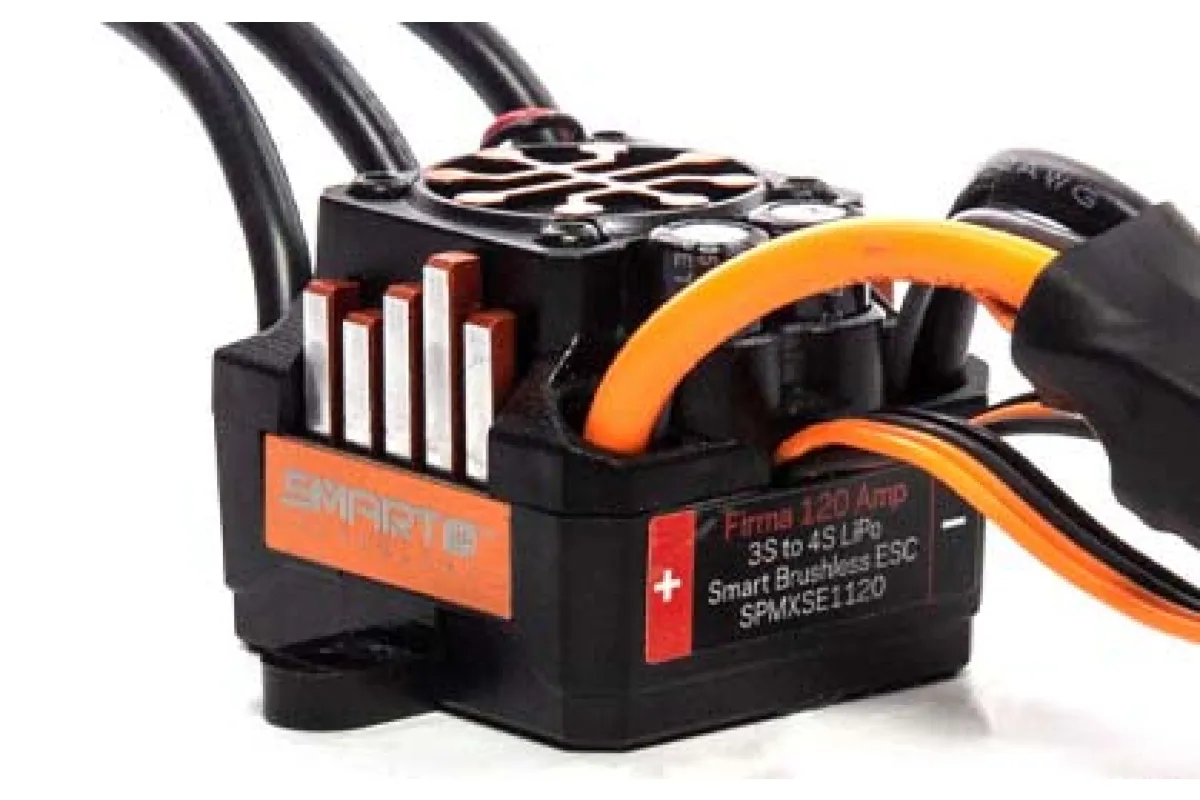

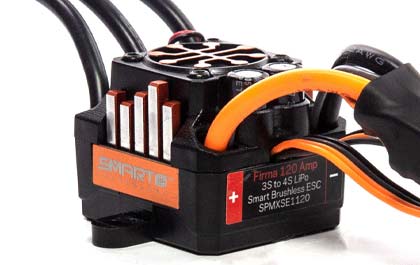

- Spektrum Firma 120A Smart ESC: Input voltage 11.1V–14.8V; fast 32-bit ARM M4 processor; aluminium heat sink and cooling fan; waterproof.

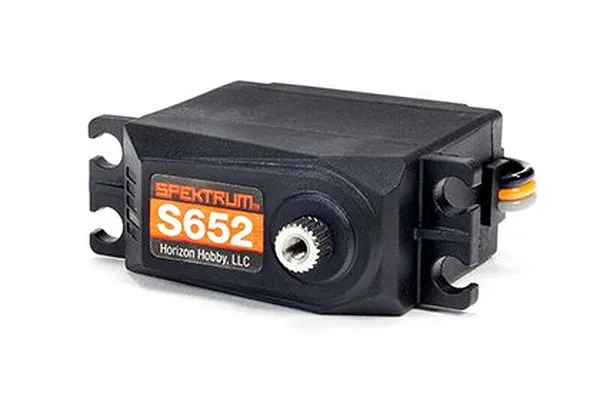

- Spektrum S652 Digital Servo: 32% stronger and 5% faster than previous ADS-15M servo; 16.70 kg-cm (232 oz-in) @ 6.0V; metal-geared; waterproof.

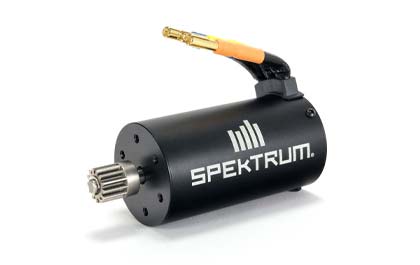

- Spektrum Firma 3668 2400Kv Brushless Motor: 4 Pole / 4S; ARRMA heatsink and cooling fan; Safe D pinion.
In the box
- 1x ARRMA KRATON 4X4 4S BLX 1/10 Scale 4WD Speed Monster Truck RTR
- 1x Spektrum Firma 120A Smart Waterproof ESC
- 1x Spektrum Firma 3668 2400Kv Brushless Motor
- 1x Spektrum 2.4GHz SLT3 3-Channel Transmitter
- 1x Spektrum SR315 Dual Protocol Receiver
- 1x Spektrum SPMS652 Metal-Geared Digital Servo
- 1x Manual
- 1x 23T Spline Servo Saver
You'll need
- 3S or 4S LiPo battery with EC5 or IC5 connector
- Compatible battery charger
- 4 x AA batteries for transmitter
- Maximum battery dimensions: 6.14 x 2.01 x 1.89 in (156 x 51 x 48mm). Minimum battery specs: 5000mAh 35C.
Highlights
16% Larger Footprint
The footprint of this Kraton 4X4 4S BLX Speed Monster Truck is 16% larger than the previous model.

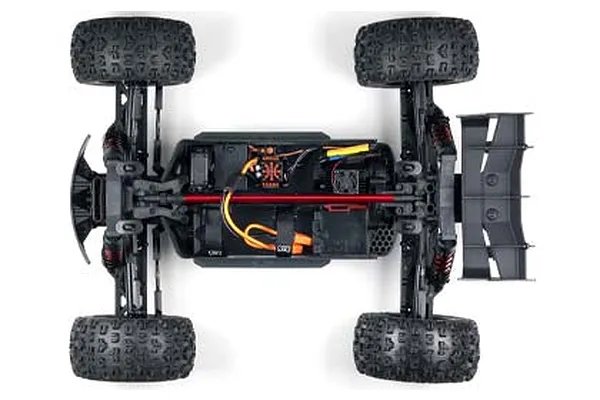

Extended Suspension Travel
Higher shock towers, longer shocks and wider suspension arms give the vehicle longer, more plush suspension travel.
Steel Diff Gears and CVD Driveshafts
Durable steel 1.35 module main diff gears and strong CVD telescopic driveshafts front and rear are included.

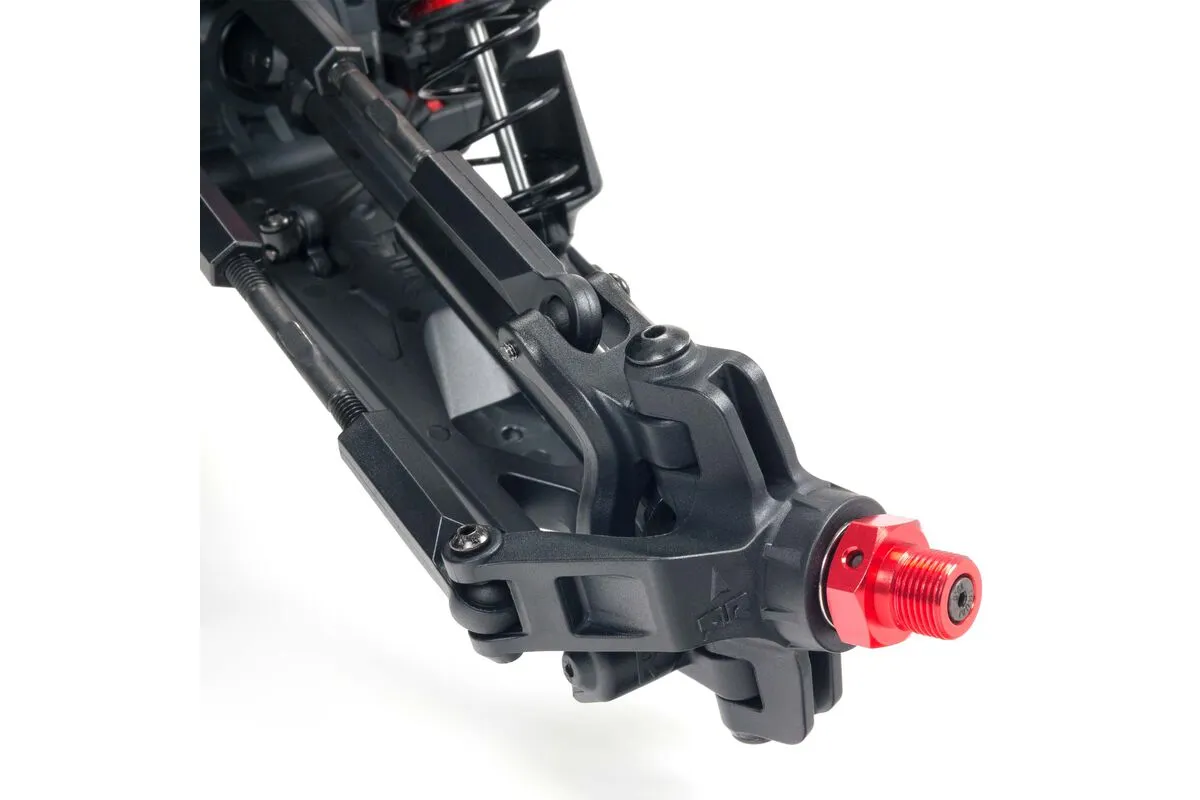

CNC Anodized Hubs and Sway Bars
CNC machined, red anodized 17mm wheel hubs and sway bars fitted front and rear improve cornering dynamics.

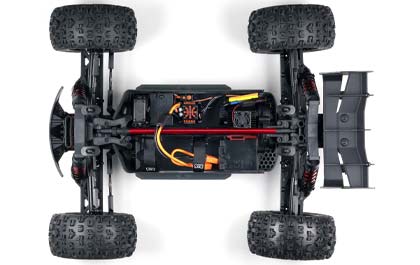

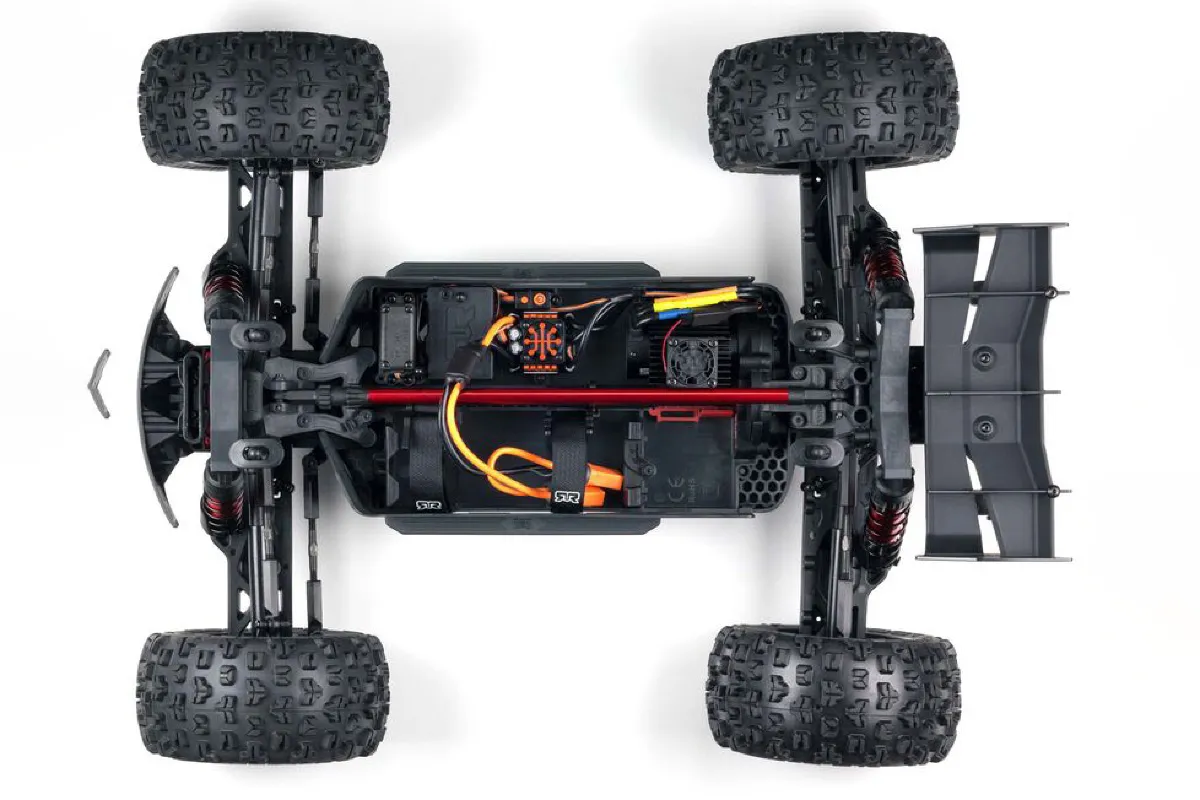

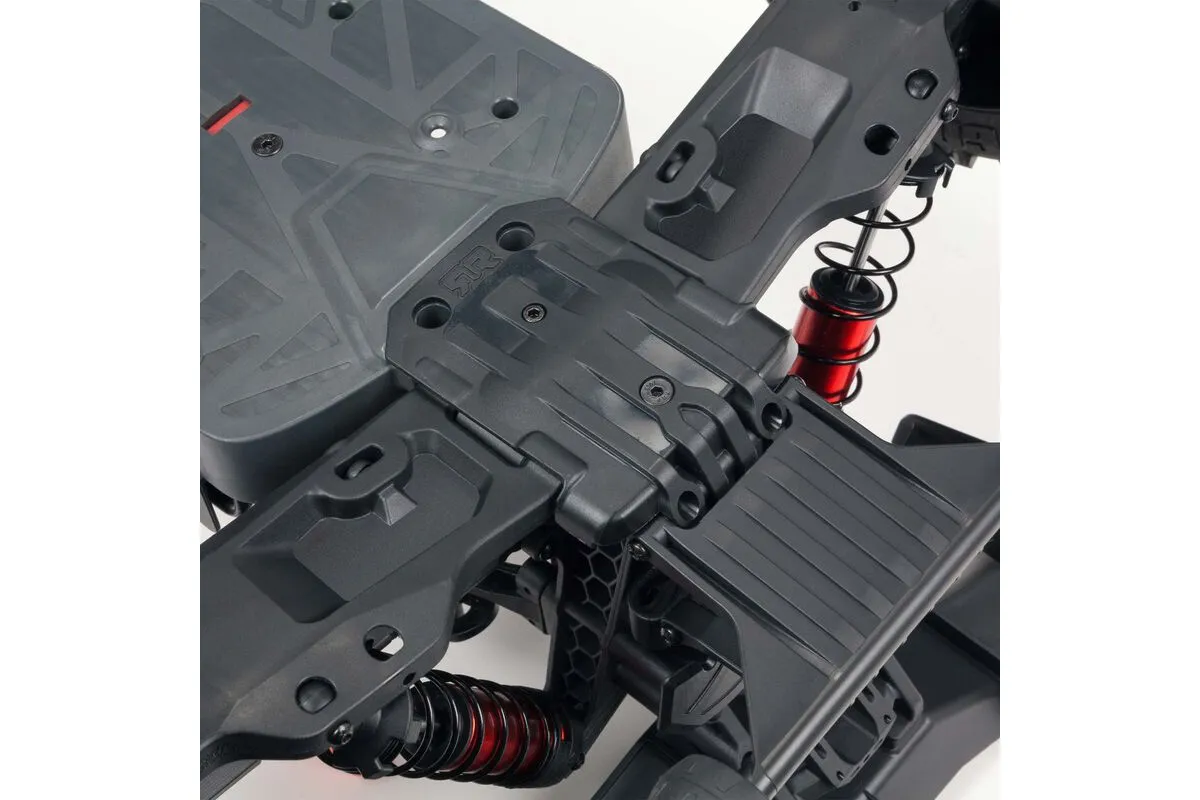

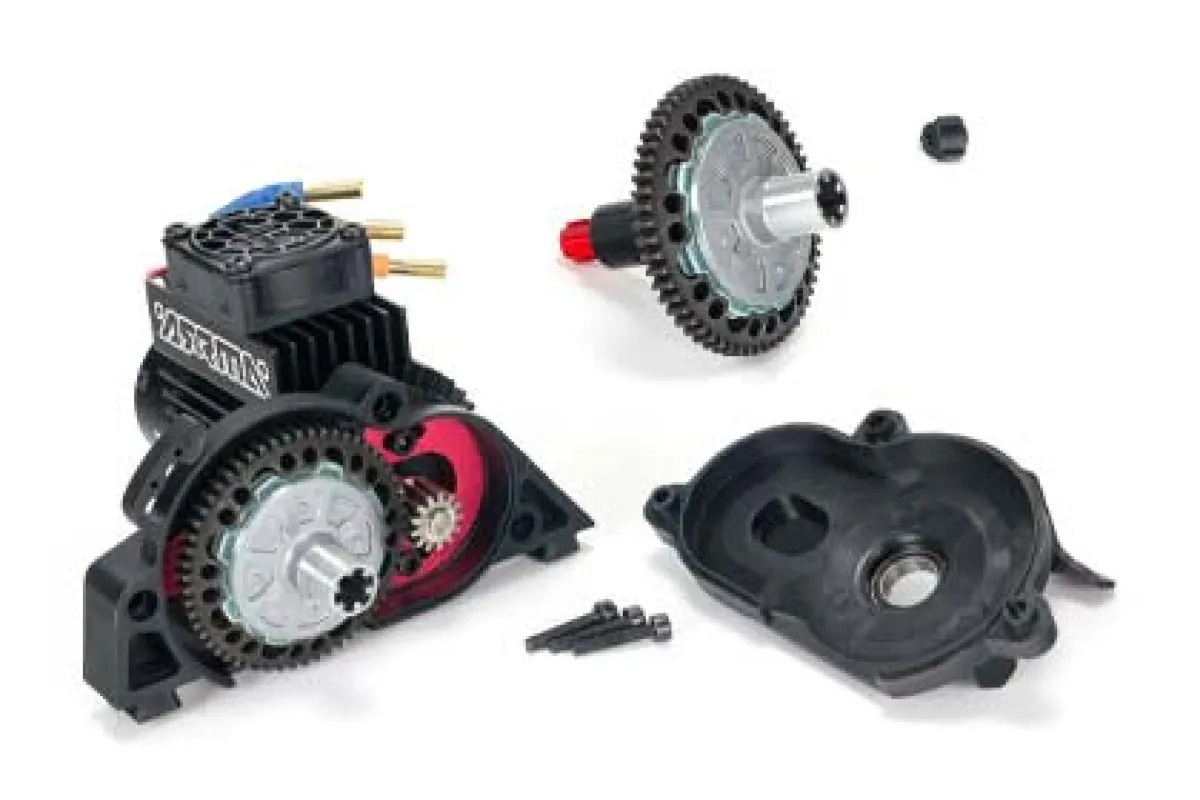

Modular Easy-Access Design
The ARRMA easy-access modular design allows the power, diff, and electronics modules to be removed quickly for maintenance.
ARRMA Kraton 4x4 4S V2 feature illustration

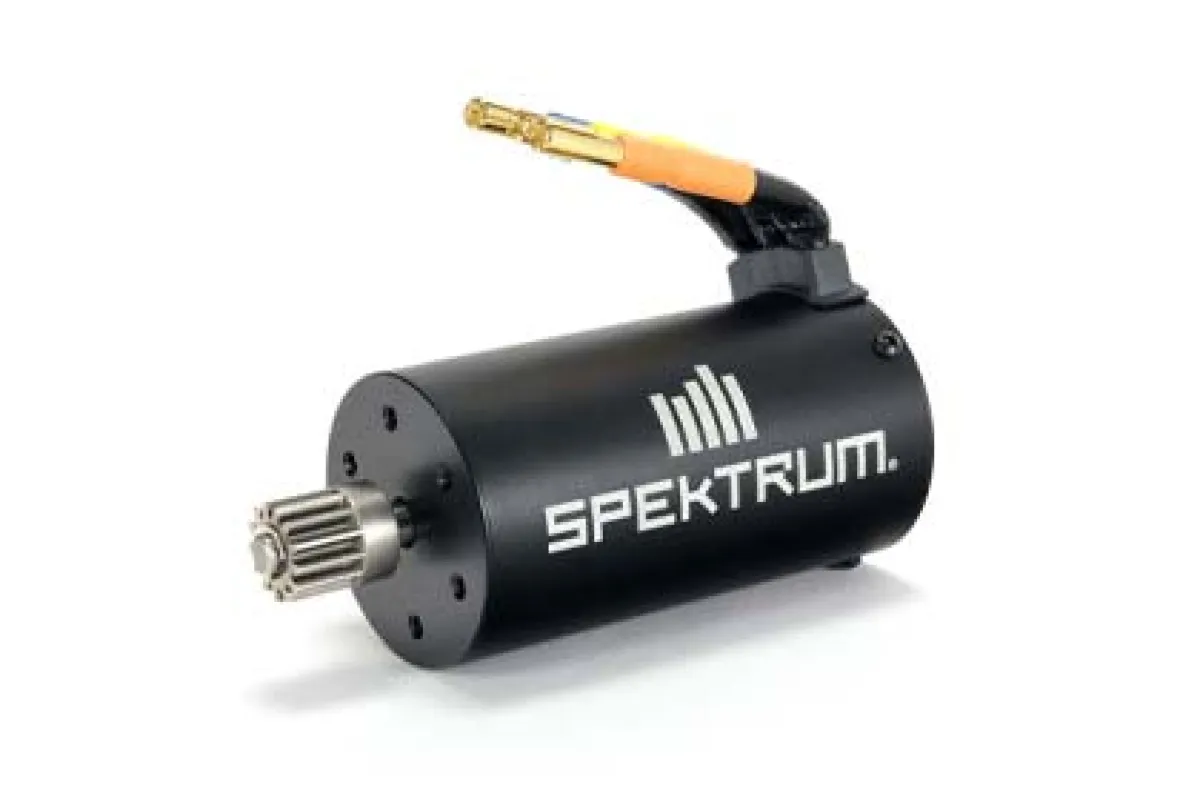

The Spektrum Firma 120A Smart ESC and 3668 2400Kv brushless motor deliver 4S brushless power as standard.

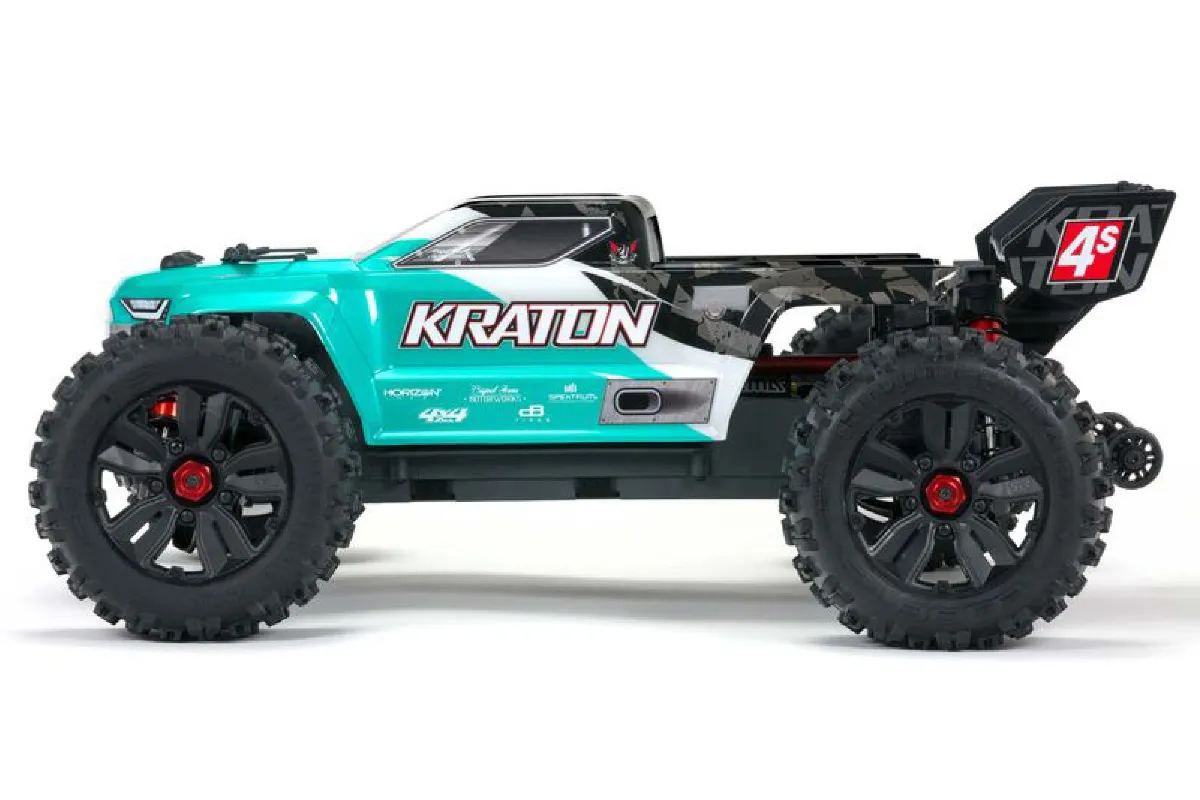

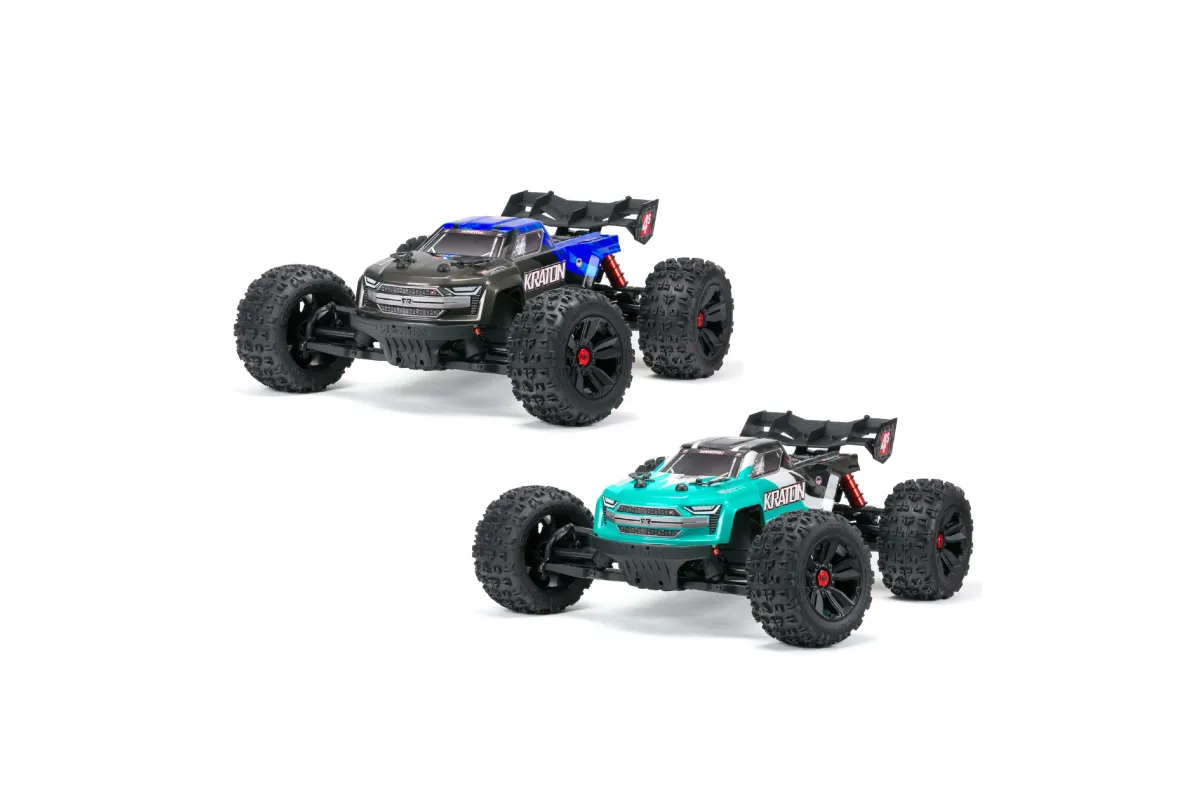

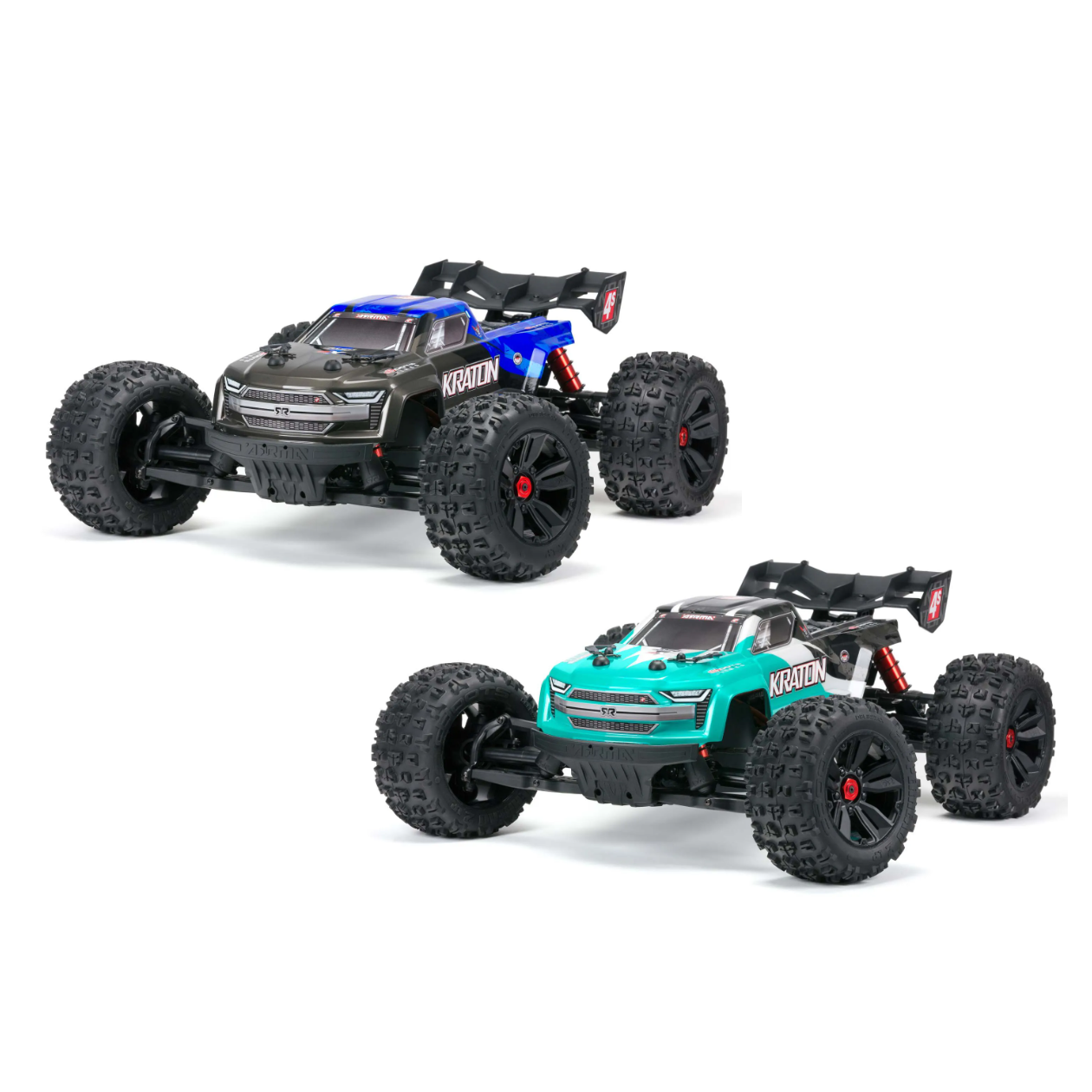

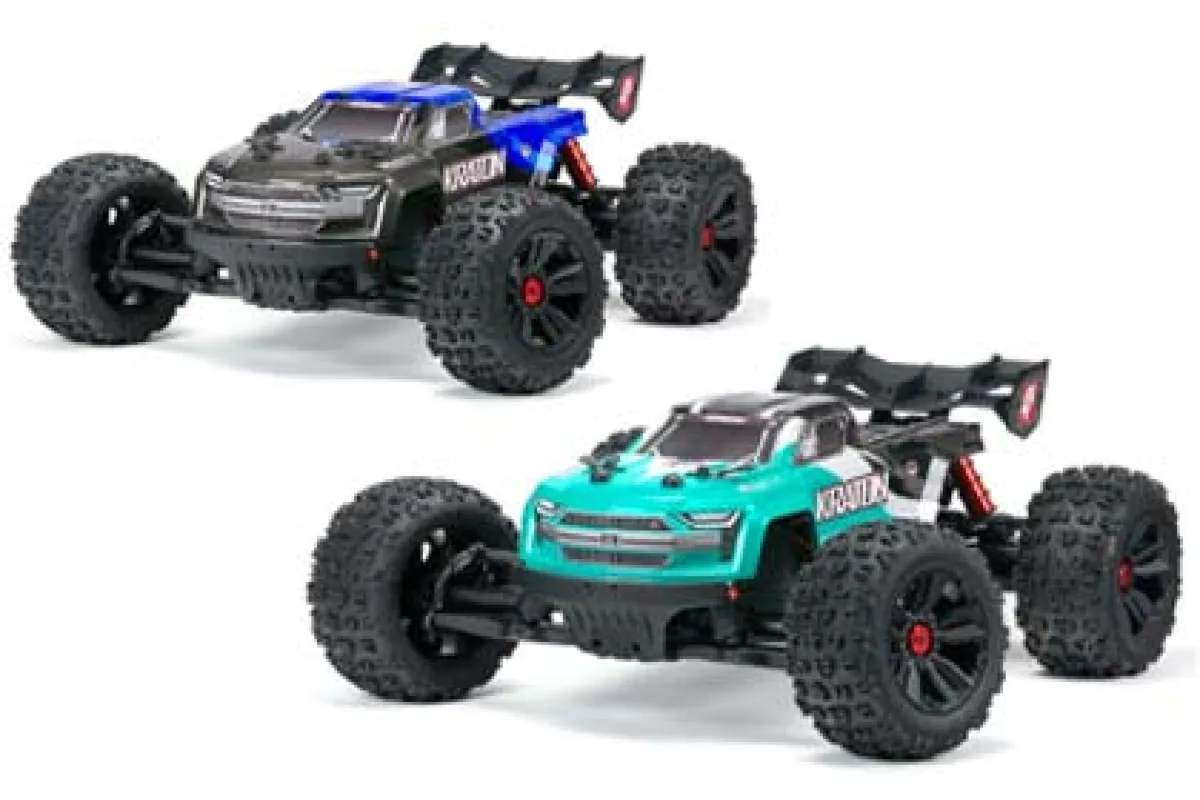

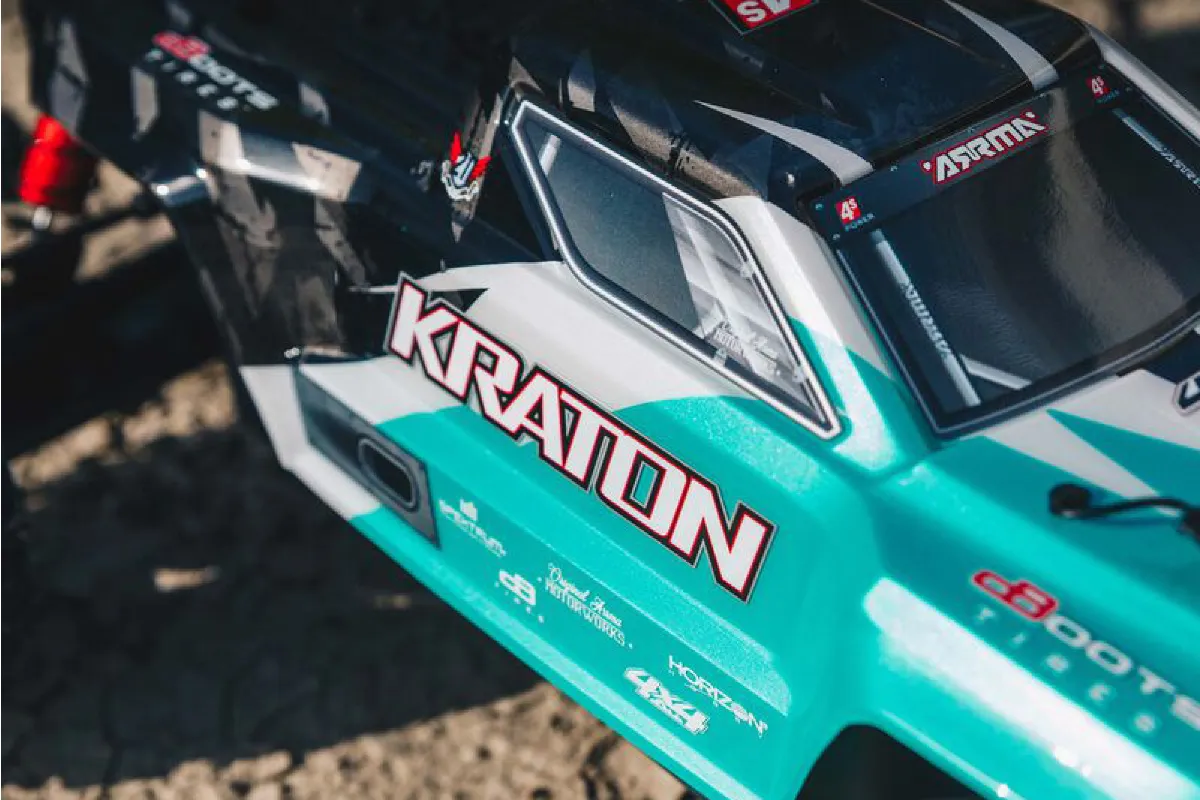

Injection-Molded Rear Wing

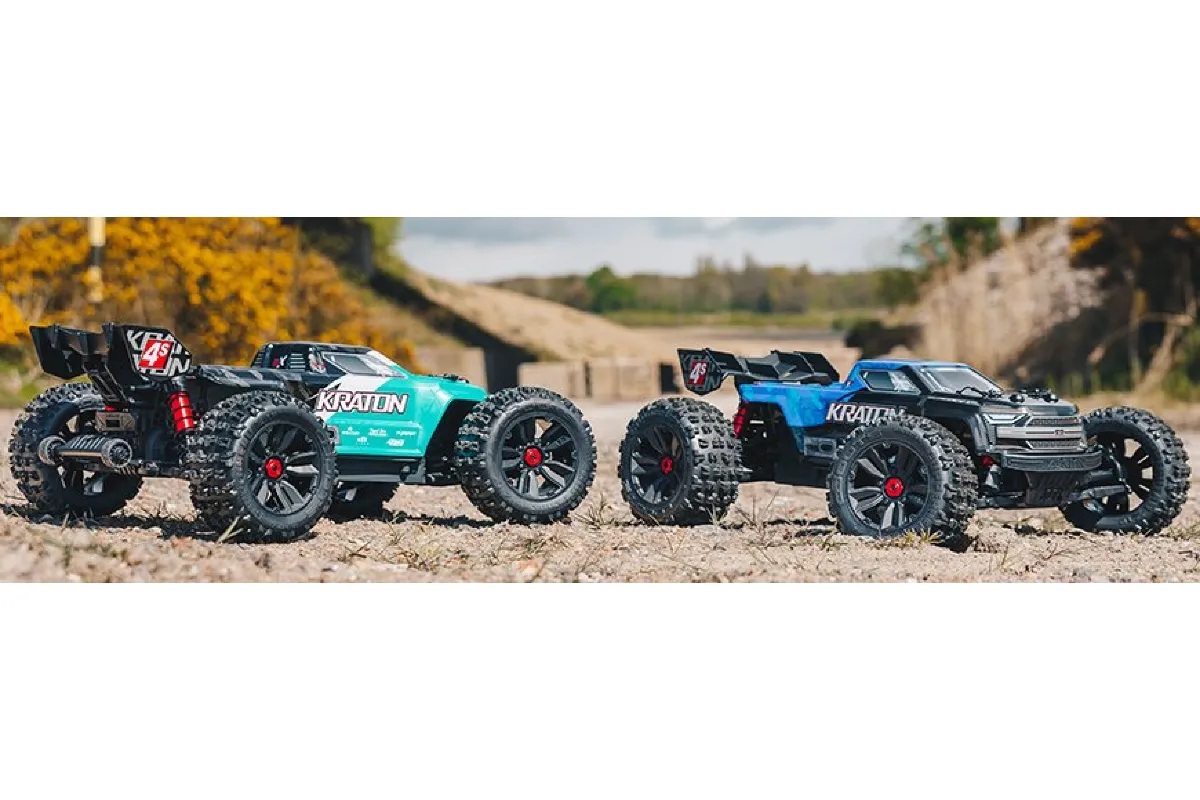

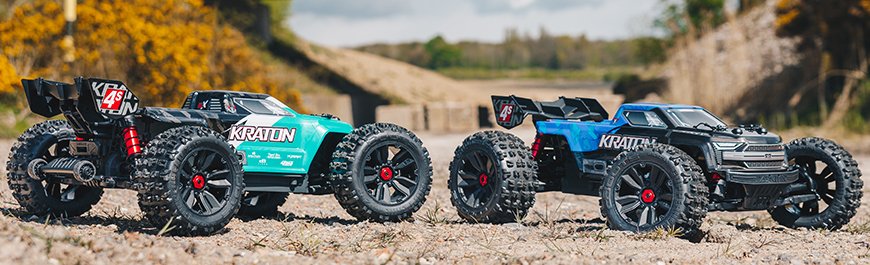

The sleek truck body features a tough, injection-molded rear wing and comes factory-finished in your choice of two exciting colors.

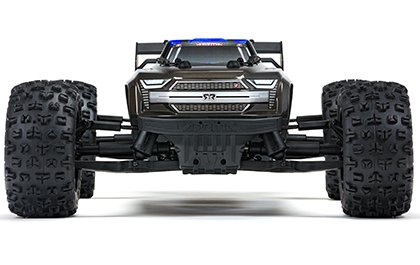

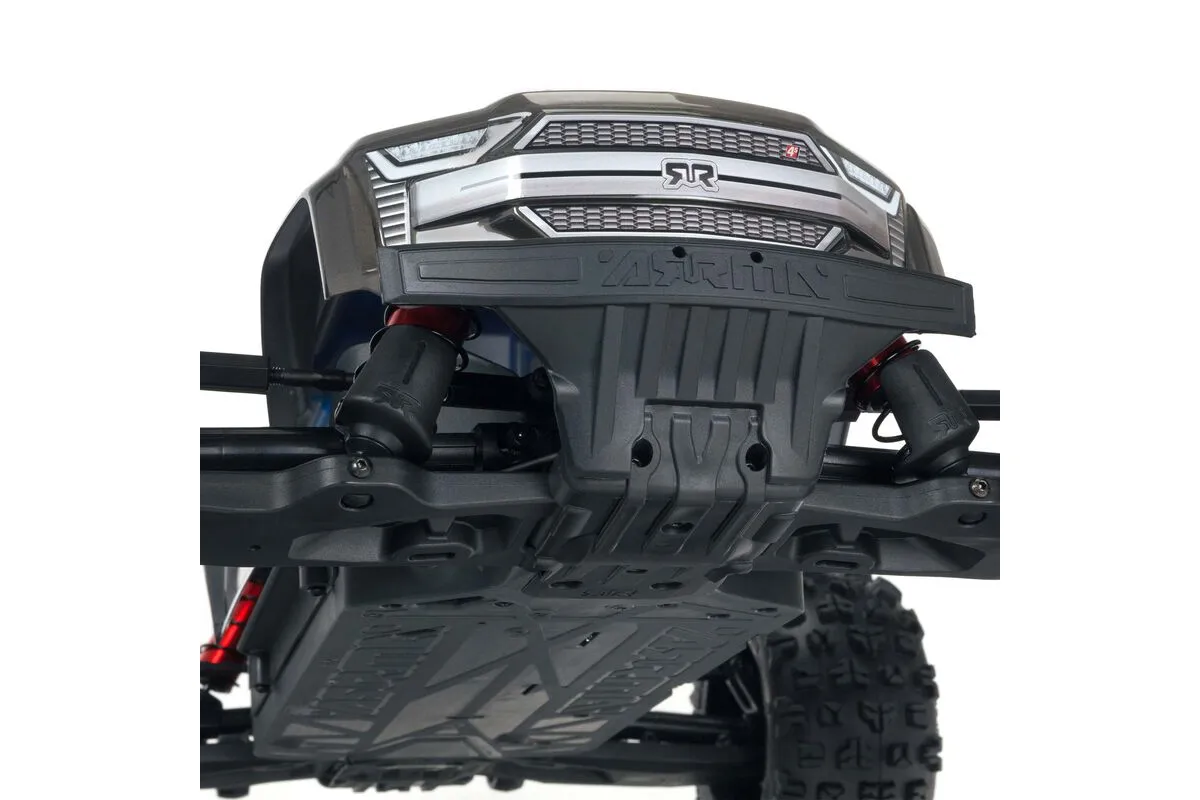

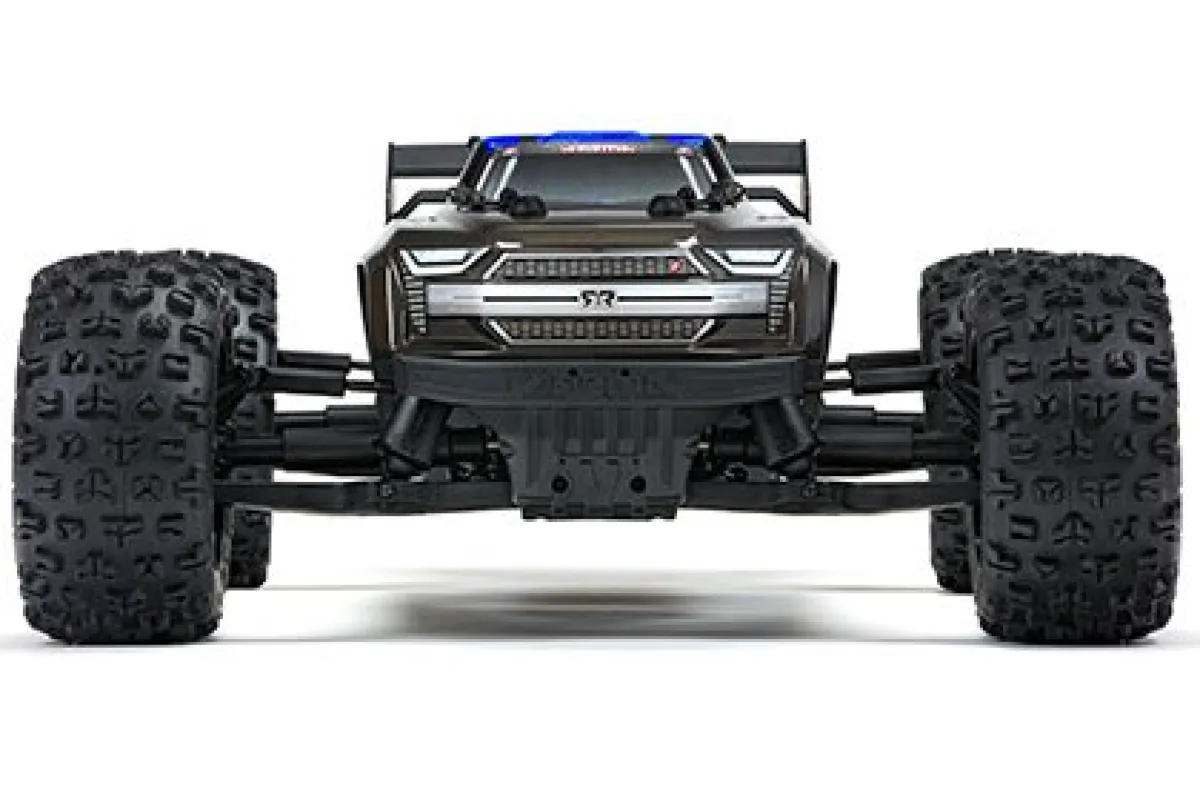

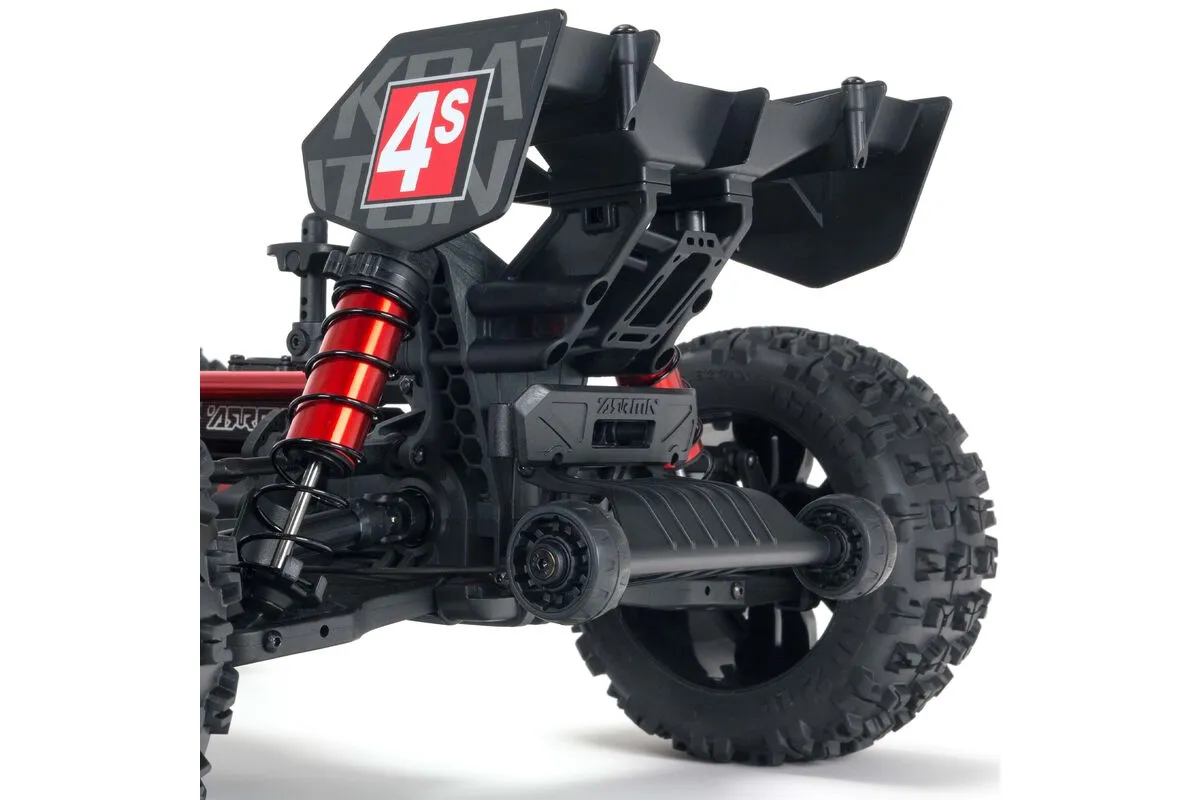

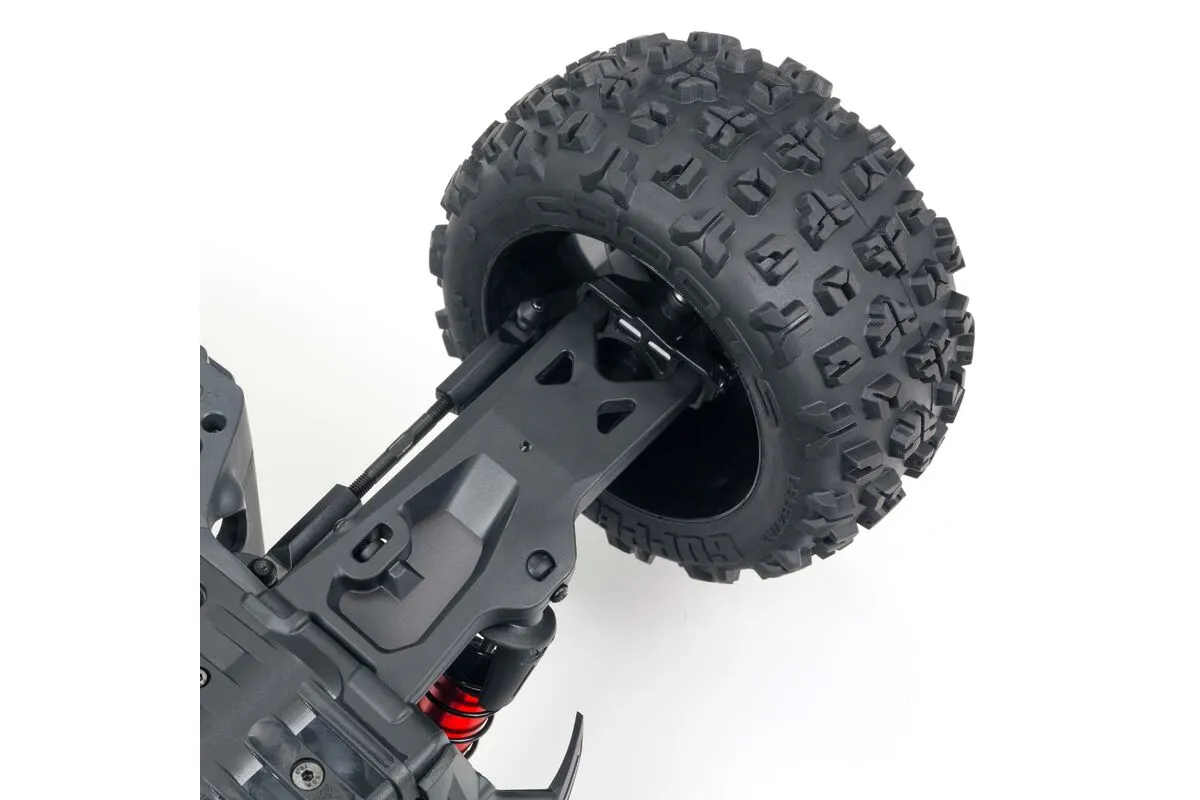

Bumpers and Wheelie Bar
Front and rear bumpers protect against impacts and a wheelie bar with rubber tires provides stunt potential.

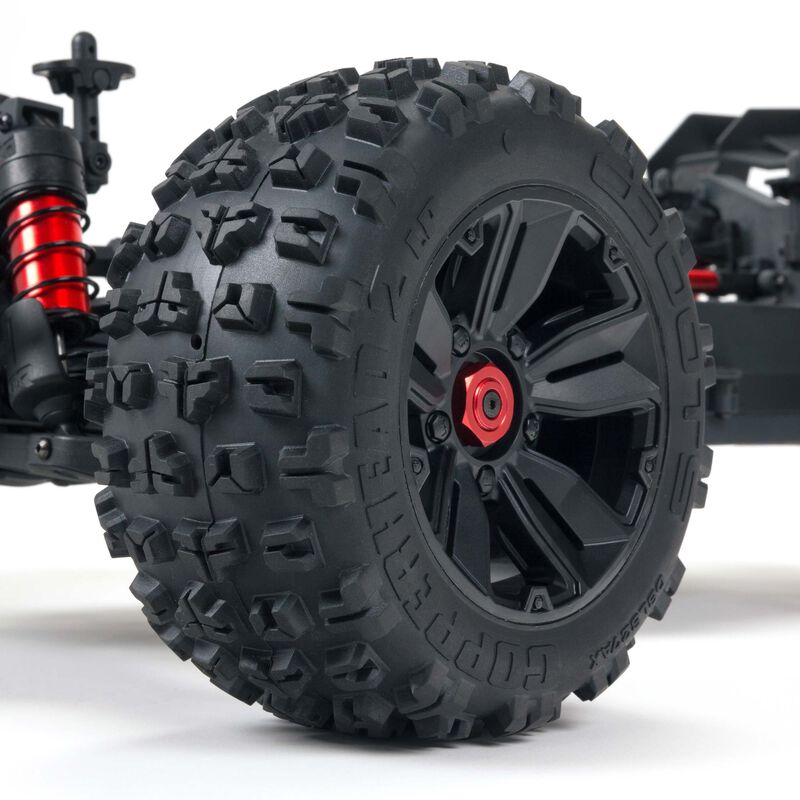

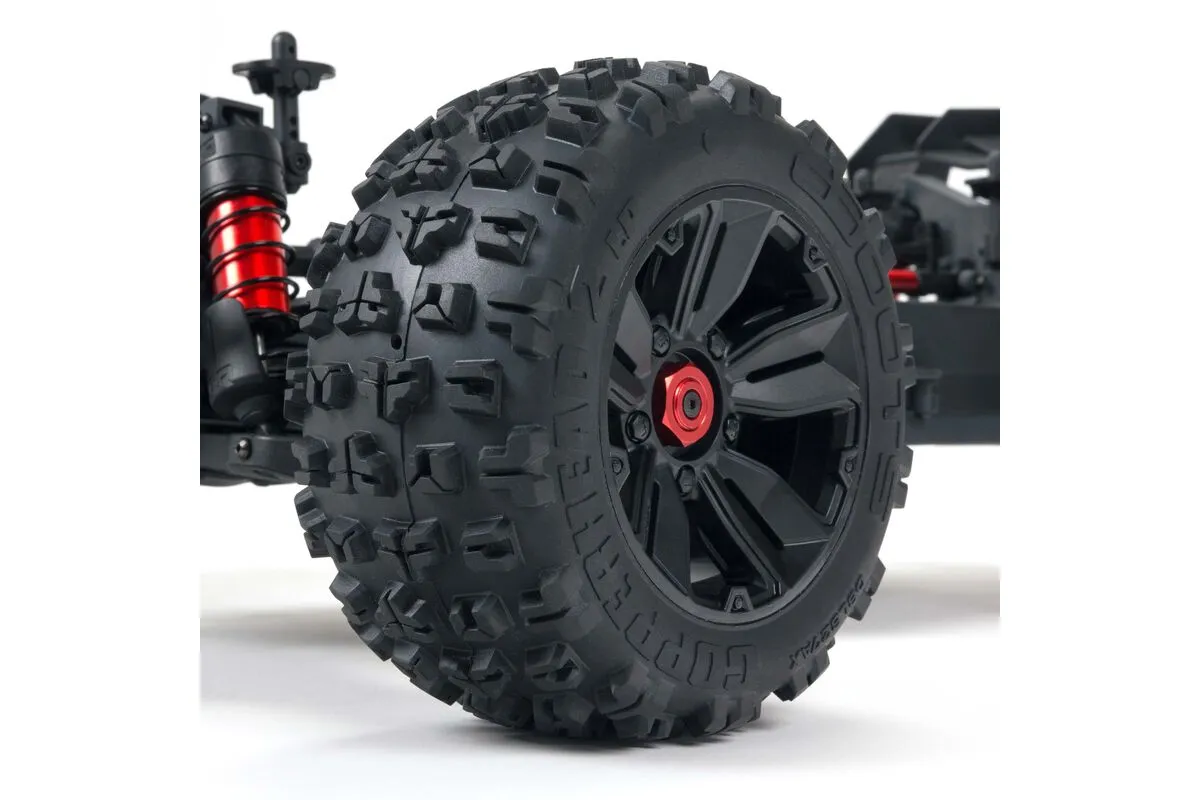

dBoots Copperhead 2 LP Tires
Made of high-quality rubber, the dBoots Copperhead 2 LP tires offer an aggressive, chunky tread pattern for excellent traction.

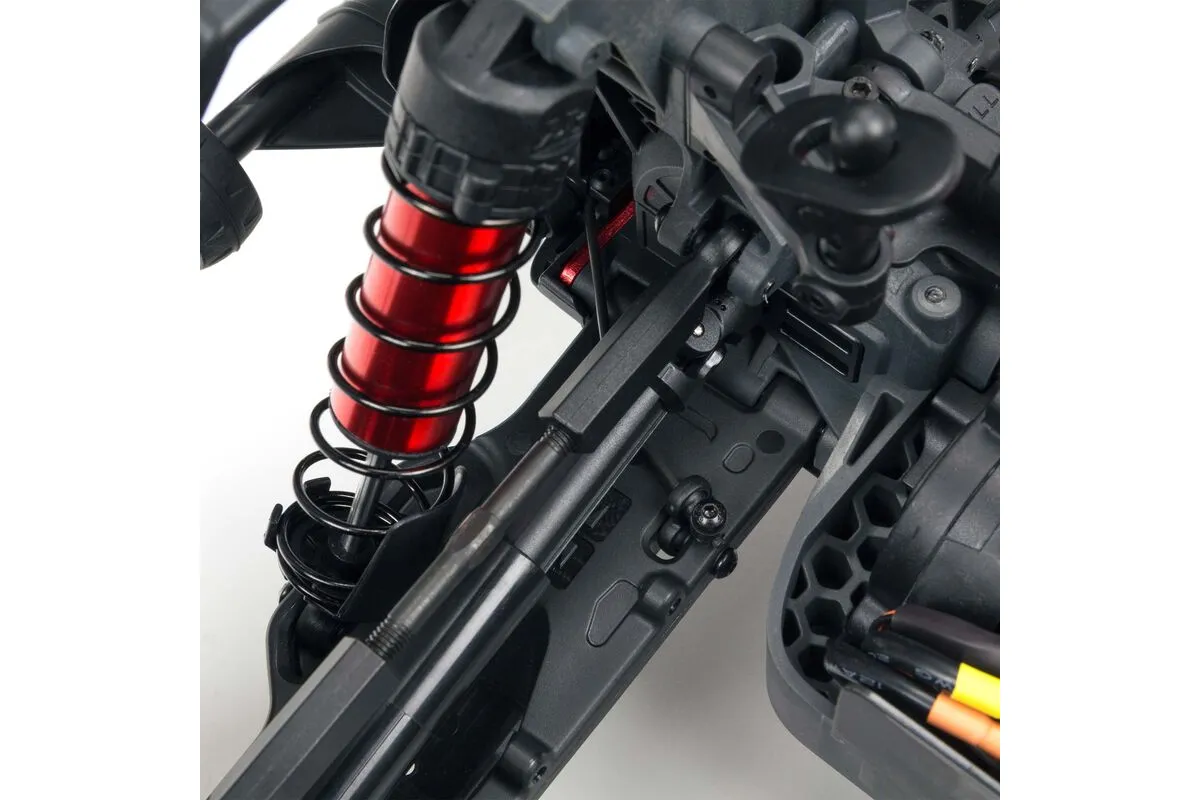

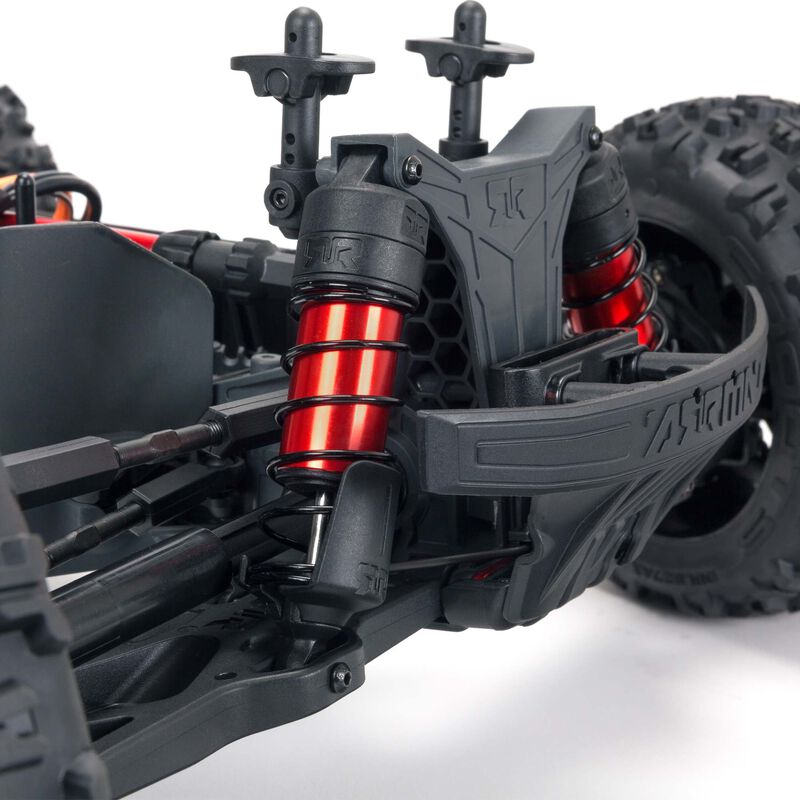

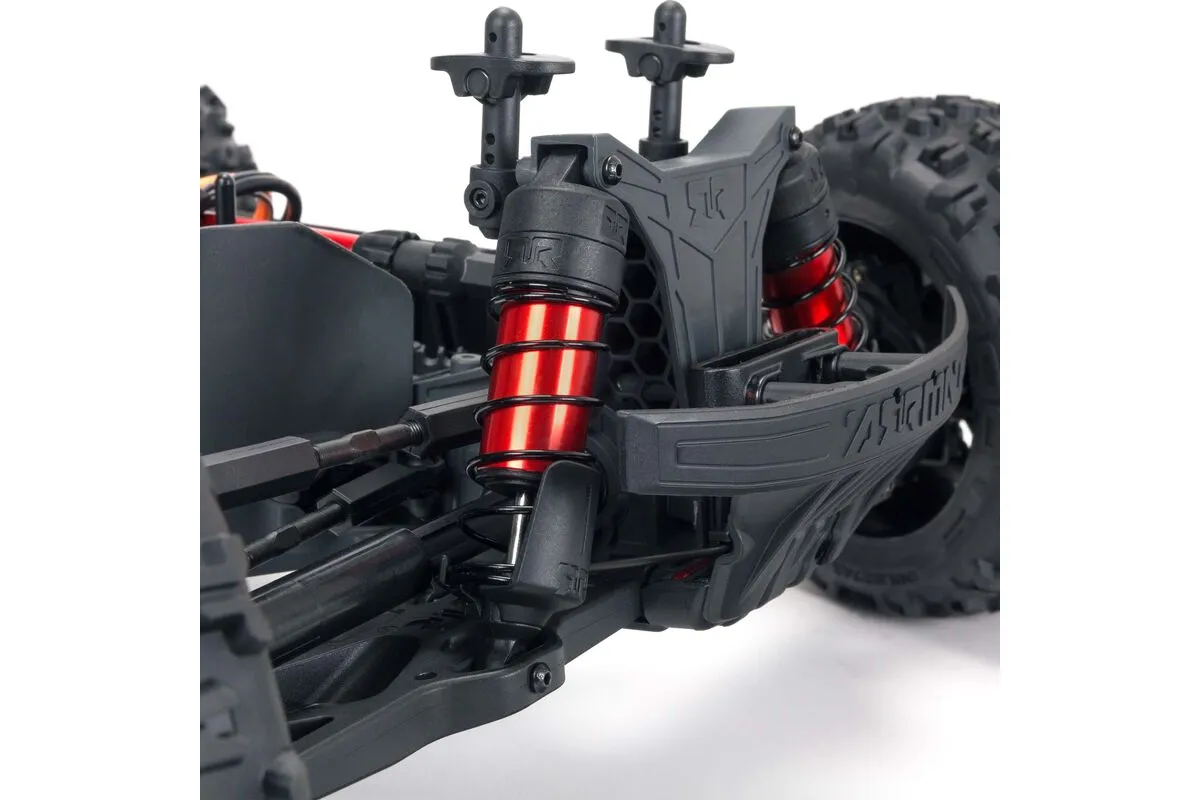

Aluminum Big Bore Shocks
Aluminum big bore shocks are included as standard, mounted on higher shock towers for more plush suspension travel.
ARRMA Kraton 4x4 4S V2 exploded view diagram
Exploded view showing the complete parts breakdown of the ARRMA Kraton 4x4 4S V2 monster truck.
ARRMA Kraton 4x4 4S V2 parts diagram
Parts diagram for the ARRMA Kraton 4x4 4S V2 speed monster truck.
Specifications
| Scale | 1/10 |
|---|---|
| Vehicle Type | Monster Truck |
| Completion Level | Ready-To-Run |
| Drivetrain | 4WD |
| Product Length | 21.54" (547mm) |
| Product Width | 17.72" (450mm) |
| Product Height | 8.11" (206mm) |
| Product Weight | 9.26 lbs (4.2kg) |
| Wheelbase | 13.98" (355mm) |
| Front Track | 17.72" (450mm) |
| Rear Track | 17.72" (450mm) |
| Motor Size | 3668-2400Kv |
| Spur Gear | 57T |
| Pinion | 13T |
| Internal Gear Ratio | 2.85 |
| Final Drive Ratio | 12.48 |
| Motor Type | Brushless — Sensorless |
| Differential | 2 Gear Diffs |
| Suspension | Independent |
| Shock Type | Aluminium body, coil-over springs |
| Chassis | Moulded composite |
| Brakes | Integral with ESC |
| Water-Resistant | Yes |
| Ball Bearings | Full set, rubber shielded |
| Wheel Hex Size | 17mm |
| Gear Pitch | 0.8m |
| Max Battery Dimensions | 6.14 x 2.01 x 1.89 in (156 x 51 x 48mm) |
| Technology | Smart |
| Radio | Included |
| Receiver | Included |
| Servos | Included |
| Speed Control | Included |
| Charger | Sold Separately |
| Battery | Sold Separately |
| Approximate Assembly Time | No assembly required |
| Body | Painted, decalled and trimmed |
RC Car
| Scale | 1/10 |
|---|---|
| Max LiPo Power | 4S (14.8v) |
| Completion | Ready to Run |
| Skill Level | Intermediate |
| Power Source | Electric Brushless |
| Chassis Type | Monster Truck |
| On/Off Road | Off Road |
| Drivetrain | 4WD |
Factory Specs
| Battery Connector | IC5, EC5 |
|---|---|
| Rear Shock Oil | 500cSt |
| Front Differential Oil | 6,000w |
| Rear Differential Oil | 6,000w |
| Pinion Gear | 13T 32dp/0.8Mod |
| Spur Gear | 57T 32dp/0.8Mod |
| Wheel Hex Size | 17mm |
