ARRMA Quake 4S RC Monster Truck Electric Brushless 4WD 1/8 Scale RTR - Blue
ARRMA Quake 4S RC Monster Truck Electric Brushless 4WD 1/8 Scale RTR - Blue
The Aftershock Has Arrived! The ARRMA Quake 4S RC Monster Truck Packs 4S Brushless Power, Spektrum DSC Stability Control And Seismic Wheelie Action!
Spektrum DSC Keeps Wild Slides Under Control
Firma 2300Kv Brushless Power Handles 3S Or 4S
A High-CoG Chassis Lets You Pull Wheelies On Demand
Three Gear Diffs Keep Power Planted On Landings
Great For Intermediate and Up Skill Levels Wanting 4S Bashing!

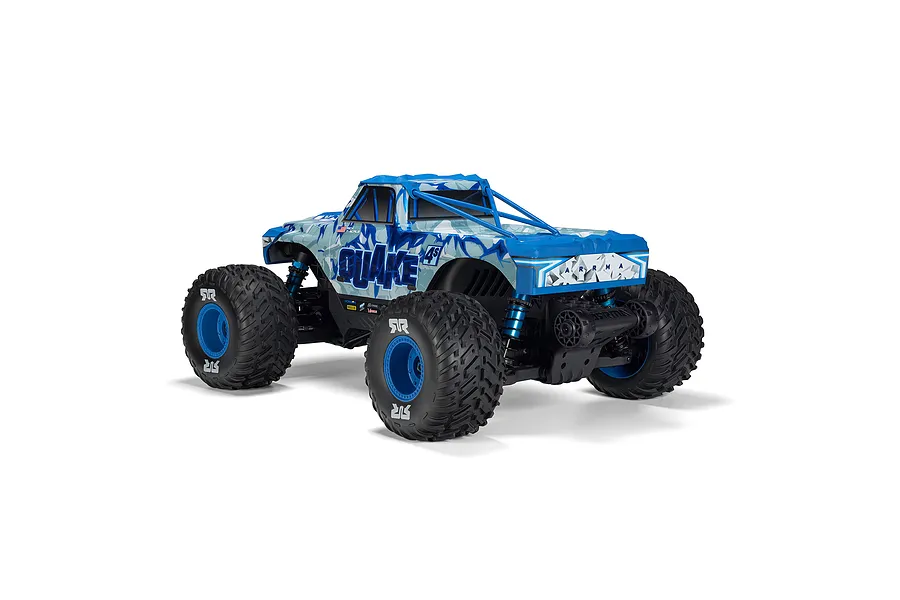

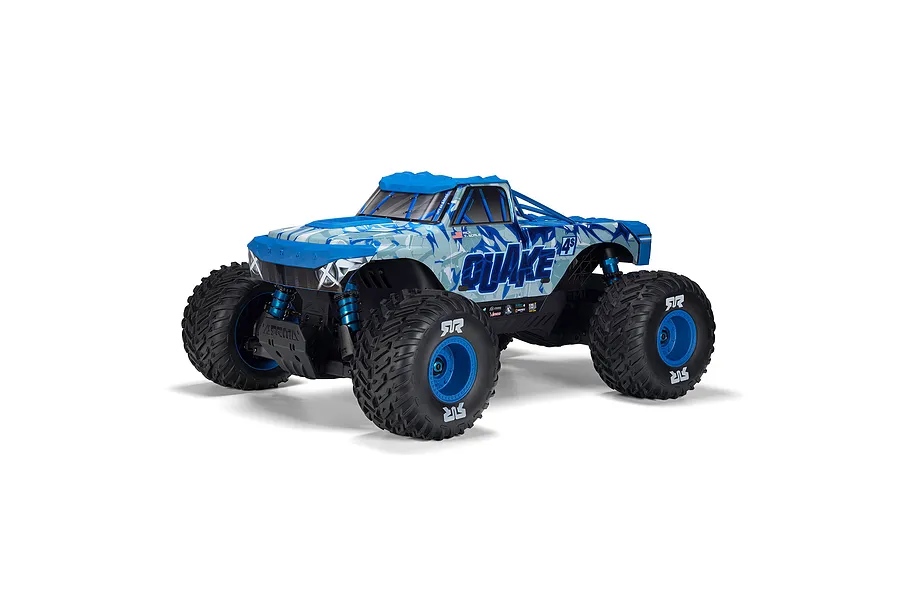

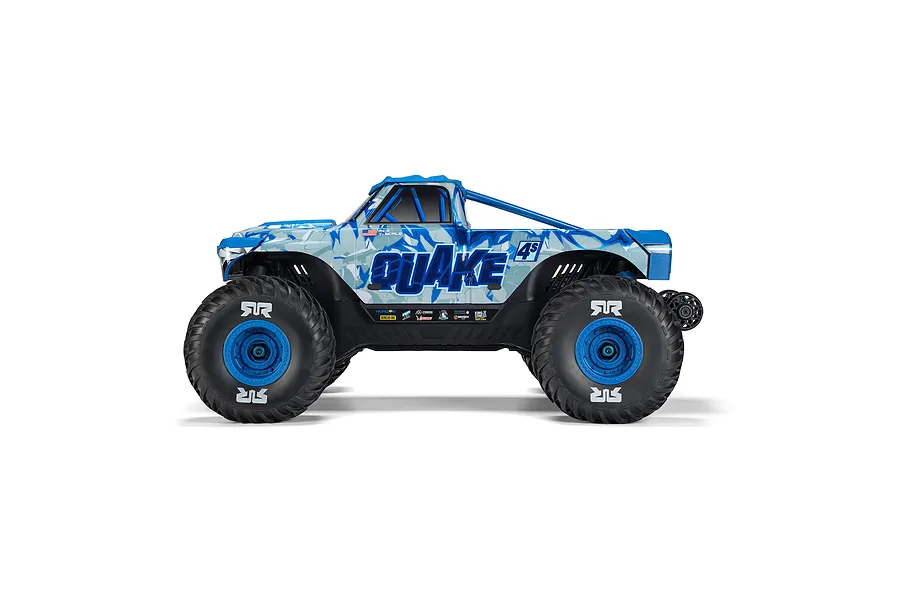

The aftershock has arrived. The ARRMA Quake 4S RC Monster Truck is the first vehicle built on ARRMA's Next Gen 4S platform, taking the Quake attitude to a bigger 1/8 scale footprint. Its high centre of gravity chassis is tuned to move like a full-size monster truck, leaning hard into corners and lifting the front wheels as soon as you squeeze the throttle. A raised chassis adds ground clearance for rough ground, and a high-angle integrated wheelie bar sets up big stunts. Aggressive cut chevron tyres on colour-coded wheels bite into dirt, grass and gravel. A tough three-differential 4WD drivetrain keeps power planted at all four corners. The painted body comes in Black/Red or White/Blue and sits on a hidden body retention system, so there are no clips to fight.

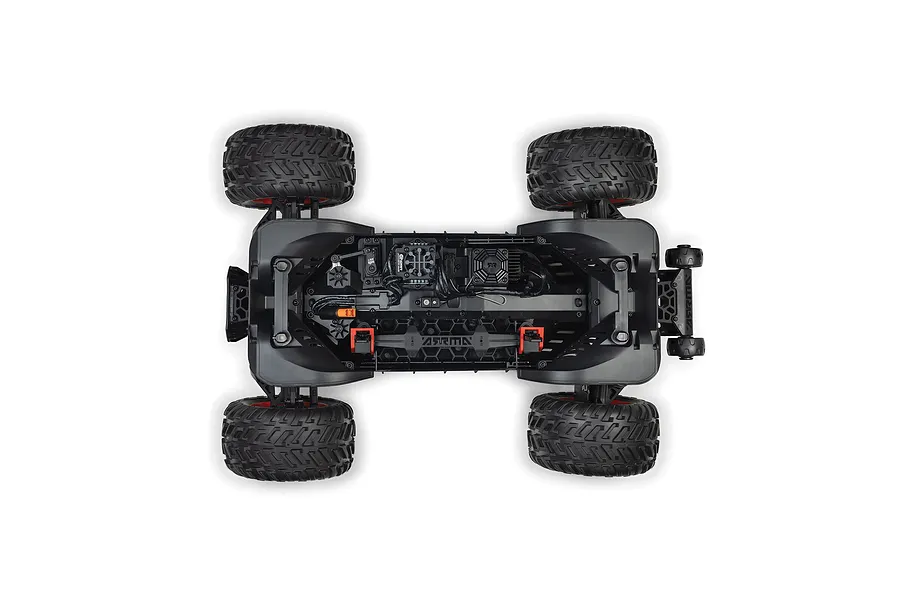

Under the body is a full Spektrum 4S power system. A waterproof Firma 150A Smart ESC runs 3S or 4S LiPo power into a punchy Firma 3674 2300Kv brushless motor. The longer 74mm motor can makes more torque, and a heatsink, cooling fan and high-airflow chassis cooling keep temperatures down on long runs. Spektrum Dynamic Stability Control senses oversteer and adds countersteer before a slide turns into a spin, with four selectable modes so you choose how much help you get. The SLT3 transmitter also adds adjustable throttle limiting while you build your skills. A rugged deep tub composite chassis, interlocking shock towers, threaded aluminium shocks with large-diameter shafts and a large-impact front bumper are built to take hard landings. With a low component count and a large battery compartment with a ratcheting strap, maintenance and pack swaps are quick, so you spend more time bashing.

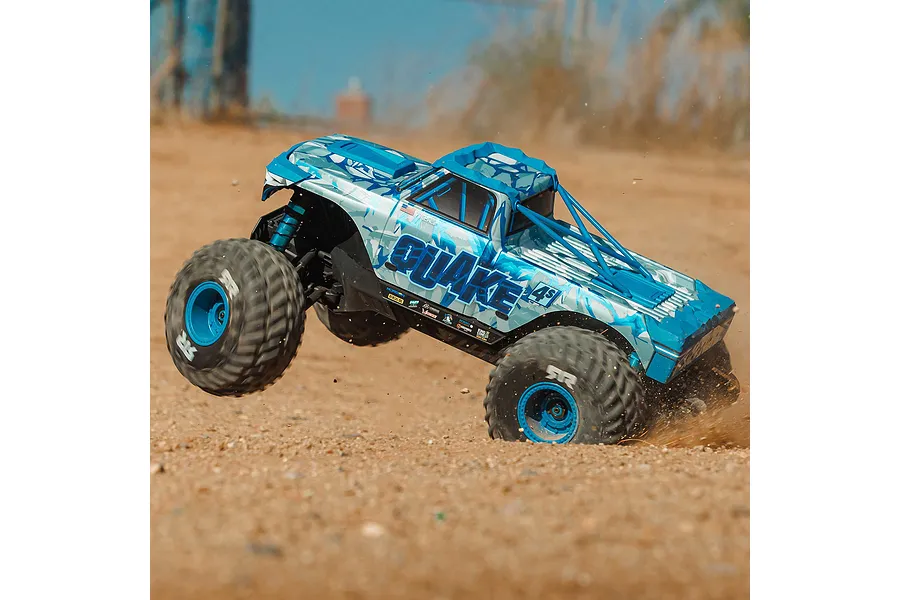

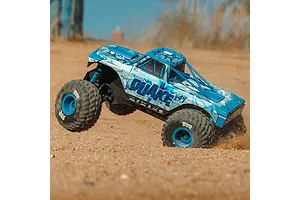

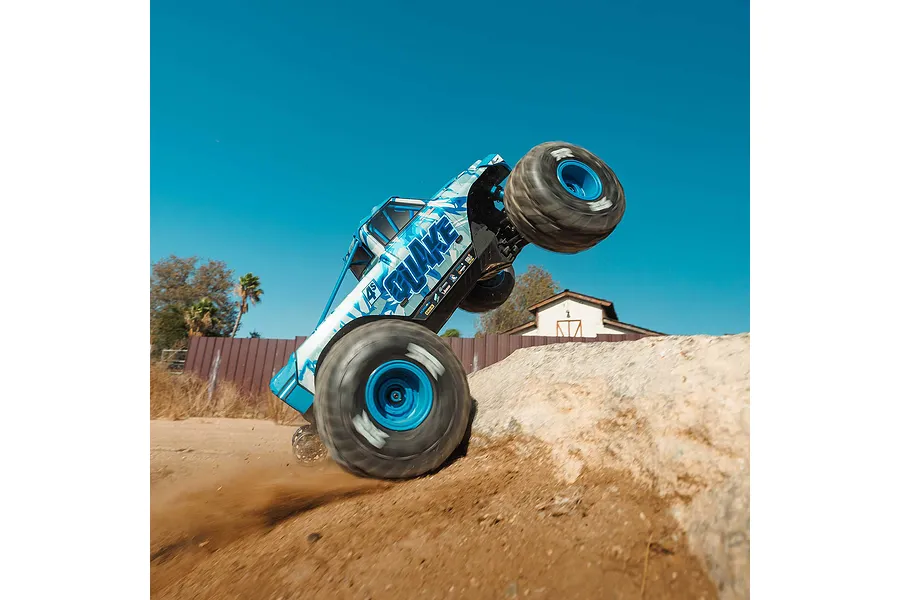

The high centre of gravity chassis is tuned to move like a full-size monster truck. Expect huge body roll through corners, wheel-lifting launches off the throttle and big-air landings that look as wild as they feel. This is genuine monster truck behaviour, not a buggy in disguise.
The Quake 4S is the first vehicle built on ARRMA's Next Gen 4S platform. It brings the Quake's big personality to a larger 1/8 scale footprint, with more size, more power and more presence to shake the ground at your local bash spot.

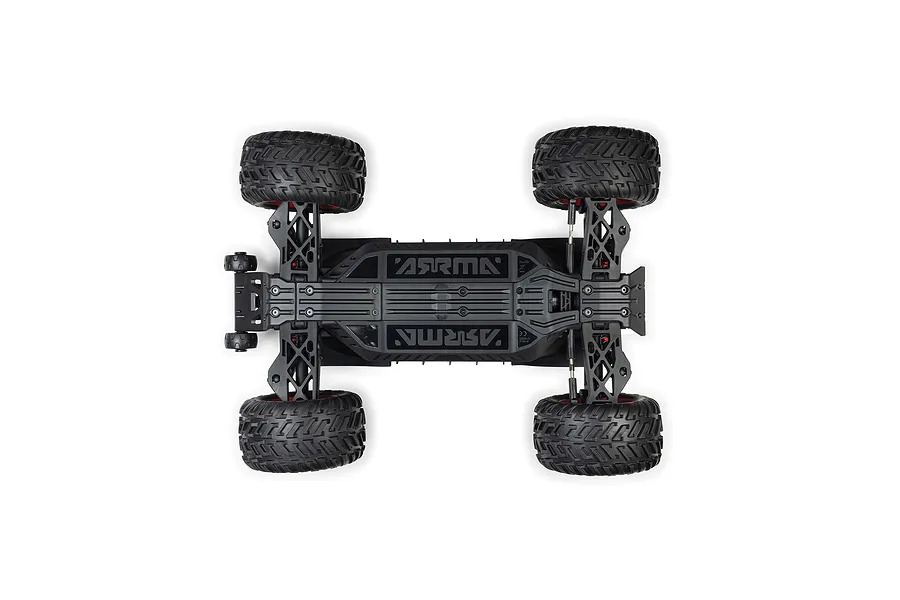

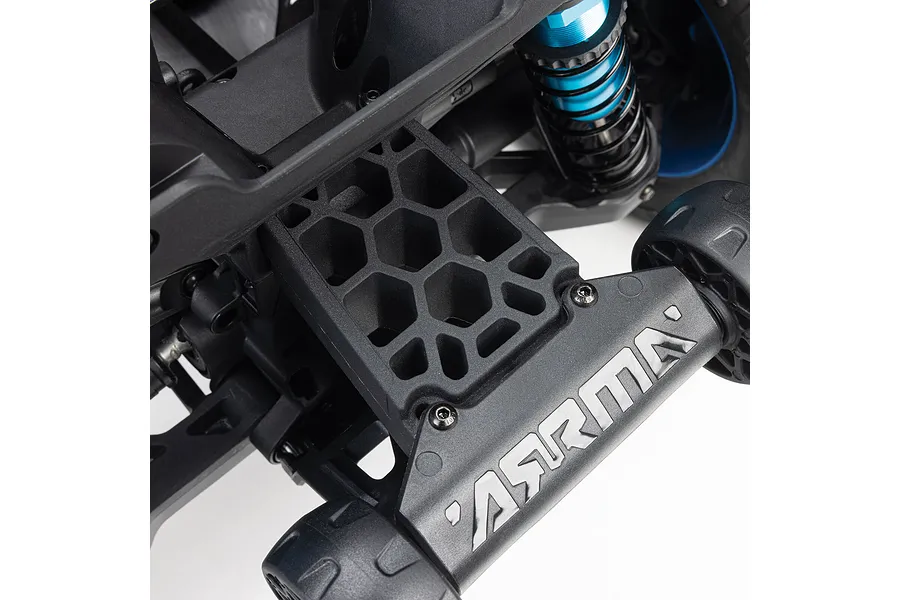

A tough moulded composite deep tub chassis, interlocking shock towers, a large impact-absorbing front bumper and shock-absorbing bumper braces are built to take relentless hits. Wishbone dirt guards and interlocking body protection keep dirt and debris away from vital parts, so the truck keeps running session after session.

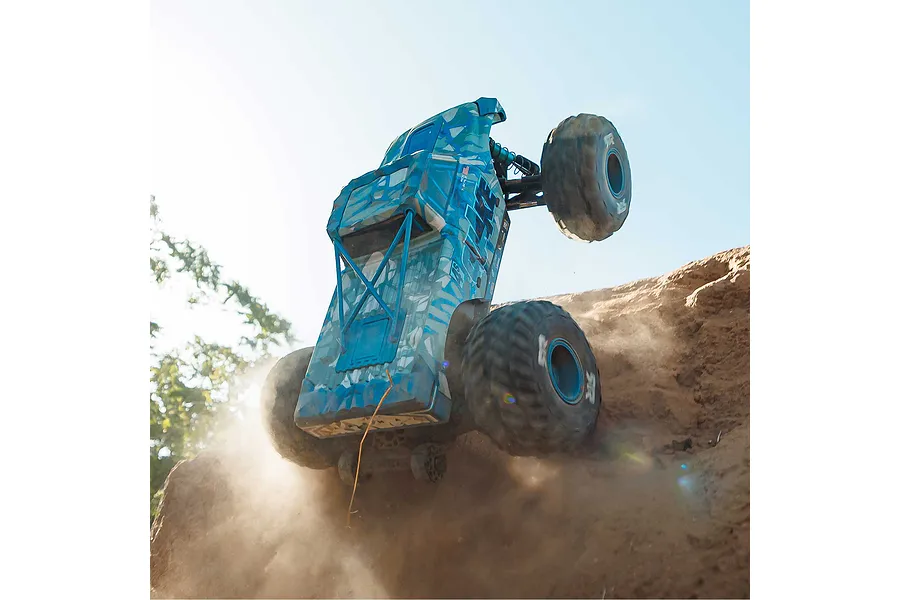

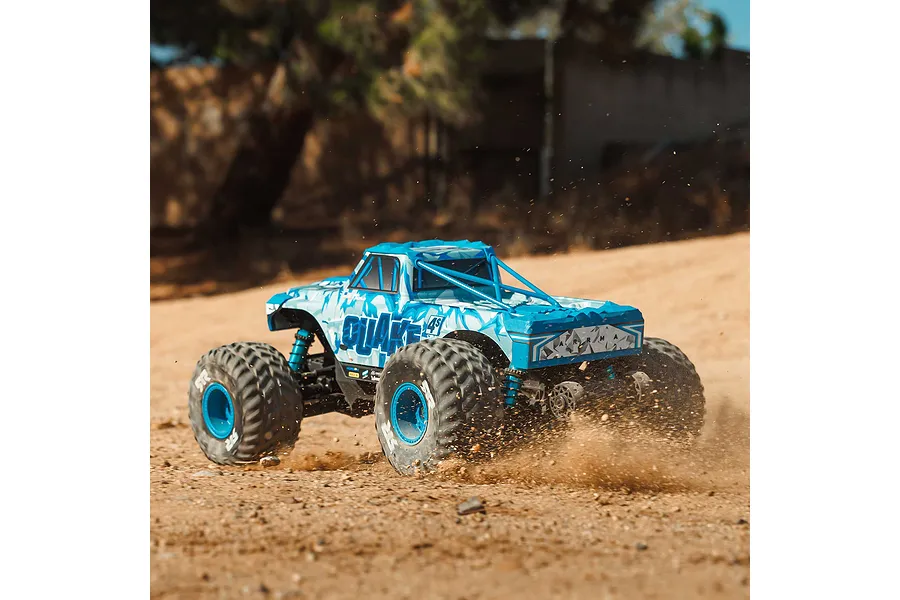

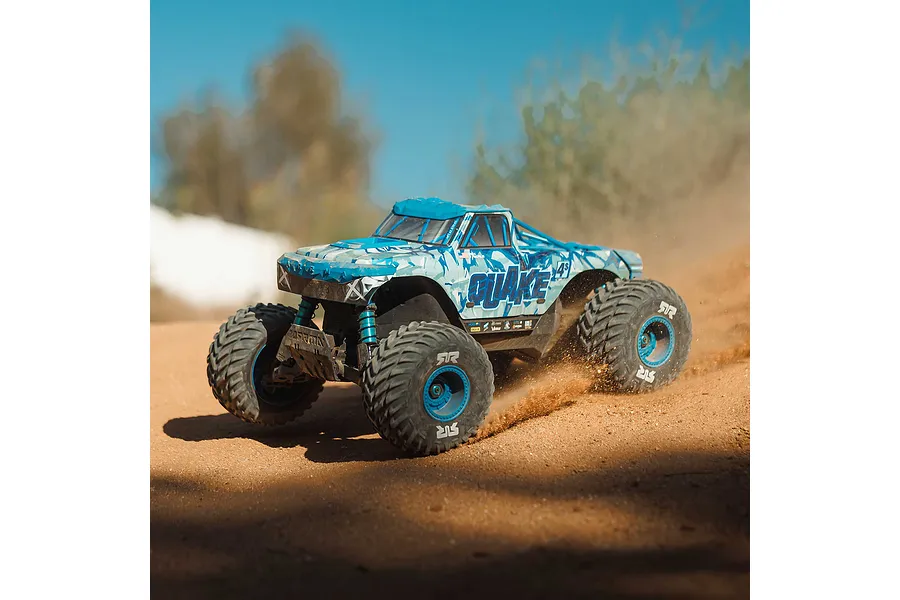

A three-differential 4WD drivetrain keeps power planted at all four corners. Cut chevron tyres bite hard into dirt, grass and gravel, driving the truck forward across almost any surface you point it at.
A low parts count means fewer pieces to remove, fewer to lose and less time on the bench. Easy access to the drivetrain, electronics and battery gets the Quake 4S back out and ready for the next run fast.

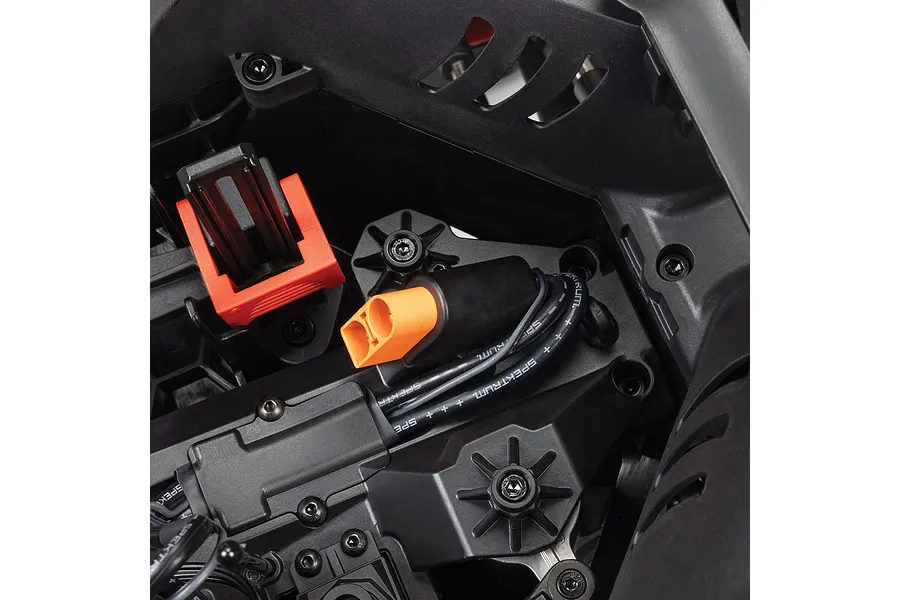

A large battery compartment, ratcheting battery strap and easy-access retention system make fitting and swapping packs quick. Clean, captive battery wiring stays tidy and protected during hard bashing.
No exposed clips and no fighting with body posts. The hidden retention system holds the body securely for a clean, locked-in look, while the internal body frame adds strength where the hits land.

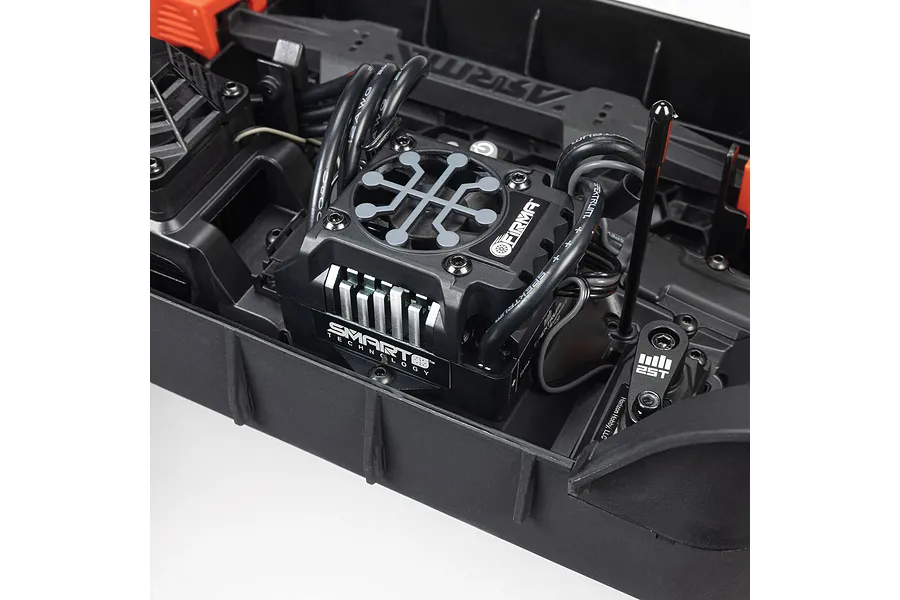

A Spektrum Firma 150A Brushless Smart ESC runs on 3S or 4S LiPo power and drives a Firma 3674 2300Kv brushless motor with a heatsink and cooling fan. The motor is 74 mm long, up from 68 mm on previous ARRMA 4S vehicles, for more torque. A high-airflow fan cover and built-in chassis cooling keep fresh air moving when the action heats up.
The 223S BLX series features Spektrum's Dynamic Stability Control (DSC), making it ideal for new brushless drivers. With four selectable modes, DSC automatically applies steering corrections to improve control and safety on various surfaces. As your skills progress, you can turn off DSC and unleash the truck's full potential.
Next Gen 4S Platform With A Deep Tub Moulded Composite Chassis For Serious Durability
High-CofG Chassis And Integrated Wheelie Bar For Wheel-Lifting Monster Truck Stunts
Spektrum DSC With Four Selectable Modes To Control Oversteer And Over-Rotation
Waterproof Spektrum Firma 150A Smart V2 ESC To Run 3S Or 4S LiPo Power
Longer 74mm Firma 3674 2300Kv Brushless Motor With Cooling Fan For Greater Torque
Three-Differential 4WD Drivetrain To Keep Power Planted At All Four Corners

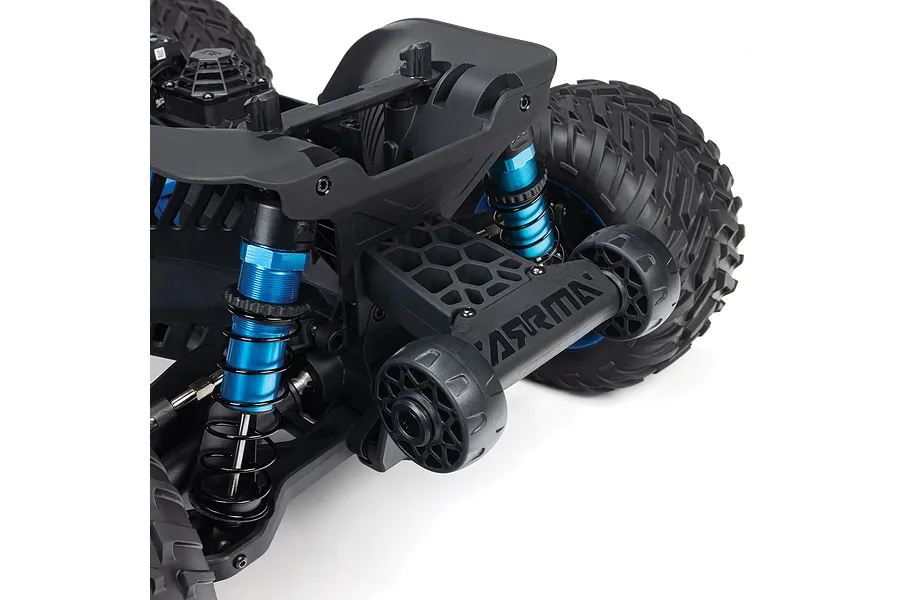

Threaded Aluminium Shocks With Large-Diameter Shafts To Soak Up Big Landings

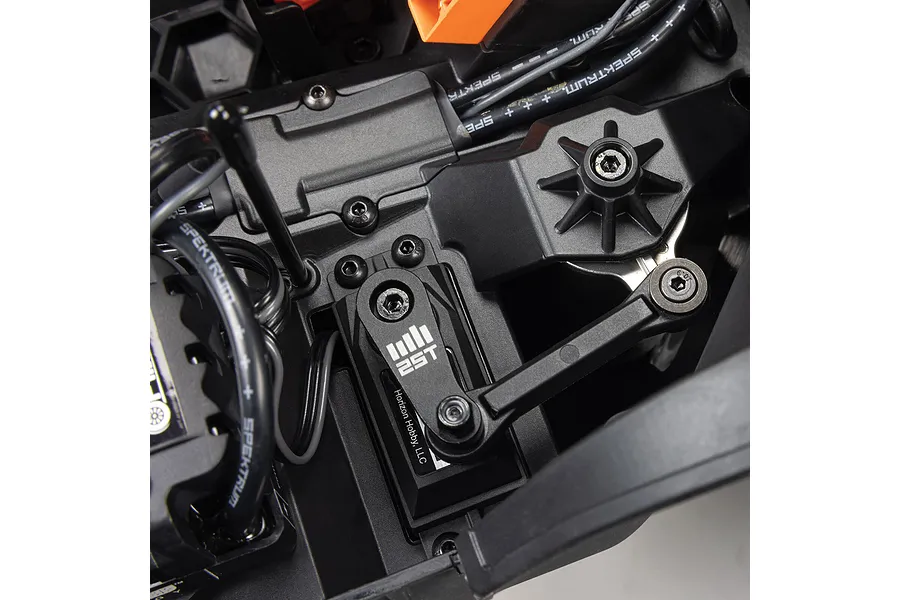

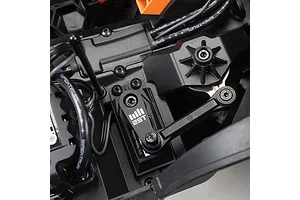

S662 Metal-Geared Waterproof Servo And Sliding Ramp Servo Saver For Protected Steering
Large Battery Compartment And Ratcheting Strap To Make Pack Swaps Fast
Genuine ARRMA Product
1x ARRMA Quake 4S RC Monster Truck
1x Spektrum SLT3 2.4GHz 3-Channel Transmitter With DSC
1x Spektrum SLR370 DSC Receiver
1x Spektrum Firma 150A Smart V2 Waterproof ESC
1x Spektrum Firma 3674 2300Kv Brushless Motor
1x Spektrum S662 Metal-Geared Waterproof Digital Servo
4x AA Transmitter Batteries
1x Instruction Manual
1x 11.1V 3S Or 14.8V 4S Hardcase LiPo Battery With IC5 Connector (Max 160mm x 50mm x 70mm)
1x Compatible LiPo Battery Charger
1x LiPo Safe Bag
-
Length
- 580mm (22.83")
-
Width
- 414mm (16.31")
-
Height
- 280mm (11.02")
-
Wheelbase
- 367mm (14.45")
-
Weight
- 6.12kg (13.49lbs)
-
Chassis
- Moulded Composite Deep Tub
-
Suspension
- Wishbone With Threaded Aluminium Shocks
-
Drivetrain
- 4WD
-
Motor
- Spektrum Firma 3674 2300Kv Brushless
-
ESC
- Spektrum Firma 150A Smart V2 Waterproof
-
Scale
- 1/8
-
Max LiPo Power
- 4S (14.8v)
-
Completion
- Ready to Run
-
Skill Level
- Intermediate, Experienced
-
Power Source
- Electric Brushless
-
Chassis Type
- Monster Truck
-
On/Off Road
- Off Road
-
Drivetrain
- 4WD
-
Battery IncludedIncluded battery type or if sold separately.
- Not Included
-
Max LiPo Power
- 4S (14.8v)
-
Battery Connector
- IC5
-
Front Shock Oil
- 1300cSt
-
Rear Shock Oil
- 1300cSt
-
Pinion Gear
- 13T 32dp/0.8Mod
-
Spur Gear
- 63T 32dp/0.8Mod
-
Wheel Hex Size
- 17mm
