Proven SCX10 II Chassis
The SCX10 II chassis is a rock crawling icon, renowned for its exceptional handling and rugged durability. Experience the thrill of conquering challenging terrain with this proven platform.
Next Dispatch: 00d 10h41m49s
Part no. AXI03025T2
No longer made. Replaced by:

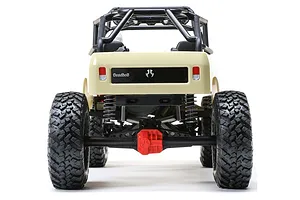

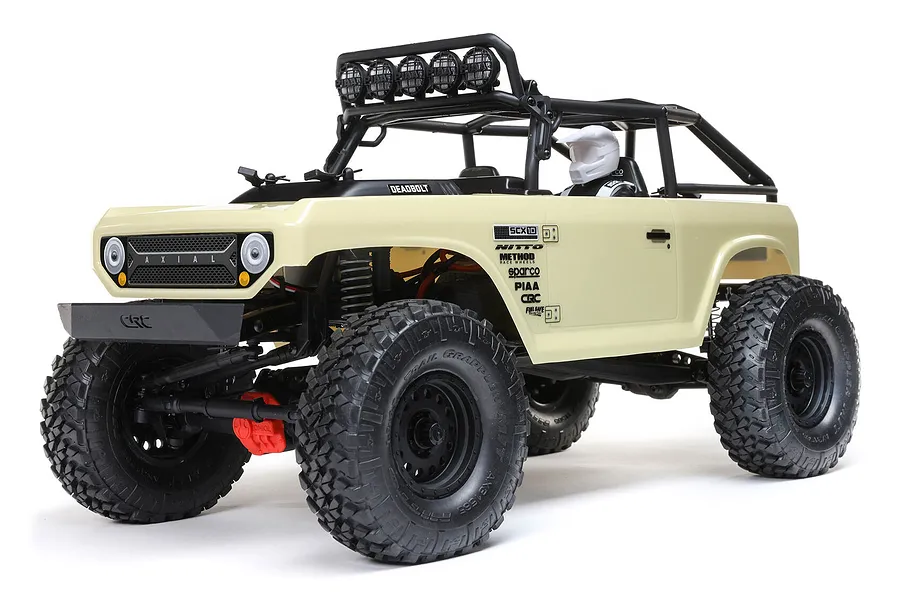

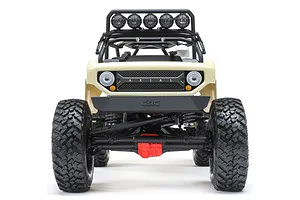

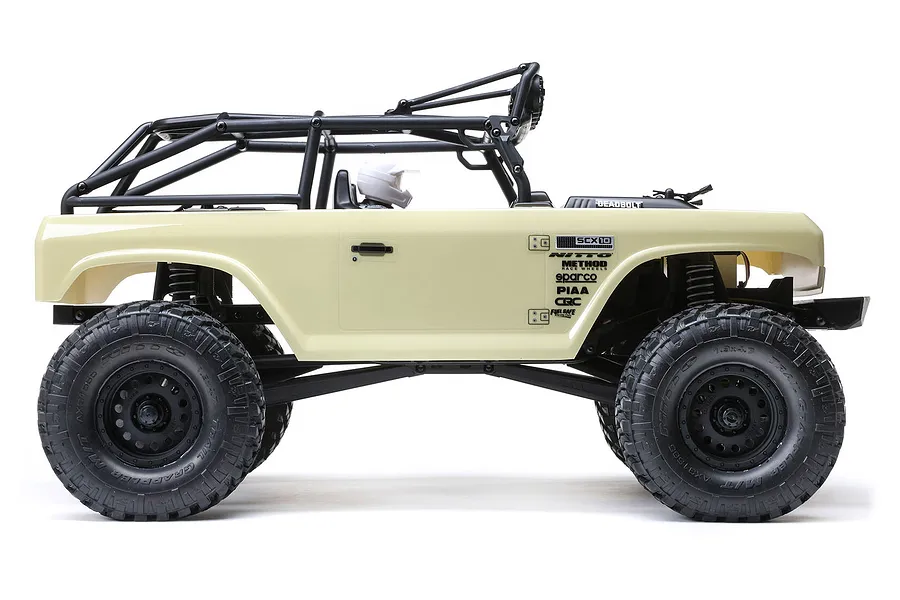

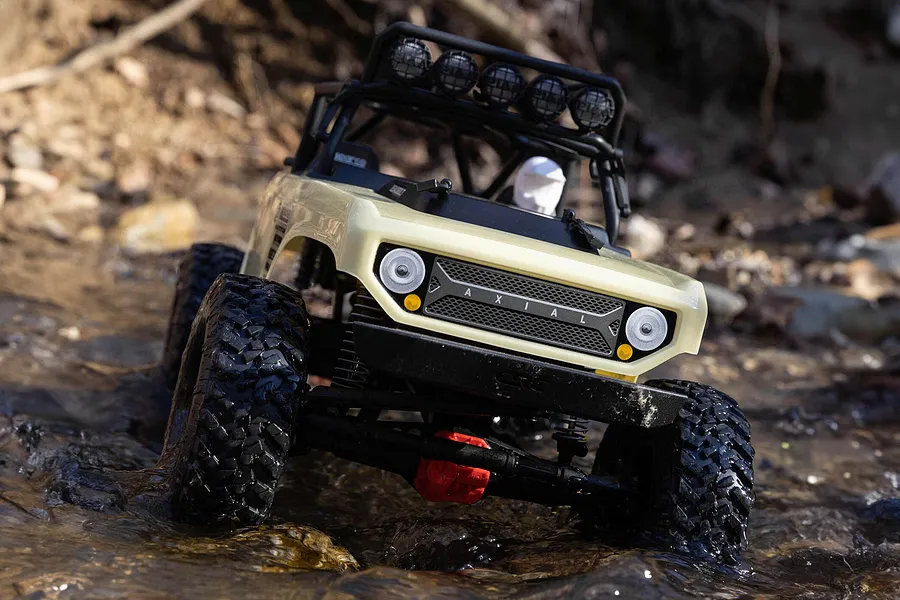

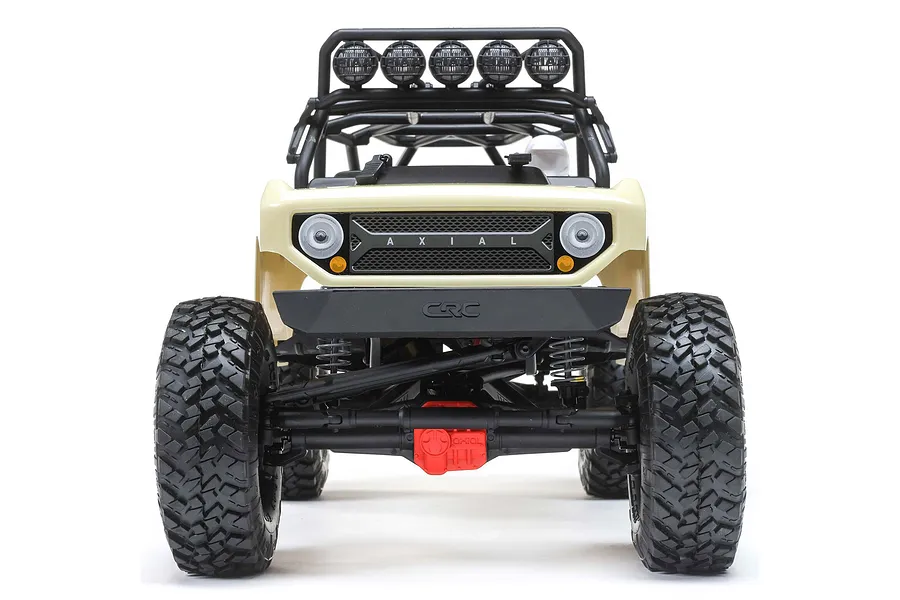

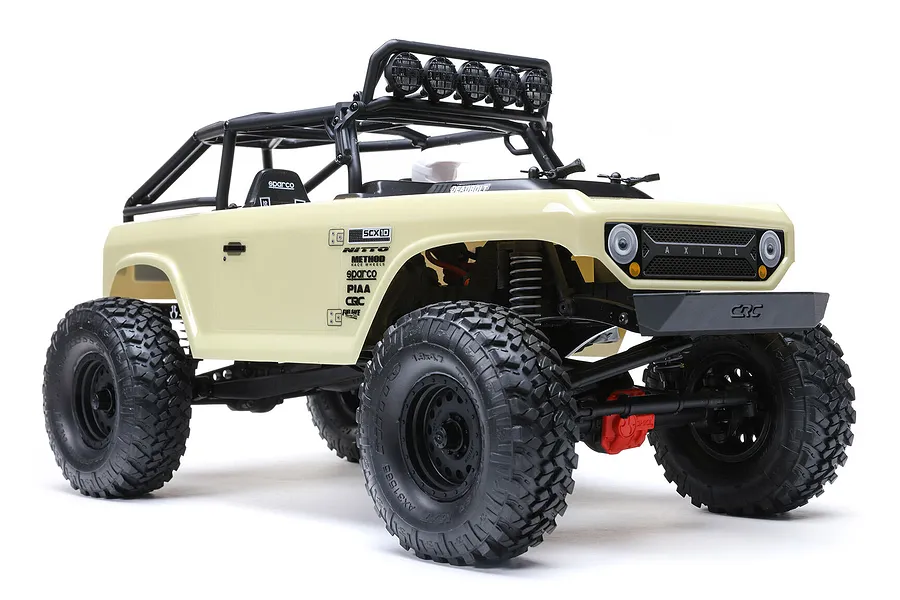

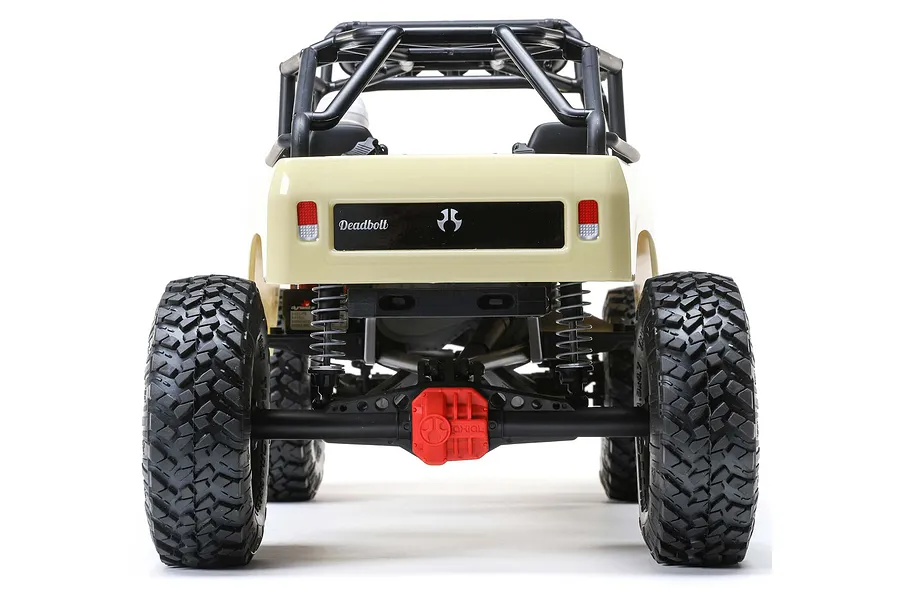

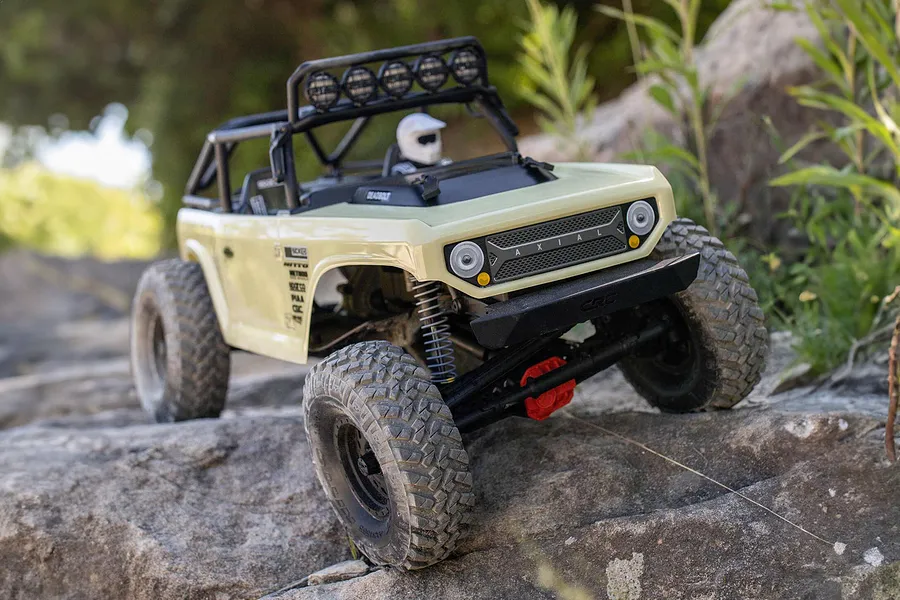

The Axial SCX10 II Deadbolt 4WD RTR is a budget-friendly, highly capable, and easily upgradeable RC rock crawler suited for both experienced adventurers and hobby newcomers. It combines rugged scale looks with the exceptional handling of the trail-ready SCX10 II chassis in a 12" short wheelbase setup agile enough to take on twisty trails.

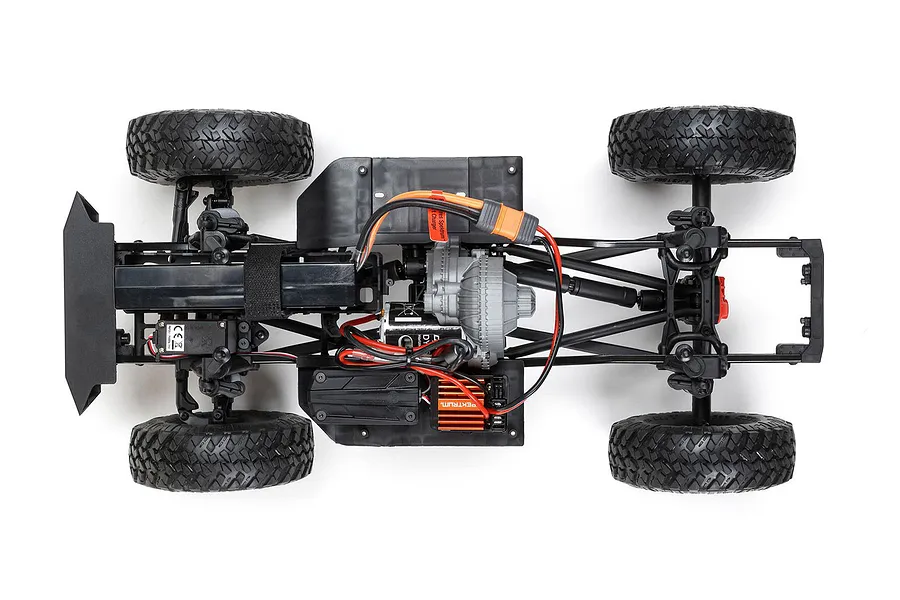

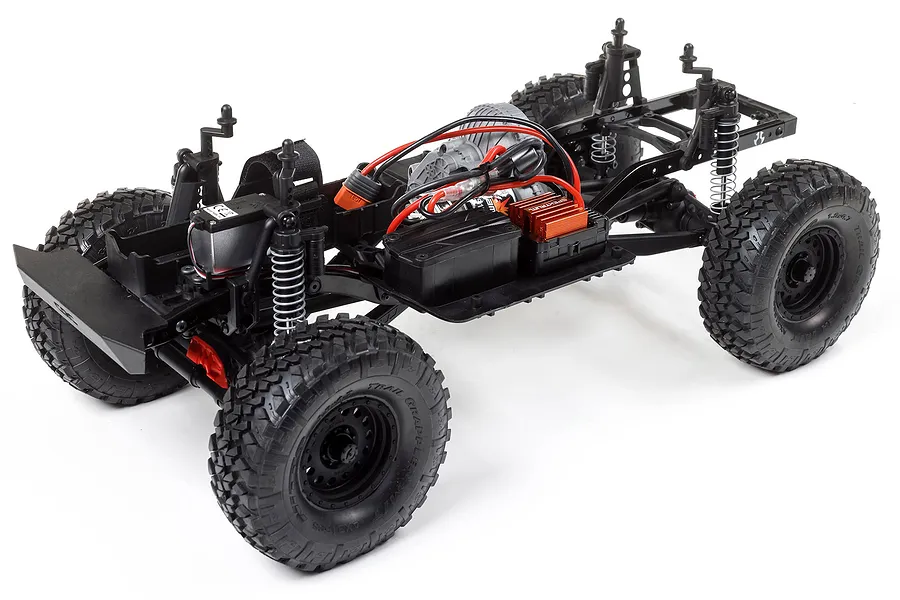

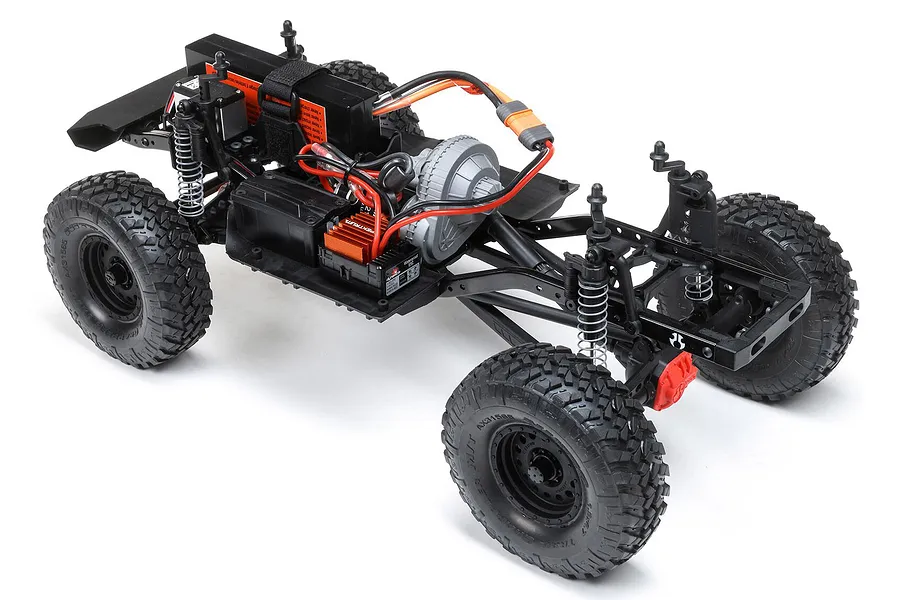

The SCX10 II chassis is made of durable high-strength C-channel steel with cross braces for reinforcement and rigidity. The contoured skid plate significantly reduces hang-ups, and the simplified design makes maintenance quick and easy. The SCX10 II Deadbolt 4WD features an adjustable wheelbase, adjustable body mount, adjustable bumper mounts with swaybar mounting points, and mounting points for an optional 2-speed transmission and servo winch. S30 compound, 4.7" x 1.9" Nitto Trail Grappler M/T tires on METHOD 307 Hole wheels provide ample ground clearance and a large block tread pattern for excellent bite in all terrain. Nearly all electronics are supplied and installed — just add your choice of batteries and charger.
Note
Refer to the vehicle's manual for the manufacturer's waterproof specifications and guidelines.

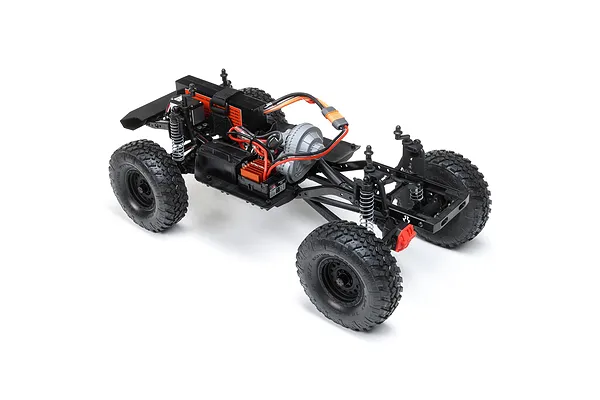

The SCX10 II chassis is a rock crawling icon, renowned for its exceptional handling and rugged durability. Experience the thrill of conquering challenging terrain with this proven platform.

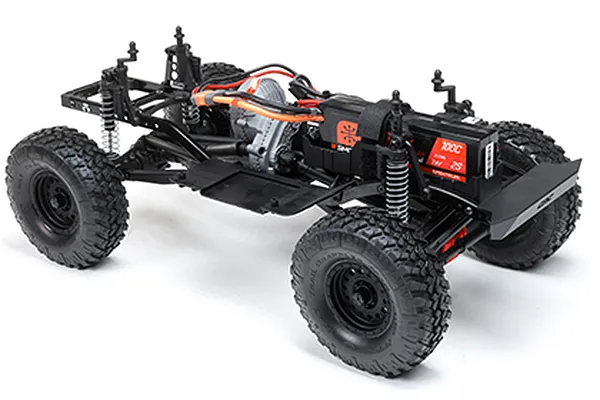

The Deadbolt SCX10 II chassis offers adjustable wheelbase options to suit your driving preferences and terrain. Easily change the wheelbase from the standard 12.0" (305mm) to either 11.4" (290mm) or 12.3" (312mm) by simply swapping out the rear suspension links and drive shaft (optional link kits sold separately).

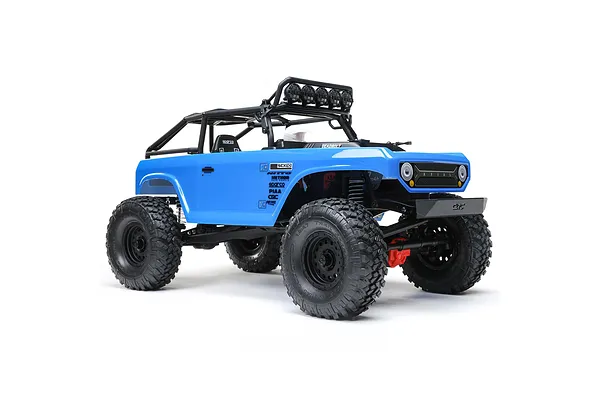

The Deadbolt's attention to detail is second to none. From the driver figure and exterior cage to the optional LED-ready light bar, this crawler captures the essence of full-size off-road vehicles.

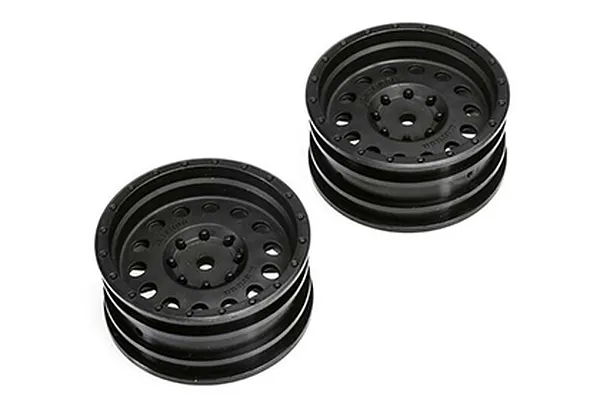

The officially licensed Method Hole Wheels and Falken Wildpeak M/T tyres deliver a winning combination of scale realism and off-road performance. These aggressive tyres provide exceptional grip on a variety of surfaces, while the detailed wheels further improve the truck's authentic look.

The LCX AX10 transmission is built to conquer any terrain. Its three-gear layout, heavy-duty slipper clutch, sealed gear cover, and all-metal gears provide smooth, reliable performance and exceptional durability for tackling challenging obstacles.

The Spektrum SLT2 2-channel transmitter offers precise control and convenient features. This transmitter allows you to limit the vehicles maximum speed to 50% or 75%, providing a safe and gradual learning experience for new drivers. Four AA batteries are included for immediate operation.
| Length | 460mm (18.1") |
|---|---|
| Width | 224mm (8.8") |
| Height | 229mm (9") |
| Wheelbase | 305mm (12") |
| Weight | 2.1kg (4.65 lbs) |
| Ground Clearance | 68mm (2.7") |
| Chassis | Steel C-Channel Ladder Frame |
| Drivetrain | 4WD |
| Final Drive Ratio | 40.44:1 |
| Gear Ratio | 3.75 |

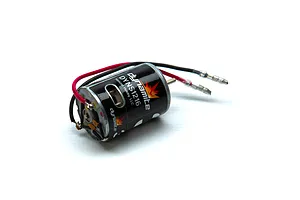

| Motor Type | Brushed 540 |
| Motor Size | 540 |
| Suspension | Oil-Filled Coilover Shocks |
| Connector Type | IC3 |
| Scale | 1/10 |
| Scale | 1/10 |
|---|---|
| Max LiPo Power | 3S (11.1v) |
| Completion | Ready to Run |
| Skill Level | Intermediate |
| Power Source | Electric Brushed |
| Chassis Type | Rock Crawler |
| On/Off Road | Off Road |
| Drivetrain | 4WD |
| Battery Connector | IC3 |
|---|---|
| Pinion Gear | 14T 32dp/0.8Mod |
| Spur Gear | 52T 32dp/0.8Mod |
| Wheel Hex Size | 12mm |
