BetaFPV Drones

BetaFPV O4 Air Unit Bracket II - Clear Grey

Part no. 01090035_2

2 in stockNo reviews yet
1 / 6
1 / 6

$14.99

or 4 fortnightly payments of $3.75 with afterpay or PayPal, or zip

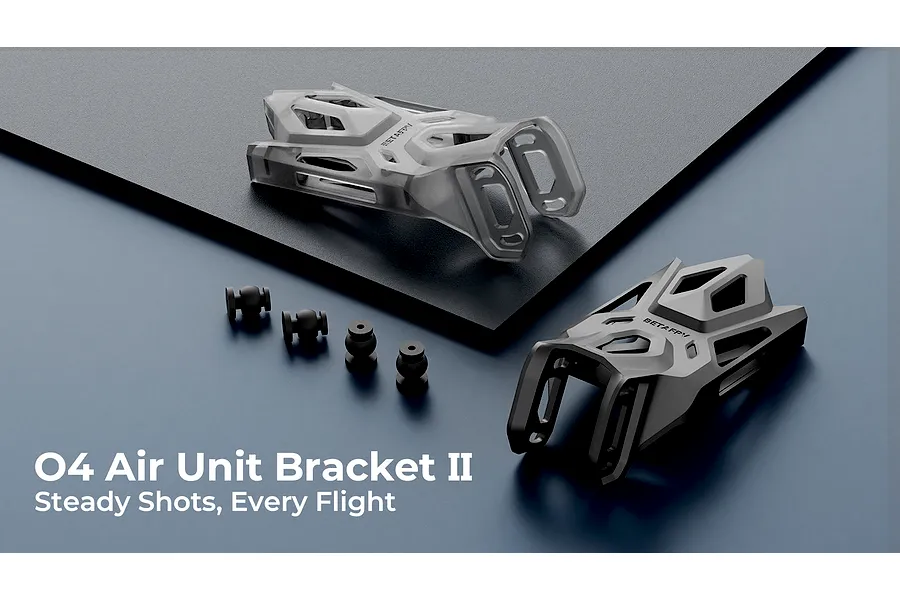

The BetaFPV O4 Air Unit Bracket II Secures Your Chosen Camera With Integrated Shock-Absorbing Technology.

  • The Reinforced PA12 Cross Section Absorbs Crash Impacts
  • An Aerodynamic Airflow Design Increases Total Motor Thrust
  • The Rigid Duct Geometry Prevents Unwanted Propeller Flex
  • Two Distinct Colour Options Allow For Custom Chassis Aesthetics
Select Option: Clear Grey

  • 2 in stock · Order in 10h 00m, dispatched today

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Overview

Capturing professional-grade aerial footage from a micro platform requires total isolation from high-frequency motor vibrations. This second-generation bracket completely replaces the complex assembly of the original version with a streamlined, integrated system that makes achieving jello-free video straightforward. By utilising four dedicated shock-absorbing balls to soft-mount the entire camera assembly, it effectively filters out noise before it ever reaches your sensor, ensuring that your HD captures remain fluid even during aggressive freestyle sessions.

Precision and reliability are woven into every aspect of the design, from the tool-light assembly process to the reinforced antenna mounts. The bracket securely locks your transmitter gear in place, providing the confidence that your signal link will remain strong during long-range pushes or tight proximity flights. Whether you choose the standard black or the low-profile transparent grey, this bracket is a practical necessity for any pilot who treats their cinewhoop as a serious cinematic tool.

Features

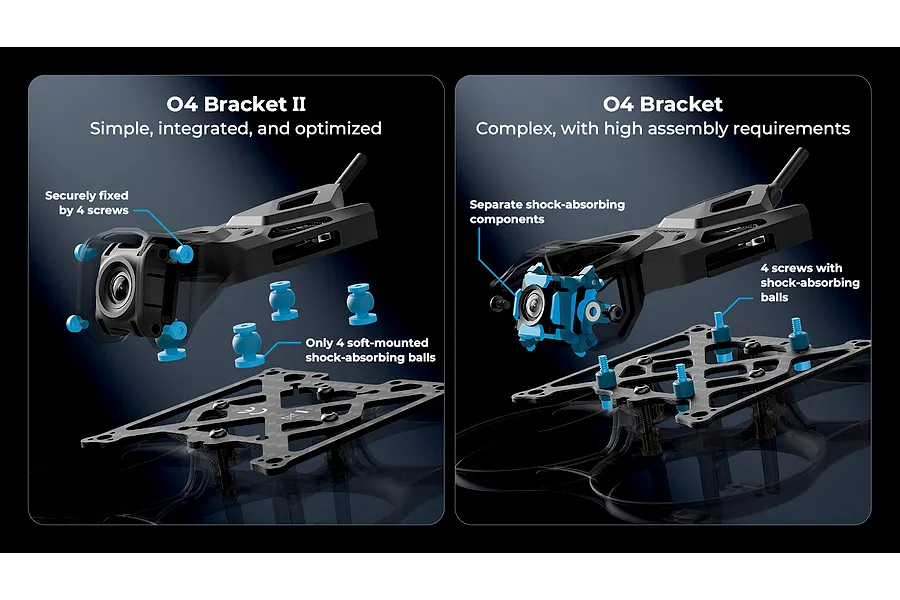

  • Fully integrated vibration-damping system uses four soft-mounted balls to isolate the camera from all motor noise

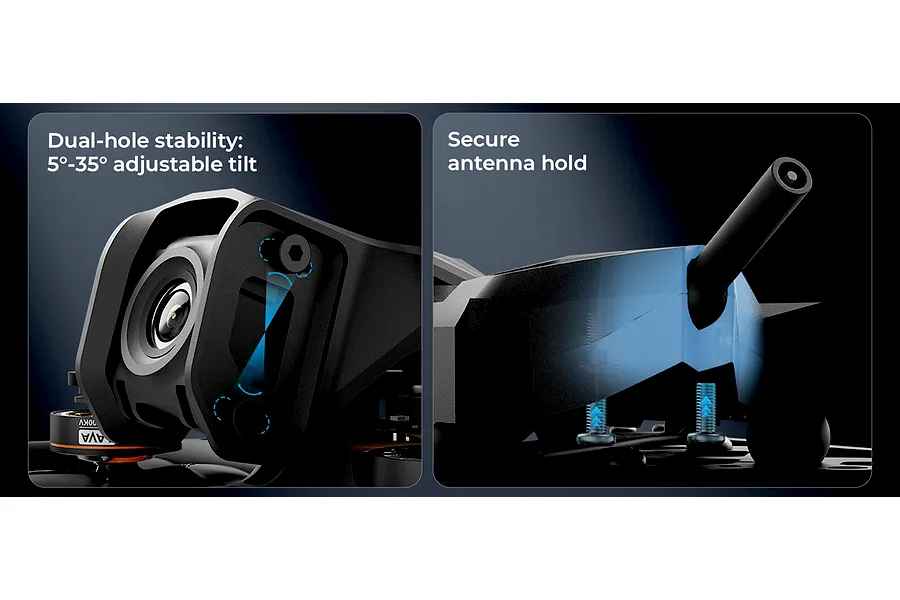

  • Dual fixing holes optimise the centre of rotation to provide smooth and stable tilt adjustments between 5 and 35 degrees
  • Extended locking tail uses two screws to secure the 5.8G VTX antenna for maximum signal transmission reliability

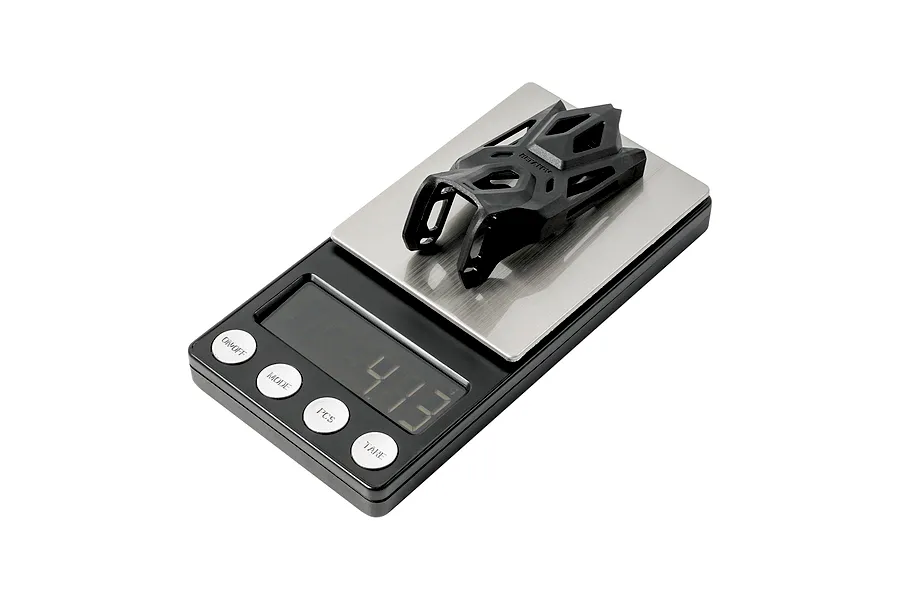

  • Durable polypropylene material balances low weight with high-impact resistance for long-term field stability
  • Simplified four-screw mounting process enables quick, tool-light assembly without the need for complex manual adjustments
  • Provides an unobstructed path for ND filters even when using extreme wide-angle camera settings
  • Genuine BetaFPV Product

In the box

  • 1x BetaFPV O4 Air Unit Pro Bracket Top Plate
  • 1x BetaFPV O4 Air Unit Pro Bracket Bottom Plate
  • 2x 5.8G VTX Antennas
  • 6x Shock-absorbing Balls 8mm
  • 6x Shock-absorbing Pads 1.5mm
  • 6x M2x4mm Socket Head Cap Self Tapping Screws
  • 8x M1.4x6mm Phillips Flat Washer Head Tapping Screws

You'll need

  • 1x Compatible Air Unit
  • 1x Pavo Pico II Brushless Whoop Frame
