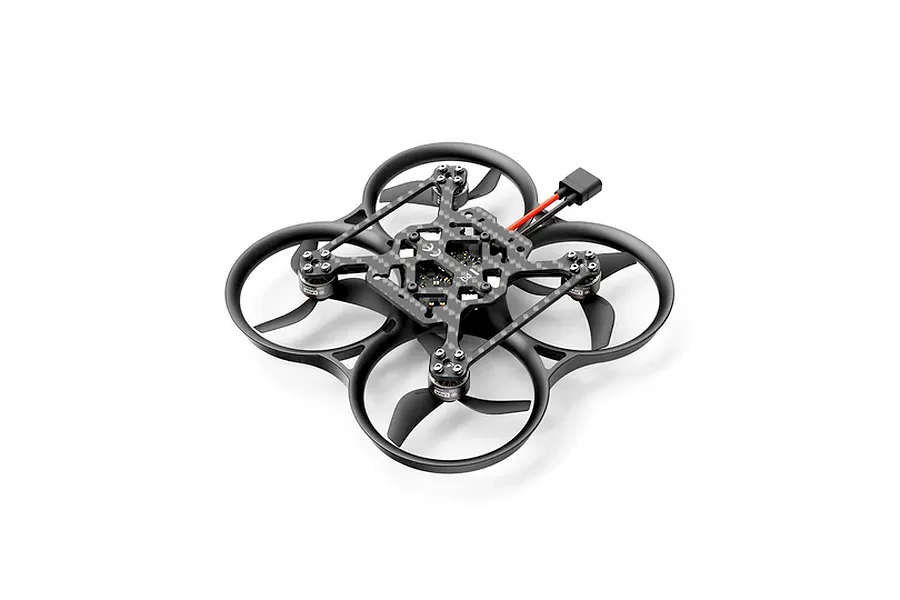

BetaFPV Pavo20 Pro II Brushless DJI O4 Pro HD Digital VTX Drone - PNP
BetaFPV Pavo20 Pro II Brushless DJI O4 Pro HD Digital VTX Drone - PNP
High-Energy Aerial Footage With The BetaFPV Pavo20 Pro II Brushless PNP Drone Featuring An Upgraded 4 Screw Assembly Frame and Powerful LAVA Motors
Powerful LAVA Brushless Motors Included
Compatible With Several VTX Systems For a More Custom Setup
Mount Digital HD Electronics On O4 Pro Brackets
High Night Flight Visibility With NightFire RGB LEDs
Great For Intermediate Skill Levels and Up
Redefining lightweight freestyle performance in a compact 2.2-inch cinewhoop platform, the BetaFPV Pavo20 Pro II PNP provides a high-performance foundation for custom digital FPV builds. Built around an upgraded crash-resistant PA12 frame, this quadcopter utilises a four-screw assembly with embedded nuts and guided mounting points to deliver exceptional structural rigidity while making maintenance effortless. Underneath the aerodynamic ducts sits an explosive propulsion system pairing high-torque LAVA 1104 7200KV brushless motors with co-developed Gemfan 2218 three-blade propellers, generating an outstanding 6.23:1 thrust-to-weight ratio for aggressive acrobatic flying.
Arriving in a Plug and Play (PNP) configuration, this model is pre-wired and pre-tuned for rapid setup with your choice of DJI O4 or O4 Pro digital HD video transmission systems. The integrated O4 Air Unit Pro Bracket features a vibration-damping structure, reinforced camera side panels, and dual fixing holes for smooth tilt adjustments without blocking ND filters. Equipped with an ultra-light F4 2-3S 20A AIO flight controller featuring dual BEC outputs and a vibrant NightFire RGB LED strip for night flying, this versatile whoop is built to capture buttery smooth cinematic footage. Just install your preferred digital VTX unit, bind your radio transmitter, and take to the skies.
The F4 2-3S 20A AIO FC V1 includes a 25A peak ESC for reliable motor operation. A 9V 2A BEC powers the DJI O3 HD VTX effectively even at low voltage. It features a plug-and-play 6-pin PMU for easy HD VTX connection without soldering.
The Pavo20 Pro Frame features a 93.7mm (3.7") wheelbase and PA12 thickened whoop ducts. This design protects components and improves aerodynamic efficiency, delivering an 8-11% thrust boost. It supports dual camera fixing holes for DJI O3 and O4 Pro wide-angle shooting, ensuring clear footage.
Upgraded PA12 Frame Features An Ultra-Rigid Four-Screw Assembly
Redesigned Carbon Plate Fits Standard DJI O4 And O4 Pro VTX Units
Explosive LAVA 1104 7200KV Brushless Motors Provide Massive Thrust
Co-Developed Gemfan 2218 Three-Blade Propellers Maximise Efficiency
Advanced Anti-Vibration O4 Air Unit Pro Bracket Protects Camera
Ultra-Light F4 2-3S 20A AIO Flight Controller Delivers Crisp Digital Control
Integrated NightFire RGB LED Strip Offers 10 Preset Lighting Modes
Genuine BetaFPV Product
1x BetaFPV Pavo20 Pro II Brushless Whoop Quadcopter (PNP)
1x O4 Air Unit Pro Bracket & Plates Set
4x Gemfan 2218 3-Blade Propellers
1x NightFire RGB LED Strip & RGB Board
1x Hardware, Screws & Screwdriver Kit
1x Type-C To SH1.0 Adapter Cable Set
1x Instruction Manual
1x DJI O4 Air Unit or O4 Air Unit Pro HD Digital VTX System
1x Compatible FPV Goggles
1x Compatible Radio Transmitter (Serial ELRS or DJI SBUS)
1x 3S 450mAh To 680mAh LiPo Battery With XT30 Connector
1x Compatible LiPo Battery Charger
-
Length
- N/A
-
Width
- N/A
-
Height
- N/A
-
Weight
- 79g (2.78oz) (Without Battery)
-
Run Time
- 6.5 Minutes (With 3S 550mAh Battery Sold Seperately)
-
Propellers
- Gemfan 2218 3-Blade Propellers
-
Range
- Varies Depending On Video Transmitter
-
Motor
- LAVA 1104 7200KV Brushless Motors
-
Flight Controller
- F4 2-3S 20A AIO FC V1
-
Transmitter
- Not Included
-
Camera
- Not Included
-
Goggles
- Not Included
-
Skill Level
- Intermediate And Up
