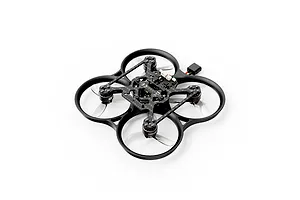

BetaFPV Pavo20 Pro II Brushless DJI O4 Pro HD Digital VTX SBUS Drone Only - PNP
BetaFPV Pavo20 Pro II Brushless DJI O4 Pro HD Digital VTX SBUS Drone Only - PNP
The BetaFPV Pavo20 Pro II Brushless Delivers Explosive Acceleration With LAVA Motors Anti-Vibration O4 Brackets And Dynamic NightFire RGB LEDs
Powerful LAVA Brushless Motors Included
Compatible With Several VTX Systems For a More Custom Setup
Mount Digital HD Electronics On O4 Pro Brackets
High Night Flight Visibility With NightFire RGB LEDs
Great For Intermediate Skill Levels and Up
The BetaFPV Pavo20 Pro II PNP redefines lightweight freestyle performance in an ultra-agile 2.2-inch cinewhoop platform. Engineered for capturing smooth cinematic video, this next-generation RC FPV Drone features a reinforced PA12 frame with a guided four-screw assembly system that delivers outstanding rigidity and crash resistance. Underneath the aerodynamic ducts sits a high-performance propulsion system featuring high-torque LAVA 1104 7200KV brushless motors and low-pitch Gemfan 2218 three-blade propellers, generating an outstanding 6.23:1 thrust-to-weight ratio for aggressive acrobatic manoeuvres.
Arriving as a Plug and Play (PNP) aircraft, this drone is pre-wired and pre-tuned for rapid integration with your preferred digital HD video transmitter system. The advanced O4 Air Unit Pro Bracket features a specialised vibration-damping structure, reinforced camera-side panels, and dual mounting holes for smooth 0 to 40-degree tilt adjustments. Powered by an ultra-light F4 2-3S 20A AIO flight controller with dual BEC outputs and a striking NightFire RGB LED strip for night flying, this nimble quadcopter gives pilots total creative freedom. Simply install your digital VTX unit, bind your radio transmitter, and take to the skies with confidence.
The Pavo20 Pro Frame features a 93.7mm (3.7") wheelbase and PA12 thickened whoop ducts. This design protects components and improves aerodynamic efficiency, delivering an 8-11% thrust boost. It supports dual camera fixing holes for DJI O3 and O4 Pro wide-angle shooting, ensuring clear footage.
The F4 2-3S 20A AIO FC V1 includes a 25A peak ESC for reliable motor operation. A 9V 2A BEC powers the DJI O3 HD VTX effectively even at low voltage. It features a plug-and-play 6-pin PMU for easy HD VTX connection without soldering.
Upgraded II Frame Design Uses A Supported Four Screw Assembly
Redesigned Carbon Plate Fits DJI O4 And O4 Pro Digital Units
Explosive LAVA 1104 7200KV Brushless Motors Provide Massive Thrust
Co-Developed Gemfan 2218 Three Blade Propellers Maximise Aerodynamic Efficiency
Vibration Damping O4 Air Unit Pro Bracket Ensures Smooth Recording
Ultra Light F4 2-3S 20A AIO Flight Controller Delivers Crisp Response
Integrated NightFire RGB LED Strip Features 10 Preset Lighting Effects
Genuine BetaFPV Product
1x BetaFPV Pavo20 Pro II Brushless Whoop Quadcopter (PNP)
1x Top & Bottom Carbon Plates For O4 Bracket
1x O4 Air Unit Pro Bracket
4x Gemfan 2218 3-Blade Propellers
1x Type-C To SH1.0 Adapter & SH1.0 4-Pin Cable
1x NightFire RGB LED Strip (500mm) & RGB Board
1x Vibration Damping Balls & Hardware Mounting Kit
2x 5.8G VTX Antennas & Mount
1x Screwdriver Set
1x User Manual
1x DJI O4 Air Unit or O4 Air Unit Pro HD Digital VTX System
1x Compatible FPV Goggles
1x Compatible Radio Transmitter (Serial ELRS or DJI SBUS)
1x 3S 450mAh To 680mAh LiPo Battery With XT30 Connector
1x Compatible LiPo Battery Charger
-
Length
- N/A
-
Width
- N/A
-
Height
- N/A
-
Weight
- 79g (2.78oz) (Without Battery)
-
Run Time
- 6.5 Minutes (With 3S 550mAh Battery Sold Seperately)
-
Propellers
- Gemfan 2218 3-Blade Propellers
-
Range
- Varies Depending On Video Transmitter
-
Motor
- LAVA 1104 7200KV Brushless Motors
-
Flight Controller
- F4 2-3S 20A AIO FC V1
-
Transmitter
- Not Included
-
Camera
- Not Included
-
Goggles
- Not Included
-
Skill Level
- Intermediate And Up
