E-Flite RC Plane F-16 Thunderbirds 1.0m EDF Jet BNF Basic with AS3X and Safe Select Technology

  • BNF

Part no. EFL87950

Discontinued5.0
1 review
1 / 16
1 / 16

Videos

This product has been discontinued.

Contact us

Part Support

Replacement & upgrade parts that fit this model

Videos

Overview

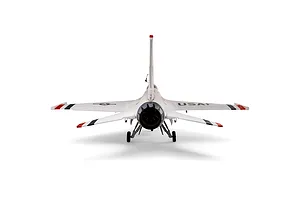

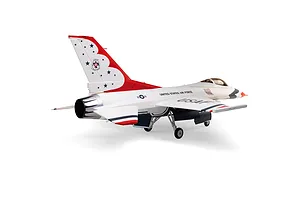

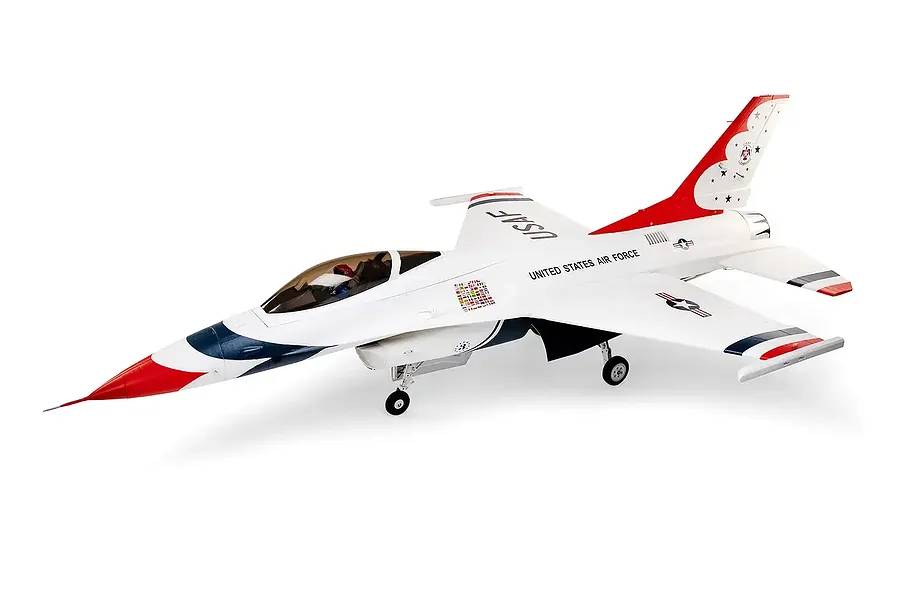

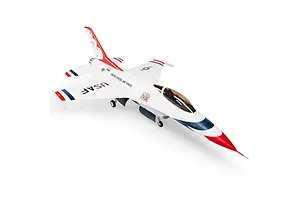

The F-16 Fighting Falcon is one of the most successful single-engine fighters, famously flown by the U.S. Air Force Thunderbirds demonstration team. The E-flite F-16 Thunderbirds 80mm EDF is a highly detailed model based on the F-16C variant, capturing the iconic red, white, and blue trim scheme with stunning accuracy. Although its size is comparable to other 90mm EDF models, its advanced power system is engineered for superior efficiency. This provides better overall performance and longer flight times using common 6S 4000–7000mAh batteries. This model stands out as the smartest and most detailed replica of the famous airshow aircraft, featuring fine details and functional systems, including the most realistic landing gear on an F-16 EDF model yet, combining to deliver an unmatched flying experience.

This F-16 takes realism to the next level with moulded-in panel lines, simulated antennas, and sensors. Functional features include LED navigation and landing lights, full-flying stabs, and sequenced gear doors. The Bind-N-Fly Basic version features a factory-installed Spektrum AR8360T receiver with AS3X and optional SAFE Select technologies. The 100-amp Spektrum Avian Smart ESC provides real-time telemetry like battery voltage and motor RPM, plus optional-use thrust reversing. Constructed from durable EPO with plastic-capped edges to prevent damage, this F-16 assembles without glue and can be ready to fly in less time than it takes to charge a battery, getting you in the air with a premier jet faster than ever.

Note

Please refer to the instruction manual for safety precautions and operating instructions.

A 6-channel transmitter provides basic functionality; 7-9 channels are required for optional features like thrust reversing and SAFE Select.

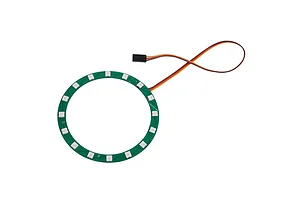

An optional simulated afterburner LED ring is available separately to enhance the flying experience.

Features

  • Smartest, most detailed high-performance F-16 EDF model
  • Replica of the USAF Thunderbirds iconic demonstration scheme
  • Fine details including moulded panel lines and sensors
  • Functional LED navigation/landing lights & full-flying stabs
  • V2 12-blade 80mm fan for excellent speed and performance
  • High-power 6S-compatible 2100Kv brushless inrunner motor
  • Spektrum Avian 100A Smart ESC provides real-time telemetry
  • Electric retracts with realistic, shock-absorbing struts
  • No-glue assembly gets you flying in less than an hour
  • Genuine E-flite Product

In the box

  • 1x E-Flite F-16 Thunderbirds 80mm EDF
  • 1x Spektrum Avian 100A Brushless Smart ESC
  • 1x 2100Kv Brushless Inrunner Motor
  • 1x 80mm 12-Blade V2 EDF Unit
  • 9x Digital Metal-Geared Servos
  • 1x Spektrum AR8360T 8-Channel Receiver
  • 1x Product Manual

You'll need

  • 1x Full-range 6+ Channel Spektrum DSMX/DSM2 Transmitter
  • 1x 6S 22.2V 4000-7000mAh 30C+ LiPo Battery with EC5/IC5 Connector
  • 1x Compatible 6S LiPo Charger

Highlights

Bind-N-Fly® Quick Start

Bind-N-Fly® Quick Start

Got a Spektrum™ transmitter? The Bind-N-Fly (BNF) F-16 Thunderbirds gets you in the air faster than ever. It comes with the power system, servos, and a Spektrum 2.4GHz receiver already installed – simply bind to your compatible transmitter, finish assembly, and fly!

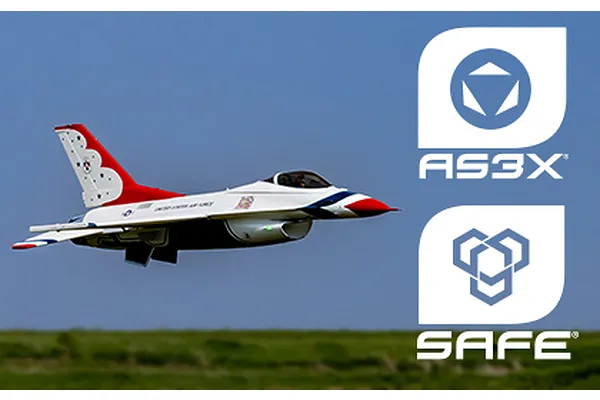

Exclusive AS3X® and SAFE® Select

Exclusive AS3X® and SAFE® Select

This high-performance F-16 boasts Spektrum™ AS3X® and SAFE® Select technologies. AS3X smooths out wind for a larger-plane feel, while optional SAFE Select offers pitch/bank limits and self-levelling, making it an easier F-16 to fly. Plus, extra receiver channels allow for optional afterburner LEDs and other functions.

Integrated Smart™ Technology

Integrated Smart™ Technology

The exclusive Spektrum™ Avian™ Smart ESC provides real-time telemetry data like motor RPM and battery voltage – for both Smart and non-Smart batteries. View vital info via compatible Spektrum receivers and AirWare™ equipped transmitters as you fly. Optional thrust reversing and GPS telemetry add to its smart capabilities.

High-Performance EDF Power

High-Performance EDF Power

Experience powerful flights with the V2 12-blade 80mm fan, high-power 2100Kv brushless inrunner motor, and 100-amp ESC. Paired with your 6S 4000–7000mAh 30+C LiPo battery, it delivers fantastic speed, vertical performance, and an incredibly realistic turbine-like sound.

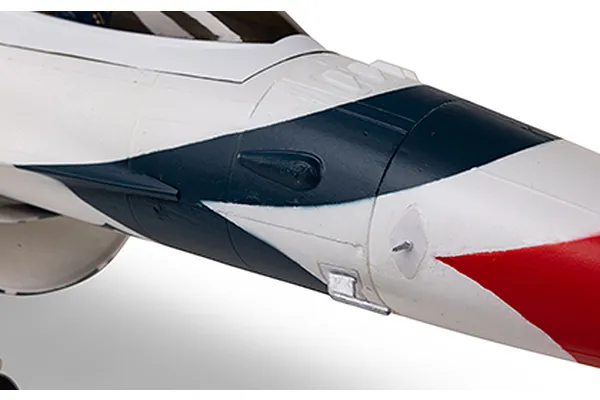

Abundant Extra Scale Details

Abundant Extra Scale Details

The F-16 Thunderbirds 80mm EDF is packed with amazing Extra Scale details. You'll find intricately moulded-in panel lines and hatches, realistic simulated antennas, indicators, sensors, and much more, all contributing to its authentic appearance.

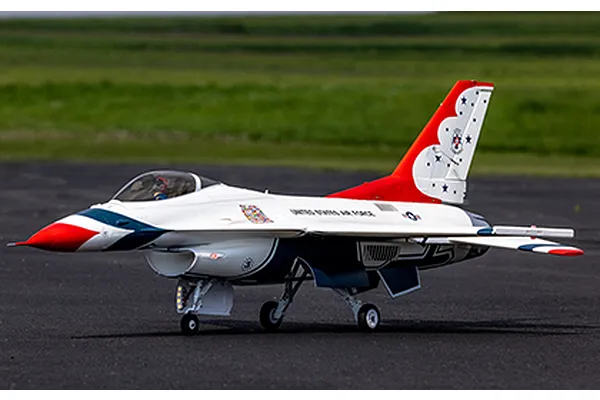

Functional Extra Scale Features

Functional Extra Scale Features

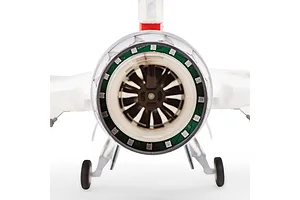

Take your flying to the next level with functional Extra Scale features like factory-installed LED navigation and landing lights, full-flying stabs, and control surfaces with pocket hinges. It even has sequenced main gear and nose gear doors for added realism. An optional simulated Afterburner LED Ring is also available separately.

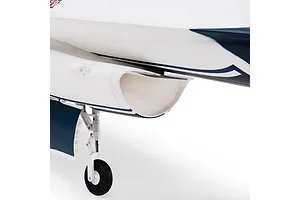

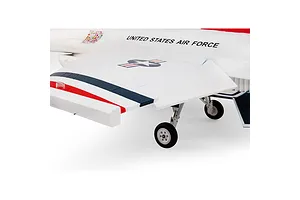

Authentic Extra Scale Landing Gear

Authentic Extra Scale Landing Gear

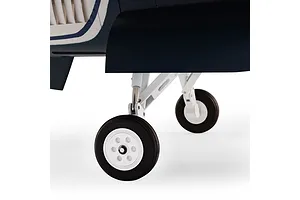

The reliable, factory-installed electric retracts boast durable metal components and Extra Scale painted, articulated, shock-absorbing struts. This is the most scale-like landing gear ever on an F-16 EDF model! Plus, the sequenced, servo-operated gear doors have moulded details inside, and the nose gear door includes an LED landing light that automatically turns on/off with the gear.

Detailed & Durable Construction

Detailed & Durable Construction

Built with fully moulded EPO material, this F-16 replicates complex details in a lightweight yet durable form. It offers an outstanding scale appearance that’s easy to maintain. Furthermore, plastic-capped strakes, hatch edges, and openings boost durability, preventing damage and paint chipping during handling and battery changes.

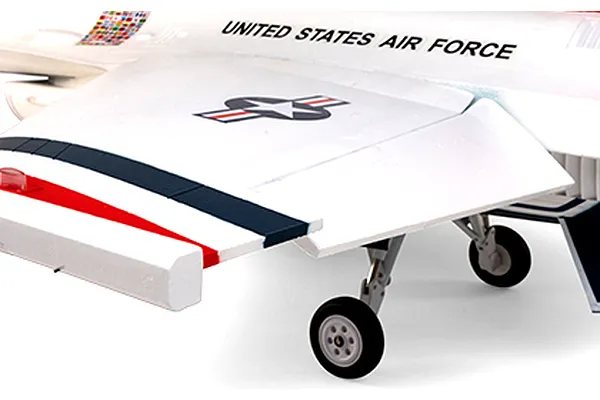

Precise & Reliable Control

Precise & Reliable Control

With a total of nine factory-installed digital, metal-geared servos and ball-link equipped linkages on all primary flight controls, this F-16 delivers crisp, precise, and reliable control at every speed. Optional flaperons are also pre-programmed for optimal operation with AS3X and SAFE Select in the BNF Basic version.

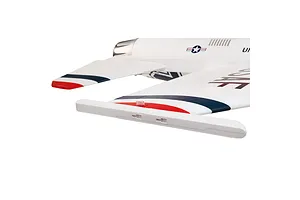

Simple, Glue-Free Assembly

Simple, Glue-Free Assembly

Get airborne faster with glue-free assembly for the F-16! You'll have it ready to fly in less time than it takes to charge a battery. The full-flying stabs and two-piece wing, with hands-free connections, bolt into place and are easily removed for convenient storage and transport.

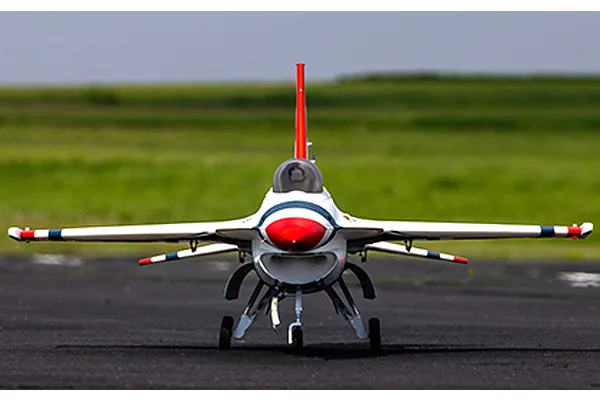

Iconic, Non-Yellowing Finish

Iconic, Non-Yellowing Finish

The fully-painted white, red, and blue finish, complete with factory-applied stars on the vertical tail and other markings, perfectly replicates the iconic U.S. Air Force Thunderbirds airshow scheme in stunning Extra Scale fashion. Plus, the white paint is specially formulated and tested to resist yellowing over time, unlike other models.

Specifications

Wingspan1000mm (39.37")
Length1450mm (57.09")
Weight2727g (96oz) without Battery
MaterialEPO (Expanded Polyolefin)
PropulsionEDF (Single 80mm 12-Blade V2)
Motor2100Kv Brushless Inrunner
ESCSpektrum Avian 100A Brushless Smart ESC
CompletionBind-N-Fly Basic (BNF)
Landing GearElectric Retracts with Shock-Absorbing Struts

RC Plane

Plane TypeEDF Jet
Skill LevelExperienced
Wingspan1000mm
CompletionRTF is Ready To Fly (comes with everything). BNF is Bind N Fly (you need a compatible remote). PNP is Plug and Play (you need a radio set, battery & charger). Kits typically don't come with electronics.Bind N Fly
Power TypePropulsion TypeEDF
Length1450mm
Max LiPo Power6S (22.2V)
Motor TypeType of MotorBrushless
Retractable WheelsYes
Receiver Channels8Ch
Battery ConnectorEC5, IC5
