GPM 1/10 TRX-4 Defender Detailed Interior Unpainted Body Shell Set

GPM Racing - TRAXXAS - TRX4 DEFENDER TRAIL CRAWLER - TRX4ZSP48 Interior For TRX-4 8pc set
Manual number: Decoration part

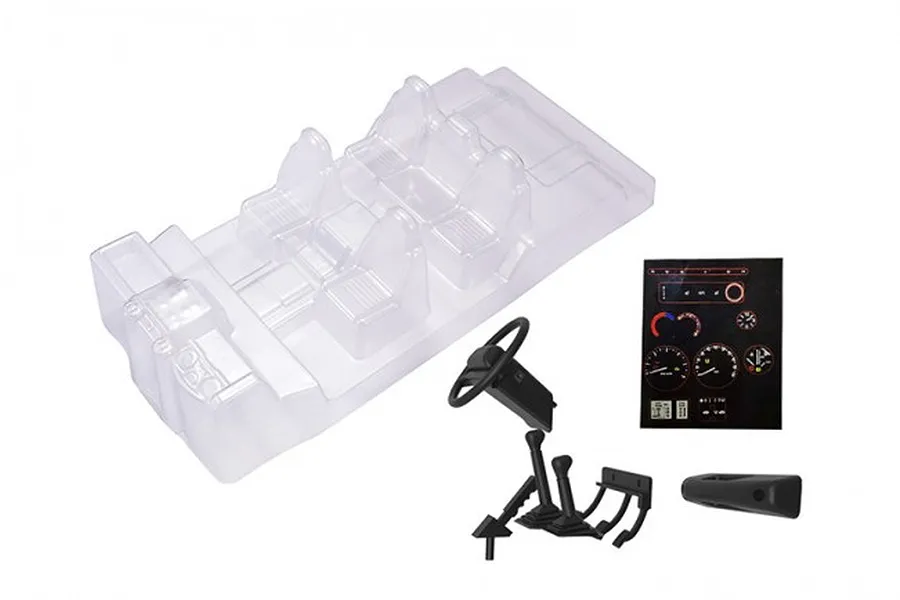

This product includes :

Interior Part-1pc
Sticker-1pc
Steering Wheel-1pc
Hand Brake -1pc
Glove Compartment-1pc
Gear Stick-1pc
Foot Brake Pedal-1pc

Product major function & usage:
Transparent in color in order for users to paint different colors according to preference.

Suitable for Traaxxas TRX4 Defender
The interior is directly mounted on the car shell.

Installation Step 1
1. Before applying the color, cut the transparent shell according to the size of the shell and trim off the extra material on the edges.
2. Follow the cutting lines to cut out the center and the seat part.
3. Be careful not to cut too much. More trimming can be done during installation.
4. Apply color once trimming is completed. Note: Remove any oil before coloring.
5. To provide more room, rear body post is recommended to be cut after coloring.

Installation Step 2
1. Once coloring is completed, place stickers according to the corresponding position.
2. Carefully install the steering wheel, foot brake pedal, gear stick and other accessories.The steering wheel is movable, pay attention to the installation direction.

Installation Step 3
1. Install the central part. First, remove the front skid plates.
2. Remove the original screws. Pay attention to whether it is level from the front gear when installing. Tighten the screws after adjustment.

Installation Step 4
1. Installing the seats. First, remove the rear skid plates and spare tire stabilizer.
2. Due to the removal of the spare tire stabilizing parts, if the original spare tire stabilizer is needed, please fix with a locknut.

Installation Step 5

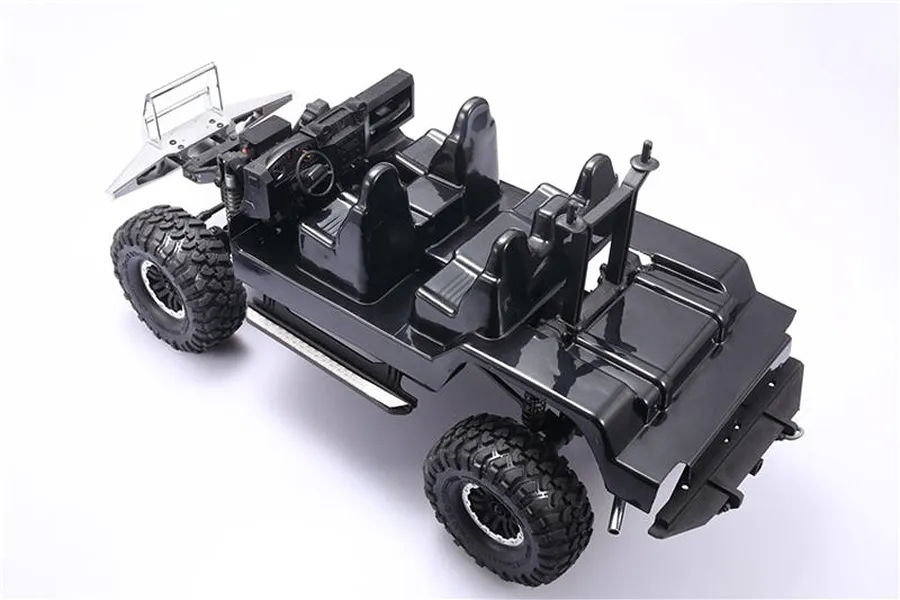

1. Fix the center part and seats with screws.
2. Install the front wheel and skid plates.

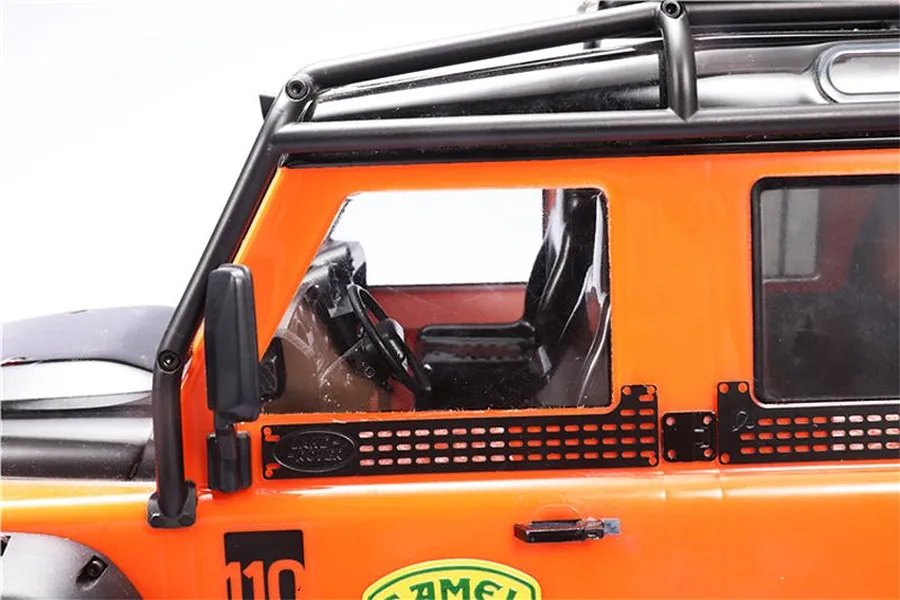

3. After installation, raise the front and rear body posts on the original shell by one positioning hole. Note: Each installation may vary, raise or lower the positioning hole if necessary.
