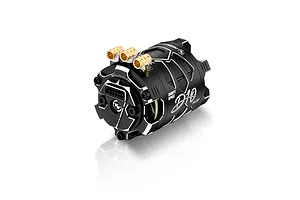

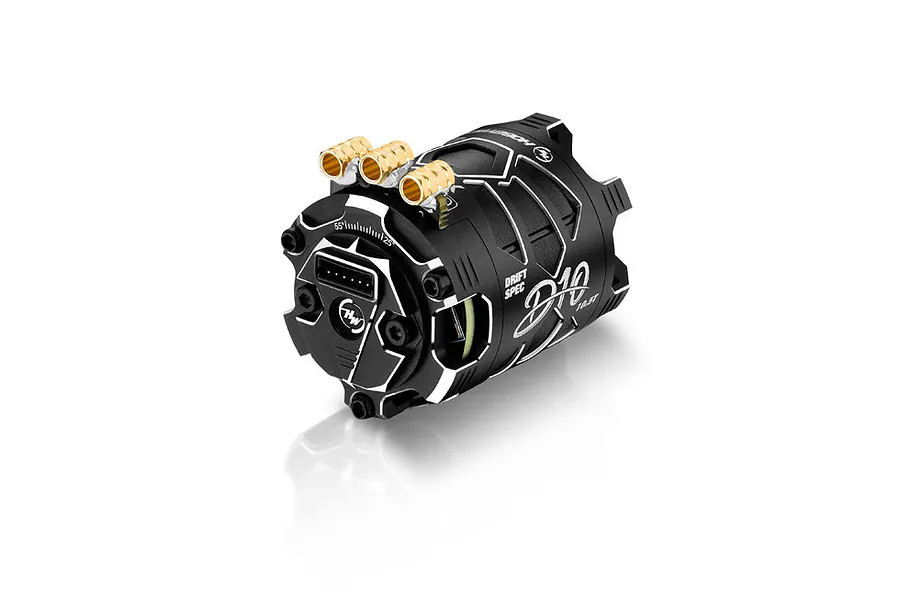

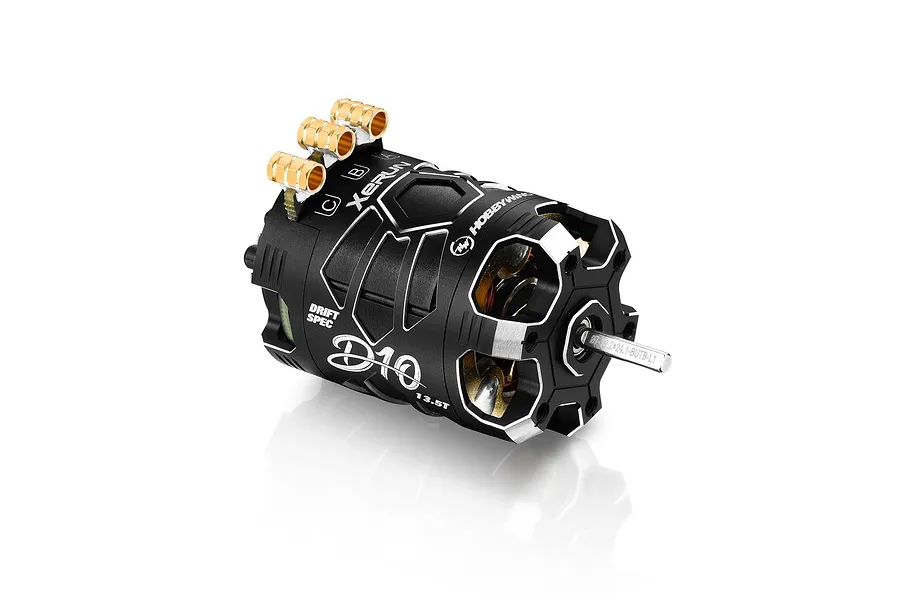

Hobbywing Xerun D10 13.5T 2900Kv Sensored Brushless Motor - Black Stealth Edition

Brushless

Part no. 30401137

Sold outWrite a review

1 / 10

$162.45

or 4 fortnightly payments of $40.61 with afterpay

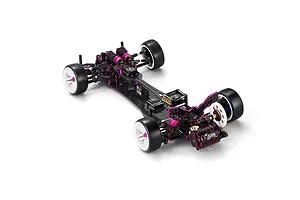

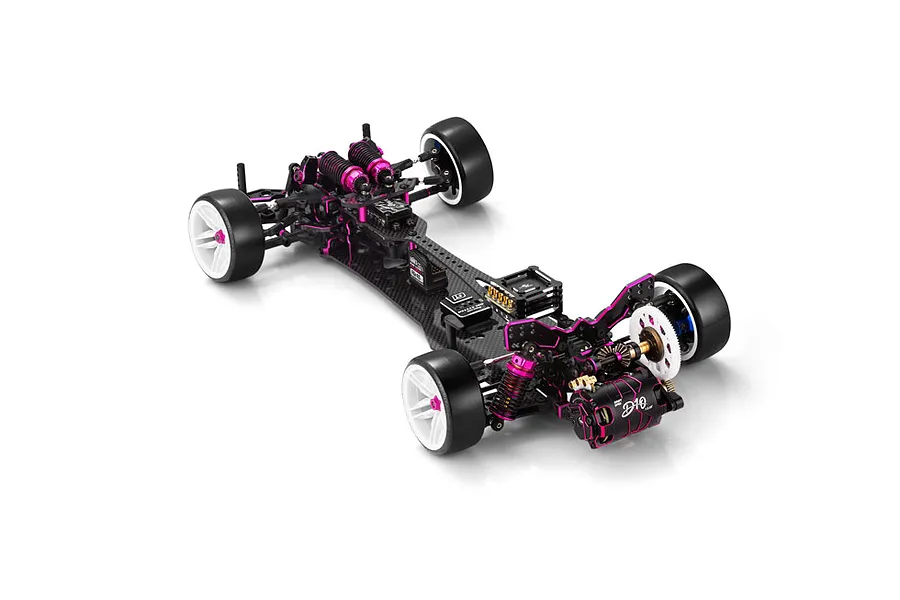

The Hobbywing Xerun D10 13.5T 2900Kv Sensored Brushless Motor (Black Stealth Edition) is a drift-optimised sensored brushless motor for 1/10th drift cars, featuring banana plug quick-swap and fan rotor cooling.

Drift-specific stator with high-precision sensors board for excellent motor linearity and drivability
Factory-soldered 3.5mm banana plug for quick-swap motor changes
Special-shaped gold fan rotor for heat dissipation with Turbo support
13.5T wind at 165g (including 3 gold insert weights) for easy weight bias adjustment
Wide range of adjustable mechanical timings for tuning performance

Ordered 3 Nov · we're waiting on our supplier

Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

In stock now: similar

Overview

Elegantly designed for drift

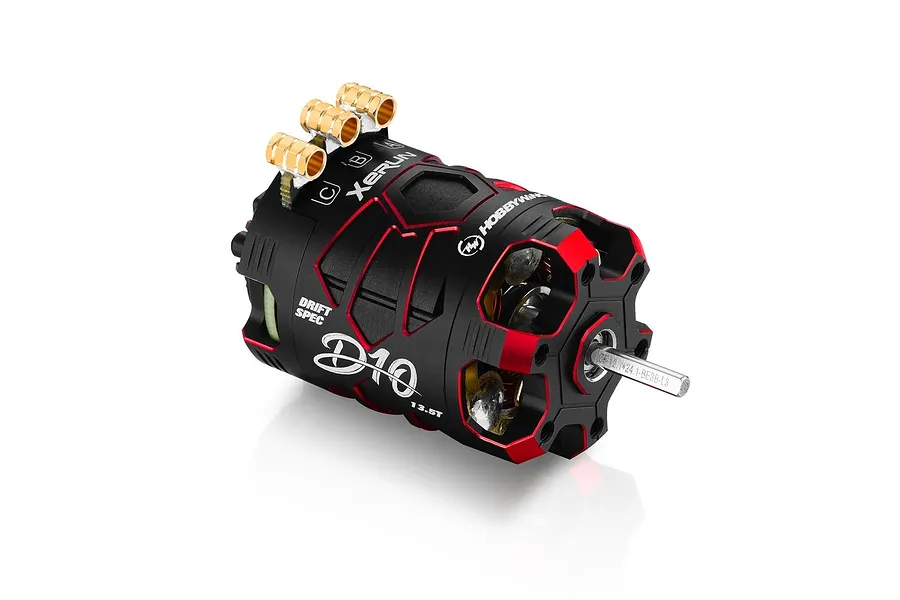

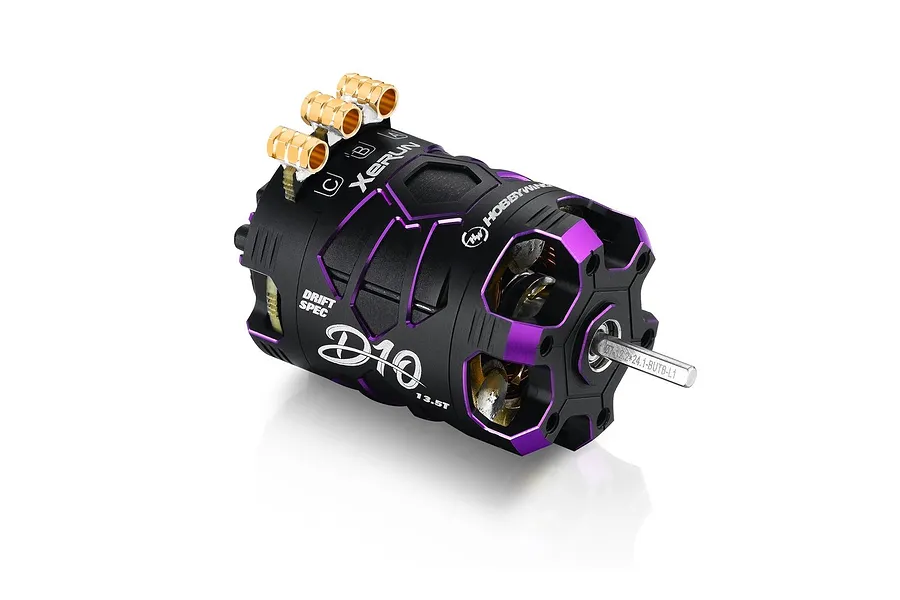

The Xerun D10 motors provide the ideal colours to perfectly match your drift machines. Available in Black, Red, and Purple.

Banana plug-in quick-swap design
The motor comes factory soldered with high quality 3.5mm banana plug for easy access swap to different motors. 3.5mm male head is also included in the XD10 ESC.

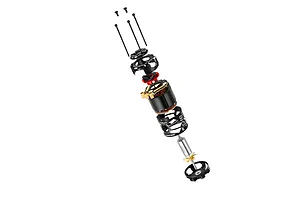

New stator designed for drift applications

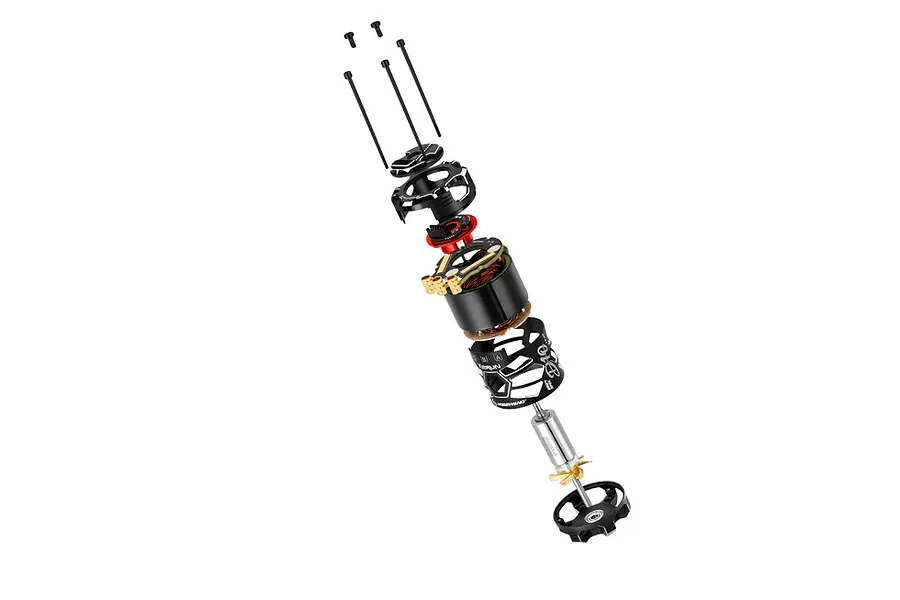

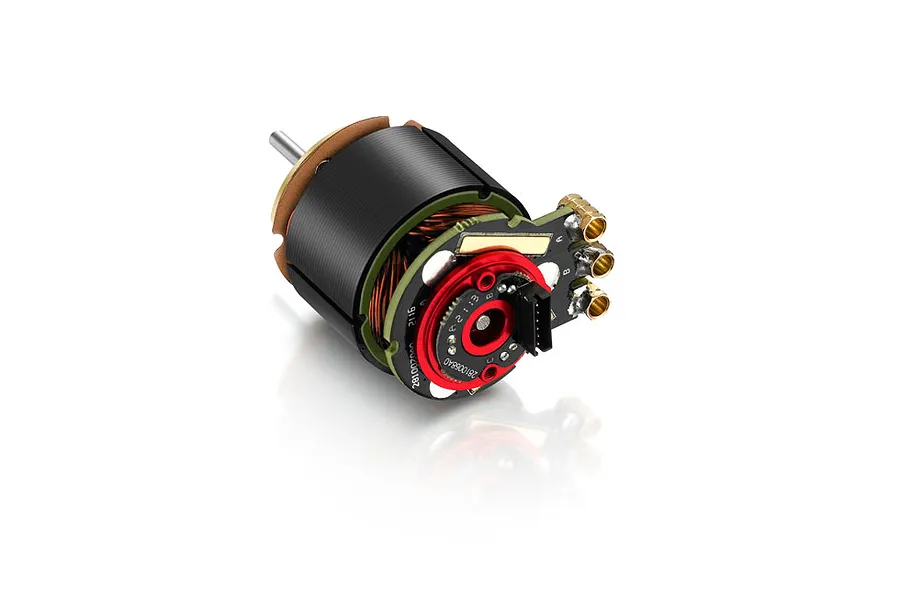

The new motor stator is optimized for drift and improves motor efficiency in drift applications. Built-in with high-precision sensors board, combined with drift-specific fan rotors, providing excellent motor linearity and drivability while greatly improving motor efficiency.

Lightweight
The 10.5T motor weighs approximately 158g while the 13.5T is at 165g (including 3 gold insert weights). The lightweight motor allows the user to easily tweak their weight bias on their car.

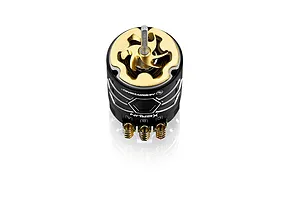

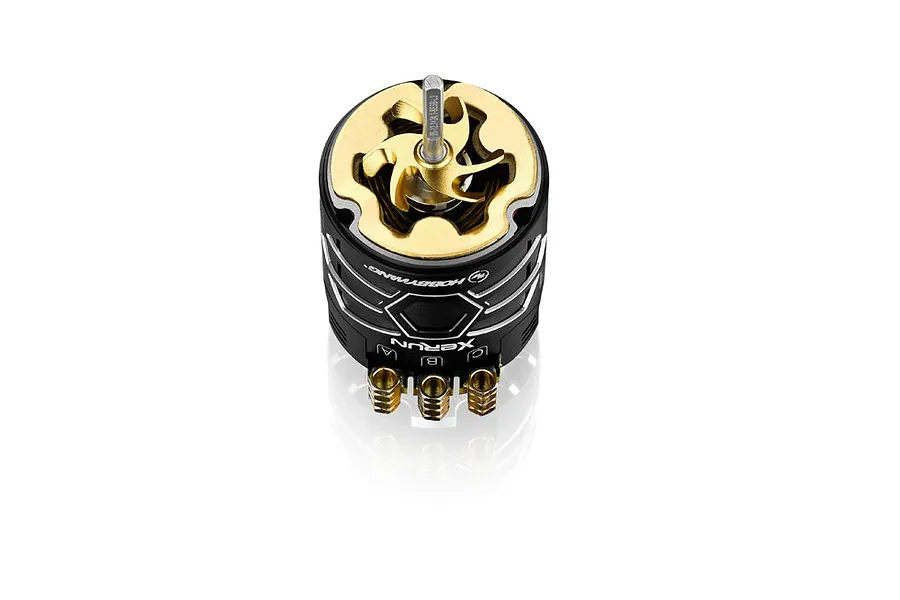

Equipped with fan rotor
Providing great heat dissipation, the special-shaped gold fan on the rotor heats the motor while making a pleasant sound, especially when Turbo is turned on.

Note

Please ensure your ESC is properly programmed before setting the motor timing. For detailed information about ESC programming, please refer to the user manual of the ESC.

After the timing adjustment, please ensure that your motor will not overheat after running a whole pack (i.e. LiPo). You can get the information about the motor temperature via an infra-red temperature gun. If the temperature is too high, please let the motor cool down first and then test again. If the temperature is still too high, then please reduce the timing or increase the FDR (that is to replace the pinion gear with fewer teeth or spur gear with more teeth).

The M3 screws with a length (no longer than 7mm) are needed when mounting the motor onto your vehicle.

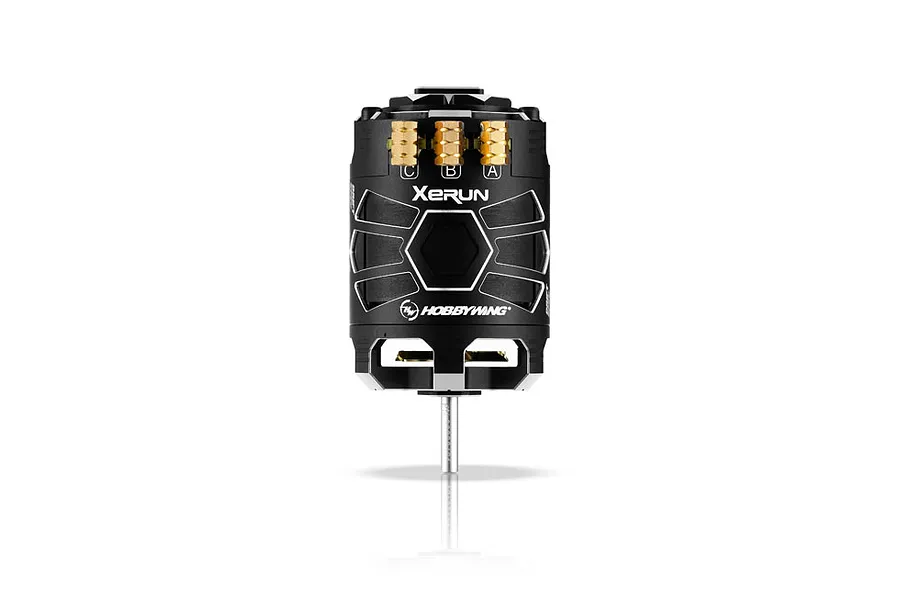

Please pay attention to the relevant marks (on the ESC) when soldering/connecting those output wires to the motor and make sure that you will strictly follow the wiring order (between the ESC & the motor) of "A-A, B-B, and C-C".

Please ensure the sensor cable is clean and undamaged when you're using a sensor ESC. You need to pay attention to the two connectors on the cable when connecting the ESC to the motor.

Re-check all the connections between the ESC & the motor and ensure that they are all correct before turning on the ESC.

Features

The D10 motors provide a wide range of adjustable mechanical timings. The following are the methods and principles you can follow when adjusting the timing.
You can adjust the motor timing after unfastening the screw on the rear end-plate. Please adjust the timing as needed according to the mark (white lines) at the rear end of the motor and fasten the screw after the adjustment. For obtaining optimal performance, you can change the output range and characteristics of your power system by adjusting the motor timing.
Increasing the timing can increase the motor speed (RPM), while that also increases the motor temperature and reduces the efficiency. A higher timing usually requires a higher ratio.

In the box

1x Xerun D10 13.5T 2900Kv Sensored Brushless Motor

Highlights

3.5mm Banana Plug Leads

The motor comes factory soldered with high quality 3.5mm banana plug for easy access swap to different motors.

Adjustable Rear End-Plate Timing

You can adjust the motor timing after unfastening the screw on the rear end-plate.

Precision Sensors and Drift Rotors

Built-in with high-precision sensors board, combined with drift-specific fan rotors, providing excellent motor linearity and drivability.

Specifications

For	1/10th Drift Car
Type	Brushless
Kv Rating	2900Kv
Sensored	Yes
Rotor	?5-12.124.1-BES-L3
Suitable Battery	2S (7.4V) LiPo
Diameter	?=35.7mm (1.41")
Length	52.6mm (2.07")
Shaft Diameter/Length	?=3.175mm (0.125") / 15mm (0.591")

Motor

Type	Brushless
KVRPM (Revolutions Per Minute) per Volt	2900KV
LengthLength of the motor can in mm	52.6mm
DiameterDiameter of the motor can	35.7mm
Shaft Diameter	3.175mm (1/8")
