Kyosho Fazer Mk2 1969 Chevrolet Camaro Z/28 RS Supercharged RC Car Electric Brushless 1/10 Scale RTR - Tuxedo Black

  • 1/10
  • 4WD
  • RTR
  • Brushless

Part no. 34493T1

Sold outNo reviews yet
1 / 8
1 / 8

Videos

$539.89

or 4 fortnightly payments of $134.97 with afterpay or PayPal, or zip

Add it to My Garage

Kyosho Fazer Mk2 1969 Chevrolet Camaro Z/28 RS brushless 4WD RC car with TORX 10E motor, 65km/h top speed, and ultra-scale body.

  • TORX 10E brushless motor delivers 65km/h — a 1.6x speed boost over the brushed version
  • Ultra-scale 1969 Chevy Camaro Z/28 RS body with Kyosho-designed supercharger and concealed headlights
  • Waterproof BRAINZ 10 60A ESC with cooling fan
  • Full-time shaft-driven 4WD with aluminium HD centre shaft S and full ball bearing specification
  • Factory-completed Readyset — add battery, charger, and AA transmitter batteries to run

Part Support

Replacement & upgrade parts that fit this model

Videos

Overview

With its muscular body and supercharger, this machine makes a visual statement to back up its powerful performance. The FAZER Mk2 series welcomes this brushless motor addition to the series. Powering up from the conventional G14L brushed motor to the TORX 10E brushless motor, the 1.6x speed boost delivers 65km/h (up from approx. 40km/h), backed up by the newly incorporated BRAINZ 10 speed controller, sintered pinion gear, and aluminium HD centre shaft S (previously an optional upgrade) to support the extra power and higher RPM.

This fully upgraded VE specification features an ultra-scale 1969 Chevy Camaro Z/28 RS body with a Kyosho-designed supercharger, and light buckets that can be equipped with front and rear LEDs including an open/close function for concealed headlights. The Mad Wagon VE is packaged as a pre-built Readyset — just use your own battery, battery charger, and transmitter batteries to get started.

Features

  • Ultra-scale 1969 Chevy Camaro Z/28 RS body with concealed headlights (open/close function) and Kyosho-designed supercharger
  • Front and rear light buckets compatible with 97054 LED light unit series (sold separately)
  • High-power TORX 10E brushless motor; sintered pinion gear (32T) equipped as standard
  • Waterproof BRAINZ 10 60A ESC with cooling fan for stable power without heat loss
  • Vintage touring car (VTC) tyres with compound optimised for brushless performance, and new colour Rostyle-type rim design
  • Aluminium HD centre shaft S prevents twist and delivers high-RPM drive; shaft-driven full-time 4WD touring chassis

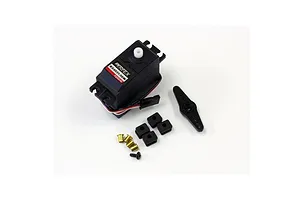

  • Advanced KS4031-06W steering servo as standard
  • Factory-completed Readyset requires 4 x AA batteries for transmitter, plus a charger and battery for the chassis
  • Full ball bearing specification throughout all drive components
  • Sealed differential and transmission for reliable performance
  • Plated dummy brake disc and painted brake caliper for enhanced scale appearance
  • Hexagonal button screws throughout for secure tightening with fewer tools
  • Motor mount with holes according to pinion gear, eliminating backlash adjustment; supports pinions 29T to 37T
  • Wide range of optional parts available to further boost driving performance
  • Oil-filled shocks as standard; vehicle height adjustable via included ball ends and spring spacers

In the box

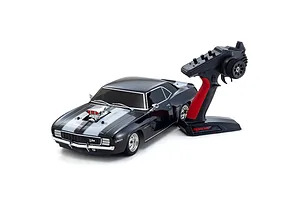

  • 1x Completed chassis with R/C radio installed
  • 1x Factory assembled body complete with colour scheme
  • 1x Syncro KT-231P+ transmitter
  • 1x Hexagonal wrench
  • 1x Spanner
  • 1x Setting change parts set

You'll need

  • 7.4V LiPo battery & compatible charger
  • 4 x AA batteries

Highlights

Scale Look Wheels

Scale Look Wheels

Every detail of the Fazer has been carefully crafted to capture the essence of classic motor vehicles. Rostyle-style wheels and VTC tyres provide incredible scale realism in conjunction with the body, creating a timeless aesthetic that will impress even the most discerning enthusiast.

Tunable Gear Ratio

Tunable Gear Ratio

Dial in your Fazer's performance with a variety of pinion gear options. Choose from nine different sizes (29T-37T) to fine-tune the gear ratio and achieve the perfect balance of speed and acceleration for your driving style. The direct-mount motor design simplifies gear changes, making it easy to experiment and optimise your setup.

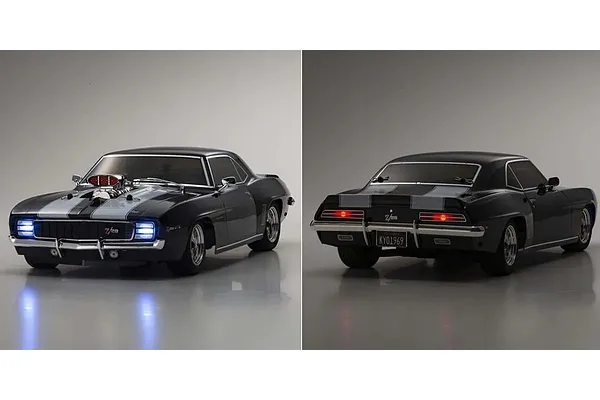

LED Ready

LED Ready

Take the Fazers incredible scale looks to the next level with an optional LED light unit set. The factory installed light buckets make installation a breeze, allowing you to add a brilliant glow to your nighttime RC adventures.

Brushless Power

Brushless Power

This ain't your average Fazer. It's equipped with a Brainz 10 V2 ESC and a monstrous TORX 10E brushless motor, unleashing 4000kV of pure adrenaline. Screaming past 60 km/h is child's play, and with 9 pinion gears settings (29T to 37T), finding the perfect gear mesh is a breeze thanks to the specially designed motor mount. Prepare for the Fazer revolution.

Intuitive Suspension Design

Intuitive Suspension Design

The Fazer's suspension system is engineered for performance, with carefully tuned geometry that translates to exceptional handling and control. The ball-connected steering knuckle provides smooth and precise steering, while interchangeable hub carriers offer added convenience and variable setup options.

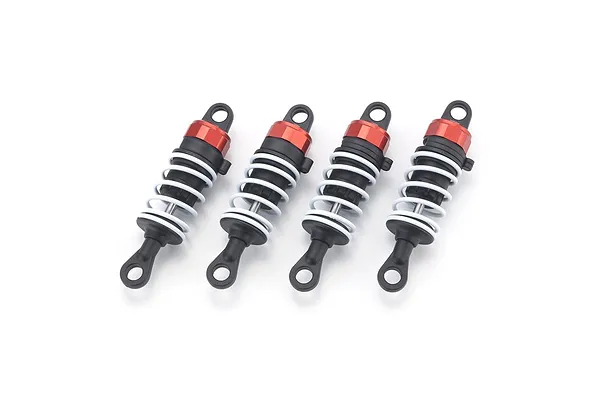

Oil Filled Shock Absorbers

Oil Filled Shock Absorbers

Fine-tune your Fazer's performance with ease, thanks to the simple and adjustable oil shocks. Add in the included spacers to quickly adjust ride height and optimise handling for any track or terrain. For even more fine-tuning options, the shocks can be disassembled to change the pistons and oil, providing an even more custom driving experience.

Scale Disc Brake Hubs

Scale Disc Brake Hubs

The Fazer comes with two sets of offset brake disc wheel hubs, complete with scale look dummy calipers, allowing you to not only customise the car's appearance but adjust the width of the car to accommodate body widths from 190mm to 200mm. Mix and match for a unique look and perfect fit.

Low CG Design

Low CG Design

The Fazer is built for performance, with a low centre of gravity, streamlined body, and a rigid chassis that delivers exceptional handling. Lightweight construction improves the Fazers agility, while strategically reinforced components ensure high levels of durability, allowing you to push the limits with confidence.

Hassle-Free Maintenance

Hassle-Free Maintenance

The Fazer Mk2 simplifies maintenance with fewer screws and parts, and many common screws share the same size. Most are countersunk (flat-head) screws easily removed with a 2.0mm hex wrench, making disassembly and upkeep a breeze.

TORX 10E Brushless Motor Upgrade

TORX 10E Brushless Motor Upgrade

The FAZER Mk2 series features this brushless motor addition powering up from the conventional G14L brushed motor to the TORX 10E brushless motor.

Fazer Mk2 Brushless – feature overview

Fazer Mk2 Brushless – feature overview

Equipped with the advanced functionality of the KS4031-06W steering servo and an aluminium HD centre shaft S as standard.

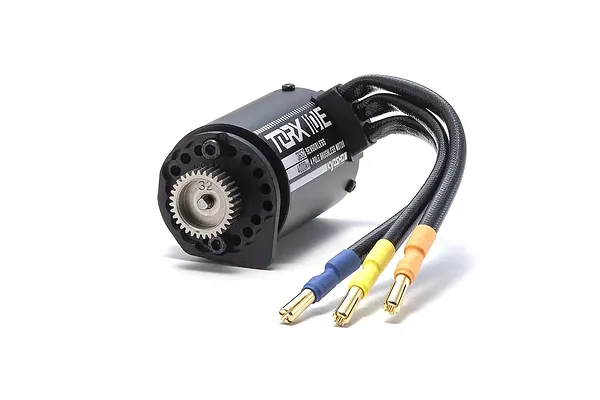

Fazer Mk2 Brushless – TORX 10E motor and drivetrain detail

Fazer Mk2 Brushless – TORX 10E motor and drivetrain detail

Equipped with high-power TORX 10E motor; sintered pinion gear (32T) is equipped as standard to reliably transmit the full force from the motor.

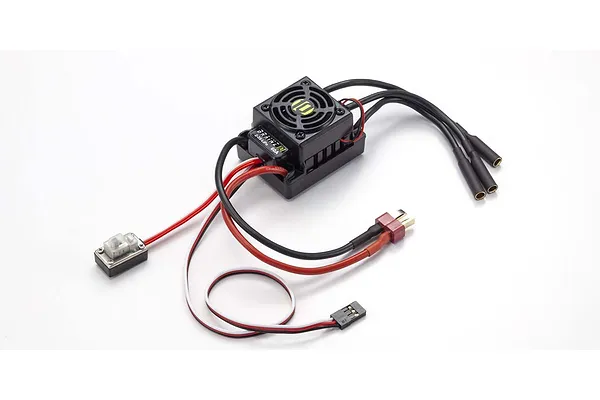

Fazer Mk2 Brushless – BRAINZ 10 ESC detail

Fazer Mk2 Brushless – BRAINZ 10 ESC detail

Waterproof BRAINZ 10 60A ESC with cooling fan provides stable power without heat loss.

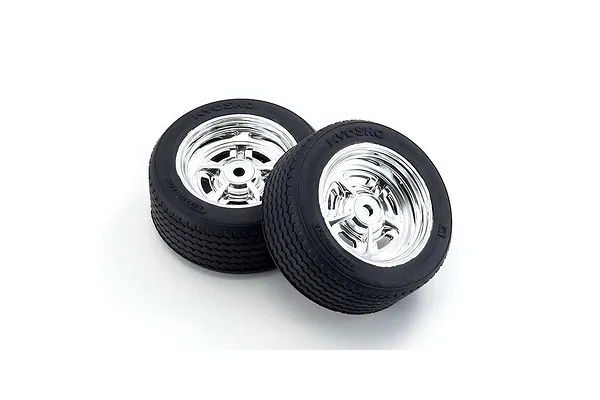

Fazer Mk2 Brushless – VTC tyres and Rostyle rims

Fazer Mk2 Brushless – VTC tyres and Rostyle rims

Equipped with vintage touring car (VTC) tyres with compound optimised for brushless performance, and new colour Rostyle-type rim design.

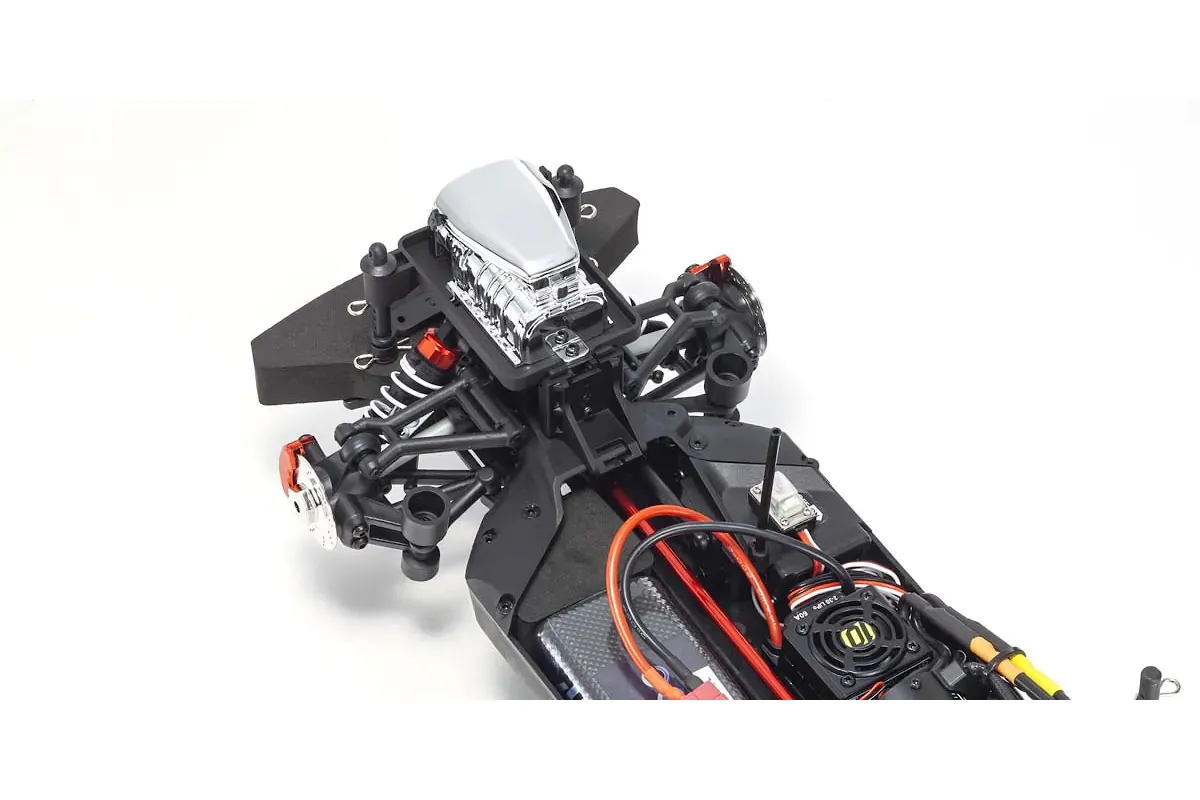

Fazer Mk2 Brushless – suspension and steering setup

Fazer Mk2 Brushless – suspension and steering setup

The front suspension optimises bump steer and scrub radius for improved handling, featuring interchangeable ball-connected steering knuckles.

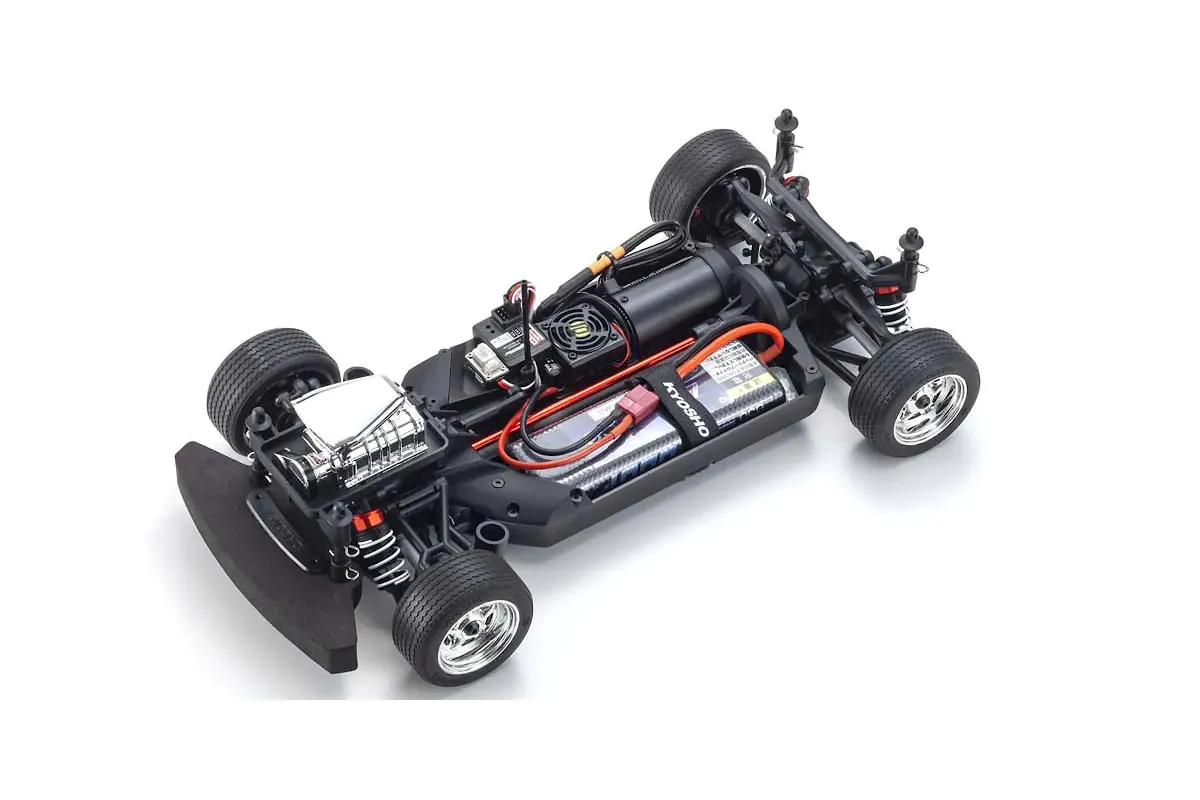

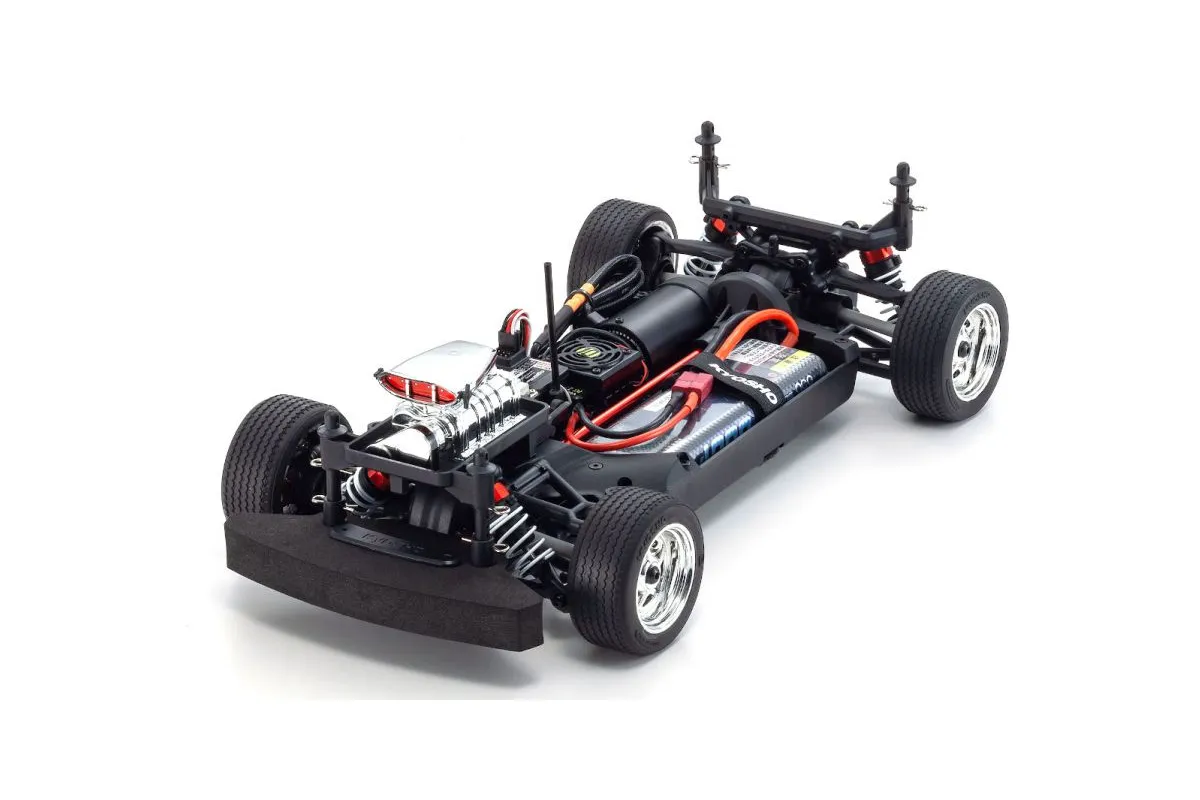

Fazer Mk2 Brushless – chassis overview

Fazer Mk2 Brushless – chassis overview

The simple and functional main chassis uses lightweight impact-resistant nylon to reduce weight, with an integrated gearbox that optimises torsional rigidity.

Fazer Mk2 Brushless – LED light bucket compatibility

Fazer Mk2 Brushless – LED light bucket compatibility

Front and rear light buckets are compatible with the 97054 LED light unit series (sold separately).

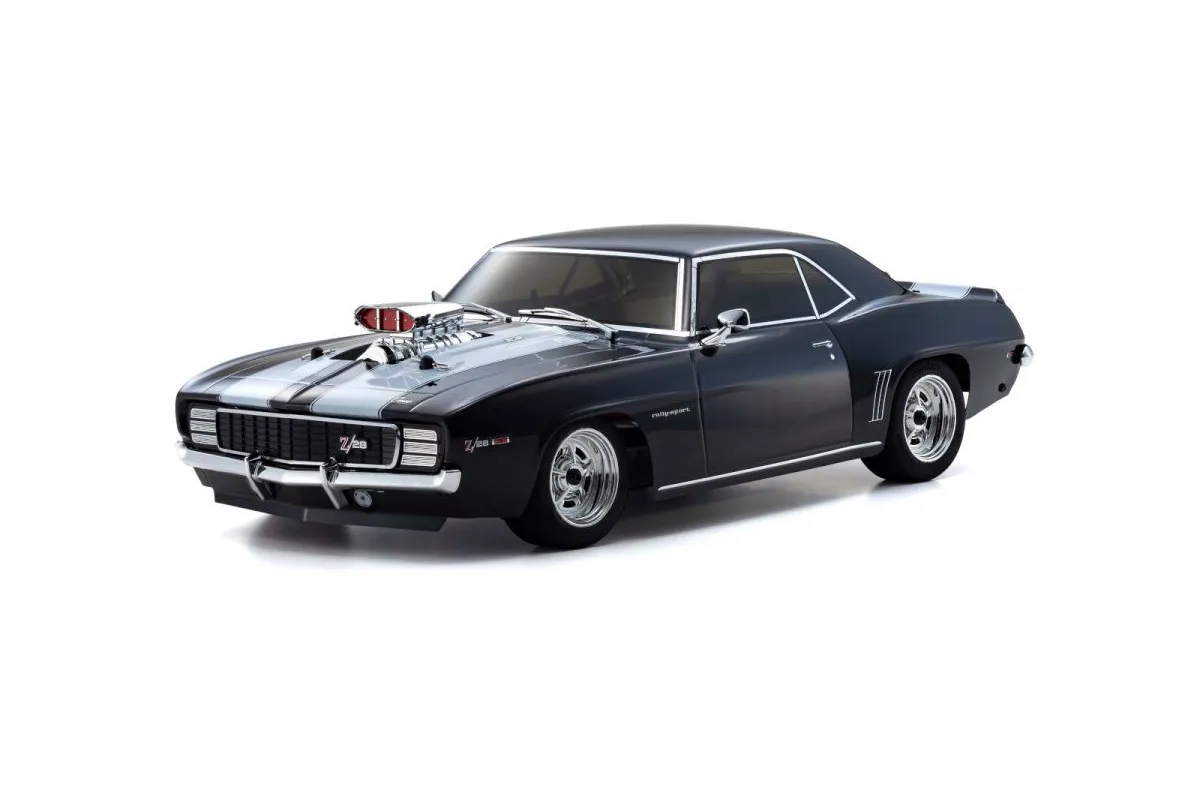

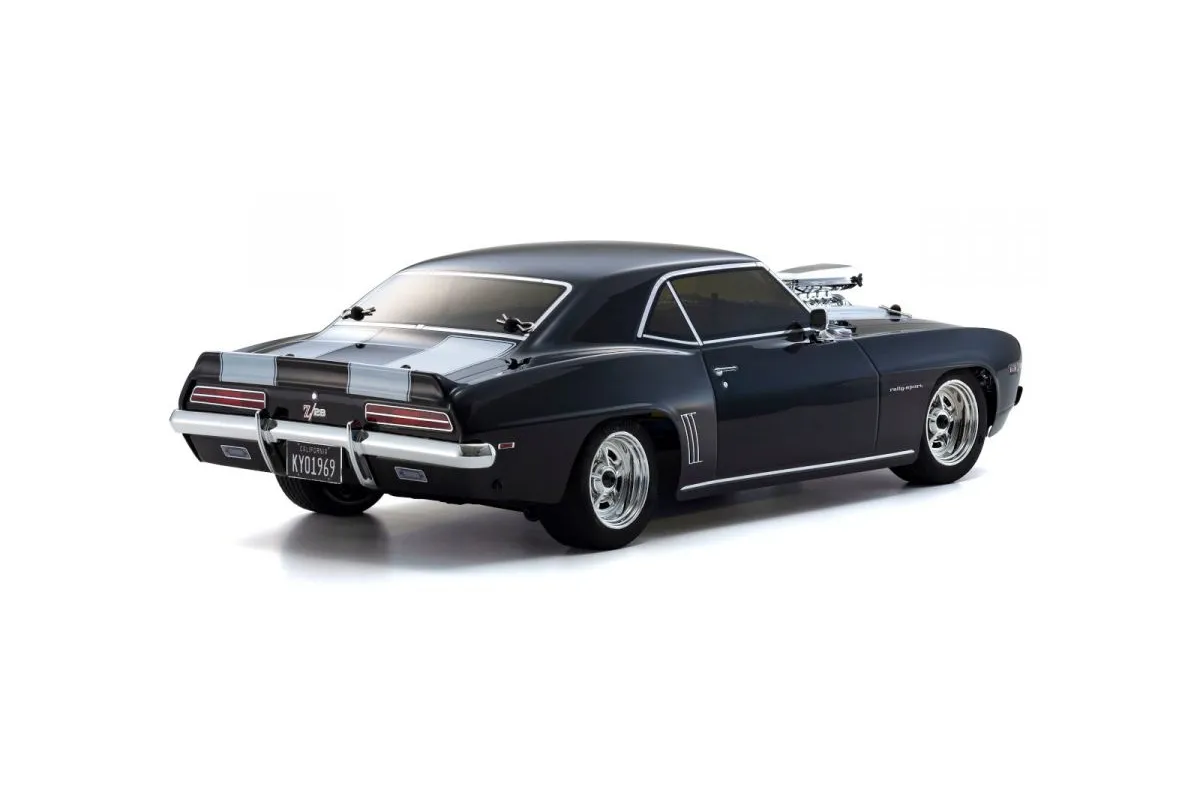

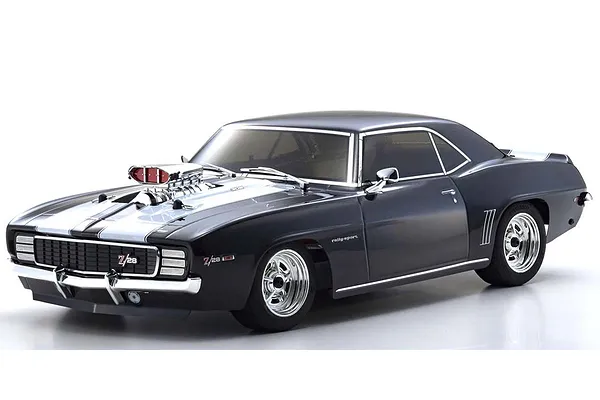

1969 Camaro Z28 RS Body

1969 Camaro Z28 RS Body

This fully upgraded version of the VE specifications boasts an ultra-scale 1969 Chevy Camaro Z/28 RS body with a Kyosho designed supercharger.

Specifications

Chassis TypeFZ02
Drivetrain4WD
Radio SystemSyncro KT-231P+
MotorTORX 10E Brushless
Gear Ratio6.54:1
Length461mm (18.1")
Width210mm (8.26")
Height138mm (5.43")
Ground Clearanceapprox. 15mm (0.590")
Wheelbase260mm (10.2")
Weightapprox. 1,610g
Front Tyre Tread167mm (6.57")
Rear Tyre Tread167mm (6.57")

RC Car

Scale1/10
Max LiPo Power2S (7.4v)
CompletionReady to Run
Skill LevelIntermediate
Power SourceElectric Brushless
Chassis TypeCar
On/Off RoadOn Road
Drivetrain4WD

Factory Specs

Battery ConnectorDeans
Front Shock Oil100cSt
Rear Shock Oil100cSt
Pinion Gear32T 48dp/0.5Mod
Spur Gear68T 48dp/0.5Mod
Wheel Hex Size12mm
