Kyosho Fazer Mk2 1971 Datsun 240Z RC Rally Car Electric 4WD 1/10 Scale RTR - Red

  • 1/10
  • 4WD
  • RTR
  • Brushed

Part no. 34482T1

Sold out5.0
1 review
1 / 11
1 / 11

Videos

$447.14

or 4 fortnightly payments of $111.78 with afterpay or PayPal, or zip

Kyosho Fazer Mk2 1971 Datsun 240Z 1/10 scale 4WD rally RTR — Ultra Scale body, big bore oil shocks, shaft-driven 4WD, and LED-ready light buckets.

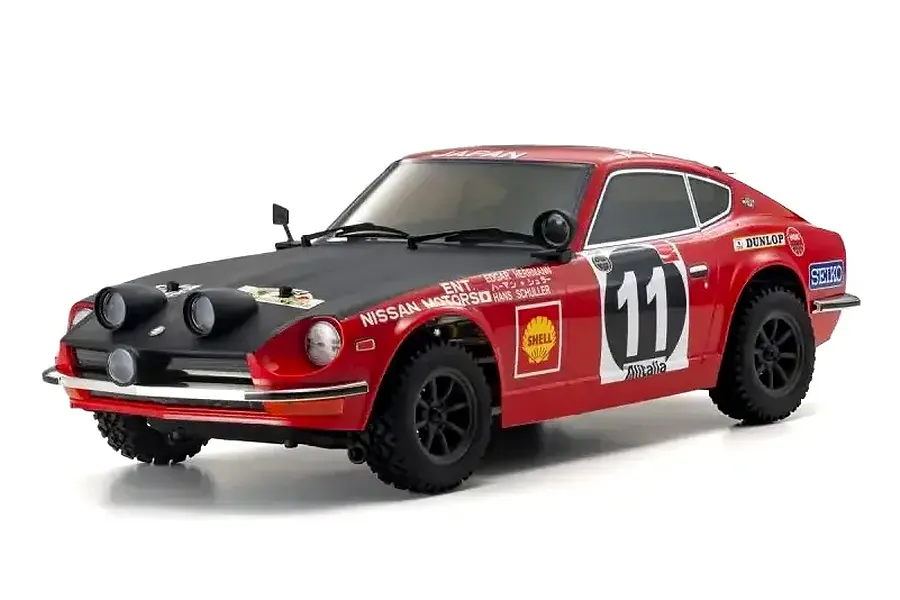

  • 1/10 scale replica of the 1971 Datsun 240Z — winner of its first appearance at the 1971 East Africa Safari Rally
  • Rally-focused FZ02-R chassis with shaft-driven 4WD and new big bore oil-filled shock absorbers
  • Three-position shock stay mounting points for adjustable suspension set-ups
  • Chassis cover shields R/C components from dirt and debris; outfitted with a robust sintered 32T pinion gear; front bumper skid for jump protection; motor mount supports pinions from 29T to 37T
  • Block-patterned tyres paired with Classic Watanabe style rims for improved off-road performance and scale appearance
  • LED-ready front and rear light buckets (optional LED light unit 97054 sold separately)

In stock now: similar

Videos

Overview

In the realm of 1/10 EP (electric) models, the FAZER Mk2 has gained immense popularity thanks to its exceptional performance and handling, catering to both beginners with the pre-assembled Readyset and those who prefer the assembly kit. The FAZER Mk2 now introduces a rally-focused addition: the FZ02-R. At the heart of rally prowess lies the suspension system, and the FZ02-R excels in this aspect. Its front and rear shock stays are meticulously designed to accommodate the oil-filled shocks, with newly crafted pistons to provide enhanced suspension travel and remarkable performance on various terrains. The shaft-type 4WD system ensures top-notch traction control, working seamlessly with the new rally tyres to efficiently transfer motor power to the road. Safety measures include a front bumper skid for impact protection during jumps and a chassis cover to shield R/C components from debris. This Fazer is a faithful replica of the 1971 Datsun 240Z that claimed overall victory in its first appearance at the 1971 East Africa Safari Rally.

Features

  • Featuring an "Ultra Scale Body" which replicates the fine details of the real life car
  • Comes equipped with block pattern rally wheels designed to look as scale as possible
  • The separately sold LED light unit (97054) can be attached to the front and rear light buckets for an even more scaled look
  • Factory-assembled Readyset package only requires 4 x AA alkaline batteries for the transmitter and a battery with a charger for the chassis
  • Full ball bearings that reduce drive loss are equipped throughout the drive system
  • Features KS202W waterproof steering servo
  • Compatible with a wide range of official Kyosho and aftermarket upgrade parts
  • Sealed differential and transmission deliver reliable performance, and keep out unwanted dirt and dust
  • Easy to drive with a shaft-driven full-time 4WD touring chassis
  • Equipped with a plated dummy brake disc and a painted brake caliper
  • Button screws with hexagonal holes throughout — tighten with a single tool, streamlining maintenance
  • Motor mount has mounting holes according to the pinion gear; backlash adjustment unnecessary. Supports pinions from 29T to 37T
  • Genuine Kyosho Product

In the box

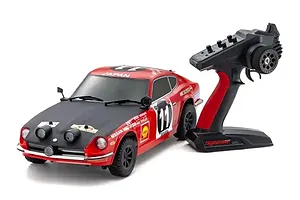

  • 1x Kyosho 1/10 Fazer 4WD Electric RTR RC Car
  • 1x Factory-assembled body with painted colour scheme
  • 1x Syncro KT-231P+ Transmitter
  • 1x +5mm Off-set Wheel Hub (for 200 mm width chassis) & M4 x 22 wheel screw set
  • 1x Hexagonal Wrench
  • 1x Spanner

You'll need

  • Compatible Battery
  • Compatible Charger
  • 4 x AA Transmitter Batteries

Highlights

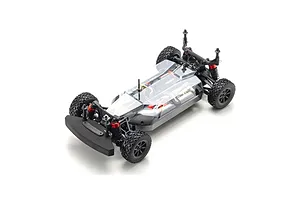

Rally Focused Chassis

Rally Focused Chassis

The Fazer Mk2 FZ02-R chassis is purpose-built for rally vehicles, featuring a shaft-driven 4WD system that delivers outstanding control and reliability, making it the perfect choice for rally driving on both on and off-road terrains.

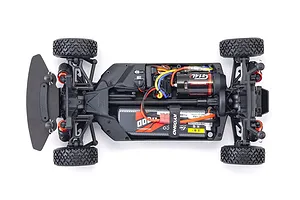

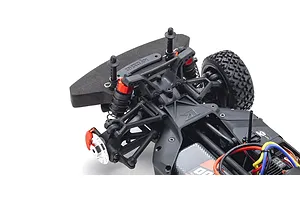

Chassis Cover

Chassis Cover

Included as a standard feature, there's a chassis cover to shield the delicate RC equipment from dirt and environmental elements. Additionally, it's outfitted with a robust sintered 32T pinion gear, known for its exceptional durability even in high-load off-road driving scenarios. The motor mount, which doesn't necessitate backlash adjustment, is compatible with pinion gears spanning from 29T to 37T.

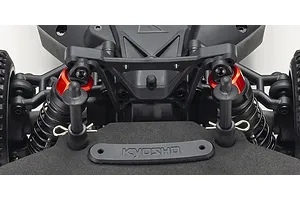

New Shock Set Up

New Shock Set Up

New shock stays have been developed in conjunction with the new big bore oil filled shocks. This allows you to optimise your suspension set-ups by giving you three different mounting points!

Big Bore Shock Absorbers

Big Bore Shock Absorbers

Conquer the toughest terrain with the Fazer's all-new big bore oil-filled shocks. These burly beasts are built for hardcore off-roading, absorbing bumps and jumps with effortless grace, letting you push the limits of your driving without fear.

Scale Look Wheels

Scale Look Wheels

Block-patterned tyres provide excellent grip on surfaces ranging from asphalt to dirt. Paired with the Classic Watanabe style rims, they not only improve off road performance but also provide an essential piece to the overall style to match its outstanding performance.

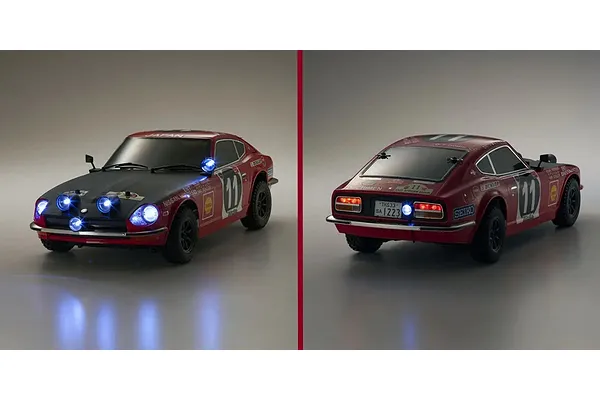

LED Ready

LED Ready

Take the Fazers incredible scale looks to the next level with an optional LED light unit set. The factory installed light buckets make installation a breeze, allowing you to add a brilliant glow to your nighttime RC adventures.

Scale Disc Brake Hubs

Scale Disc Brake Hubs

The Fazer comes with two sets of offset brake disc wheel hubs, complete with scale look dummy calipers, allowing you to not only customise the car's appearance but adjust the width of the car to accommodate body widths from 190mm to 200mm. Mix and match for a unique look and perfect fit.

Hassle-Free Maintenance

Hassle-Free Maintenance

The Fazer Mk2 simplifies maintenance with fewer screws and parts, and many common screws share the same size. Most are countersunk (flat-head) screws easily removed with a 2.0mm hex wrench, making disassembly and upkeep a breeze.

Powerful 550 Brushed Motor

Powerful 550 Brushed Motor

The Fazer Mk2 boasts a new, powerful 550 size 14T brushed motor (G14L). The long can design with a steel ring and internal cooling fan ensures efficient torque delivery and exhilarating high speeds.

Tunable Gear Ratios & Motor Mount

Tunable Gear Ratios & Motor Mount

Dial in your Fazer's performance with a variety of pinion gear options. Choose from nine different sizes (29T-37T) to fine-tune the gear ratio and achieve the perfect balance of speed and acceleration for your driving style. The direct-mount motor design simplifies gear changes, making it easy to experiment and optimise your setup.

Specifications

Length473 mm (18.62 in)
Width194 mm (7.63 in)
Height142 mm (5.59 in)
Wheelbase260 mm (10.23 in)
Weight1650 g (3.63 lbs)
Tyre Diameter70 mm (2.75 in)
ChassisOff Road
Drivetrain4WD
Gears6.54:1
SuspensionOil Filled Big Bore Coil Over Shock Absorbers
MotorKyosho G14L 550 Sized 14T Brushed Motor
ESCKyosho KSH KA060-91W 60A Brushed ESC

RC Car

Scale1/10
Power SourceElectric Brushed
Drivetrain4WD
Chassis TypeRally
CompletionReady to Run
On/Off RoadOff Road
Skill LevelBeginner
Max LiPo Power2S (7.4v)

RC Kit

Suited Motor/ESC TypeBrushed

Factory Specs

Battery ConnectorDeans
Front Shock Oil100cSt
Rear Shock Oil100cSt
Rear Differential OilGrease
Pinion Gear32T 48dp/0.5Mod
Spur Gear68T 48dp/0.5Mod
Wheel Hex Size12mm
