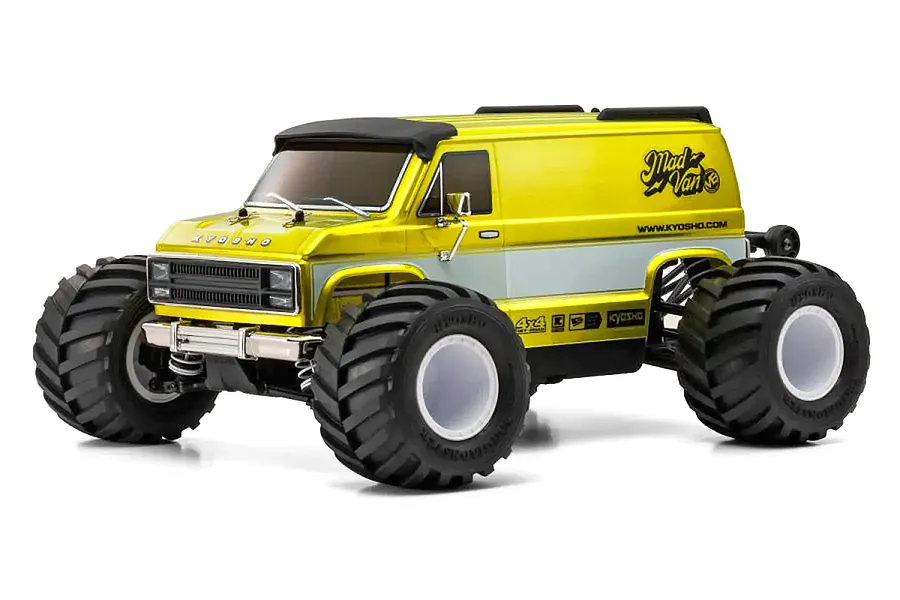

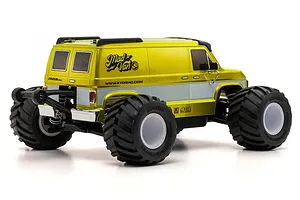

Kyosho Fazer Mk2 FZ02L Mad Van VE-BT RC Monster Truck Electric Brushless 4WD 1/10 Scale RTR - Yellow

  • 1/10
  • 4WD
  • RTR
  • Brushless

Part no. 34491T2

Sold outNo reviews yet
1 / 15
1 / 15

Videos

$478.15

or 4 fortnightly payments of $119.54 with afterpay or PayPal, or zip

Add it to My Garage

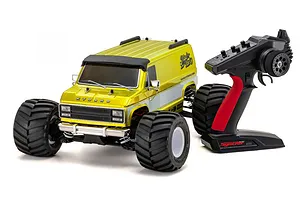

Kyosho Fazer Mk2 FZ02L Mad Van VE-BT RTR: brushless-powered 1/10 RC monster truck with scale American van body and full-time 4WD.

  • TORX 10E brushless motor delivers exhilarating speed and power
  • Full-time 4WD with strap-type battery mount compatible with various battery sizes
  • 3D moulded grille and lights, plus a roof guard for scale realism and protection
  • Robust FZ02L-BT chassis with reinforced metal gears and aluminium HD centre shaft
  • 1/10 scale Ready to Run with pre-assembled chassis and Syncro KT-231P+ transmitter included

Part Support

Replacement & upgrade parts that fit this model

Videos

Overview

Experience the thrill of high-speed bashing with the Kyosho Fazer Mk2 FZ02L Mad Van VE-BT, a radio-controlled electric car that delivers an exhilarating experience. Powered by a TORX 10E brushless motor, this car unleashes impressive speeds. This powerplant has been paired with a revamped chassis that ensures exceptional handling and stability, allowing you to take on any environment with confidence, with the wheelie bar ready to prevent unwanted flips and tumbles.

The Kyosho Fazer Mk2 FZ02L VE-BT isn't just about power and performance — it's also about style. The detailed body styling captures the essence of an American van, and the pre-assembled chassis makes it easy to get started.

Note

Consult the manual for detailed information about maintenance and waterproofing standards.

Features

  • 1/10 scale Ready to Run with pre-assembled chassis and installed RC system
  • Syncro KT-231P+ pistol-grip transmitter with adjustable settings
  • Full-time 4WD FZ02L-BT chassis with robust construction for off-road bashing
  • Strap-type battery mount compatible with various battery sizes and shapes
  • Full ball bearing specifications for improved drive efficiency and durability
  • Long-type upper and lower suspension arms with oil shocks for excellent stroke and damping
  • Ball-connected steering knuckles for smooth operation and crash resistance
  • TORX 10E brushless motor for high power and wheelies
  • BRAINZ 10 speed controller with cooling fan, programmable for specific needs, waterproofed
  • High-strength sintered metal gears in the gearbox, optimised for brushless motor power with low gear ratio
  • Large-diameter tyres for high grip on various surfaces, pre-glued and white
  • Moulded resin grille and light buckets add scale realism to the American-style van body
  • Roof guard protects the body from damage during rollovers
  • Extra decal sheet for customisation
  • Aluminium HD centre shaft installed as standard equipment
  • Genuine Kyosho Product

In the box

  • 1x Kyosho Fazer Mk2 FZ02L Mad Van VE-BT RC Monster Truck
  • 1x Syncro KT-231P+ Transmitter
  • 1x Spanner
  • 1x Setting Change Parts

You'll need

  • 1x Compatible 7.4V LiPo Battery
  • 1x Compatible Charger
  • 4x AA Transmitter Batteries

Highlights

FAZER Mk2 Chassis: The Standard for 1/10 EP Cars

FAZER Mk2 Chassis: The Standard for 1/10 EP Cars

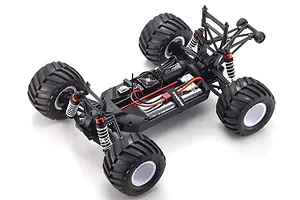

The FAZER Mk2 chassis sets the benchmark for Kyosho 1/10 cars with its optimal blend of rigidity and flex. The bathtub-type frame, combined with a shaft-driven 4WD system and sealed gearboxes, provides exceptional durability and performance for off-road driving.

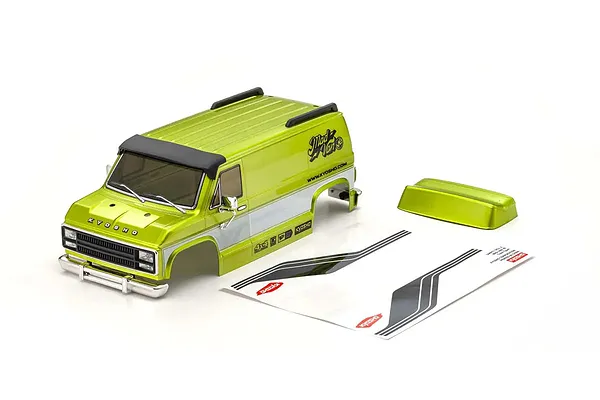

Realistic Details

Realistic Details

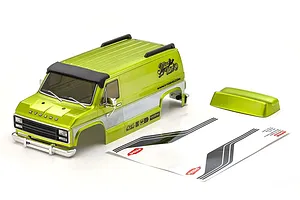

The American van-inspired body features separately moulded parts like the bumper, grille, and side mirrors for enhanced scale realism. A roof guard and an extra decal sheet are also included for customisation.

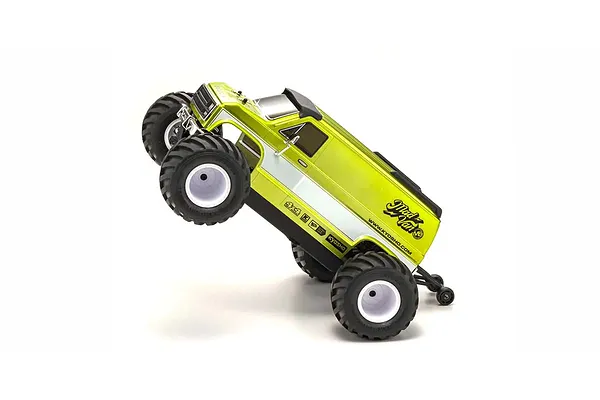

Wheelie Bar

Wheelie Bar

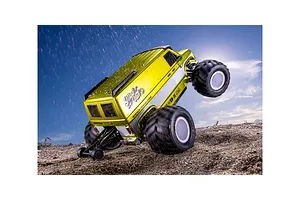

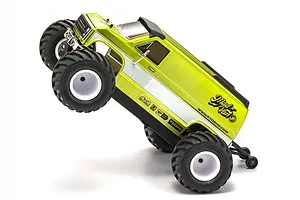

The VE model includes a wheelie bar that prevents flipping during wheelies, allowing you to fully enjoy the dynamic acceleration and power of the brushless motor.

Long-Travel Suspension with Oil Shocks

Long-Travel Suspension with Oil Shocks

The FAZER Mk2 features long-type upper and lower suspension arms with oil shocks, providing ample travel and smooth damping for superior handling and control. Ball-connected, interchangeable steering knuckles enhance durability and responsiveness.

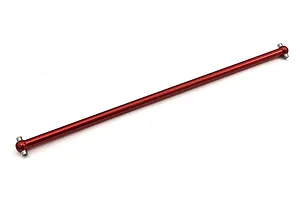

Aluminium HD Centre Shaft for Enhanced Durability

Aluminium HD Centre Shaft for Enhanced Durability

An optional aluminium HD centre shaft (No. FAW210) is included as standard equipment, providing increased strength and smooth rotation to handle the power of the brushless motor.

Powerful TORX 10E Brushless Motor

Powerful TORX 10E Brushless Motor

The TORX 10E brushless motor delivers exhilarating power and wheelie-popping torque. The sealed motor case protects against dirt and dust, ensuring long-lasting performance.

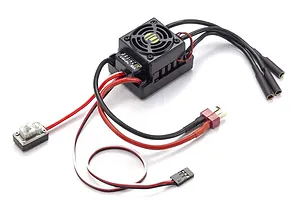

Programmable BRAINZ 10 ESC

Programmable BRAINZ 10 ESC

The included BRAINZ 10 speed controller features a cooling fan and offers programmable settings for customised performance. This versatile ESC is designed for use with brushless motors and provides precise control over your driving experience.

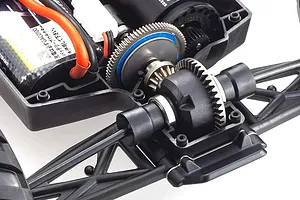

High-Strength Gearbox with Optimised Gear Ratio

High-Strength Gearbox with Optimised Gear Ratio

The gearbox incorporates high-strength sintered metal gears and features an updated final gear ratio to maximise the power of the brushless motor. The machined steel pinion gear further enhances durability and efficiency.

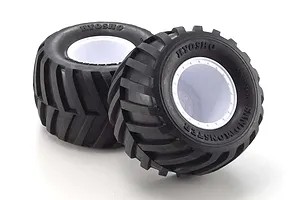

Large-Diameter Tyres for Superior Grip

Large-Diameter Tyres for Superior Grip

The FAZER Mk2 is equipped with large-diameter tyres that provide exceptional grip on various surfaces. The pre-glued wheels, featuring a new white colour scheme, are ready for action right out of the box.

Specifications

Length460mm (18.1")
Width323mm (12.7")
Height197mm (7.75")
Wheelbase274mm (10.7")
Weight2180g (4.80 lbs) approx.
Tyre Diameter110mm (4.3")
ChassisFZ02L-BT Monster Truck
Drivetrain4WD
Gear Ratio11.803:1
SuspensionOil Filled Coil Over Shock Absorbers
MotorKyosho TORX 10E 4000kV Brushless Motor
ESCKyosho BRAINZ 10 60A Brushless ESC

RC Car

Scale1/10
Max LiPo Power3S (11.1v)
CompletionReady to Run
Skill LevelBeginner
Power SourceElectric Brushless
Chassis TypeRock Crawler
On/Off RoadOff Road
Drivetrain4WD

Factory Specs

Battery ConnectorDeans
Front Shock Oil100cSt
Rear Shock Oil100cSt
Pinion Gear20T 48dp/0.5Mod
Spur Gear75T 48dp/0.5Mod
Wheel Hex Size12mm
