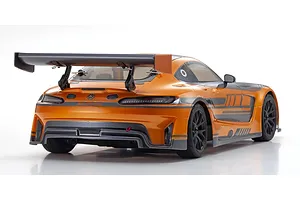

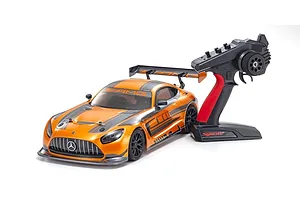

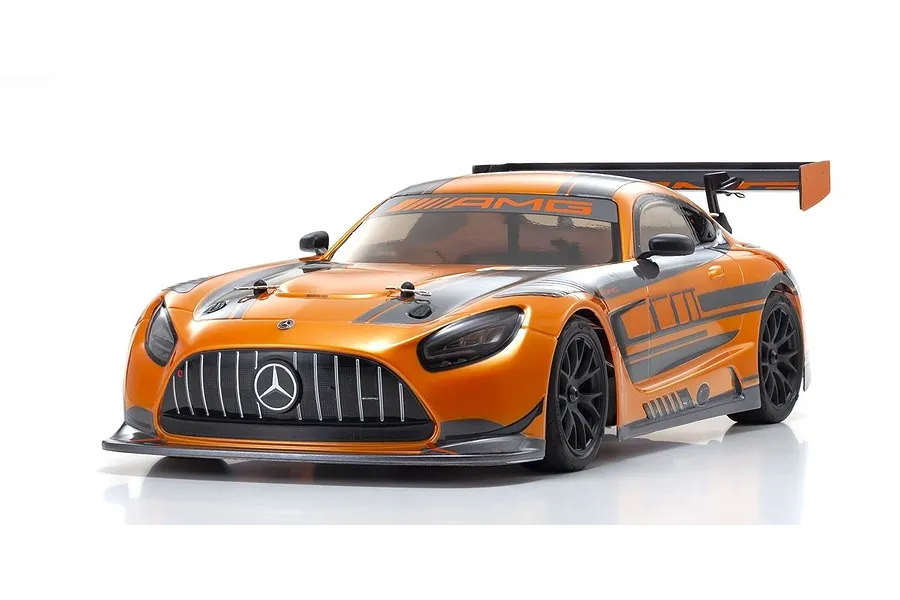

Kyosho Fazer Mk2 Mercedes AMG GT3 RC Touring Car Electric 4WD 1/10 Scale RTR - Orange

  • 1/10
  • 4WD
  • RTR
  • Brushed

Part no. 34424

Sold outNo reviews yet
1 / 7
1 / 7

Videos

$423.28

or 4 fortnightly payments of $105.82 with afterpay or PayPal, or zip

Add it to My Garage

Kyosho Fazer Mk2 Mercedes AMG GT3 1/10 Electric 4WD RTR touring car — factory assembled, requires only transmitter batteries and a chassis battery with charger.

  • Low centre of gravity design with integrated gearbox backbone for sharp handling
  • Front and rear gear differentials, oil shocks and full ball bearings throughout

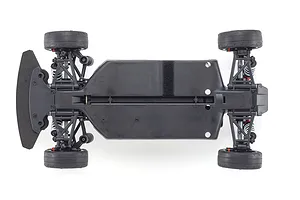

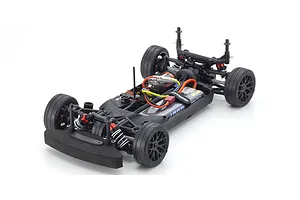

  • Shaft-driven full-time 4WD touring chassis
  • Two sets of offset brake disc wheel hubs (0mm and +5mm) for 190mm–200mm body compatibility
  • Factory-assembled Readyset — only requires transmitter batteries and a chassis battery with charger

Part Support

Replacement & upgrade parts that fit this model

Videos

Overview

For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the Fazer series chassis can't be beaten. Kyosho has taken its standard touring car chassis and given it a complete model makeover that has increased performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight. Core strength and rigidity has been increased through new materials, ribbing and stiffeners on the front and rear. The symmetrical chassis design synergises excellent front-rear balance through the suspension with responsive control, irrespective of power source.

Featuring front and rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis. Brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles and allow the wheelbase to be adjusted to 270mm by replacing some parts (sold separately) for compatibility with other 1/10 scale body styles, in addition to the body included.

The Readyset package comes fully assembled and includes everything except the charger and battery for the chassis and batteries for the transmitter.

Features

  • Featuring an "Ultra Scale Body" which replicates the fine details of the real life car
  • Equipped with semi slick style tyres wrapped around modern looking rims
  • The separately sold LED light unit (97054) can be attached to the front and rear light buckets for an even more scaled look
  • Factory-assembled Readyset package only requires 4 x AA alkaline batteries for the transmitter and a battery with a charger for the chassis
  • Full ball bearings that reduce drive loss are equipped throughout the drive system
  • Features KS202W waterproof steering servo
  • Compatible with a wide range of official Kyosho and aftermarket upgrade parts
  • Sealed differential and transmission deliver reliable performance and keep out unwanted dirt and dust
  • Easy to drive with a shaft driven full-time 4WD touring chassis
  • Equipped with a plated dummy brake disc and a painted brake caliper to improve the sense of scale
  • Button screws featuring hexagonal holes throughout — tighten with a single tool, streamlining maintenance
  • Motor mount has mounting holes according to the pinion gear — backlash adjustment unnecessary. Supports pinions from 29T to 37T

In the box

  • 1x Kyosho 1/10 Fazer 4WD Electric RTR RC Car
  • 1x Factory assembled body complete with painted colour scheme
  • 1x Syncro KT-231P+ transmitter
  • 1x Installed 60A waterproof electronic speed controller (forward/brake/reverse)
  • 1x +5mm offset wheel hub (for 200mm width chassis), M4 x 22 wheel screw set
  • 1x Hexagonal wrench
  • 1x Spanner

You'll need

  • Compatible battery
  • Compatible charger
  • 4x AA transmitter batteries

Highlights

Low CG Design

Low CG Design

The Fazer is built for performance, with a low centre of gravity, streamlined body, and a rigid chassis that delivers exceptional handling. Lightweight construction improves the Fazers agility, while strategically reinforced components ensure high levels of durability, allowing you to push the limits with confidence.

Intuitive Suspension Design

Intuitive Suspension Design

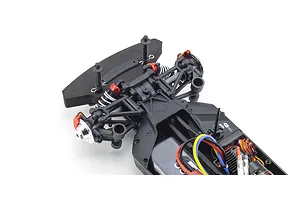

The Fazer's suspension system is engineered for performance, with carefully tuned geometry that translates to exceptional handling and control. The ball-connected steering knuckle provides smooth and precise steering, while interchangeable hub carriers offer added convenience and variable setup options.

Scale Disc Brake Hubs

Scale Disc Brake Hubs

The Fazer comes with two sets of offset brake disc wheel hubs, complete with scale look dummy calipers, allowing you to not only customise the car's appearance but adjust the width of the car to accommodate body widths from 190mm to 200mm. Mix and match for a unique look and perfect fit.

Oil Filled Shock Absorbers

Oil Filled Shock Absorbers

Fine-tune your Fazer's performance with ease, thanks to the simple and adjustable oil shocks. Add in the included spacers to quickly adjust ride height and optimise handling for any track or terrain. For even more fine-tuning options, the shocks can be disassembled to change the pistons and oil, providing an even more custom driving experience.

High Grip Scale Wheels

High Grip Scale Wheels

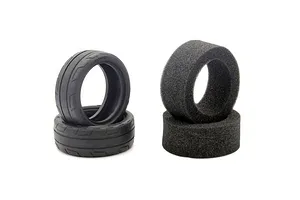

The Fazer's semi-slick tyres are designed for maximum grip and agility. Their low-profile design and high-traction compound provide exceptional cornering performance, allowing you to attack apexes with confidence and precision. Additionally, The rims are designed to complete the modern, fast look of the incredible Kyosho Fazer.

LED Ready

LED Ready

Take the Fazers incredible scale looks to the next level with an optional LED light unit set. The factory installed light buckets make installation a breeze, allowing you to add a brilliant glow to your nighttime RC adventures.

Hassle-Free Maintenance

Hassle-Free Maintenance

The Fazer Mk2 simplifies maintenance with fewer screws and parts, and many common screws share the same size. Most are countersunk (flat-head) screws easily removed with a 2.0mm hex wrench, making disassembly and upkeep a breeze.

Tunable Gear Ratios & Motor Mount

Tunable Gear Ratios & Motor Mount

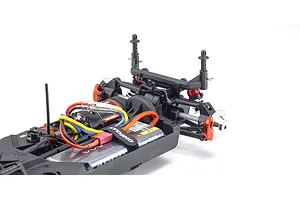

Dial in your Fazer's performance with a variety of pinion gear options. Choose from nine different sizes (29T-37T) to fine-tune the gear ratio and achieve the perfect balance of speed and acceleration for your driving style. The direct-mount motor design simplifies gear changes, making it easy to experiment and optimise your setup.

Powerful 550 Brushed Motor

Powerful 550 Brushed Motor

The Fazer Mk2 boasts a new, powerful 550 size 14T brushed motor (G14L). The long can design with a steel ring and internal cooling fan ensures efficient torque delivery and exhilarating high speeds.

Specifications

Length464mm (18.27in)
Width200mm (7.87in)
Height126mm (4.96in)
Wheelbase260mm (10.24in)
Weight1650g (3.64lbs)
Tyre Diameter/Width F/R64x27.7mm (2.52x1.09in)
ChassisOn Road
Drivetrain4WD
Gears6.54:1
SuspensionOil Filled Coil Over Shock Absorbers
MotorKyosho G14L 550 Sized 14T Brushed Motor
ESCKyosho KSH KA060-91W 60A Brushed ESC

RC Car

Scale1/10
Max LiPo Power2S (7.4v)
CompletionReady to Run
Skill LevelBeginner
Power SourceElectric Brushed
Chassis TypeCar
On/Off RoadOn Road
Drivetrain4WD

Factory Specs

Battery ConnectorDeans
Front Shock Oil100cSt
Pinion Gear32T 48dp/0.5Mod
Spur Gear68T 48dp/0.5Mod
Wheel Hex Size12mm
