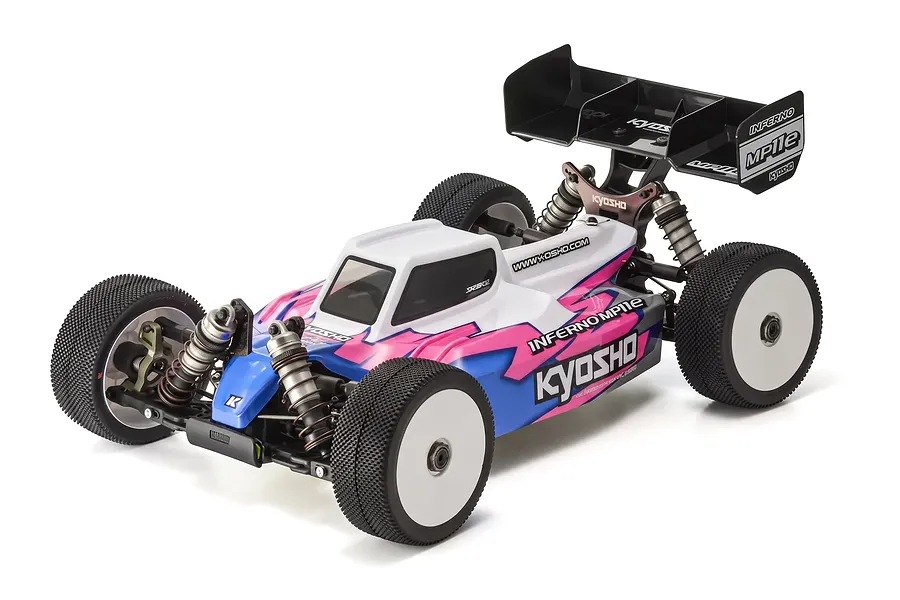

Kyosho Inferno MP11e RC Buggy Electric 4WD 1/8 Scale Kit
Kyosho Inferno MP11e RC Buggy Electric 4WD 1/8 Scale Kit

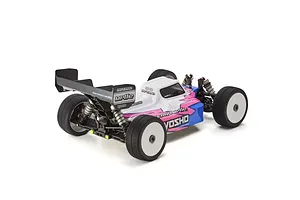

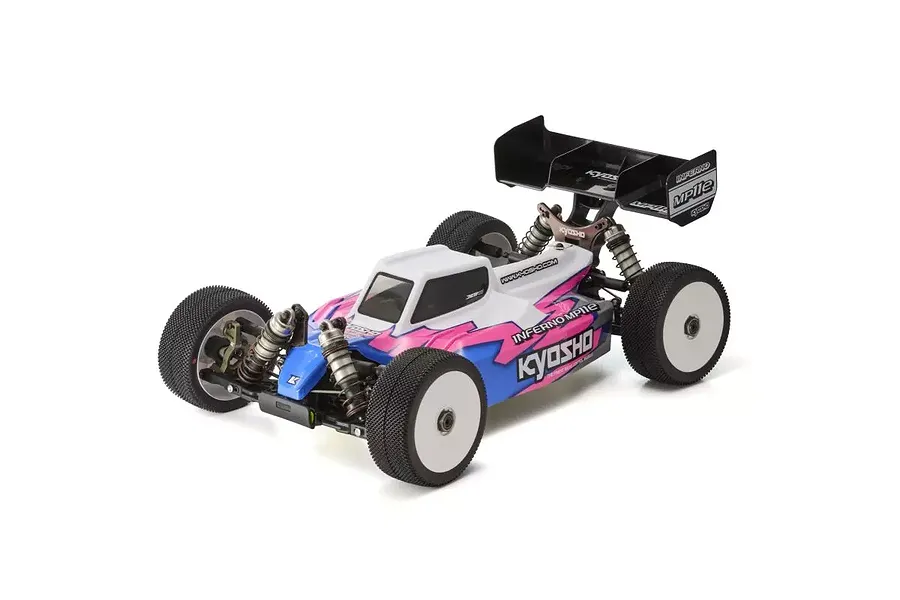

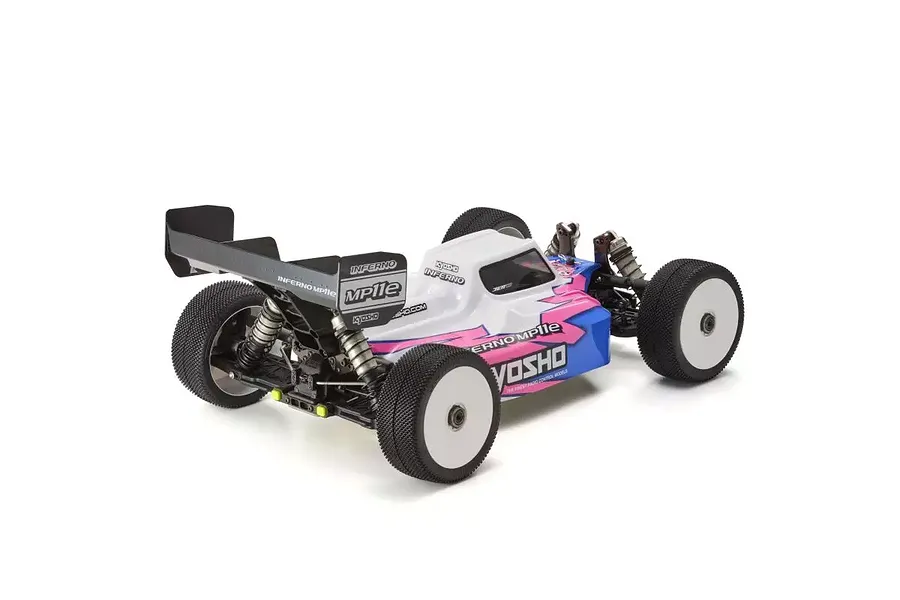

Kyosho RC Buggy Inferno MP11e Reaches Up To 80km/H Featuring 12-Degree Kingpin Angles And Aerodynamic Body Panels Providing Maximum Racing Control.
3mm A7075 Duralumin Hard Anodised Main Chassis Frame Layout
High-Efficiency 4WD Shaft-Driven System With Keyed Gear Mesh
Adjustable Split-Battery Layout Optimising Racing Balance
Sturdy Suspension Arms With MP11 Racing Geometry Design
Pro Racing Platform Ideal For Experienced Racers

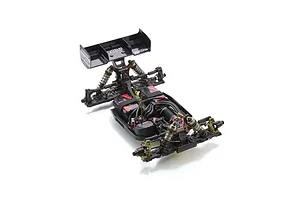

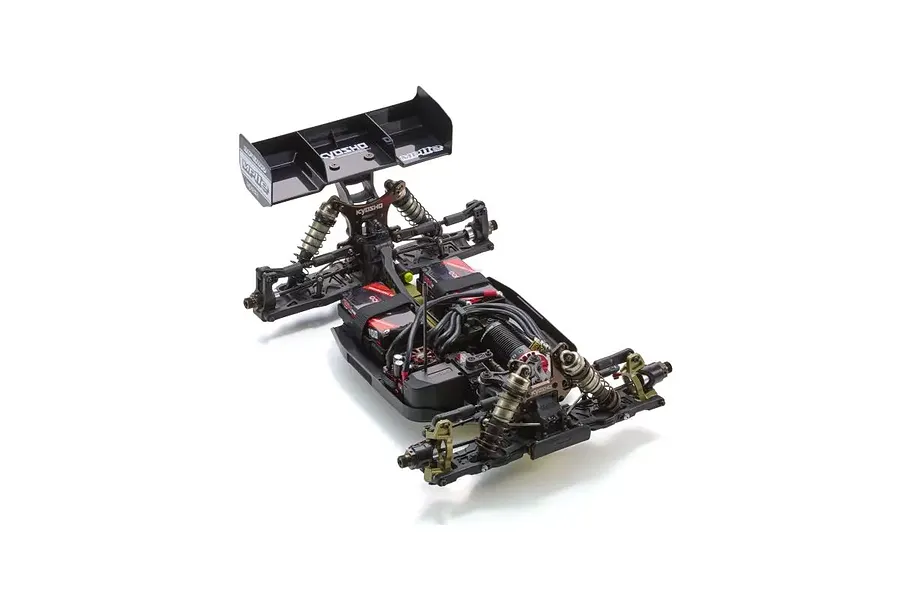

The Kyosho Inferno MP11e arrives as a purpose-built electric racing buggy designed to excel within international competition. A legendary platform builds upon the championship-winning heritage within the nitro-powered MP11, but shifts focus toward specific requirements within brushless power systems. Engineering teams repositioned the motor closer to the chassis centreline to sharpen steering response and improve overall balance. A refined split-battery layout allows precise weight distribution tuning using short or mid-length racing packs. By omitting compatibility with standard-sized batteries, the design remains strictly focused on professional racing efficiency and weight reduction.
Structural integrity relies on a 3mm A7075 hard-anodised duralumin main chassis providing controlled flex characteristics necessary to maintain off-road traction. Suspension geometry features a 12-degree kingpin angle on aluminium front hub carriers to enhance stability during high-speed cornering. Impact absorption relies on long diaphragm Big Bore oil shocks, which maintain consistent damping performance throughout endurance mains. Maintenance efficiency sees a significant upgrade with split-type bearing holders in bulkheads, allowing rapid differential swaps matching track grip levels. Every drivetrain component, from sintered bevel gears to the dogbone-style centre drive shaft, ensures the buggy follows throttle input with precision.
An unassembled kit offers the ultimate foundation serving racers seeking a professional edge on track. Performance gains remain accessible through extensive suspension tuning options and aerodynamic body adjustments matching various track conditions. Grab the transmitter and own the competition!

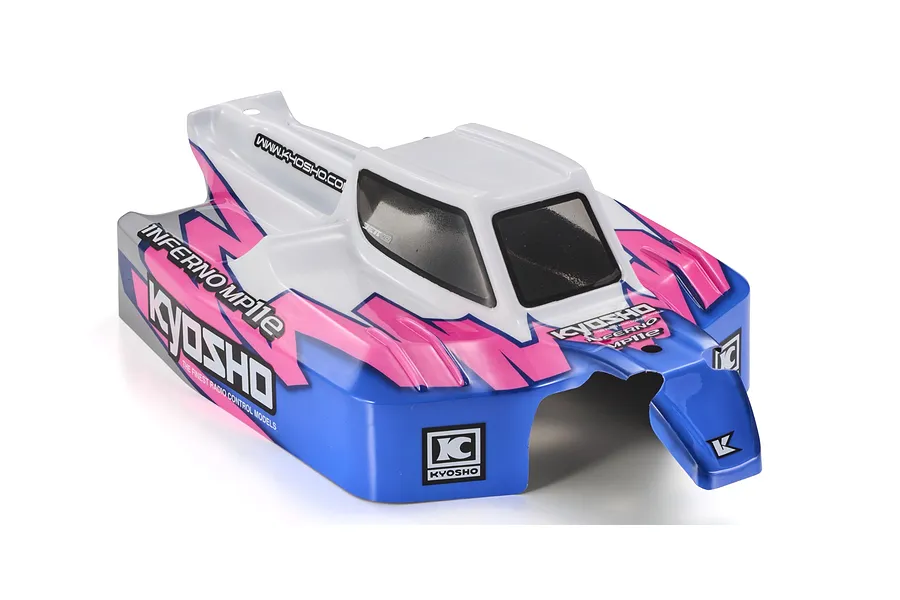

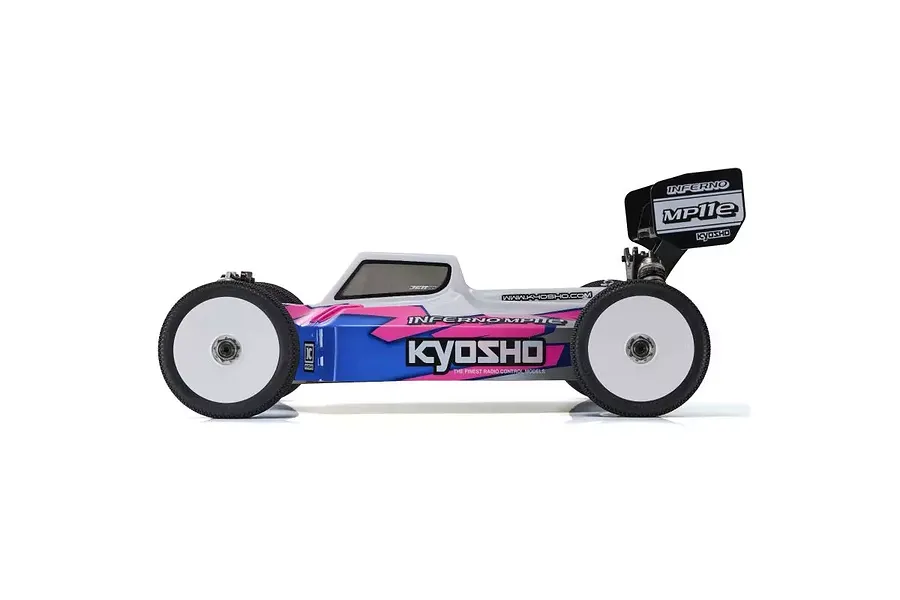

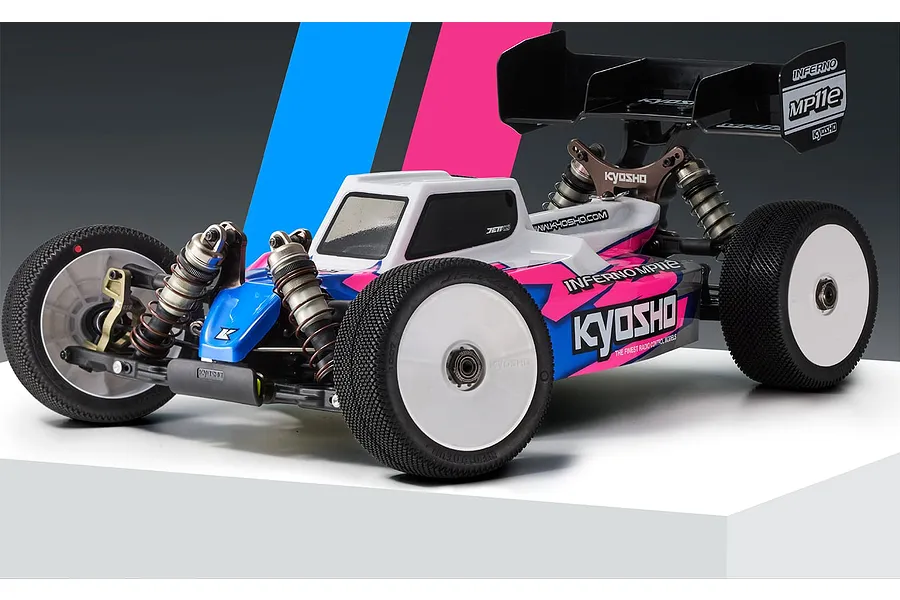

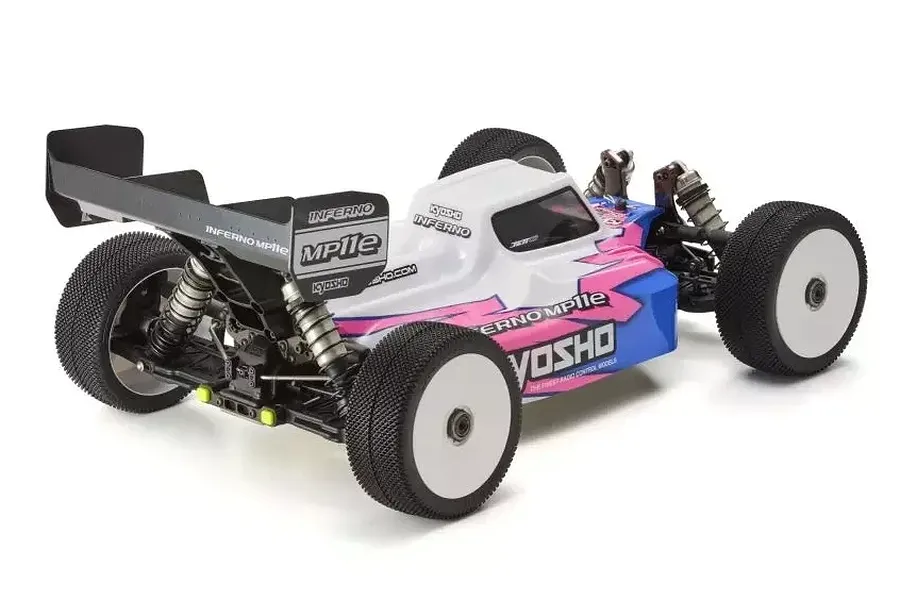

Engineered for maximum aerodynamic efficiency, the new body features side rails on the cab roof and a refined rear spine. These elements provide superior high-speed stability and enhanced cornering capabilities, ensuring the 1/8 scale buggy stays planted during intense racing. This design helps maintain a consistent feel through the air and on the ground, making it a primary performance highlight for competitive pilots.

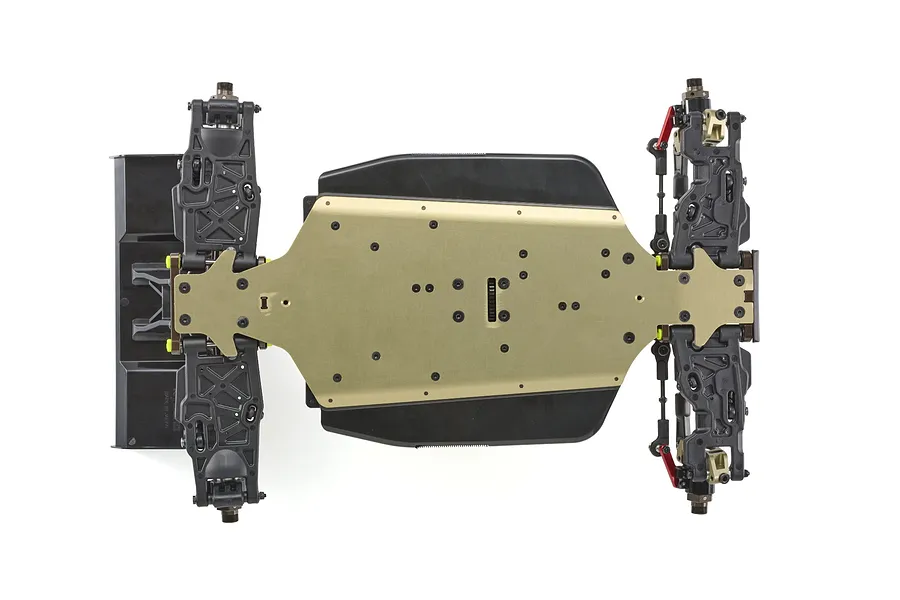

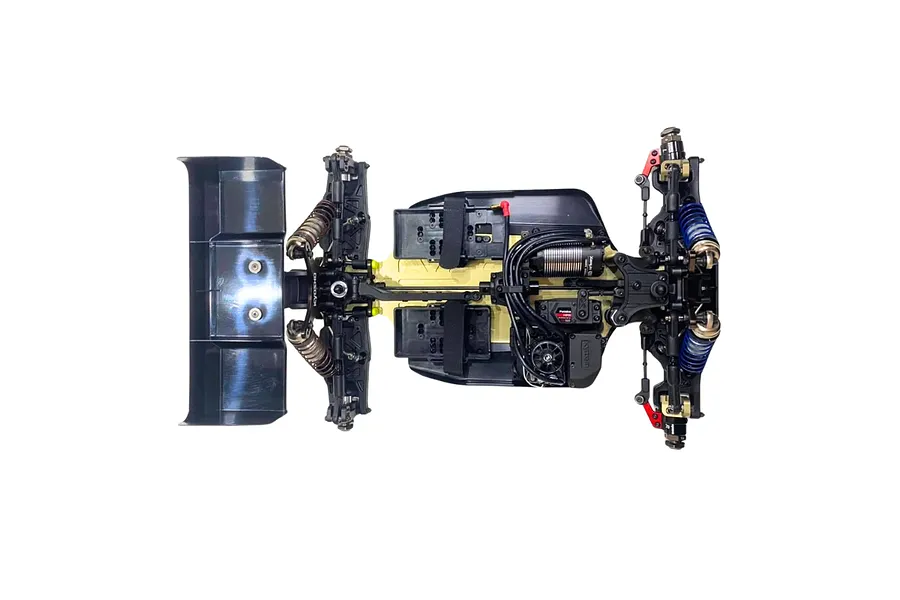

The electric-specific chassis is crafted from 3mm A7075 duralumin with a hard-anodised finish. Precision milling in key areas optimises weight distribution and controlled flex, delivering the ideal balance of stability and overall rigidity. This lightweight yet robust foundation is based on the world-debut MP11 platform, providing a race-winning pedigree that handles the stresses of high-power 1/8 scale brushless systems.

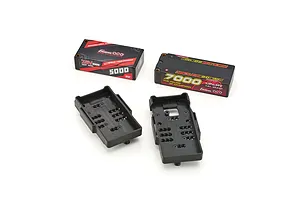

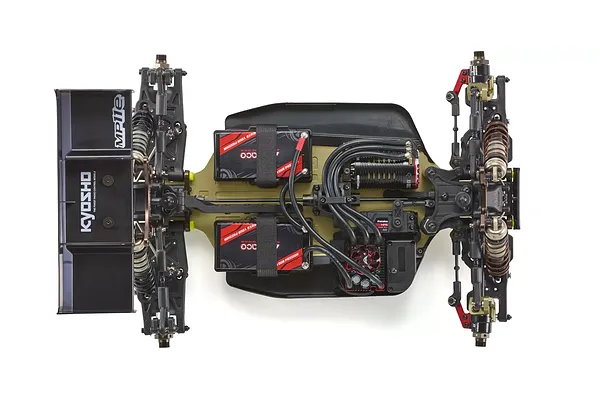

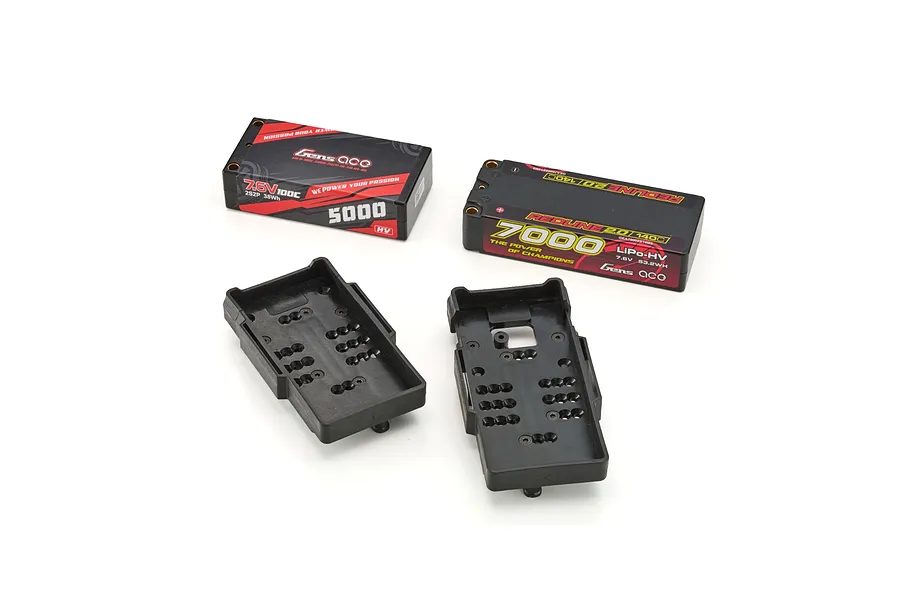

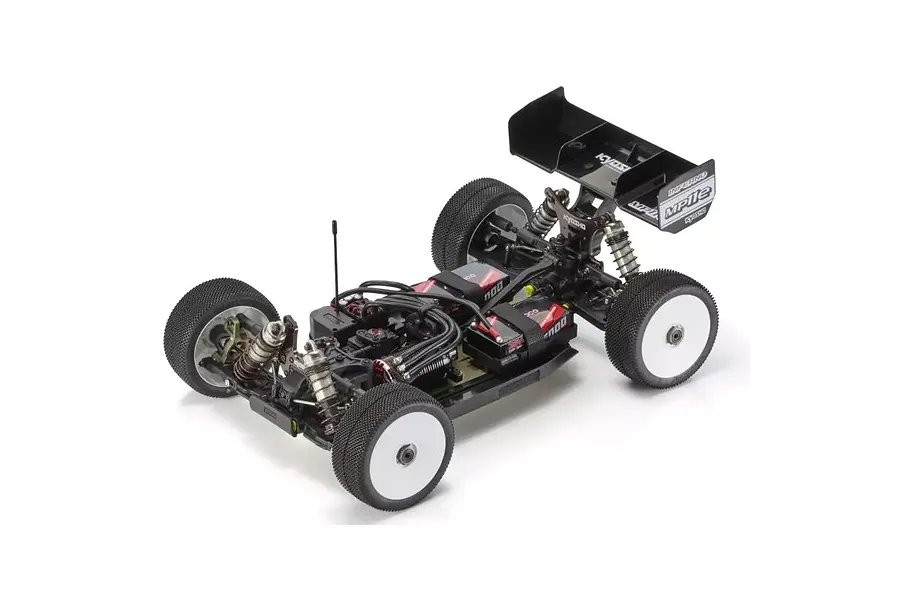

A split battery configuration lowers the centre of gravity and optimises weight balance across the chassis. The adjustable sliding tray supports both short and mid-size batteries, allowing you to fine-tune weight distribution to match your specific driving style and track conditions. This layout improves the buggy's responsiveness and stability, ensuring a predictable feel during high-speed transitions and technical jumps.

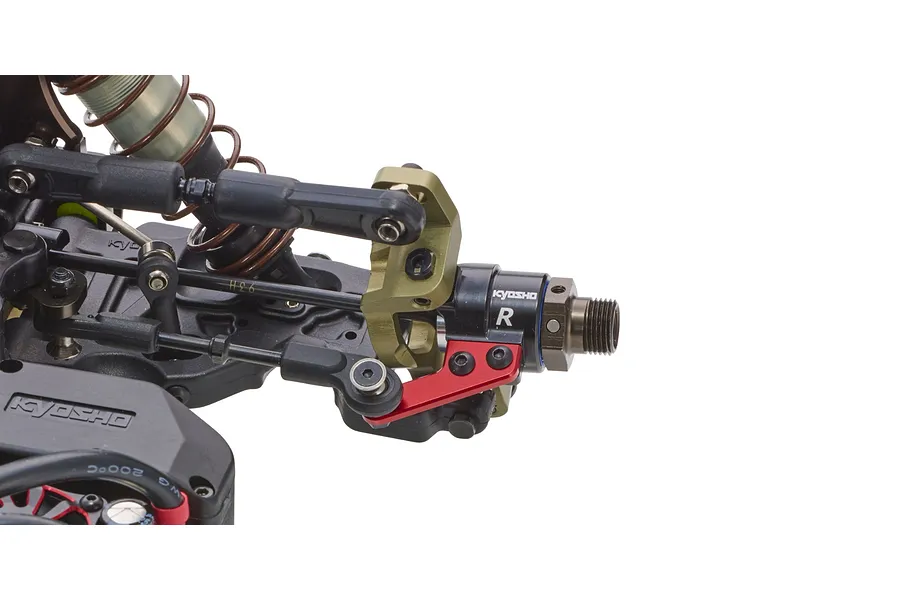

These aluminium front hub carriers feature a 12° kingpin angle to optimise steering geometry. This engineering update increases stability at high speeds and provides refined drivability across various track conditions, from high-bite clay to loose dirt. The 12° angle ensures the front end remains responsive without being overly twitchy, making it easier for racers to hold their line through long, sweeping corners.

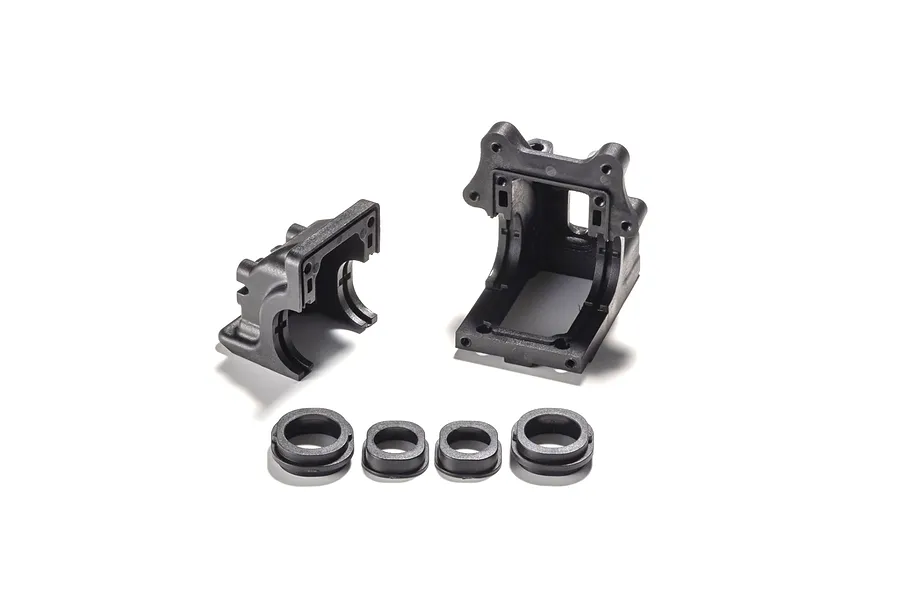

Utilising the latest MP11 standard bulkheads with a split-type bearing holder design, this kit allows for rapid differential height swaps. This major leap in maintenance efficiency lets you tune for optimal grip without tearing down the entire front or rear end. It provides the flexibility to adapt your setup quickly during race meets, ensuring you spend more time on the track and less time on the workbench.

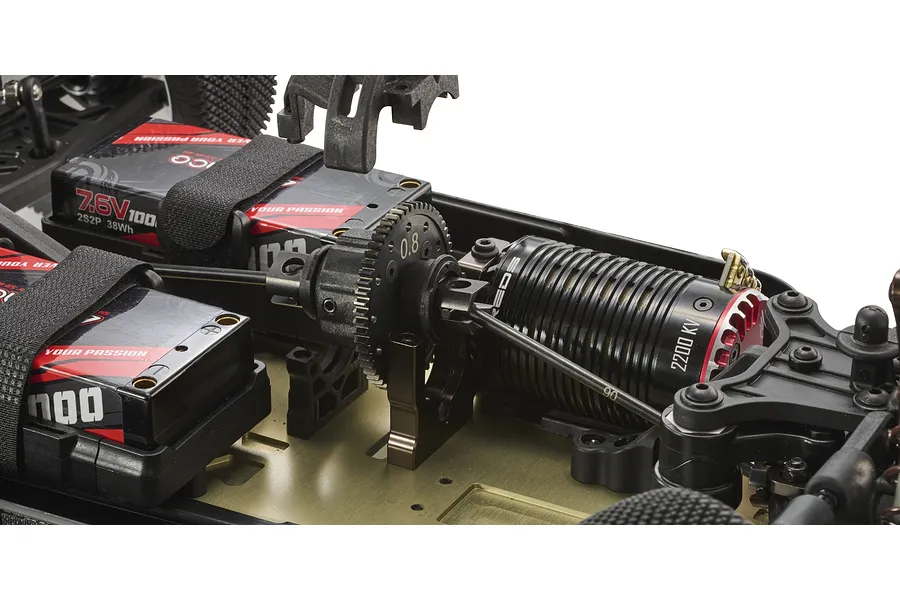

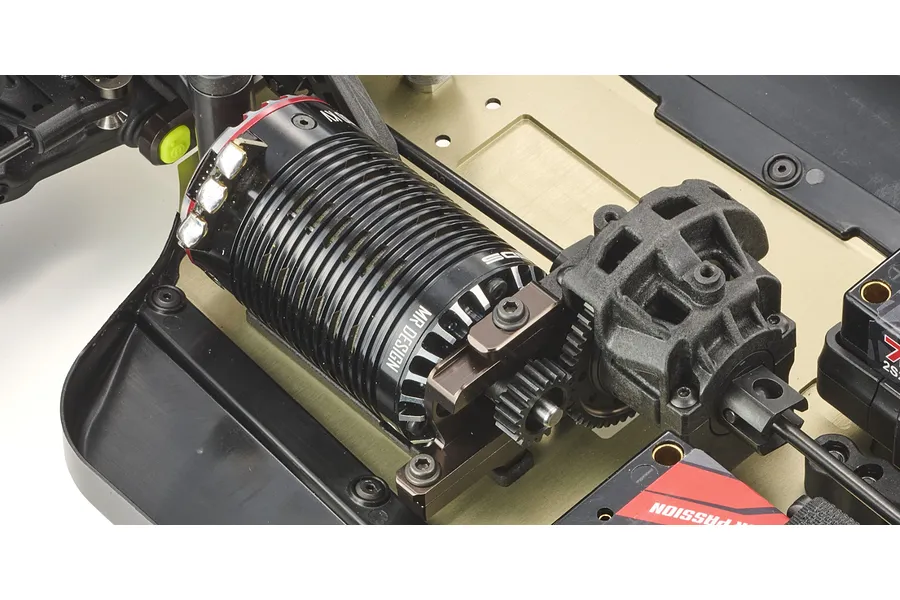

The motor mount is designed with a low centre of gravity and features user-friendly gear mesh adjustment. Differential height is easily tunable by swapping bearing bushings, offering three distinct settings to adapt the drivetrain to different track layouts. This system ensures the weight is kept as low as possible while providing a reliable and precise connection between the motor and the centre differential.

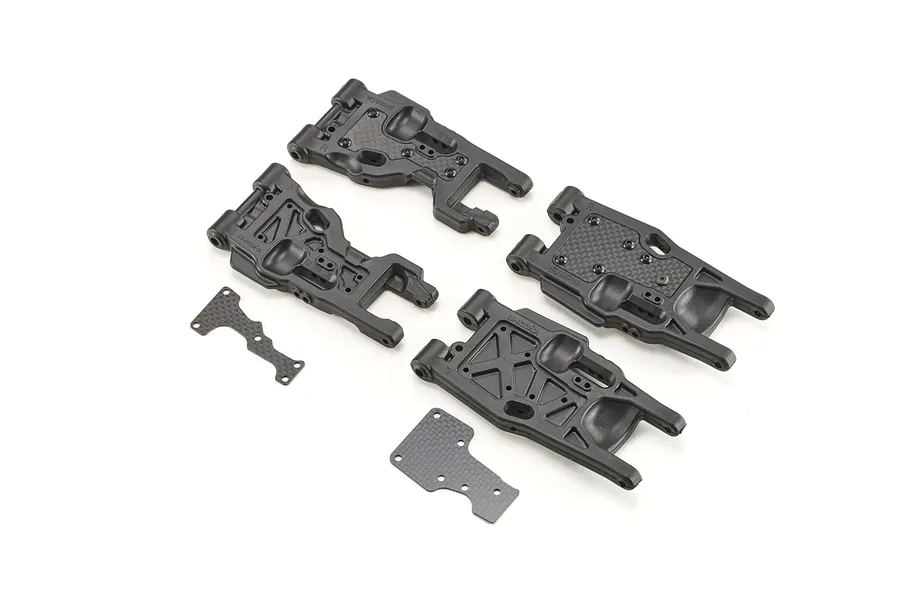

The front and rear lower suspension arms utilise the sturdy design from the legendary MP11 GP model. Rigidity can be further increased using optional carbon plates, allowing you to adapt the suspension flex to specific track layouts and grip levels. These durable components are built to handle heavy impacts, providing the reliability needed for high-level 1/8 scale competition and long-term durability.
A straight-line drivetrain design ensures highly efficient power transmission from the motor to the wheels. Dedicated wire holders are integrated into the chassis for neat and reliable cable routing, preventing interference with moving parts during high-speed operation. This focus on efficiency reduces drivetrain drag and prevents electronic failures, ensuring your power delivery remains smooth and uninterrupted throughout the race.

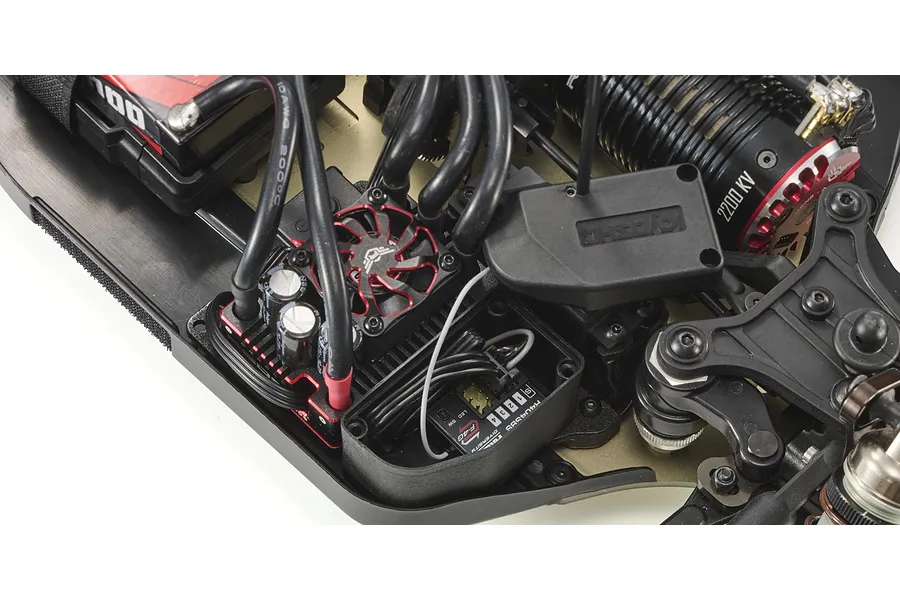

The receiver is housed in a sealed, dust-resistant box with a screw-fastened lid for maximum protection in harsh track environments. The ESC is mounted on a separate radio plate with adjustable fore-aft positioning, providing another layer of fine-tuning for your buggy's weight balance. This protected electronics layout ensures that your sensitive components remain safe from debris while allowing for precise weight distribution adjustments.
Hard Anodised 3mm A7075 Duralumin Main Chassis Plate Layout
Split-Battery Layout Supports Short And Mid-Size Race Packs
Aerodynamic Body Design With Side Spoilers And Rear Spine
Big Bore Pressure-Type Oil Shocks Manage Handling Stability
Sintered Bevel Gears Within Differentials Improve Grip Needs
Aluminium Front Hub Carriers With 12 Degree Kingpin Angle
Centre Gearbox Features Three Distinct Height Tuning Options
Sealed Dust-Resistant Receiver Box With Secure Screw Lid
Dogbone Centre Drive Shaft Increases Precise Traction Grip
Rigid A7075 Duralumin Shock Stays Support Racing High Jumps
Rear Wing Stay System Allows Precise Position Racing Tuning
Genuine Kyosho Product
Length: 490mm (19.29")
Width: 307mm (12.09")
Height: 180mm (7.09")
Wheelbase: 325mm (12.80")
Weight: 3.39kg (7.47lbs)
Chassis: 3mm A7075 Duralumin
Drivetrain: Shaft-Driven 4WD
Suspension: MP11 Geometry Independent
Motor: N/A (Sold Separately)
ESC: N/A (Sold Separately)
1x Kyosho Inferno MP11e Unassembled Kit
1x Clear Aerodynamic Body
1x High-Downforce Rear Wing
1x Window Mask Sheet
1x Logo Decal Set
1x Ring Gear Grease
1x Hexagonal Wrench Set
1x Cross Wrench
1x Wheel Wrench
1x 2-Channel Radio System
1x High-Torque Steering Servo
1x 1/8 Scale Brushless Motor
1x 1/8 Scale Brushless ESC
2x 2S LiPo Batteries (Short/Mid-Size) Max L113 × W49 × H25 mm
1x Compatible LiPo Battery Charger
1x LiPo Safe Charging/Storage Bag
2x 1/8 Scale Buggy Tyres
2x 1/8 Scale Buggy Wheels
1x Silicone Shock Oil
1x Silicone Differential Oil
1x Polycarbonate Spray Paint
1x Instant Tyre Adhesive
1x Screw Lock Material
Please refer to the instruction manual for operation, safety, waterproof standards and maintenance instructions.
Inferno MP11e arrives as an unassembled kit requiring full assembly and electronics.
-
Scale
- 1/8
-
Skill Level
- Expert
-
Power Source
- Electric Brushless
-
Chassis Type
- Buggy
-
On/Off Road
- Off Road
-
Drivetrain
- 4WD
-
Suited Motor/ESC Type
- Brushless
-
Wheel Hex Size
- 17mm
