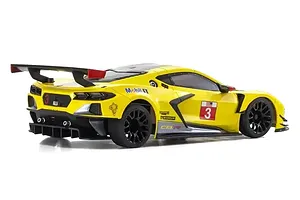

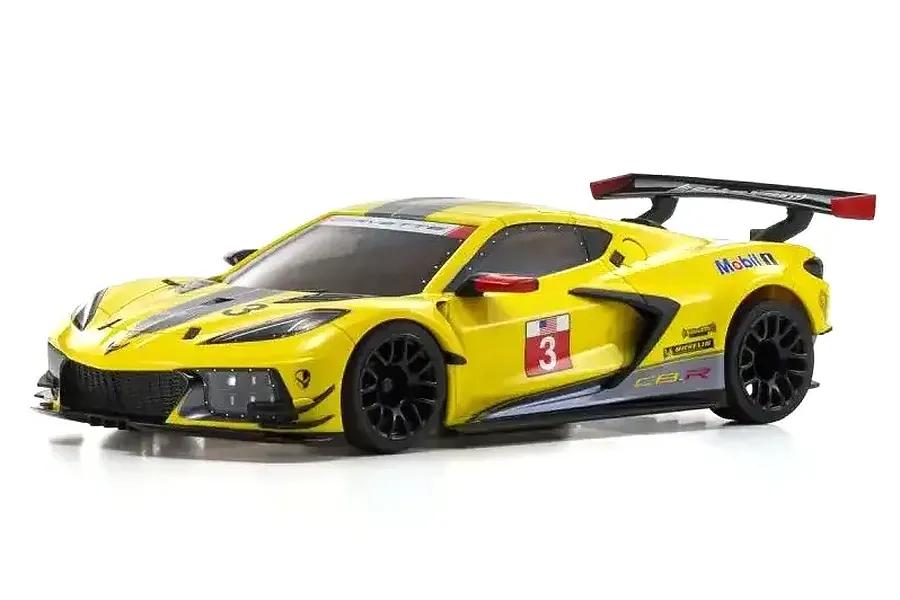

Kyosho Mini-Z Chevrolet Corvette C8.R RC Car Electric RWD RTR - Yellow

Kyosho Mini-Z Chevrolet Corvette C8.R RC Car Electric RWD RTR - Yellow

Kyosho Mini-Z Chevrolet Corvette C8.R RC Car Electric RWD RTR - Yellow

Brand: Kyosho | MPN: 32342Y
sold out
$315.73
or 4 fortnightly payments of $78.93 with Afterpay

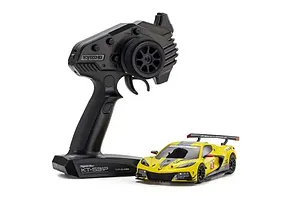

Kyosho Mini-Z Chevrolet Corvette C8.R (Yellow) RWD RC Car — RTR with MR-03 chassis, VCS front suspension, and Syncro KT-531P transmitter.

  • Chevrolet Corvette C8.R body on proven MR-03 RWD chassis
  • Syncro KT-531P 2.4GHz transmitter with steering trim, throttle trim, dual rate, and LED control
  • Display-model standard factory-finished body
  • Front suspension with VCS for camber optimisation
  • Optional Gyro Unit (MZW446) compatible
Add to Wishlist
Save Time & Add These Now
Complete your setup with these required items.
AAA Batteries
AAA Batteries
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Shop replacement & upgrade parts for this model
Shop Parts
Description

The Mini-Z Racer, powered by 8 x AAA-size batteries, offers both style and high-performance in R/C cars, making it accessible to everyone. Kyosho introduced the Mini-Z Racer Sports MR-03 concept in 2013 and has now improved it with the user-friendly Mini-Z RWD series, appealing to a wider range of drivers. With meticulously detailed body sets featuring popular body styles, the model line-up achieves an incredibly realistic look.

The set includes the advanced Syncro KT-531P transmitter, equipped with steering trim, throttle trim, dual rate, and LED control function. The steering wheel's sponge grip ensures a comfortable fit for precise control. The set includes a display-model standard car body that combines stunning style with the MR-03 chassis performance, reliability, and durability. The newly updated control program on the circuit board offers smooth handling, and the optional Gyro Unit (MZW446) can be installed for even easier control.

The Chevrolet Corvette C8.R was derived from Chevrolet's high-performance road car. Equipped with a mid-mounted 5.5-litre V8 engine generating 500 horsepower, along with weight reduction and aerodynamic enhancements, the racing iteration outperformed the commercial road model by a significant margin.

Syncro KT-531P Transmitter
Syncro KT-531P Transmitter

The included Syncro KT-531P transmitter boasts a stylish design and packs a punch with features: fine-tune your car's handling with steering and throttle trim, adjust steering sensitivity with dual-rate adjustment, and customise the flashing speed of optional LEDs. Plus, the built-in Training Mode limits the car's speed, making it perfect for beginners to learn the ropes safely - it's even activated by default!

Upgrade-Ready MR-03 Chassis
Upgrade-Ready MR-03 Chassis

The RWD chassis is based on the proven MR-03 platform. Enhance your control with the optional Gyro Unit (MZW446 - sold separately), further customising your Mini-Z for optimal performance.

Adjustable Wheel Offset
Adjustable Wheel Offset

The tread can be set to narrow or wide by changing steering tie rods on front lower and upper plates, and the wheelbase can also be changed to suit body styles. (Changing requires parts to be purchased separately).

Extensive Customisation Options
Extensive Customisation Options

Enhance your Mini-Z experience with a wide array of optional parts designed for the MR-03 chassis. Upgrade your machine to match your skill level, unlocking even greater performance and personalisation.

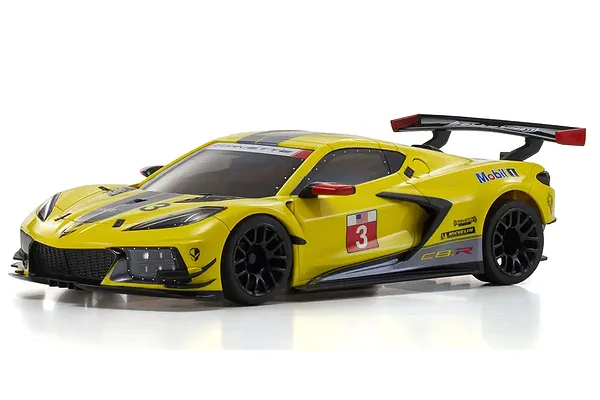

Chevrolet Corvette C8.R
Chevrolet Corvette C8.R

Chevrolet derived this racing model from its high-performance road car. Equipped with a mid-mounted 5.5-litre V8 engine, generating 500 horsepower, along with weight reduction and aerodynamic enhancements, the racing iteration outperformed the commercial road model by a significant margin.

Features
  • Syncro KT-531P transmitter with multiple settings
  • Improved steering response with new circuit board and control program
  • Detailed display-standard body, fully factory finished
  • Full ball bearing specification (7 bearings)
  • Compatible with all Mini-Z Racer body styles (motor case and diff gear assembly required separately)
  • Front suspension with VCS optimises camber angle and suspension stroke
  • Optional Gyro Unit (MZW446) compatibility with adjustable volume on chassis
Included Items
  • 1x Factory Assembled Chassis
  • 1x Pre-Painted Plastic Body (Chevrolet Corvette C8.R, Yellow)
  • 1x Syncro KT-531P 2.4GHz Transmitter
  • 1x Front Tread Adjustment Parts Set
  • 1x Front Suspension Adjustment Spacers Set
  • 1x Pinion Gear Set (6T, 7T, 8T, 9T)
  • 1x Wheel Wrench
  • 1x Pinion Gear Tool
  • 1x Spare Nuts Set
  • 1x Pairing Stick
  • 1x Set of Tyres and Wheels
Required Items
  • 8 x AAA Batteries
Note

Cannot be used with ASF/MHS/FHS 2.4GHz Radio systems.

Specifications
Length
173.0mm (6.81")
Width
78.0mm (3.07")
Height
45.0mm (1.77")
Weight
169g
Wheelbase
98.0mm (3.85") LL
Tread F/R
67.5mm (2.66") / 65.0mm (2.56")
Chassis
MR-03
Drivetrain
RWD
Steering
Tie Rod
Suspension
Front VCS
Motor Mount
MM

RC Car
Scale
Mini-Z
Completion
Ready to Run
Skill Level
Beginner
Power Source
Electric Brushed
Chassis Type
Car
On/Off Road
On Road
Drivetrain
RWD
Factory Specs
Battery Connector
AAA
Pinion Gear
6T, 7T, 8T, 9T
