Australia's Ultimate Hobby & RC Shop.

Kyosho

Kyosho Mini-Z Jeep Wrangler Unlimited Rubicon RC Rock Crawler Electric 4WD RTR - Metallic Punk`n

  • 4WD
  • RTR
  • Brushed

Part no. 32528MO

Sold outNo reviews yet
1 / 5
1 / 5

Videos

$387.86

or 4 fortnightly payments of $96.96 with afterpay or PayPal, or zip

Kyosho Mini-Z Jeep Wrangler Unlimited Rubicon RTR — mini 4WD rock crawler with 3-link rigid suspension and officially licensed body.

  • Injection-moulded officially licensed Jeep Wrangler Unlimited Rubicon body shell
  • 3-link rigid axle suspension for maximum suspension movement
  • Metal ring and pinion gears on front and rear axles
  • Six selectable pinion gear ratios included
  • Perfect for crawling inside the house or in the back yard

Part Support

Replacement & upgrade parts that fit this model

Videos

Overview

In 2019, Kyosho Mini-Z, the world's most beloved mini RC series, marked over two decades of unparalleled performance and scale realism. Kyosho introduced the innovative Mini-Z 4x4 design, promising an entirely new RC experience. This series stands out with its exceptional overall design, driving capabilities, and top-notch injection-moulded scale body construction.

The Mini-Z 4x4 places a strong emphasis on body detail and finish quality, with enhanced durability crafted with thicker material. Inspired by the ladder-style frame found in real 4WD vehicles, the Mini-Z 4x4 boasts a 3-link rigid axle suspension that combines two upper links into a single upper A-arm, ensuring maximum suspension travel. With a specially designed high-torque steering servo, this machine can handle challenging terrain with ease, excelling in demanding rock-crawling conditions. The high-torque 130-size motor is perfectly geared for low to medium-speed ranges.

Features

  • 3-link rigid suspension set up allowing maximum suspension movement
  • Perfect for crawling inside the house or in the back yard
  • Front axle features Ackermann geometry to deliver the tightest turning circle in Mini-Z history
  • Solid front and rear axles provide durability and reliable performance
  • Officially licensed shell
  • 20+ years of R&D experience delivering an unparalleled small scale crawling experience
  • Incredible attention to scale detail
  • Metal differentials and solid axle driveshafts for incredible durability
  • Coil over shocks feature a 360-degree spring retainer eliminates the risk of losing springs
  • Genuine Kyosho Product

In the box

  • 1x Kyosho Mini-Z Jeep Wrangler Unlimited Rubicon Electric RTR RC Rock Crawler
  • 6x Optional Pinion Gears
  • 3x Pinion Gear Spacers

You'll need

  • 8x AAA Batteries

Highlights

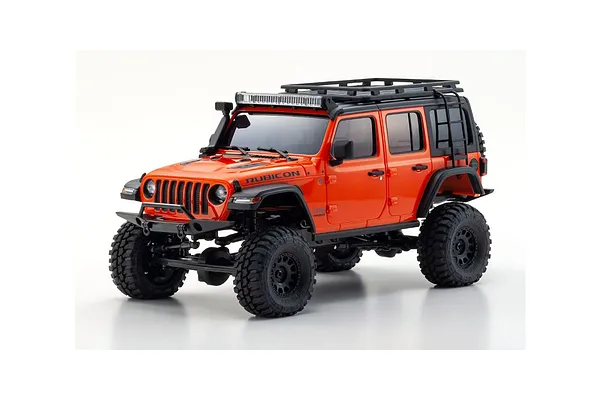

Injection Moulded Body Shell

Injection Moulded Body Shell

Utilising advanced injection moulding techniques to attain an unprecedented level of detail, this meticulously crafted shell has a detail usually only seen in die-cast models. It proudly bears an official license, demonstrating an unwavering commitment to faithfully replicate every aspect of the actual vehicle.

Scale Wheels

Scale Wheels

Tyres and wheels that are specific to each model are a major focus of the Mini-Z 4x4. This model features a scale reproduction of the Fat Interco Super Swamper "Bigger" LTB tyres mounted on custom wheels.

Ladder Frame

Ladder Frame

The Mini-Z 4x4 incorporates a ladder frame design with steel vertical plates, in combination with various moulded parts to deliver the ultimate balance of rigidity and flex for superior performance and durability.

Metal Drivetrain

Metal Drivetrain

The Mini-Z 4x4boasts robust front and rear axles, featuring precision-engineered metal ring and pinion gears. These high-quality components not only ensure exceptional durability but also guarantee a consistent and reliable performance that enthusiasts can rely on for countless thrilling adventures on and off the trails.

Coil Over Shock Absorbers

Coil Over Shock Absorbers

The Mini-Z 4x4 is equipped with advanced coil-over shocks, meticulously designed with a thoughtful 360-degree spring retainer. This ingenious feature ensures that you won't lose any vital components while navigating challenging terrains, keeping the springs securely in place even during the most extreme suspension movements. It's the perfect combination of practical engineering and innovation, enhancing your off-road experience.

A Gearbox Built for Ultimate Off-Roading

A Gearbox Built for Ultimate Off-Roading

The Mini-Z 4x4's gearbox is a marvel of engineering, boasting carefully crafted moulded covers, precision ball bearings, and a selection of six pinion gears. This versatile gearbox provides you with the flexibility to fine-tune your vehicle's performance to match your chosen terrain. Just like its Mini-Z counterparts, adjusting the gear mesh is a breeze thanks to the included spacers, ensuring your RC adventure is both seamless and exhilarating.

Specifications

Length202mm (7.95in)
Width95mm (3.74in)
Height96mm (3.78in)
Wheelbase120mm (4.72in)
Weight247.6g (8.73oz)
Tyre Diameter40.5mm (1.59in)
ChassisMini-Z Rock Crawler
Drivetrain4WD
Gears55.4:1 / 46.2:1 / 39.60:1 / 34.65:1 / 30.80:1 / 27.72:1
SuspensionCoil Over Shock Absorbers
Motor130 Sized Brushed Electric
ESCN/A

RC Car

ScaleMini-Z
CompletionReady to Run
Skill LevelBeginner
Power SourceElectric Brushed
Chassis TypeRock Crawler
On/Off RoadOff Road
Drivetrain4WD

RC Kit

Suited Motor/ESC TypeBrushed

Factory Specs

Battery ConnectorAAA
Pinion Gear10T, 12T, 14T, 16T, 18T, 20T
Wheel Hex Size7mm
