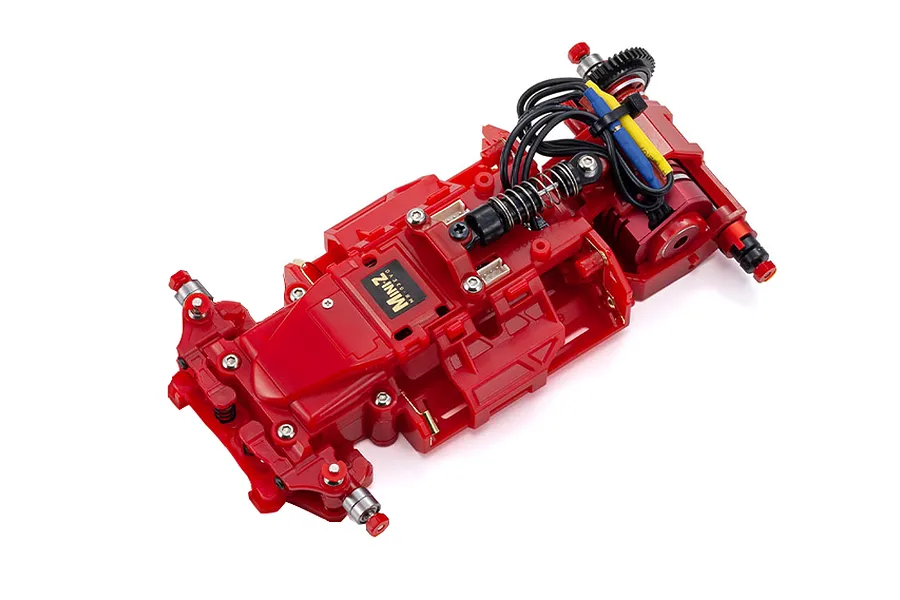

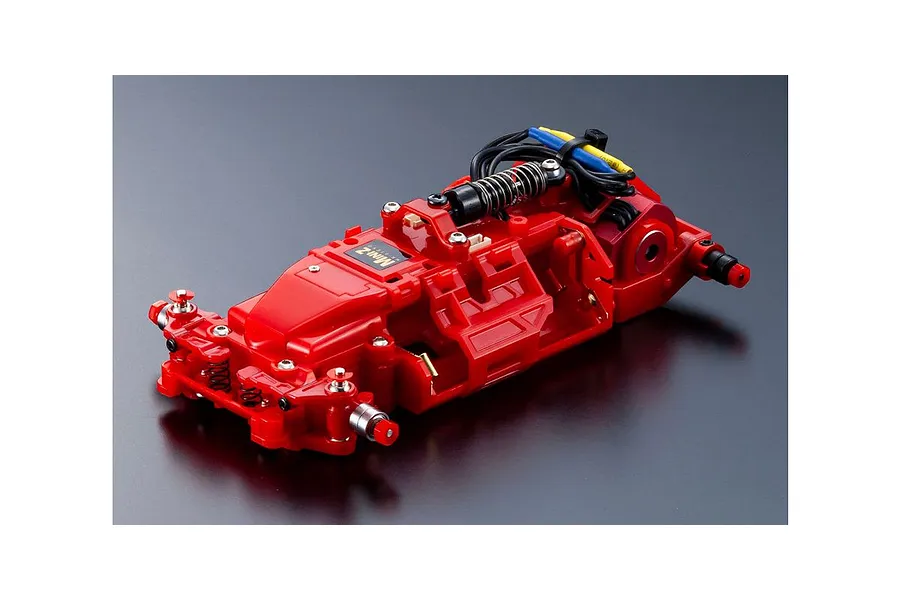

Name: Kyosho Mini-Z MR-03EVO SP Limited RC Car Electric Brushless RWD Mini-Z Scale Chassis Set - Red
Brand: Kyosho
SKU: KYO-32792SP
Price: 360.84 AUD
Availability: OutOfStock

Overview

You can drive your MINI-Z using your favorite transmitter from Kyosho, KO or Futaba! The MINI-Z MR-03 has evolved with a completely new system that works with receiver units from other brands! Equipped with red colour chassis components, hex screws, oil shock and red colour Ball Diff II as standard and comes with newly developed suspension arms with various caster angles!

Note

This is a chassis set. A separate body, receiver unit, and transmitter are required.

Compatible Rx Modules:

No. 82040 for Kyosho KT-18, EX-6, EX-6R and KO EX-2, EX-RR

No. 82041 for Kyosho KT-531P, KT432PT

No. 82042 for Futaba 10PX, 7PX, 7XC, 4PM

No. 82043 for KO Propo EX-NEXT, MC-8

Remote Gyro Parameter Setting: Throttle and steering gyro gain values are assigned to CH3 and CH4 signals, so you can adjust them while driving by assigning switches and dials of your transmitter.

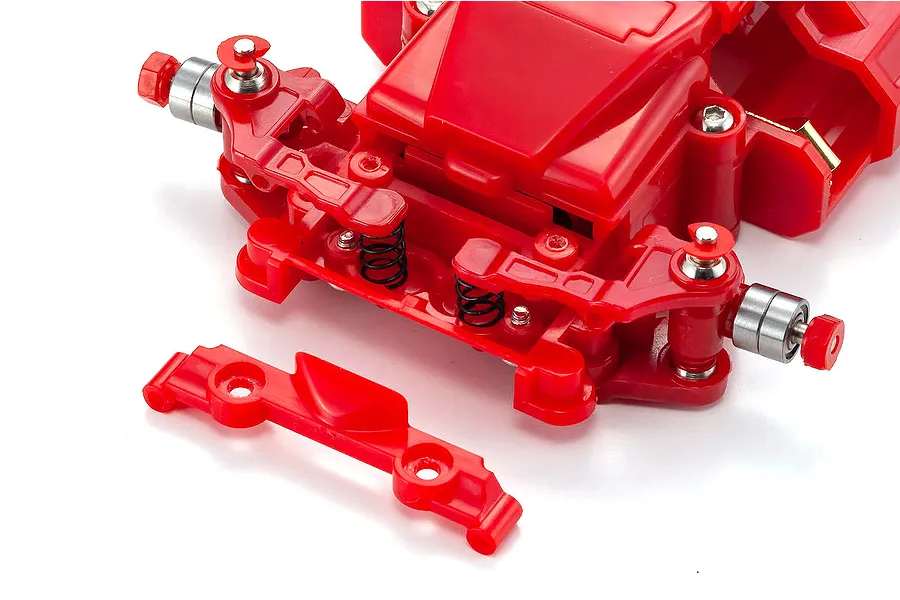

Separate Front Upper Suspension Arm Mount: Front suspension arms are mounted on a part that is separate from the upper cover, which enables quicker front tread conversion.

Features

Ball bearings
Gold plated battery terminals
130-class compatible size 8500KV sensor-less brushless motor with double ball bearings and aluminium heatsink case
ESC and servo parameters adjustable via the ICS expansion port
Power indicator feature — good for equal condition races
Gyro (sold separately) gain can be controlled via transmitter dials or switches
Separate receiver unit construction (receiver unit sold separately)
Special red anodized ball diff
Oil shock as standard
Nickel plated hex screws
Front upper arms with caster angles of 1 deg, 2 deg and 3 deg included

In the box

1x Almost-factory-assembled MR-03W-MM chassis equipped with brushless ESC unit
1x Front width conversion parts
1x Pinion Gears (6T, 7T, 8T, 9T)
1x Front suspension adjustment spacers
1x Pinion gear removal tool
1x Wheel wrench

You'll need

4 x AAA Batteries

Highlights

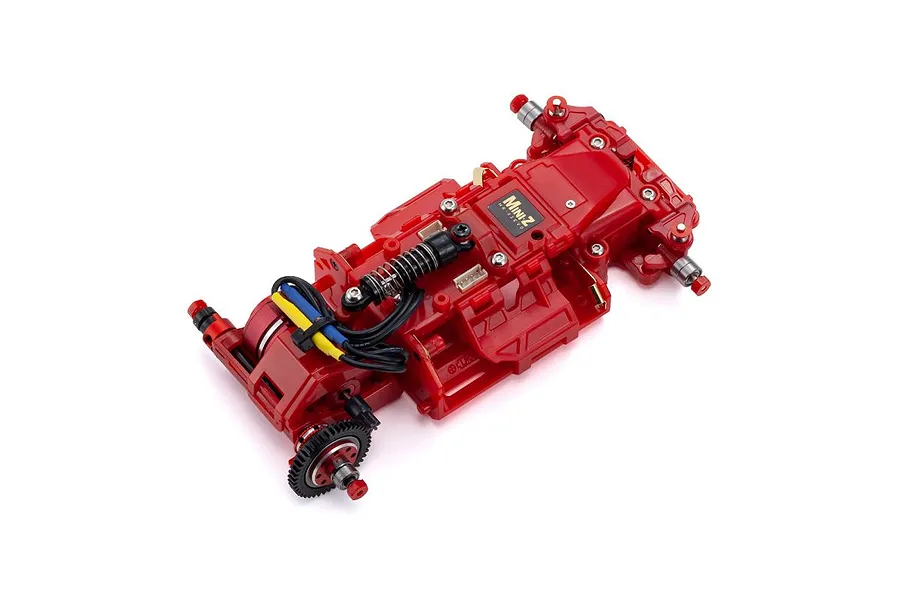

Enhanced Chassis Design

Based on the MR-03VE PRO chassis, the Mini-Z MR-03EVO SP Limited features newly designed front upper arms and mount for easier tread adjustment and fine-tuning. This refined design allows for precise customisation and improved handling.

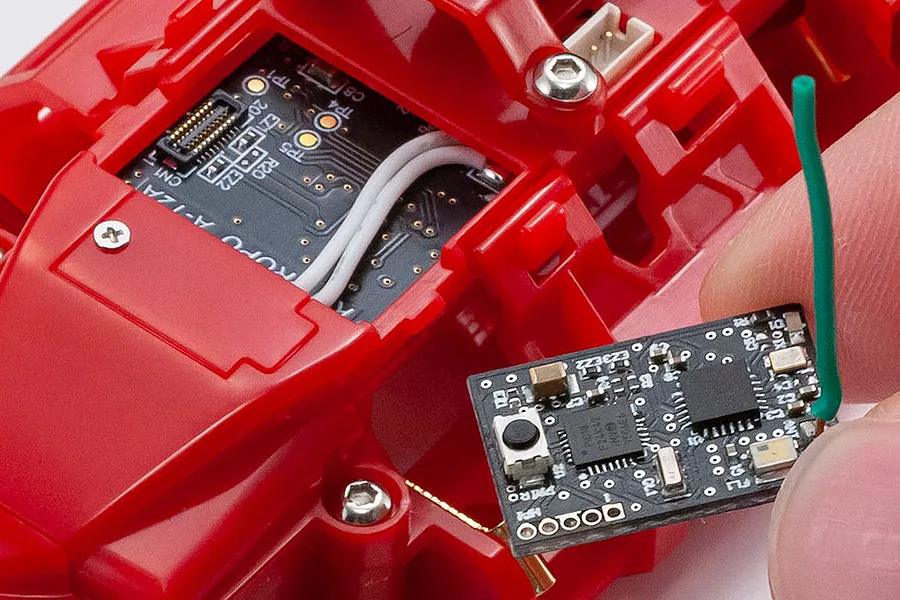

Versatile Receiver Compatibility

The Mini-Z MR-03EVO SP Limited is compatible with receiver units for various transmitters, including KYOSHO, KO, FUTABA, and FlySky Noble. Easily attach or detach the receiver by removing the receiver cover from the upper chassis.

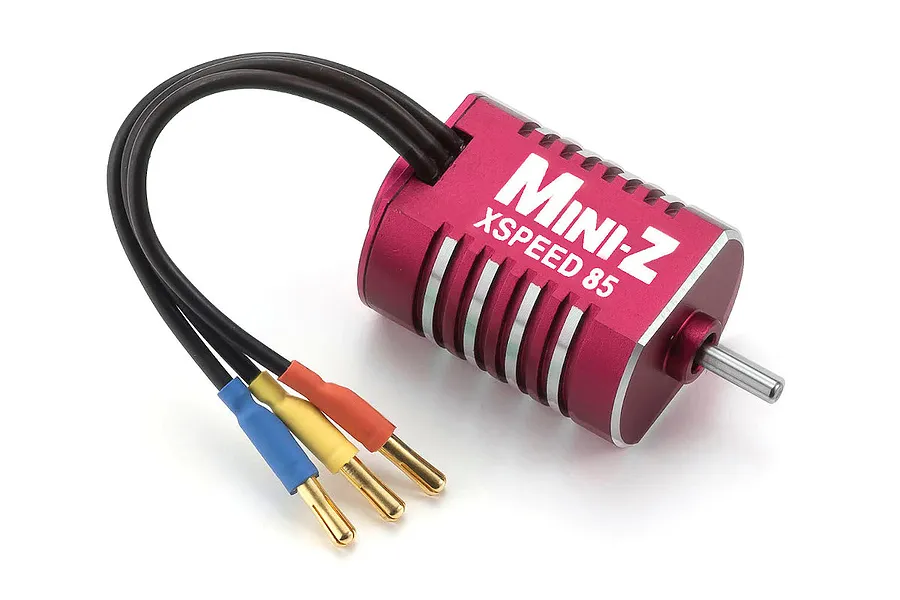

High-Performance Brushless Motor

The Kyosho Speed House XSpeed 85 brushless motor (8500KV) delivers impressive power and performance. Its one-piece aluminium case provides efficient heat dissipation, ensuring consistent operation and extended lifespan.

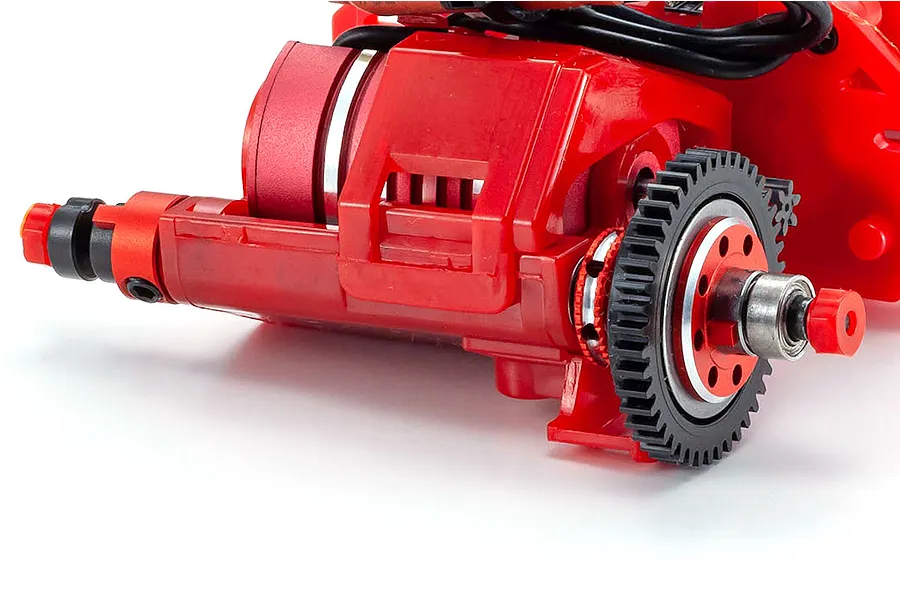

Lightweight Ball Diff Set II

The included Ball Diff Set II features red anodised aluminium parts that reduce weight and optimise balance, enhancing the Mini-Z's handling and responsiveness. This essential upgrade is frequently used in competition-level racing.

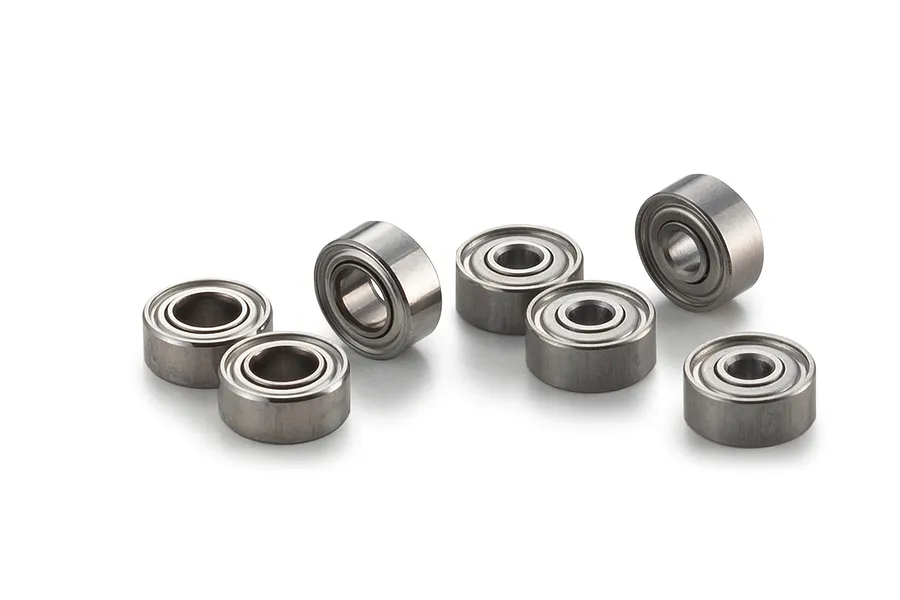

Full Ball Bearings for Maximum Efficiency

The Mini-Z MR-03EVO SP Limited is equipped with full ball bearings throughout the drivetrain, minimising friction and maximising efficiency. This design reduces power loss and ensures smooth operation for optimal performance.

Specifications

Scale	1/27.6
Length	117.7mm
Width	65–76mm
Height	35mm
Chassis Type	MR-03W-MM
Wheelbase	98.0mm (LL)
Tread	Depending on wheel offset
Weight	135g
Motor	130 class 8500KV brushless
Gear Ratio	7.3, 6.3, 5.5, 4.9:1
Tyre Diameter (F)	sold separately
Tyre Diameter (R)	sold separately
Tyre Width (F)	sold separately
Tyre Width (R)	sold separately
Transmitter	sold separately
Receiver Unit	sold separately
