Kyosho Mini-Z MR-04 Audi 2015 R8 LMS RC Car Electric RWD RTR - White

Kyosho Mini-Z MR-04 Audi 2015 R8 LMS RC Car Electric RWD RTR - White

Videos

Kyosho Mini-Z MR-04 Audi 2015 R8 LMS RC Car Electric RWD RTR - White

Brand: Kyosho | SKU: 32357AS
sold out
$315.68
Kyosho Mini-Z MR-04 RC Car: Latest MR-04 chassis fun! Stunning Audi R8 LMS replica with superior RWD handling!
  • Latest MR-04 chassis for superior handling
  • Requires only 8 x AAA batteries to run!
  • Highly detailed replica 2015 Audi R8 LMS body
  • Compact Mini-Z size RWD handling focus
  • MR-04 tech designed for beginners to pros!
Add to Wishlist
Save Time & Add These Now
Complete your setup with these required items.
AAA Batteries
AAA Batteries
Description

Get ready for high-performance RC fun right away with the Kyosho Mini-Z MR-04 Audi R8 LMS! This Ready-to-Run Mini-Z features the latest 4th generation MR-04 chassis, a major evolution from the MR-03. Experience its superior handling and lower centre of gravity, proven in top-level performance! It’s an ideal introduction to RC cars with easy control and dynamic manoeuvrability.

Includes a highly detailed, factory-finished 2015 Audi R8 LMS body. Powered by a reliable 130-class brushed motor & user-friendly KT-531P transmitter. Features VCS front suspension & full ball bearings for smooth performance. Easily tunable with wide range of optional parts, like a gyro. Just add 8 x AAA batteries to car & transmitter for authentic RC fun!

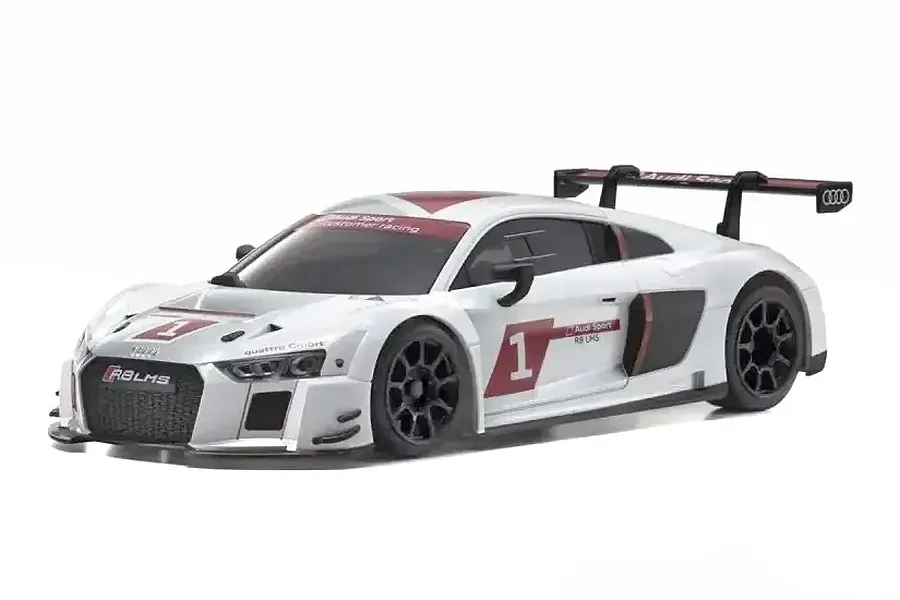

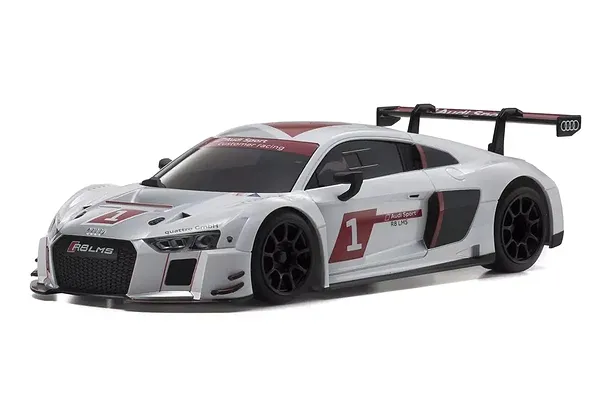

Exquisite Scale Audi R8 LMS GT3 Body

Audi's motorsport division developed the LMS racing machine from the R8 production car base to comply with FIA GT3 rules. This Mini-Z reproduces that car, celebrating its spectacular victory at the 2015 24 Hours Nürburgring endurance race in its debut year. Its exquisite detail captures the winning form in stunning scale.

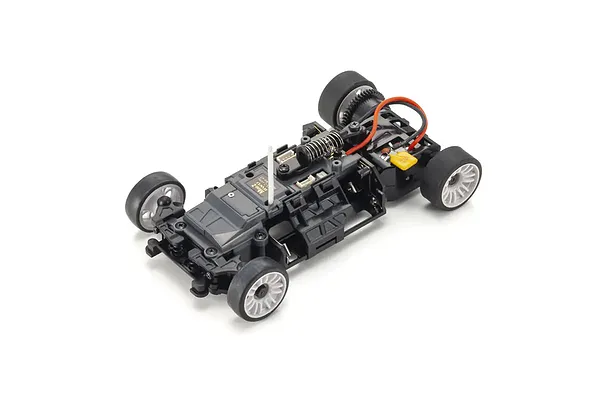

New MR-04 Chassis with Lower CG

While retaining the best aspects of the proven MR-03, the lower centre of gravity of the new MR-04 chassis design delivers significant performance improvements. The easier control of the MR-04 makes it an ideal and accessible introduction to RC cars for beginners, enhancing stability and handling on smooth surfaces.

New Front Hubs and Low Friction Bearings

New front hubs with integrated kingpins reduce scrub by 1.5mm on each side compared to the MR-03 design, allowing sharper and more linear control. All axles are equipped with low rotational resistance ball bearings (3mm inner diameter in hubs) as standard. The same size ball bearings are used front and rear for spare parts efficiency.

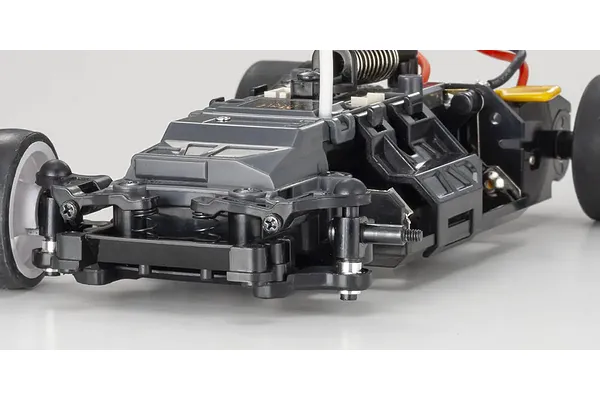

Optimised Front Suspension Geometry

The front suspension dynamically aligns the camber angle with movement of the upper arm to maintain optimal tyre contact during cornering. A revised caster angle also delivers improved steering response, ensuring the car reacts precisely to inputs for controlled and responsive handling on the track, helping you shave down lap times.

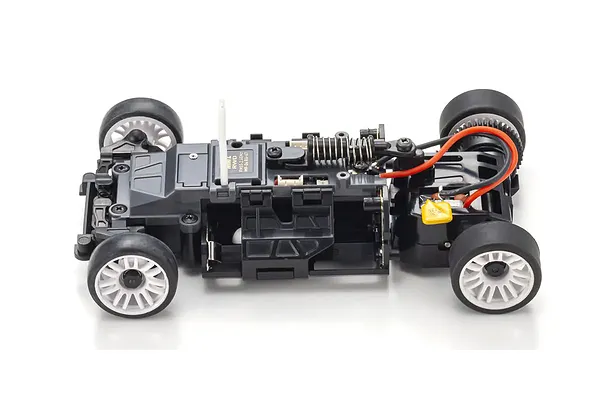

Lower Battery Mount for Improved Handling

Four AAA batteries power the car. The batteries are mounted lower than on the MR-03 chassis. This strategically lowers the centre of gravity of the entire chassis to deliver improved cornering stability and straight-line handling, giving you more confidence at speed.

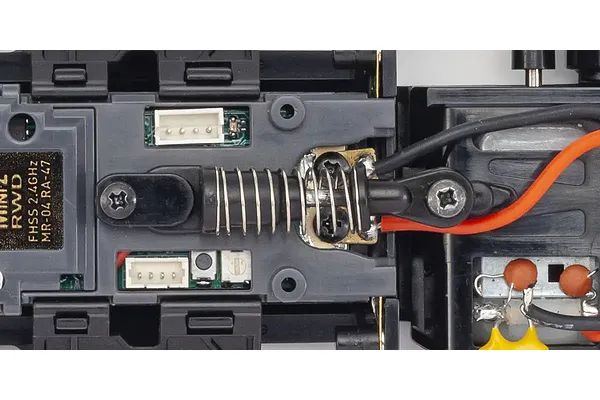

Rear Suspension with Coil Spring Shock

The rear suspension uses a simple coil spring shock to cushion shocks from the road surface and improve driving stability. This standard setup provides reliable performance out of the box and can be upgraded to an optional oil-filled shock absorber for enhanced damping and tunability to suit different track conditions.

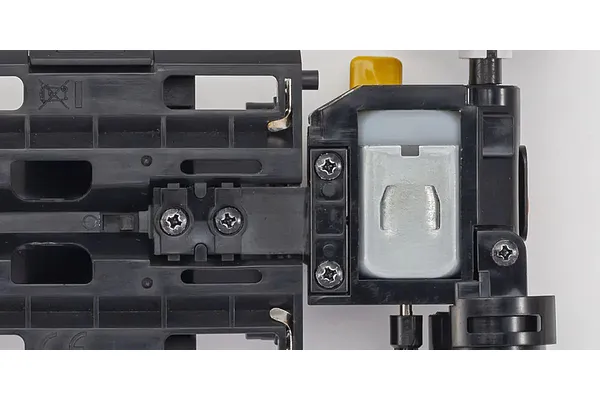

Flexible T-bar Rear Suspension Plate

The flexibility of the T-bar rear suspension plate that holds the entire rear pod, including the motor and rear axle, produces excellent suspension effect. This design is a key part of the rear chassis's performance and feel. Optional parts are also available in FRP and carbon for tuning the flexibility and handling characteristics.

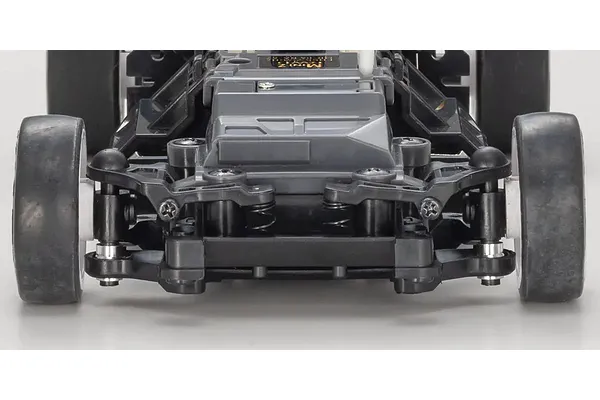

Adjustable Tread and Wheelbase for Body Swaps

The chassis offers flexibility for using different body styles! When changing from the standard body, a parts set is included to change the front tread (vehicle width) to match the non-standard body to be installed. Rear tread can also be changed by changing the wheel offset (Requires separate parts).

Features
  • Latest MR-04 chassis, a major evolution from MR-03
  • Lower centre of gravity & remodelled steering for improved handling
  • Highly detailed, factory-finished body replicates 2015 Audi R8 LMS
  • Powered by reliable 130-class brushed motor
  • Full ball bearing specifications for smooth performance
  • Front suspension with VCS optimises handling
  • Compatible with optional gyro unit & wide range of tuning parts

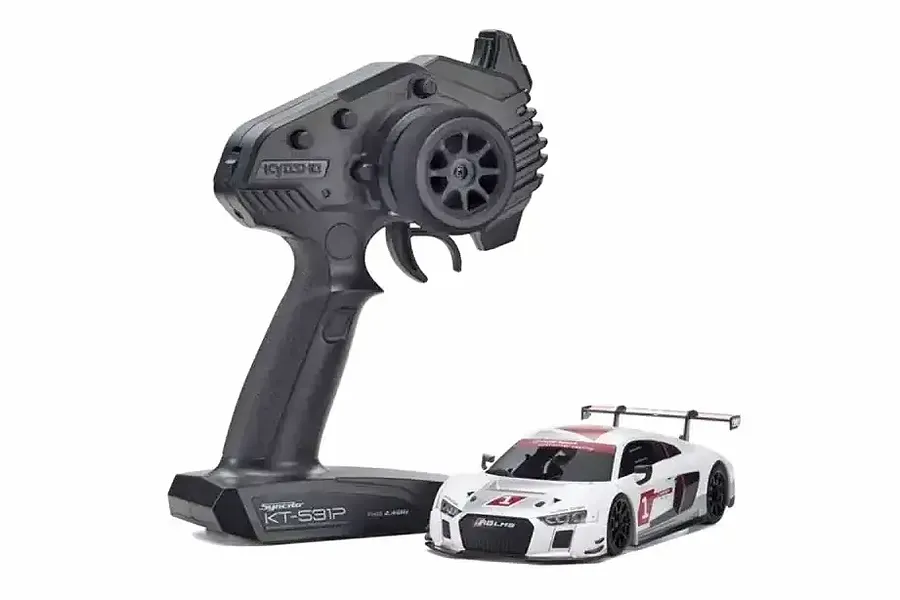

  • Fully assembled and Ready-To-Run with included KT-531P transmitter
  • Requires only 8 x AAA-size batteries for car and transmitter
  • Genuine Kyosho Product
Specifications
  • Length: 166.5mm (6.56")
  • Width: 75.0mm (2.95")
  • Height: 44.0mm (1.73")
  • Wheelbase: 98.0mm (3.86")
  • Weight: 0.13kg (0.29lbs) approx.
  • Chassis: MR-04W-MM
  • Suspension: VCS Front, Coil Spring Rear
  • Drivetrain: 2WD, Geared Differential, Ball Bearing
  • Motor: 130-Class Brushed
  • ESC: Integrated Electronic Speed Control
Included Items
  • 1x Factory Assembled Mini-Z MR-04 Chassis (With Electronics Installed)
  • 1x Pre-Painted And Finished Body (White 2015 Audi R8 LMS)
  • 1x Perfex KT-531P 2.4GHz Transmitter
  • 1x Set Of Front Tread Adjustment Parts
  • 1x Set Of Front Suspension Adjustment Spacers
  • 4x Pinion Gears (6T, 7T, 8T, 9T)
  • 1x Set Of Spare Nuts
  • 1x Wheel Wrench
  • 1x Pinion Gear Tool
  • 1x Set Of Tyres
  • 1x Set Of Wheels
Required Items
  • 4x AAA Batteries For Chassis
  • 4x AAA Batteries For Transmitter
Videos
Specifications
Factory Specs
Pinion Gear
6T, 8T, 9T, 7T
Battery Connector
AAA
RC Car
Drivetrain
RWD
Completion
Ready to Run
On/Off Road
On Road
Chassis Type
Car
Power Source
Electric Brushed
Skill Level
Beginner
Scale
Mini-Z
