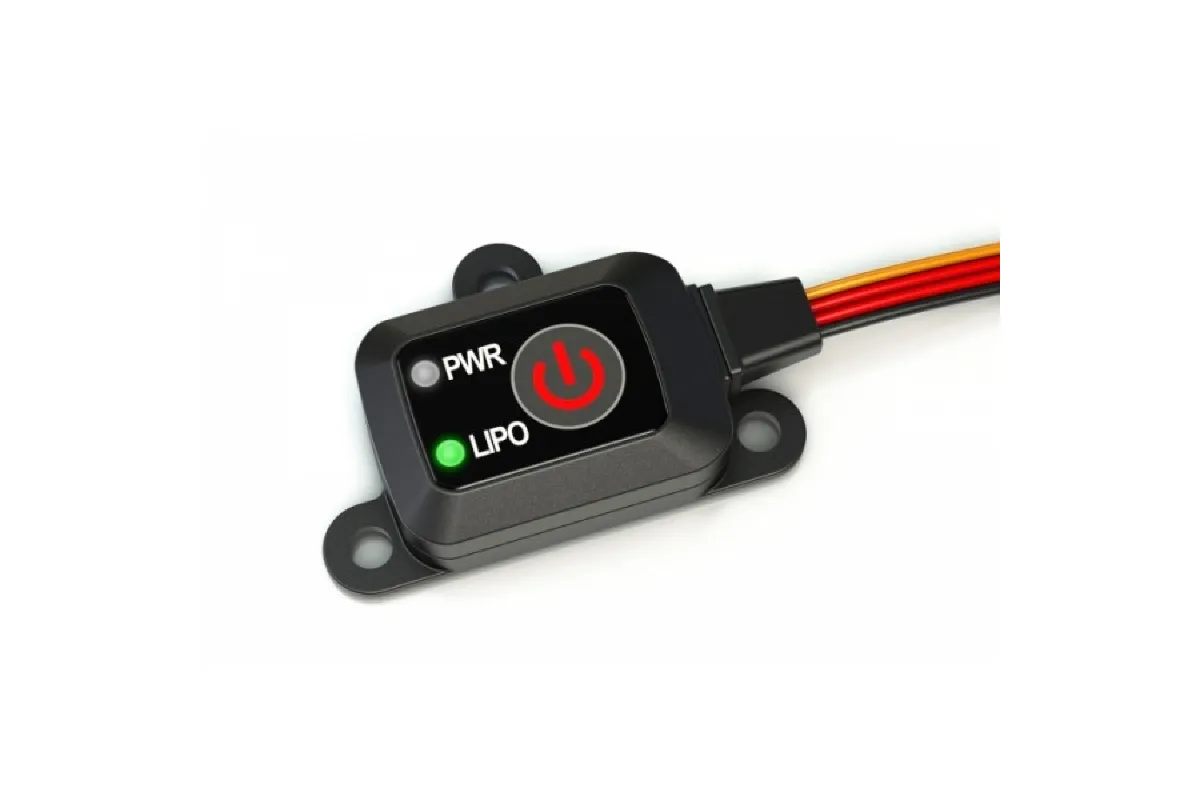

SkyRC One Touch Electronic Power Switch
SkyRC One Touch Electronic Power Switch
MCU-controlled electronic power switch for RC models with LiPo protection, battery monitoring, and push-button operation.
- MCU controlled push-button on/off switch
- LiPo low voltage auto cut-off protection at 6.2V
- Compatible with NiMH, NiCad, and LiPo batteries
- Battery capacity and condition indicator
- Mountable via double-sided tape or transponder mount
SKYRC introduces the POWER SWITCH, a tiny MCU controlled on/off switch for your radio controlled model. A simple push button operates the switch to eliminate the problems associated with intermittent contact of an ordinary mechanical switch.
The sealed unit is plastic and can easily be mounted to the transponder mount of your model or anywhere else using double-sided tape. (Two kinds of bottom covers are included; the user can change the bottom cover.)
The switch also features a LiPo mode — by turning this on the switch unit will auto detect low LiPo voltage and cut off power to protect your LiPo from over-discharging. This can be turned off if you have other safeguards in place or are using NiMH/NiCad battery. The power switch also informs you about the remaining capacity and conditions of your battery pack.
- Two bottom cover options included
-
Input Voltage
- 4–12V
-
Max. Current
- 10 Amp
-
Battery Mode
- 1. NiMH / NiCad 2. LiPo
-
Low Voltage Protection
- 6.2V (LiPo)
-
Operating Temperature
- 0–50°C
-
Weight
- 7g
