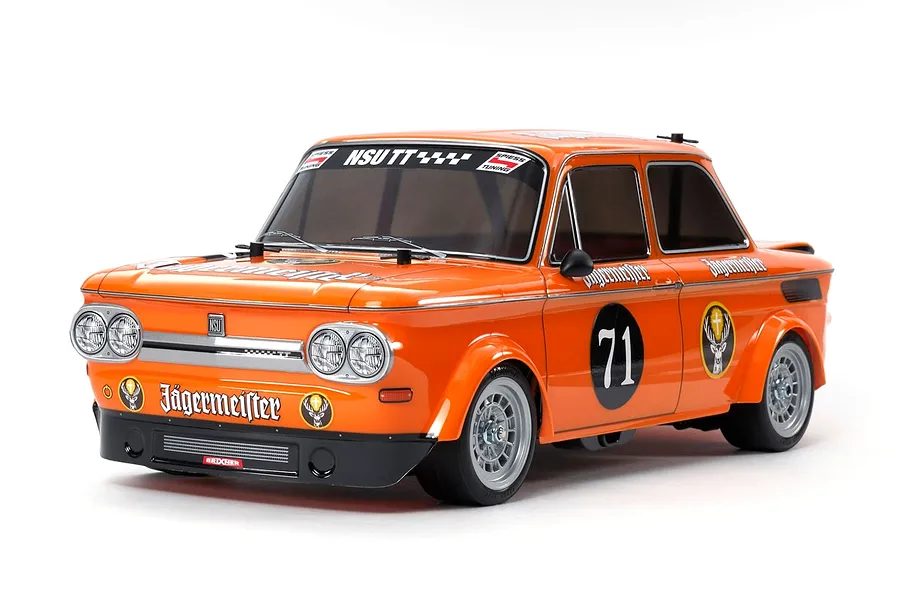

Tamiya M-05 NSU TT Jagermeister RC Touring Car Electric 2WD 1/10 Scale Kit

Brand: Tamiya | SKU: 58649

discontinued

write a review

Description

Painting Required

This body shell comes completely UNPAINTED and may require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface. If you require paint, we recommend the polycarbonate safe paints.

The Tamiya NSU TT Jägermeister is a 1/10 scale RC replica of the iconic race car that captured the hearts of motorsport fans in the late 1960s and early 1970s. This assembly kit faithfully recreates the Jägermeister-sponsored edition of the NSU TT, a race-oriented variant of the Prinz, with its distinctive livery and classic design. The polycarbonate body shell is meticulously detailed, capturing the essence of this legendary racing machine.

The NSU TT Jägermeister is built on Tamiya's M-05 FWD chassis platform, a compact and lightweight design that delivers nimble and responsive handling. The M-05 chassis is easy to assemble and offers a low centre of gravity for excellent stability during high-speed cornering. The 4-wheel independent double wishbone suspension and 3-piece steering linkage ensure precise control and a smooth ride. With its combination of classic styling and agile performance, the Tamiya NSU TT Jägermeister is a must-have for RC enthusiasts and collectors alike.

Low Centre of Gravity

Nimble handling and precise control is easy with the M-05 chassis. The lightweight and durable semi-monocoque frame, combined with a low centre of gravity and responsive suspension, provides exceptional agility and stability. Realistic tyres and 11-spoke wheels complete the package.

Balanced Performance

The car's weight distribution is carefully balanced for optimal performance. The RC mechanism is mounted at the rear, with the steering servo on the centreline and the receiver and ESC strategically placed on either side.

Responsive Steering

The innovative three-piece wiper-type steering wheel improves steering precision and responsiveness, optimising the car's handling characteristics during suspension movement.

Features

Highly Detailed 1/10 NSU TT Jagermeister Clear Body
1/10 scale R/C model assembly kit
Fully Licensed NSU Polycarbonate body
Includes stickers for decoration, and window masking stickers for use during painting
A host of Hop-Up Option parts is available to soup up your chassis even further
Includes 540 motor
Includes: Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike (215 Turn BL motor limit) (23 Turn brushed motor limit)
Genuine Tamiya Product

Specifications

Length: 330mm (12.99")
Width: 180mm (7.08")
Height: 130mm (5.11")
Wheelbase: 239mm (9.41")
Weight: Varies
Chassis: On Road Touring (M-05)
Drivetrain: 2WD
Suspension: Oil Filled Coil Over Shock Absorbers
Motor: Tamiya 540 Sized Brushed Motor
ESC: Tamiya TBLE-02S Brushed ESC

Included Items

1x Tamiya M-05 RC Car Electric 2WD 1/10 Scale Kit
1x Tamiya 540 Sized Brushed Motor
1x Tamiya TBLE-02S Brushed ESC
1x 1/10 Scale NSU Unpainted Body Shell

Required Items

Compatible 7.4V LiPo Battery or 7.2V NiMH
Compatible Charger
Compatible 1/10 Scale Servo
2+ Channel Transmitter & Receiver
AA Batteries For Chosen Transmitter

Specifications

Factory Specs

Max LiPo Power: 2S (7.4v)
Wheel Hex Size: 12mm
Pinion Gear: 20T
Battery Connector: Tamiya

RC Kit

Suited Motor/ESC Type: Brushed

RC Car

Completion: Kit
Drivetrain: 2WD
Max LiPo Power: 2S (7.4v)
On/Off Road: On Road
Chassis Type: Car
Power Source: Electric Brushed
Skill Level: Intermediate
Scale: 1/10

Reviews

Be the first to write a review for this product.
