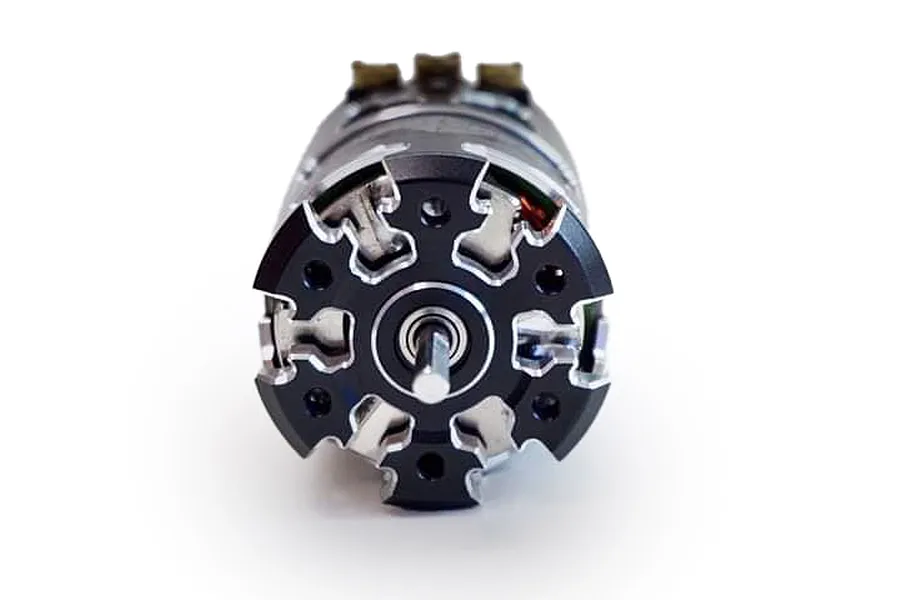

Team Powers Actinium V5 21.5T Sensored Brushless Motor

Name: Team Powers Actinium V5 21.5T Sensored Brushless Motor
Brand: Team Powers Motors & ESCs
SKU: TPO-TPR-BLM-215100ACT-V5
Price: 179.95 AUD
Availability: Discontinued

Brand: Team Powers | MPN: TPR-BLM-215100ACT-V5

discontinued

write a review

Description

Features

Enhancements based on the Actinium V4 motor
Revised assembly design for improved sensor accuracy
Long stator screws removed; stator plates revised to improve magnetic field consistency and efficiency
Endbell mounting revised for improved alignment and timing accuracy
Copper wiring purity increased to minimise resistance — hand wound for maximum accuracy and efficiency
Revised rotor magnetic material for improved strength, efficiency and reduced fade
Motor can machining profiles slightly revised from V4 to enhance convection cooling
Collector ring machined from proprietary alloy for minimal resistance and maximum heat dissipation
Gold-plated high-purity copper solder tabs (A/B/C)

Specifications

Turn count: 21.5T (sensored brushless)
Design: Based on IFMAR / ROAR / EFRA / BRCA specifications
Approvals: 13.5T, 17.5T, 21.5T winds are ROAR approved (BRCA pending)
Motor dimensions (diameter x length): 35.8mm x 52.2mm
Shaft diameter: 3.17mm
Magnet dimensions: 12.3 x 5 x 24.2mm (3.5T–9.5T) / 12.5 x 7.2 x 25.2mm (10.5T–21.5T) / 12.3 x 7.2 x 25.2mm (25.5T)
Weight: ~150g (varies between turns)
Recommended use: 1:10 touring car, buggy, MINI car

Motor

Type: Sensored
Length Length of the motor can in mm: 51.4mm
Diameter Diameter of the motor can: 35.8mm
Shaft Diameter: 3.175 (1/8")mm
Turns Turns affect speed and torque: low = fast, high = strong: 21.5
