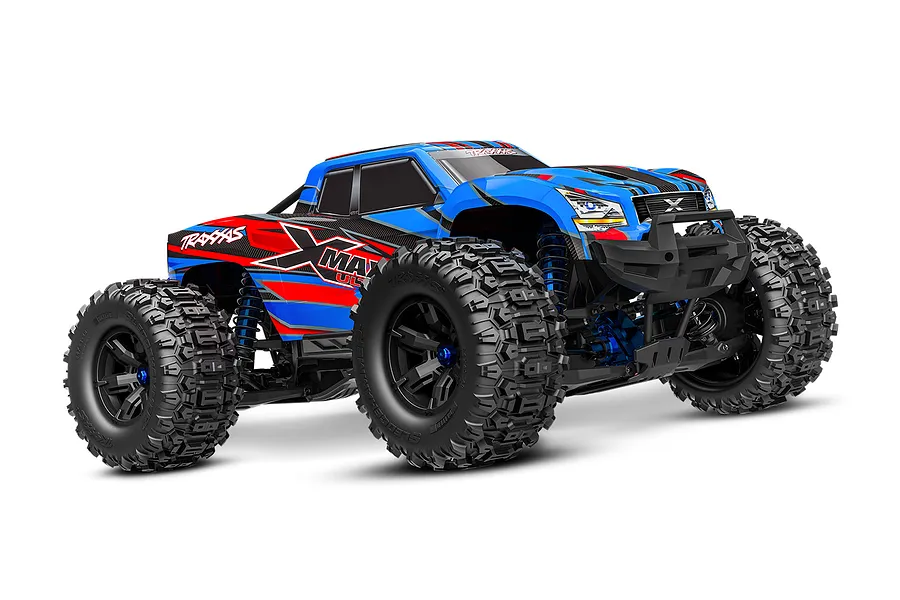

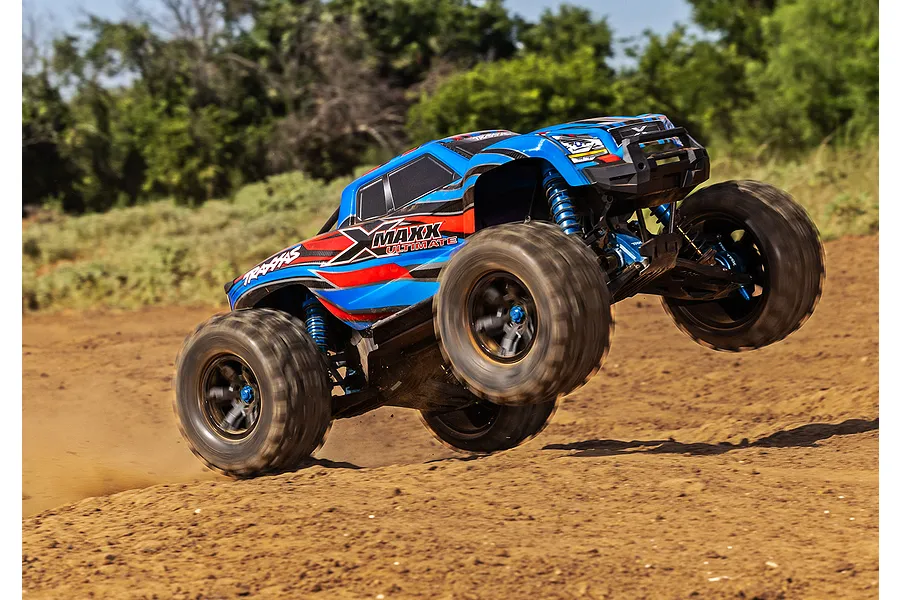

Traxxas X-Maxx Ultimate 8S RC Monster Truck Electric Brushless 1/5 Scale RTR

Traxxas X-Maxx Ultimate 8S RC Monster Truck Electric Brushless 1/5 Scale RTR

Videos

Traxxas X-Maxx Ultimate 8S RC Monster Truck Electric Brushless 1/5 Scale RTR

Brand: Traxxas | MPN: 77097-4
sold out
5.0
1 reviews
$2,899.00

Traxxas X-Maxx Ultimate Limited Edition: 1/5 scale 8S 4WD monster truck with aluminium upgrades, belted Sledgehammer tyres, and Traxxas Link wireless telemetry.

  • Belted Sledgehammer tyres with open-block design — sheds mud and debris for maximum grip and a flat contact patch
  • Traxxas Link Wireless Module included — monitor real-time telemetry (speed, RPM, battery voltage) via the free app
  • Extensive 6061-T6 anodised aluminium upgrades throughout — from shock towers to steering knuckles
  • Aluminium GTX Shocks with TiN-coated shafts and threaded rings for on-the-fly ride tuning
  • Hardened steel pinion and spur gear for maximum power and durability
Traxxas
Traxxas
Also known as TRX
Add to Wishlist
Ordered
1 month ago
The date we ordered this product from our supplier.
Save Time & Add These Now
Complete your setup with these required items.
LiPo Safe Charging Bag
LiPo Safe Charging Bag
Batteries for Controller
Batteries for Controller
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Shop replacement & upgrade parts for this model
Shop Parts
Description

Introducing the Traxxas X-Maxx Ultimate Limited Edition, where strength meets style and performance rewrites the rules. Clad in a head-turning limited edition body, this monster truck is fortified with an arsenal of aluminium upgrades — from C-hubs and steering blocks to differential housings — every inch built for durability to conquer any terrain. Belted Sledgehammer tyres grip like never before, while upgraded GTX shocks with TiN-coated shafts soak up every bump. Take total control with real-time telemetry and on-the-fly adjustments through the Traxxas Link app.

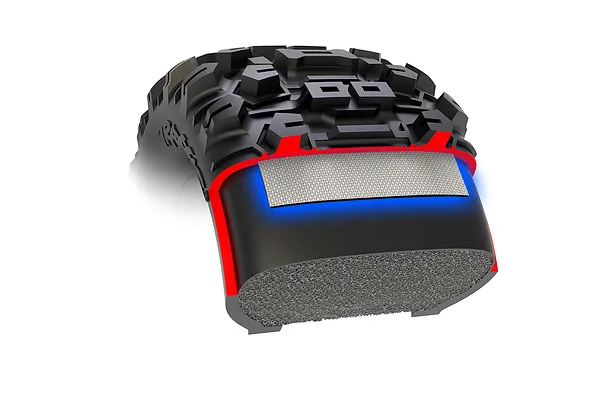

Belted Tyres
Belted Tyres

The open-block design sheds mud and debris like it's nothing, while the lightweight belting ensures a true, flat contact patch for maximum grip and responsive handling at any speed. Whether you're carving asphalt or conquering mountains of dirt, these tyres deliver next-level control, confidence, and stability.

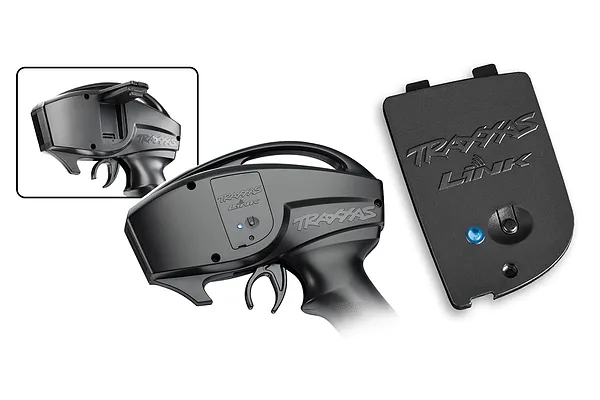

Wireless Module Included
Wireless Module Included

A Traxxas Link™ Wireless Module comes standard on X-Maxx Ultimate to take full advantage of its on-board telemetry. The free Traxxas Link app allows you to make micro-adjustments to the transmitter and view real-time telemetry data like speed, RPM, and battery voltage on your mobile device.

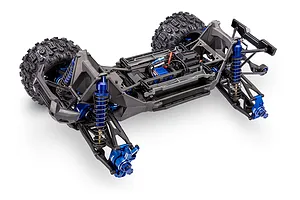

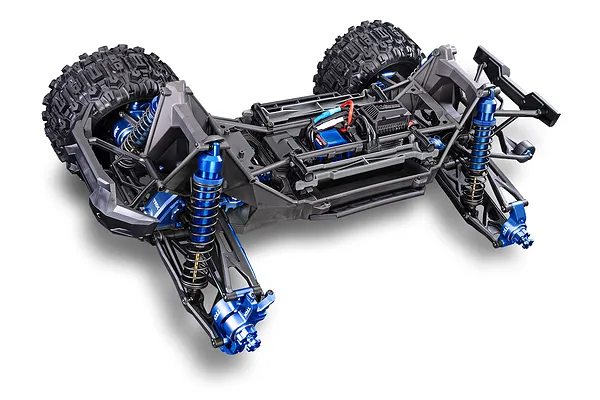

Aluminium Upgrades
Aluminium Upgrades

The X-Maxx special edition redefines toughness with a massive infusion of anodised aluminium. From the shock towers to the steering hubs, every vital component receives a strength boost, unlocking unparalleled durability and precision. Prepare to push the limits further than ever before.

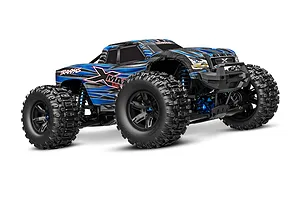

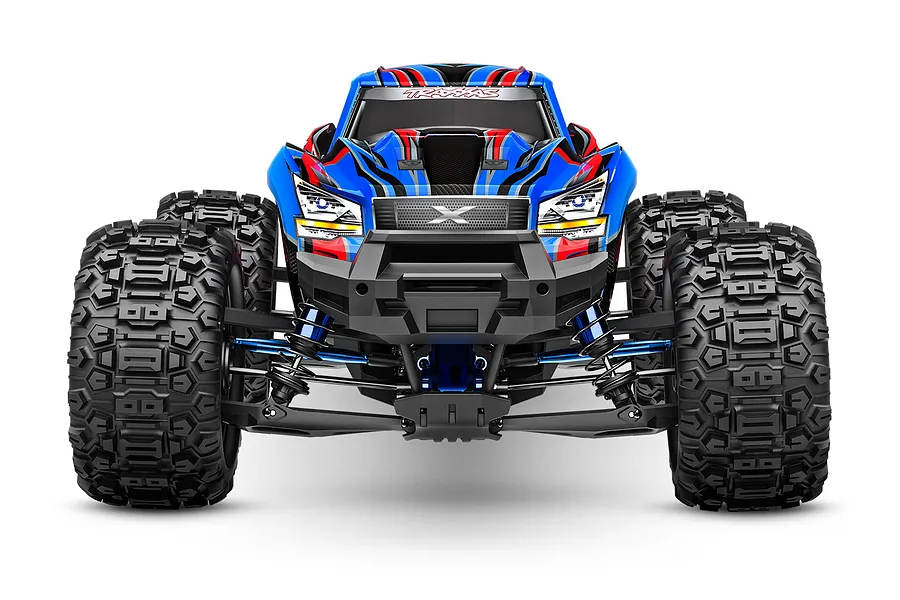

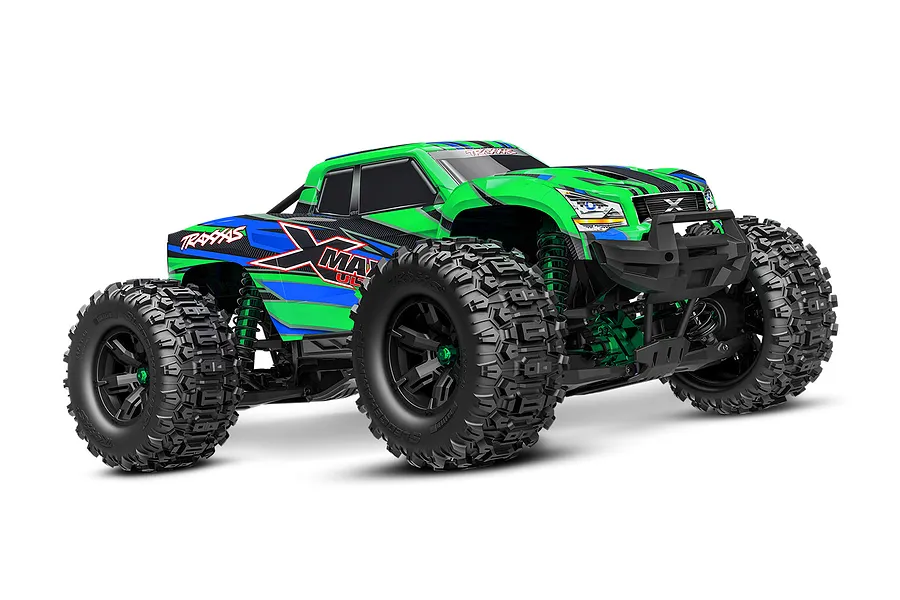

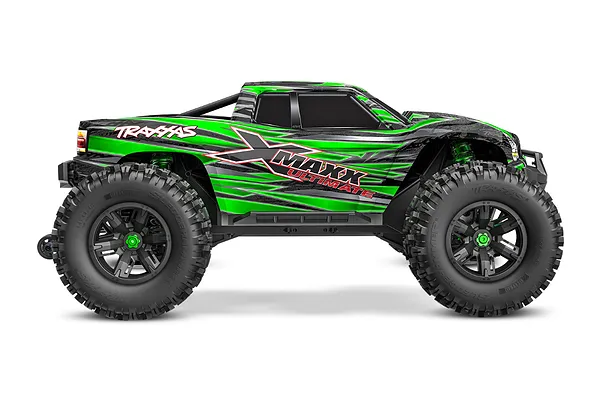

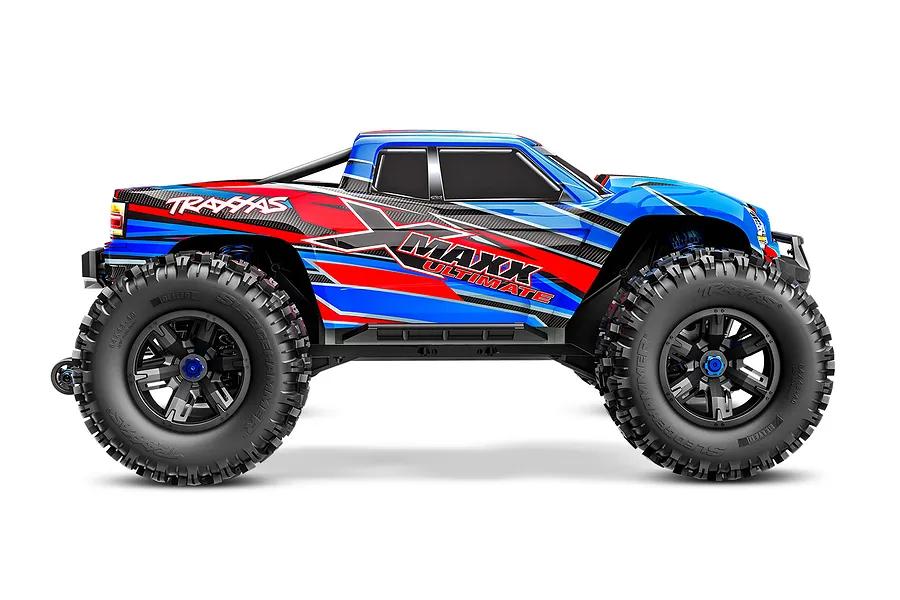

Limited Edition ProGraphix Body Shell
Limited Edition ProGraphix Body Shell

Bold, head-turning graphics set this X-Maxx apart, while strategic reinforcements and a rigid internal frame stand guard against rollovers and rough terrain. Go wild, conquer mountains, and keep your limited edition masterpiece looking fresher for longer, adventure after adventure.

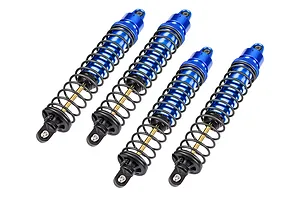

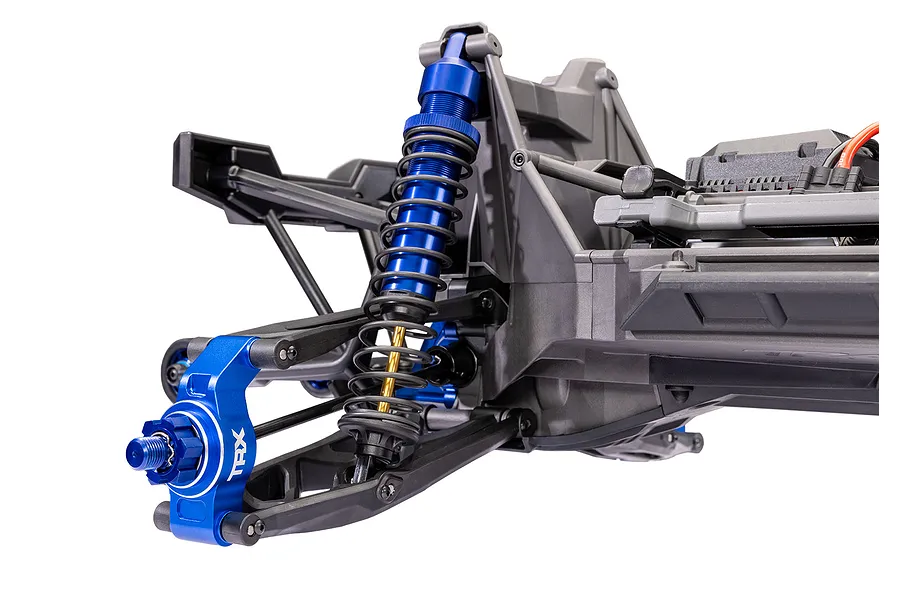

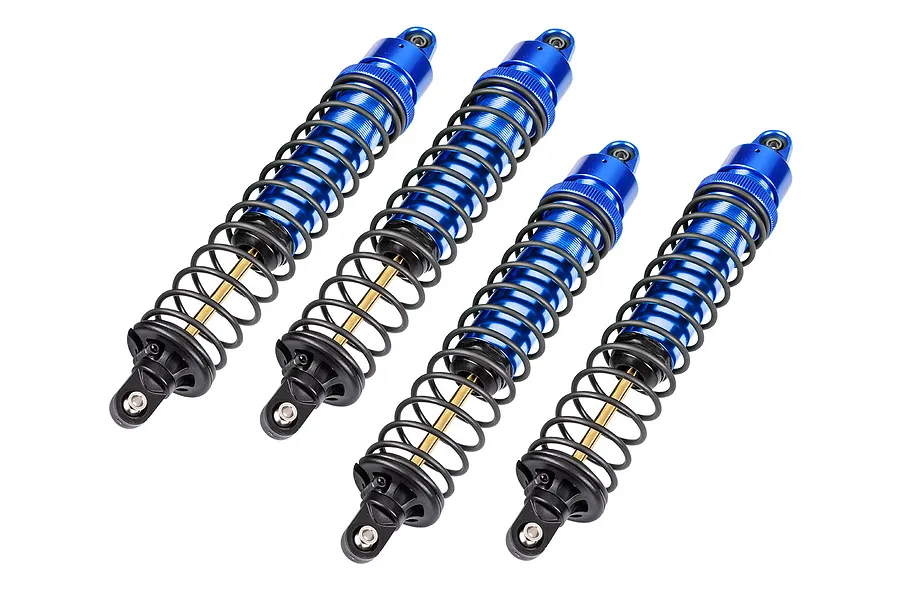

Aluminium GTX Shocks
Aluminium GTX Shocks

The X-Maxx Ultimate encapsulates smooth with upgraded GTX shocks. TiN-coated shafts glide like silk, colour-matched caps add flair, and threaded rings let you fine-tune your ride on the fly. Large oil volume helps dampen on even the roughest of terrains, and an integrated wiper seal keeps things clean. Dominate any terrain, all day long, with the smoothest ride in the game.

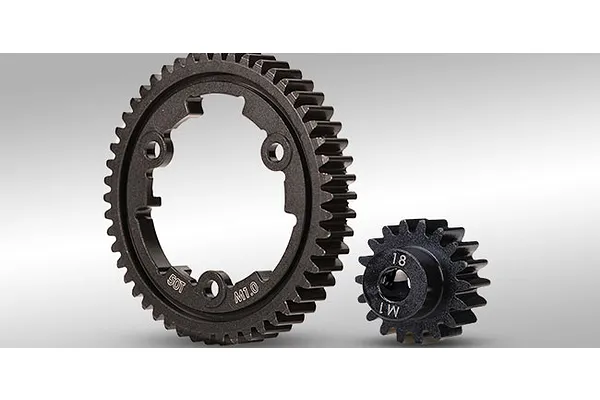

Hardened Steel Gearing
Hardened Steel Gearing

The X-Maxx is equipped with a hardened steel pinion and spur gear to allow for maximum power and durability. Smash, bash, and crash to your hearts content, knowing the drivetrain has been designed with Maxx durability in mind.

Features

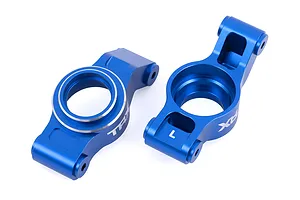

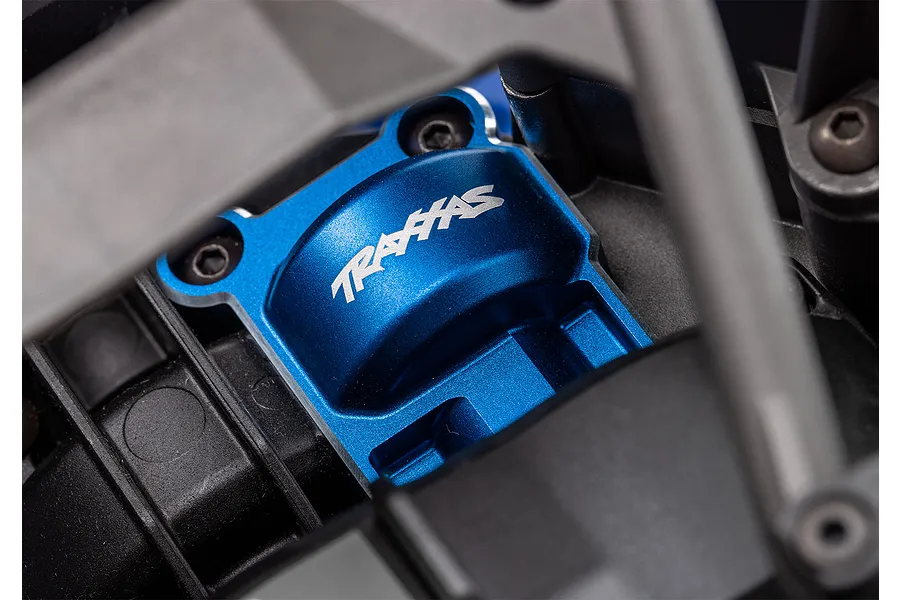

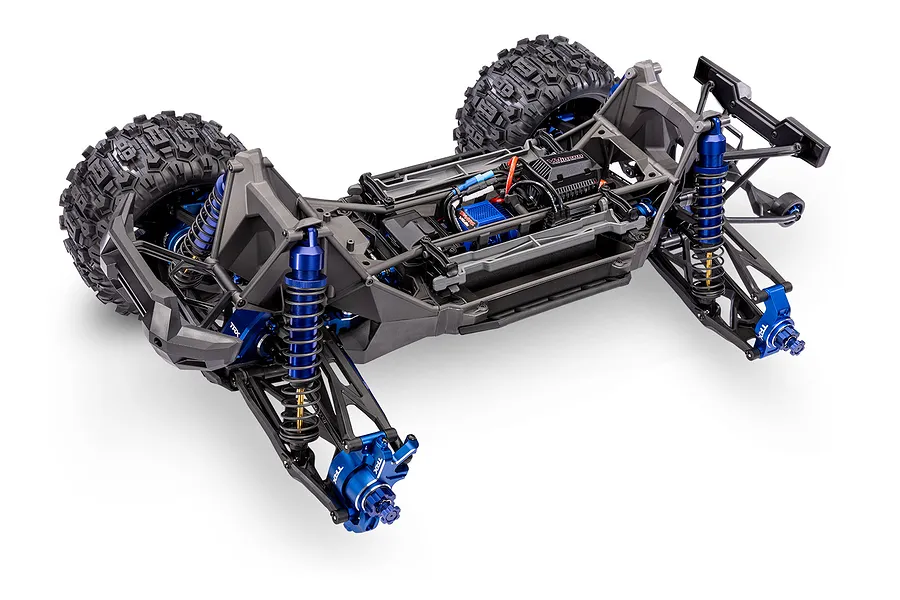

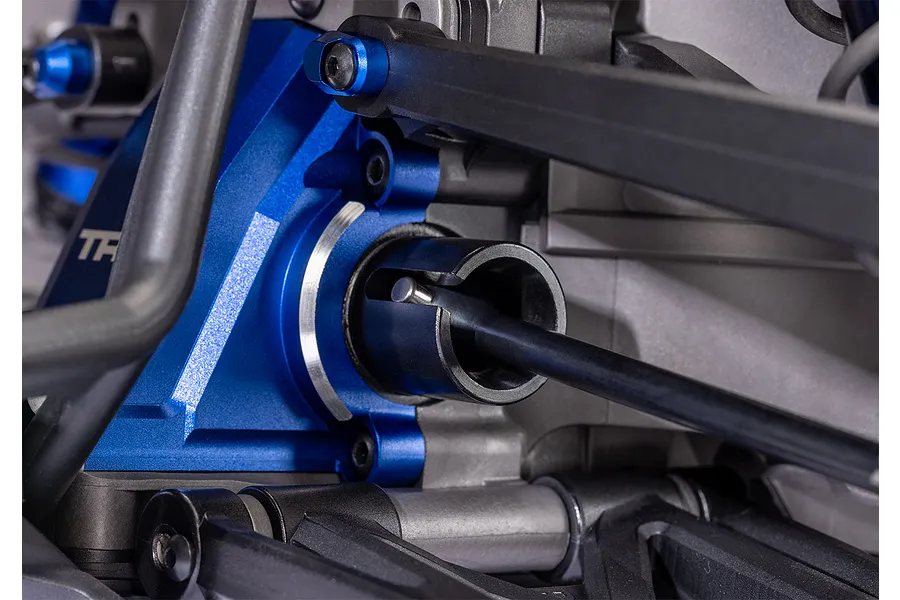

  • 6061-T6 Aluminium upgrades for the C-hubs, front and rear hubs, differential housings, motor mount, wheelie bar wheels, steering bellcranks and motor washers
  • Limited edition ProGraphix body shell with clipless body mount system
  • Full-time shaft driven 4WD enables use in almost any terrain
  • Machined and hardened steel spur and pinion gearing
  • 24mm Splined wheel hexes
  • Aluminium GTX Shocks with extra large bore and threaded body for maximum adjustability
  • Splined aluminium centre driveshaft
  • 4mm machined pivot balls
  • Sealed drive line to keep out dirt and grime
  • Snap lock battery retention system keeps battery secured without fiddly pins
  • Rigid aluminium motor mounts and preset gear mesh minimise risk of gear stripping

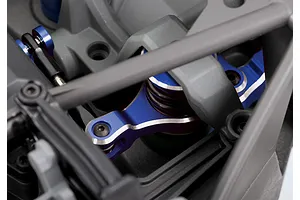

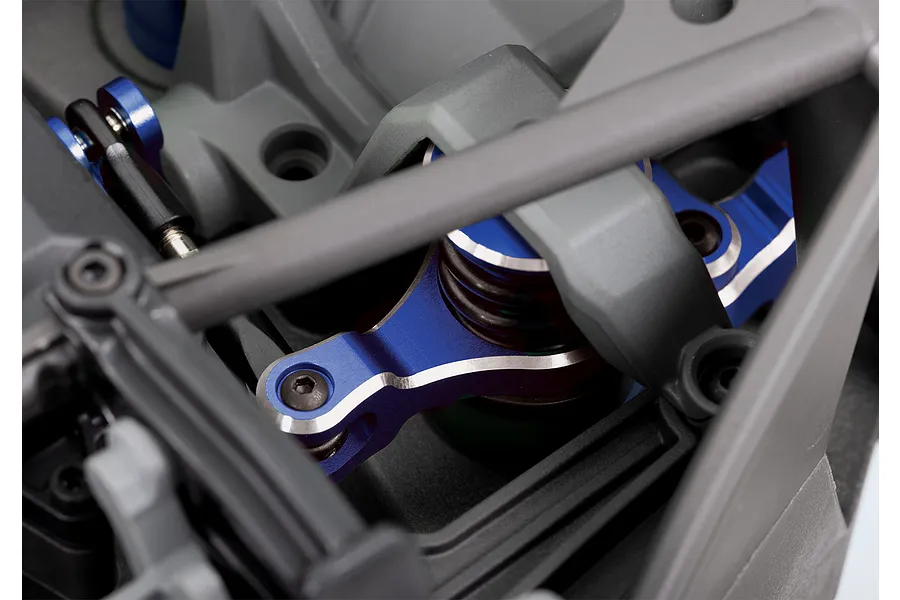

  • Double shear aluminium servo horn with heavy-duty servo saver spring
  • 7075-T6 Aluminium front toe links
  • C-hub and steering block geometry maximises steering angle
  • Adjustable roll centre
  • Fully machined aluminium stub axles
  • 8.4in Belted Sledgehammer wheels virtually eliminate ballooning at high speeds
  • Genuine Traxxas Product
Included Items
  • 1x Traxxas 1/5 X-Maxx Ultimate 4WD Electric Brushless RTR RC Monster Truck — Limited 2024 Edition
Required Items
  • 2x Compatible LiPo Batteries
  • Compatible Charger
  • 4x AA Transmitter Batteries
Videos
Specifications
Length
779mm (30.67in)
Width
540mm (21.3in)
Height
355mm (13.99in)
Wheelbase
480mm (18.92in)
Weight
9.5kg (22.2lbs) + Batteries
Tyre Diameter/Width F/R
213x101.6mm (8.4x4in)
Chassis
Monster Truck
Drivetrain
4WD
Gear Ratio
8.11:1
Suspension
GTX Oil Filled Aluminium Coil Over Shock Absorbers
Motor
Traxxas 1275kV Brushless Motor
ESC
Traxxas VXL-8S Brushless ESC

RC Car
Scale
1/5
Max LiPo Power
8S (29.6v)
Completion
Ready to Run
Skill Level
Experienced
Power Source
Electric Brushless
Chassis Type
Monster Truck
On/Off Road
Off Road
Drivetrain
4WD
Factory Specs
Battery Connector
Traxxas iD
Front Shock Oil
30w
Rear Shock Oil
30w
Front Differential Oil
10000w
Centre Differential Oil
20000000w
Rear Differential Oil
30000w
Pinion Gear
18T 1Mod
Spur Gear
54T 1Mod
Wheel Hex Size
24mm
