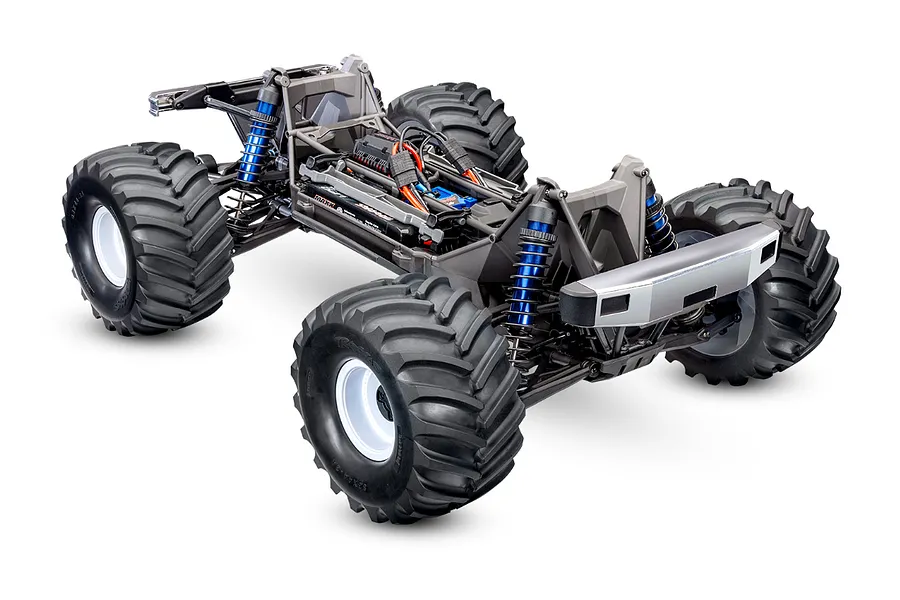

Traxxas 8S X-Monster RC Monster Truck Electric Brushless 4WD 1/5 Scale Chassis Set

1/5
4WD
Brushless

Part no. 77036-4

3+ in stockNo reviews yet

1 / 5

Videos

Now $1,899.99~~was $1,999.00~~ You Save $99.01

Sale now on

or 4 fortnightly payments of $475.00 with afterpay or PayPal, or zip

Add it to My Garage

Traxxas 8S X-Monster RC Monster Truck Gives You The Ultimate Head Start On A Dominant 1/5 Scale Basher With 8S Power System Installed!

Dominate Any Terrain With Monstrous Grip And Power
Experience Mind-Blowing 8S Brushless Performance
Your Truck, Your Rules, Just Add Your Dream Body
80+ kph Top Speed with Optional High Speed Gearing
The Ultimate Chassis For Experienced RC Enthusiasts

3+ in stock · Ships Wednesday · order by 1:00pm Wednesday
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

You'll need

Not included: 1x Compatible 1/5 Scale Body Shell, 1x Compatible LiPo Battery Charger, 2x Compatible 11.1V/14.8V LiPo Battery with Traxxas Connectors, 1x LiPo Safe Bag.

Battery2 × Traxxas Power Cell 14.8v 5000mAh 25C iD Soft Case LiPo Battery
$235.60
Battery ChargerTraxxas Ez-Peak Live Dual 26Amp NiMH/LiPo ID Bluetooth Fast Charger
$372.32
Sold out · notify me

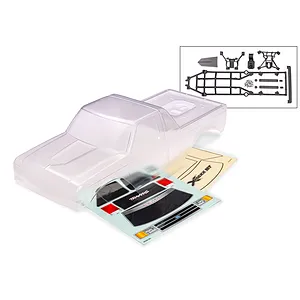

Body ShellTraxxas 1/5 X-Monster Ford F-150 Unpainted Body Shell - Clear
$219.41
LiPo Bag2 × Atrek 180x80x60mm LiPo Safe/Protection Bag
$19.95

This item + 3 required$2,630.50

Part Support

Replacement & upgrade parts that fit this model

Spare parts Upgrades All parts

Videos

Frequently bought together

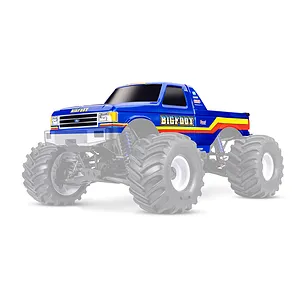

Traxxas 1/5 X-Monster Bigfoot No. 8 Ford F-150 Painted Body Shell - Blue
1 review
$348.68

Overview

Please Note:

This RC Comes as a Chassis Only with the Electronics Factory Installed. You will Require a Compatible 1/5 Scale Clipless Body Shell, Available Separately.

Customise the ultimate RC Monster Truck with your choice of body shell thanks to the Traxxas 8S X-Monster RC Monster Truck, a fully kitted rolling chassis that's ready to run, just pick your perfect body shell and GO!

The X-Monster gives you a foundation for extreme performance, engineered with the legendary toughness Traxxas is known for. The modular composite chassis provides a rigid backbone, while the heavy-duty suspension arms are designed to absorb massive impacts and provide just the right amount of flex, giving you the confidence to push the limits.

Coming factory fitted with the powerful Velineon 1200XL brushless motor and a VXL-8s waterproof ESC (Electronic Speed Controller), this RC Monster Truck is primed for brutal 8S power. The driveline is built tough to handle the immense torque, delivering relentless drive through the massive 218mm belted Chevron style tyres. These tyres, made from a super-soft rubber compound, give you maximum grip on any surface. The chassis also features a high-torque, metal-gear steering servo and machined aluminium threaded body shocks, providing predictable and precise control with tuneable damping to let you set the X-Monster up how you want!

Note

Body Shell is Sold Separately

Features

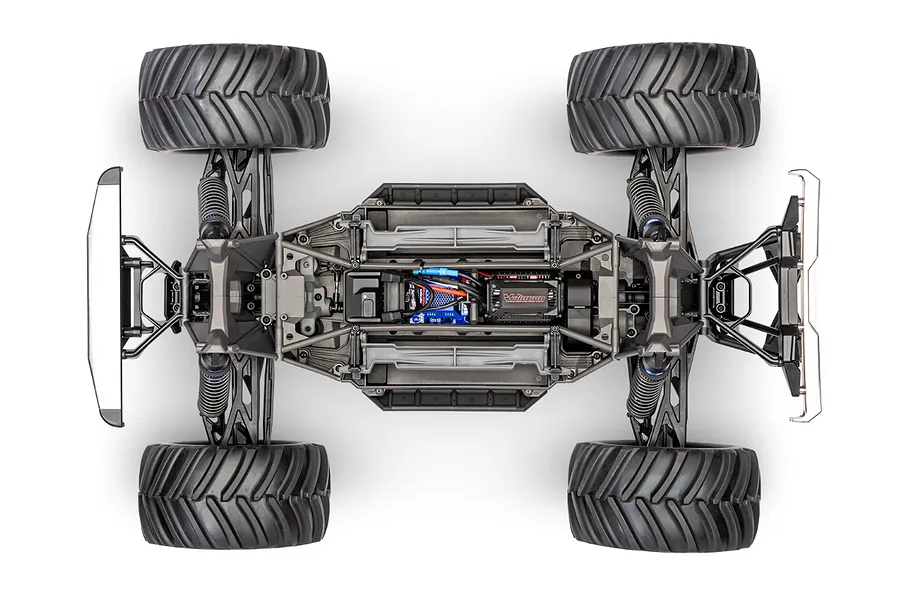

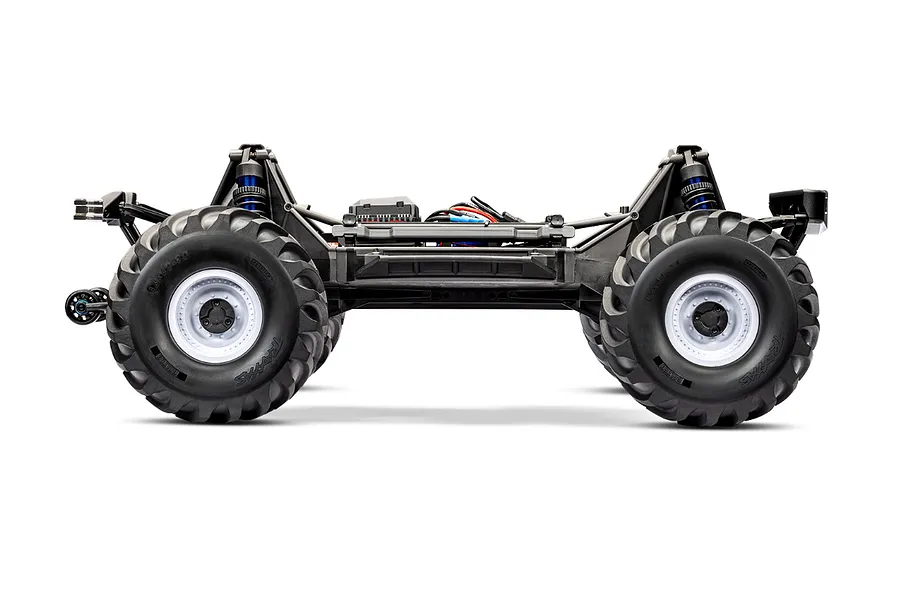

Pre-assembled rolling chassis with factory-installed electronics
Heavy-duty modular composite chassis for maximum rigidity
Velineon 1200XL Brushless Motor for massive torque
VXL-8s Waterproof Electronic Speed Control for 8S LiPo power
High-torque metal-gear steering servo with 450 oz-in of torque
TQi 2.4 GHz radio system for interference-free control
Robust 8s driveline engineered for extreme power

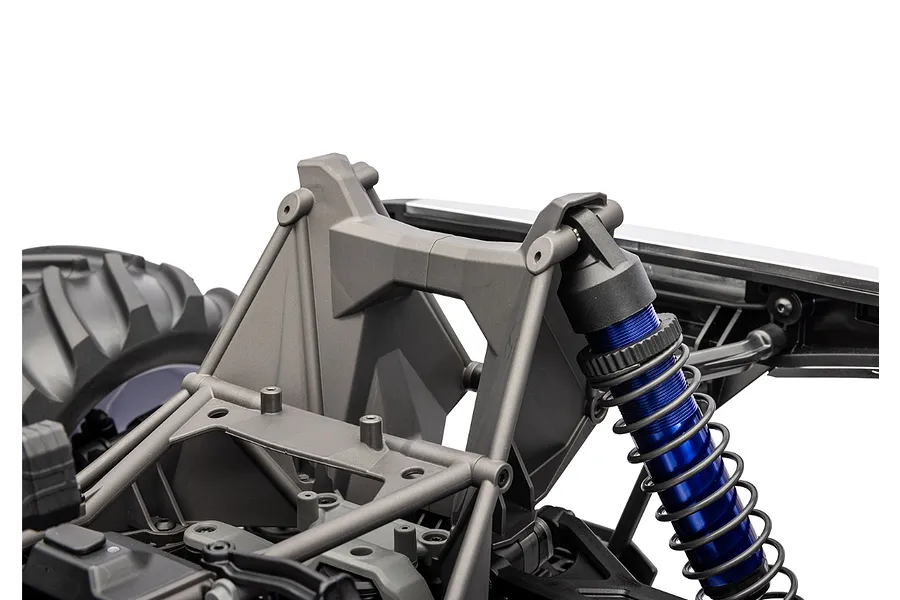

Machined aluminium threaded body shocks for superior damping
Huge 218mm (8.6") belted tyres with a super-soft rubber compound
Genuine Traxxas Product

In the box

1x X-Maxx MT RC Monster Truck Chassis Set
1x Traxxas Velineon 1200XL 1275kV Brushless Motor
1x VXL-8s Waterproof Brushless ESC
1x TQi 2.4 GHz Transmitter
1x Maintenance Tool Set
1x Optional High-Speed Pinion Gear

You'll need

1x Compatible 1/5 Scale Body Shell
1x Compatible LiPo Battery Charger
2x Compatible 11.1V/14.8V LiPo Battery with Traxxas Connectors
1x LiPo Safe Bag

Add them from the buy box

Highlights

The Toughest X-Maxx Ever

The X-Maxx set the standard for monster trucks, and the new X-Monster takes it even further. This chassis and driveline are built with all the latest and greatest X-Truck upgrades, making it the strongest X-Maxx ever. It's a legacy of toughness, designed to handle extreme driving and come out on top.

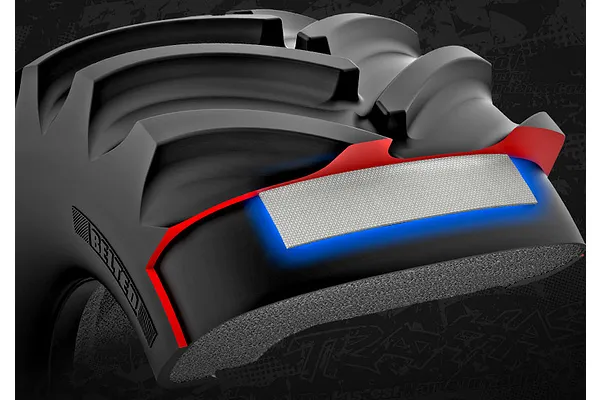

Unstoppable Traction

The X-Monster has new chevron-pattern monster truck tyres that give it a livelier feel and better grip. These huge 218.4 mm (8.6”) tyres are made from a super-soft compound for amazing traction and have internal belting to stop them from ballooning at speed. The replica white monster truck wheels with military-style hubs give it an authentic look.

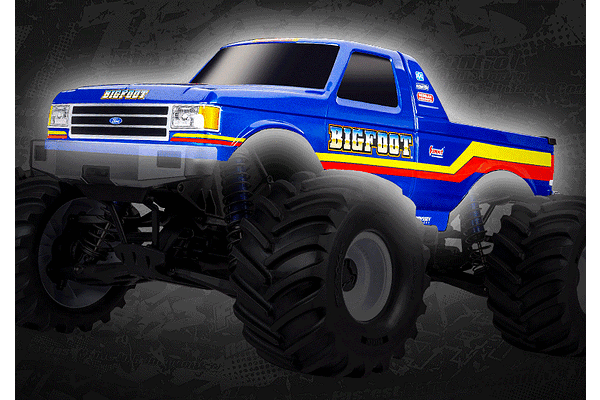

Get the Look You Want

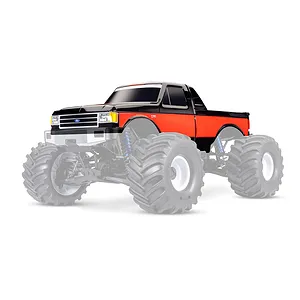

You can make the X-Monster truly your own by choosing from a variety of sold seperately bodies, including Traxxas' iconic replica Ford® F-150®, Chevrolet® C/K, or BIGFOOT® No. 8 body shells. Each body has a full-length reinforced cage for maximum rigidity. If you already have an X-Maxx body, the chassis accepts existing clipless bodies.

Heavy-Duty Drivetrain

The X-Monster has a heavy-duty drivetrain built for heavy duty action. It uses the beefed-up rear differential output yokes with hardened steel, the strongest ever fitted to an X-Maxx. This ensures the truck can handle the most brutal power and torque with ease.

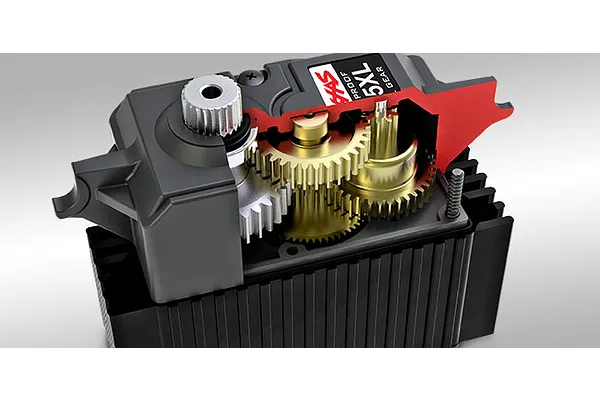

Total Control

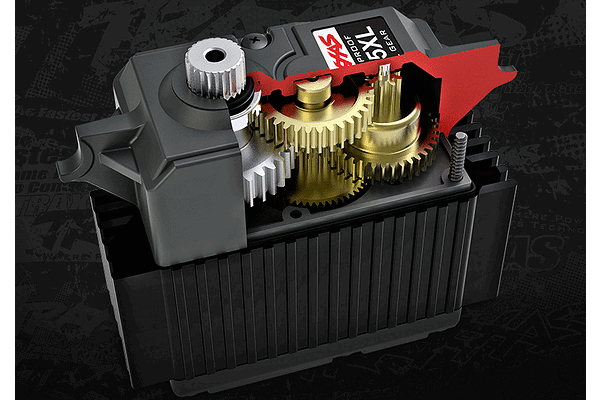

The X-Monster rolls on the biggest tyres ever put on an X-Truck, so a powerful steering servo was a must. With 32.4 kg-cm (450 oz-in) of torque, the 2085XL metal-gear servo has more than enough power for extreme driving on any surface. It gives you total control, without fail.

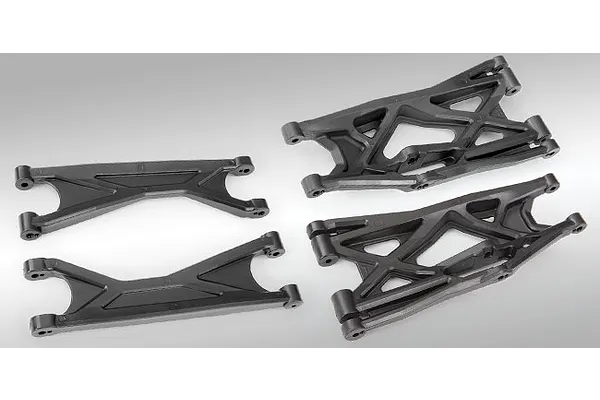

Strength and Resilience

The X-Maxx MT Chassis’ heavy-duty suspension arms are designed to flex just enough to avoid breaking, even in cold weather. Double-shear connections at all mounting points give them incredible strength. The captured lower hinge pins at the outer joints now have locknuts to hold them securely in place for worry-free fun.

Protection and Style

Bright chrome bumpers give the X-Monster a legit scale monster truck look while providing tough impact protection. An energy-absorbing cushion behind the front bumper helps to soften frontal blows, making the X-Monster even more durable for all your adventures.

Specifications

RC Car

Scale	1/5
Max LiPo Power	8S (29.6v)
Completion	Chassis Set
Skill Level	Experienced
Power Source	Electric Brushless
Chassis Type	Truck
On/Off Road	Off Road
Drivetrain	4WD

RC Kit

Suited Motor/ESC Type	Brushless

Factory Specs

Battery Connector	Traxxas iD
Front Shock Oil	30wt
Rear Shock Oil	30wt
Front Differential Oil	10,000wt
Centre Differential Oil	20,000,000wt
Rear Differential Oil	30,000wt
Pinion Gear	18T 1Mod
Spur Gear	54T 1Mod
Wheel Hex Size	24mm
