Traxxas Bigfoot No. 8 4x4 BL-2S HD w/ Clipless Body Parts
SKU: TRA-67134-4 | View 851 parts
| View product
We have 133 standard parts, 718 upgrade parts, exploded parts diagrams, videos and manuals specifically for the Traxxas Bigfoot No. 8 4x4 BL-2S HD w/ Clipless Body.
My Garage
My Garage is home to all your vehicles and parts. Login to add this product to your garage and keep track of it.

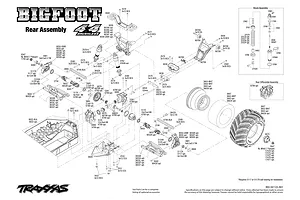

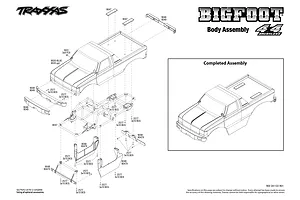

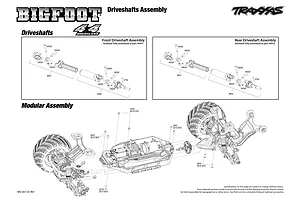

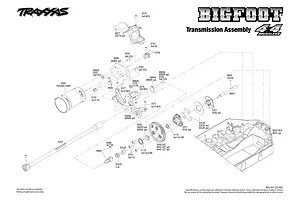

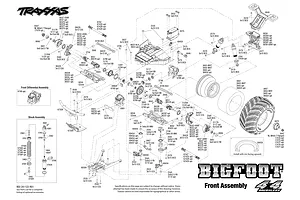

Exploded Diagrams
Find the part in seconds using an exploded diagram.
Tip: in the exploded diagram, click on the to view more details.
PDF Manuals
Knowledge is power. Download the PDF manuals below to learn more about this product.
Videos
Checkout the videos below to learn more about this product.
Factory Specifications
Helpful list of specifications from the factory for this product.
|
Name
|
Value
|
|---|---|
| Battery Connector | Traxxas iD |
| Front Shock Oil | 50w |
| Rear Shock Oil | 50w |
| Front Differential Oil | 30,000w |
| Rear Differential Oil | 30,000w |
| Wheel Hex Size | 12mm |
| Pinion Gear | 10T |
| Spur Gear | 54T |
| Max LiPo Power | 2S (7.4v) |
Popular Parts
All Compatible Parts
Chassis Components
Bumper, front/ skidplate, front (black)
--
Chassis (black)
--
Body mounts, front & rear (for clipless body mounting)
--
Bumper mounts (front & rear)/ side skirts (left & right)
--
Bumpers, front & rear/ bumper cover, front
--
Wheelie bar (assembled)
--
Wheels, Rims & Tyres
Tires & wheels, assembled, glued (white wheels, center caps, Terra Groove dual profile tires, foam inserts) (2)
--
Wheels, white, dual profile (2.0" outer 3.0" inner) (2)
--
Center caps, wheel (black) (4)
--
Batteries
Tornado 8.4v 5000Mah NiMH Battery
--
Accessories
Decal Sheet, Stampede® 4X4 VXL
--
Body Shells
Body, BigfootNo. 8, Officially Licensed replica, complete (painted, decals applied) (assembled with body support for clipless mounting)
--
Body support/ rear body washers (2) (for clipless body mounting) (attaches to #9020 body)
--
Body accessories kit, BigfootNo. 8 (includes body support, front and rear bumpers, bumper mounts, side skirts (left & right), & mounting hardware)
--
Grille, Bigfoot® No. 1 (chrome)/ decals/ adhesive tape/ mounting hardware
--
Body, BigfootNo. 1 (clear, requires painting)/ window masks/ decal sheet (requires #3747 body support for clipless mounting)
--
Body support (with front & rear latches)/ 2.6x15mm BCS (6) (for clipless body mounting)
--
Body, BigfootNo. 8 (clear, requires painting)/ window masks/ decal sheet (for clipless mounting)
--
Other
Hobbies Direct 8.4v 3000mAh NiMH Battery
--
