ARRMA ADS-08 Micro Diff Locking Servo

Brand: ARRMA | SKU: AR390103
1 in stock

$65.27

Fits 4 Vehicles

Login to My Garage to check compatibility.

Description

 Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Overview:

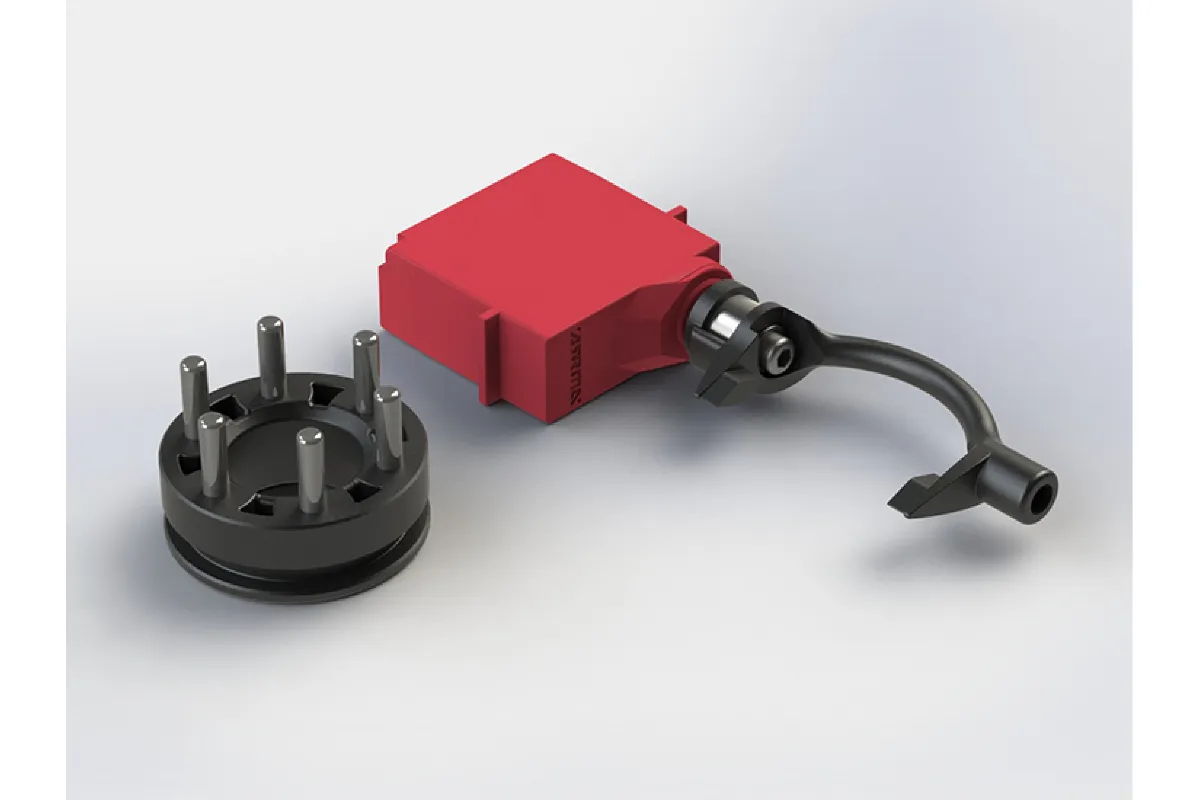

This ADS-08 Diff Locking Servo Set contains one ADS-08 micro servo that is factory fitted with the diff locking actuator. The set also includes the diff locking ring that enables the differentials of your vehicles to be locked on-the-fly.

Also included in the set is a 150mm Servo extension lead for when the diff locking servo is installed in the front or rear diff case of your vehicle.





Features:

ADS-08 Micro servo - Pre-installed diff locking actuator - Diff Lock ring - 150mm Servo extension lead

Includes:

1 x ADS-08 Servo with locking diff mechanism installed

1 x 150mm Servo wire extension lead

1 x Diff locking ring

Requires:

This item is sold as a spare part for vehicles with the diff locking functionality, or as an upgrade part for vehicles that can have the diff locking functionality fitted.

To upgrade a vehicle that can have the diff locking functionality fitted you will need 3 x AR390103 and 1 x AR390160

Specifications
Servo
Size: Micro
Gear Material: Plastic
Case Material: Plastic
Rotational Degrees: 120o (Normal)
