Axial

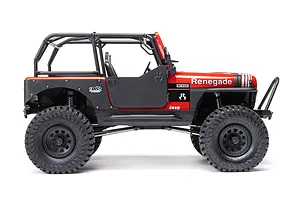

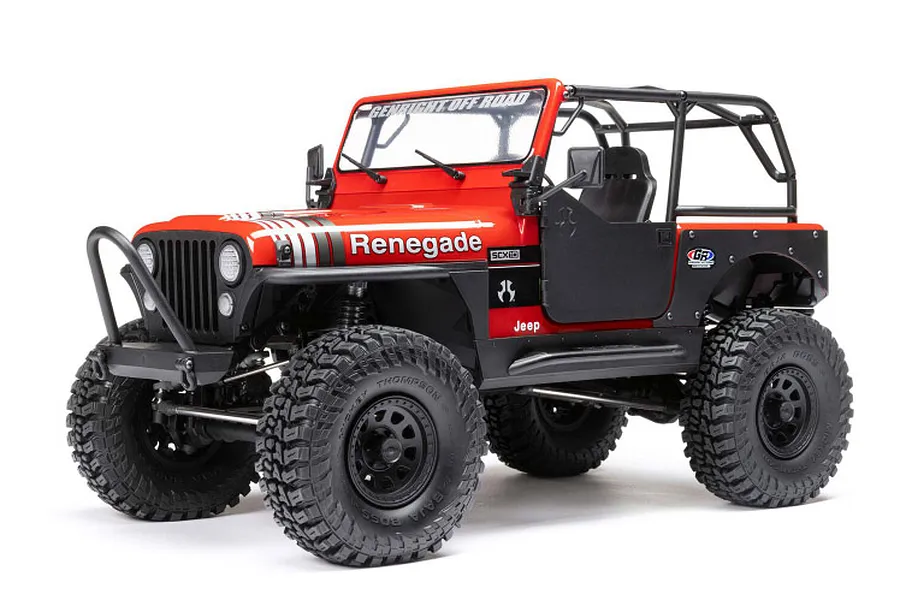

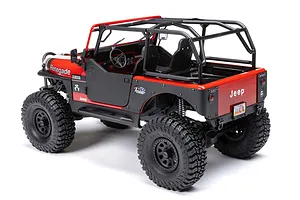

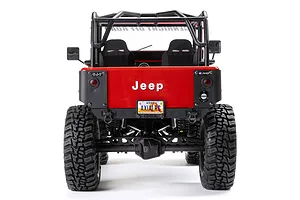

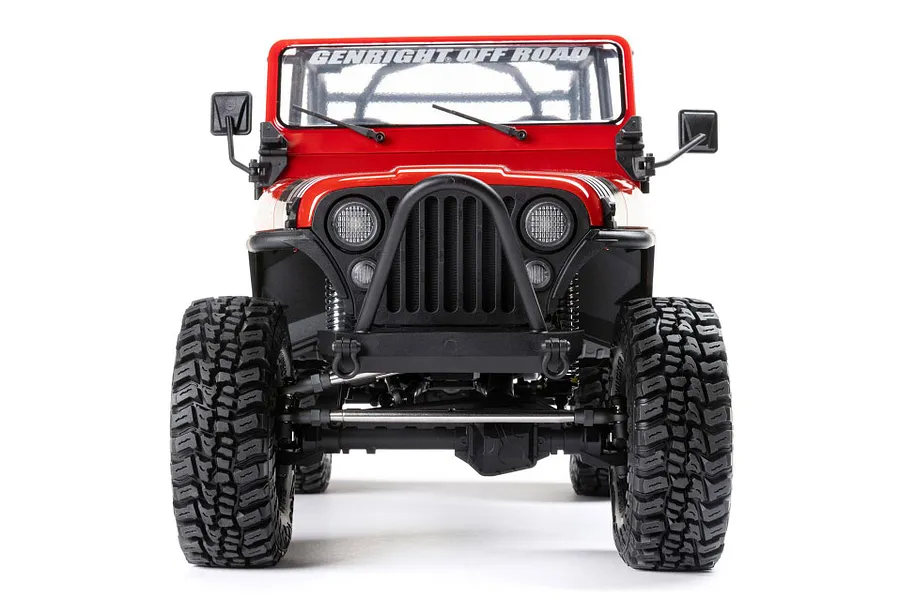

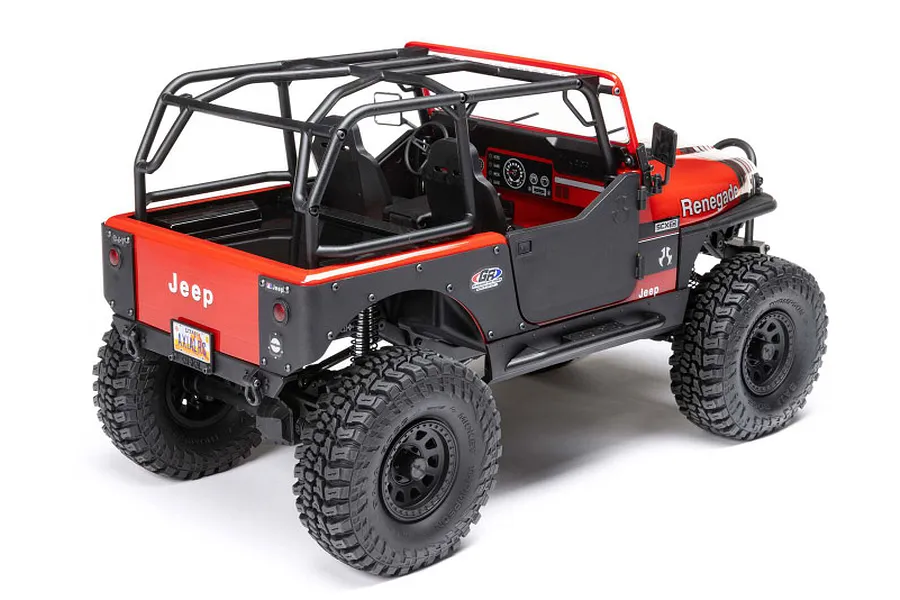

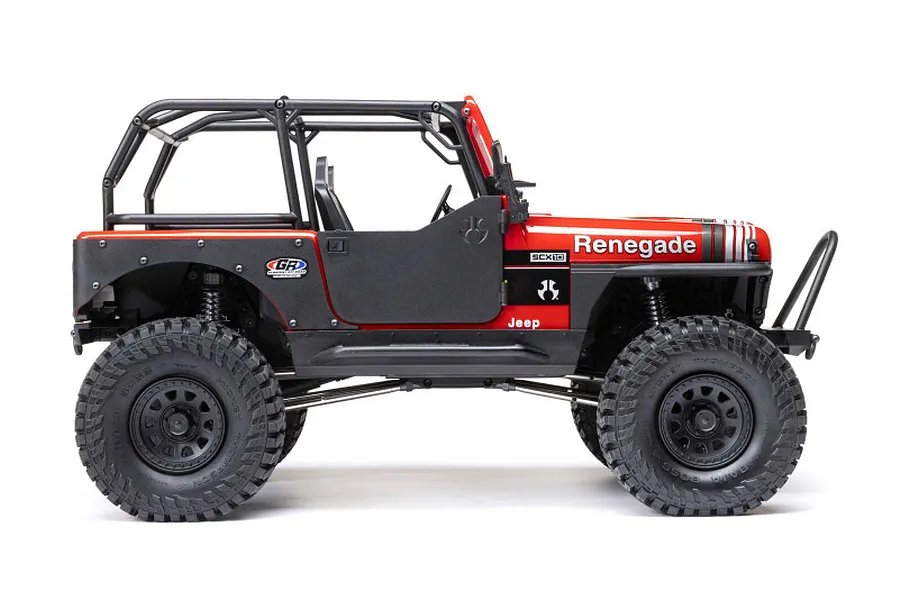

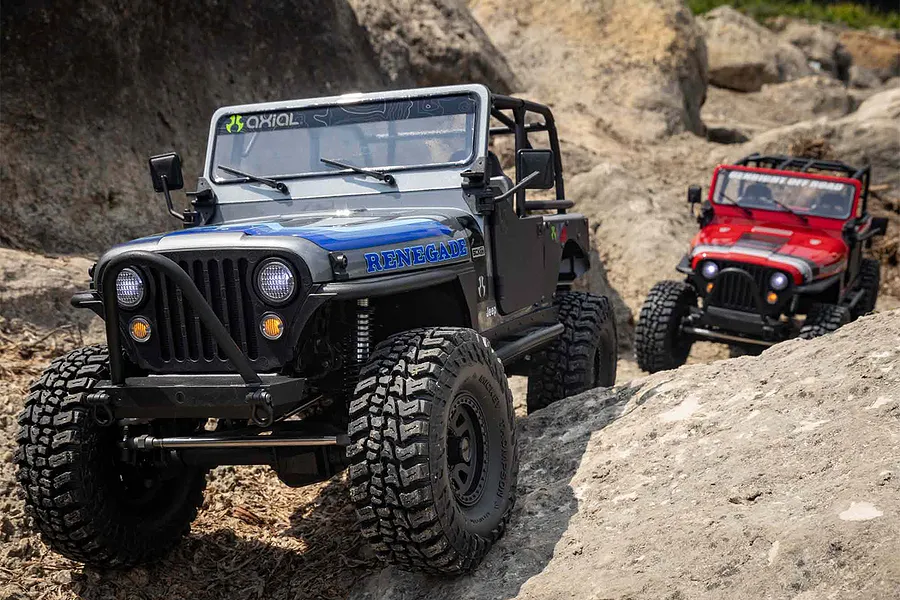

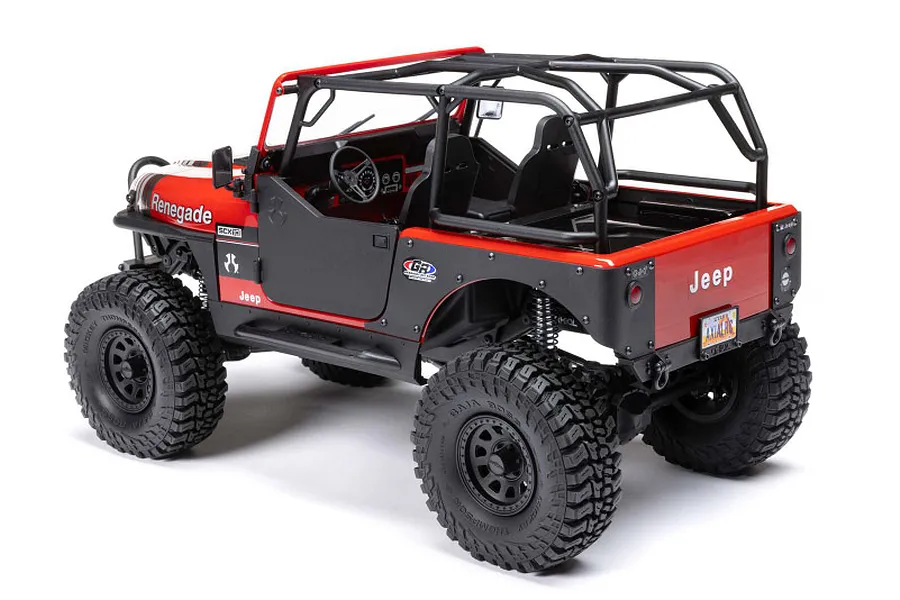

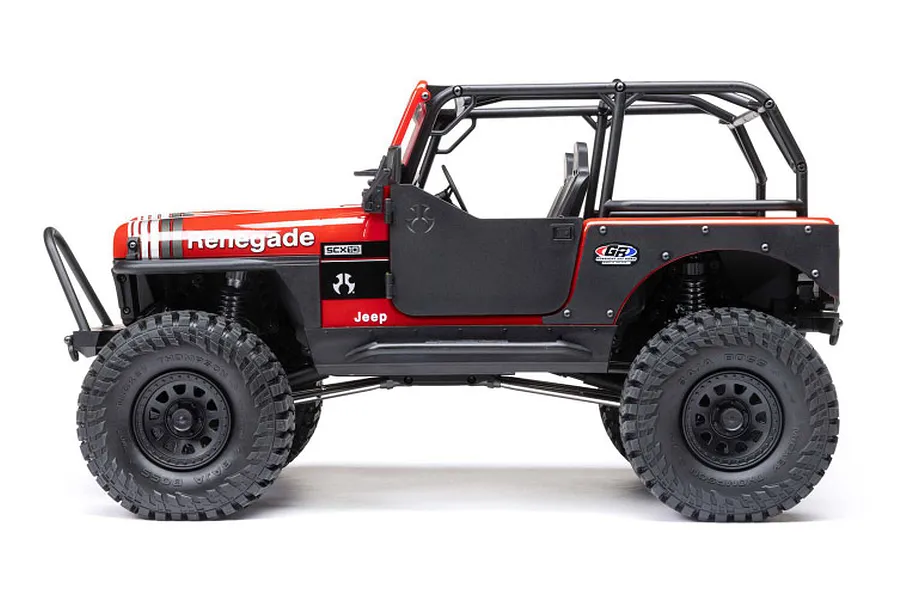

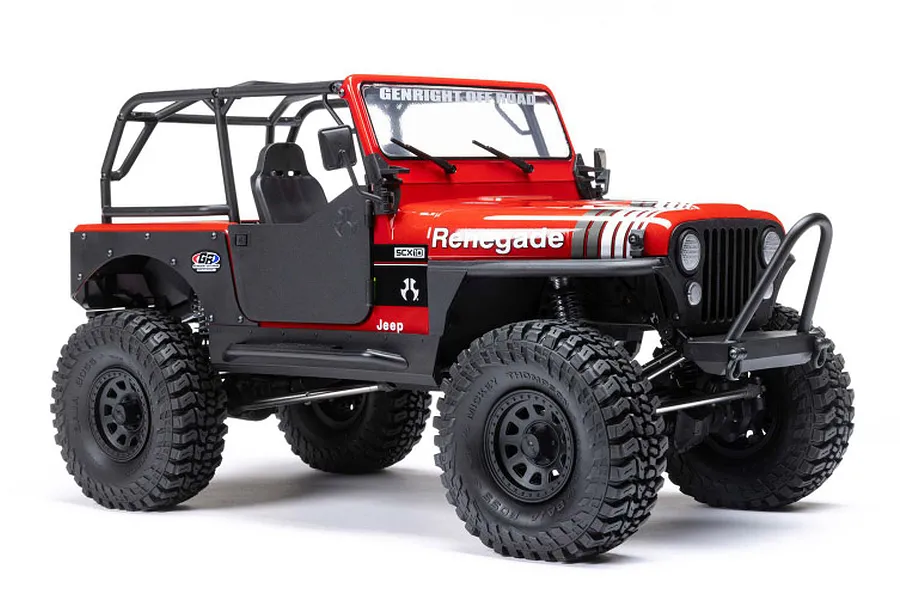

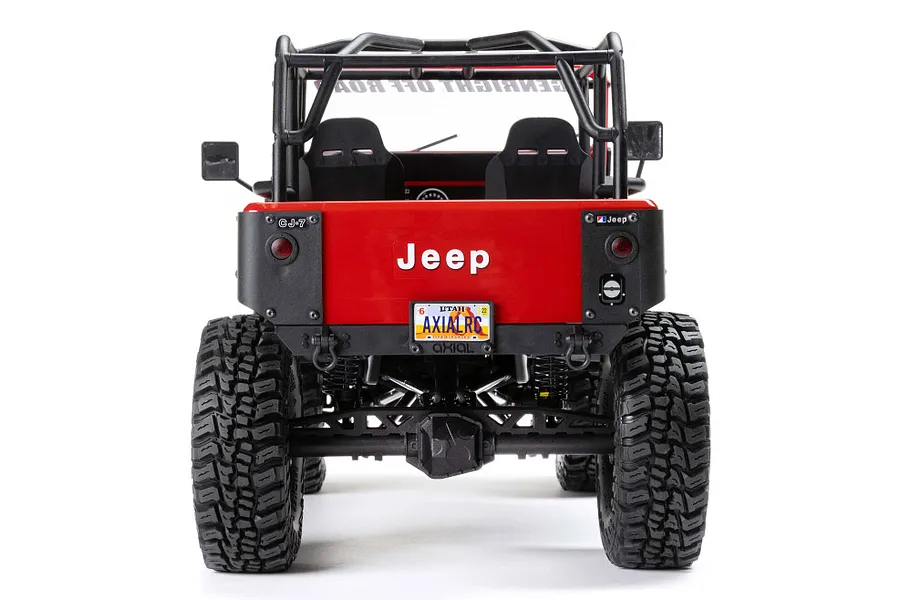

Axial SCX10 III CJ-7 Jeep RC Rock Crawler Electric 4WD 1/10 Scale RTR - Red

  • 1/10
  • 4WD
  • RTR
  • Brushed

Part no. AXI03008T1

Discontinued5.0
1 review
1 / 11
1 / 11

Videos

Select Option: Red

This product has been discontinued.

Contact us

Part Support

Replacement & upgrade parts that fit this model

Videos

Overview

The Jeep CJ-7 is an iconic off-road vehicle that has captivated enthusiasts for decades. Now, Axial has recreated this legendary vehicle in an officially licensed scale version built on the proven SCX10 III chassis. With its authentic details, rugged construction, and impressive performance, the SCX10 III Jeep CJ-7 is a must-have for any RC crawler collection. True to its heritage, the SCX10 III Jeep CJ-7 exudes off-road prowess. Officially licensed Gen-Right bumpers and body armour protect the internals from harsh terrain, while the full interior with opening centre console adds a touch of realism. The roll cage provides an extra level of protection and enhances the vehicle's scale appearance. The transmitter-activated Dig function allows for precise control and enhanced turning, making it easy to navigate even the most challenging courses. The factory-installed brushed power system and Spektrum DX3 Smart transmitter ensure smooth operation and reliable performance.

Note

Refer to the vehicle's manual for the manufacturer's waterproof specifications and guidelines.

Features

  • Fully adjustable oil filled coil over shocks
  • Officially licensed by Jeep
  • Steel C-Channel Chassis provides the strength needed for even the harshest of crawling experiences
  • Features AR45 standard straight axles which provide performance and super scale looks
  • Super scale looks carefully replicates the real car
  • Fully fleshed out interior with opening doors and centre console
  • Officially licensed Raceline Daytona beadlock wheels with Mickey Thompson Baja Boss R35 compound tyres
  • All metal gears for enhanced durability
  • Multi link solid axle suspension
  • Genuine Axial Product

In the box

  • 1x Axial 1/10 SCX10 III CJ-7 Jeep 4WD RTR RC Rock Crawler
  • 1x Spektrum DX3 Smart 2.4GHz Transmitter
  • 4x AA Transmitter Batteries
  • 1x Product Manual

You'll need

  • Compatible LiPo Battery
  • Compatible LiPo Charger

Highlights

DIG functionality

DIG functionality

Use the Dig function to smoothly transition to front-wheel-drive by engaging the rear axle lock from your transmitter, enhancing turning ability and control. The Dig servo is provided and pre-installed so you are ready to rip up the trails as soon as you get it.

Officially Licensed Realism

Officially Licensed Realism

Crafted from durable polycarbonate, the officially licensed and factory-finished CJ-7 scale body boasts rich detailing, including officially licensed Gen-Right bumpers and body armour and a full injection-moulded roll cage, this has been paired with officially licensed Raceline Daytona beadlock wheels and Mickey Thompson Baja Boss R35 compound tyres to provide the next level of scale realism, all without compromising on performance.

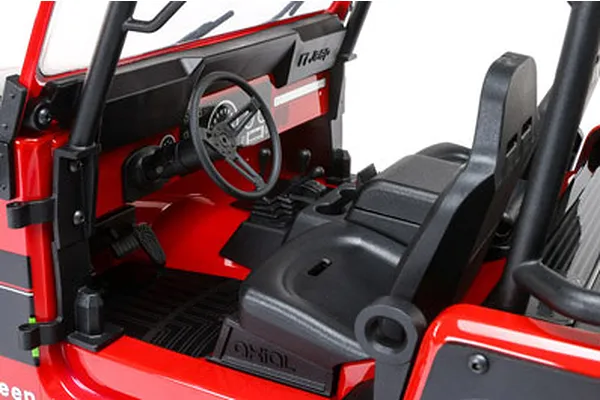

Impressive Scale Detail

Impressive Scale Detail

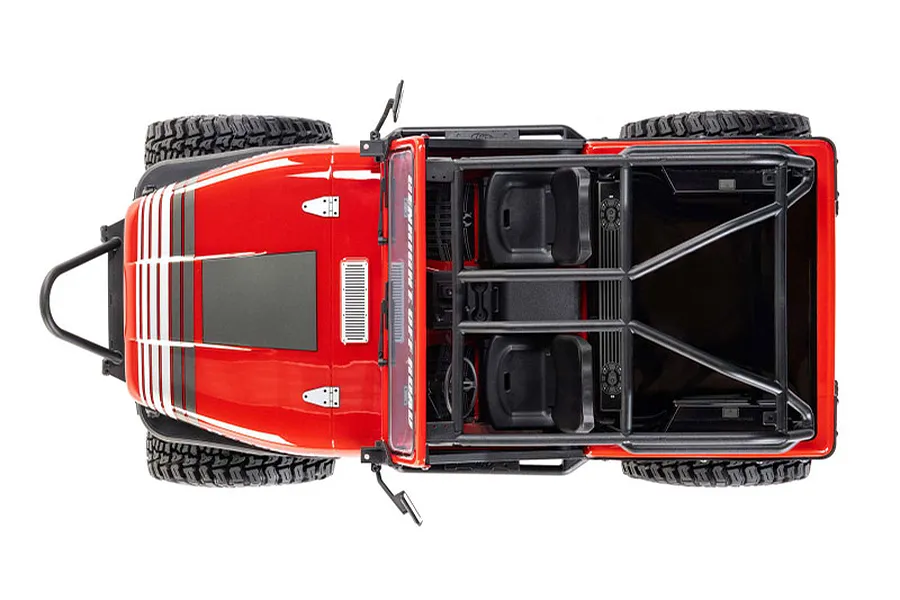

Axial designers had a ball with this one. Additional scale details include a functional centre console, a removable coffee tumbler and soda can, transfer case twin-stick shifters, an automatic transmission shifter, bucket seats with slots for optional seatbelt harnesses, folding side view mirrors, and a swag of other features!

Rigid SCX10 III Steel Chassis

Rigid SCX10 III Steel Chassis

The SCX10 III range has a chassis that is built on a foundation of strength with sturdy steel C-channel frame rails. This rigid design minimises flex, resulting in more precise suspension movement and improved handling on challenging terrain.

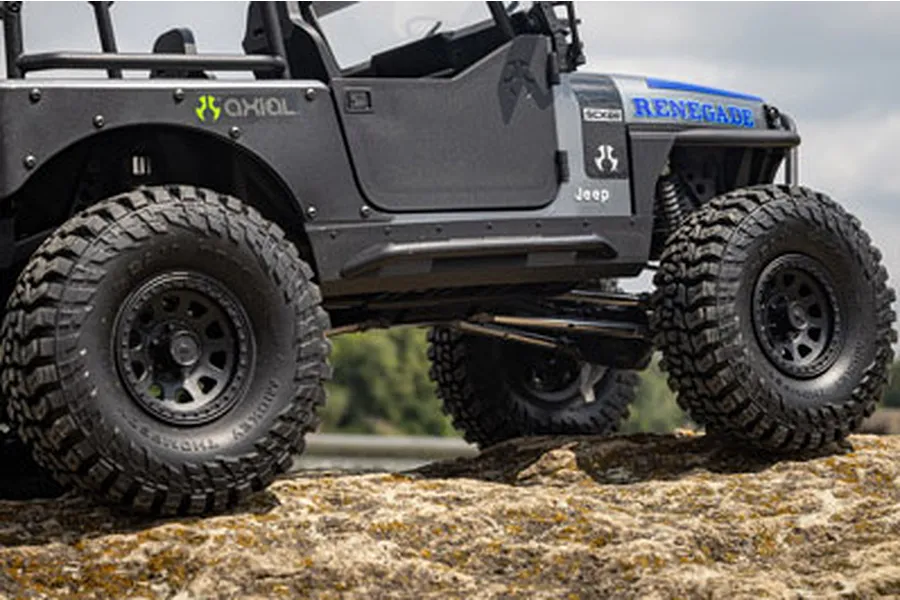

AR45 Portal Axles

AR45 Portal Axles

The SCX10 III features AR45 portal axles that increase ground clearance at the differentials, allowing for greater off-road capability. This means you can tackle larger obstacles and navigate challenging terrain with ease.

Durable Metal Links & Pivot Balls

Durable Metal Links & Pivot Balls

The SCX10 III is built for long-lasting performance with durable metal links and pivot balls throughout the suspension system. These robust components ensure smooth articulation and precise handling, even under the stress of challenging off-road driving.

Aluminium Adjustable Coil-Over Shocks

Aluminium Adjustable Coil-Over Shocks

The SCX10 III features oil-filled shocks with aluminium threaded bodies and a single coil over spring. These shocks are tunable, allowing you to fine-tune the damping rate and achieve optimal performance on various terrains.

Optimised Suspension Geometry

Optimised Suspension Geometry

The front suspension geometry reduces bump steer, while the rear 4-link minimises torque twist. The oil-filled shocks have aluminium threaded bodies with a single coil-over spring, tunable for achieving the best damping rate.

Sealed Receiver Box

Sealed Receiver Box

This robust receiver box makes sure that the receiver is kept free from dirt and debris, ensuring it withstands the elements for reliable performance.

All Metal Gears

All Metal Gears

This SCX10™ III is built for extreme durability with an all-metal drivetrain. Every gear in the transmission, portals, and axles is crafted from metal, ensuring long-lasting performance and the ability to handle serious abuse.

Specifications

Length480mm (18.9in)
Width235mm (9.25in)
Height248mm (9.75in)
Wheelbase312mm (12.3in)
Weight3.12kg (6.87lb)
Tyre Diameter/Width F/RD: N/A W: 25.4mm (1in)
ChassisRock Crawler
Drivetrain4WD
Gears45.6:1
SuspensionOil Filled Adjustable Coil Over Shocks
MotorDynamite 35T 540 Sized Brushed Electric Motor
ESCSpektrum 40A Smart 2-in-1 ESC Receiver

RC Car

Scale1/10
Max LiPo Power3S (11.1v)
CompletionReady to Run
Skill LevelIntermediate
Power SourceElectric Brushed
Chassis TypeRock Crawler
On/Off RoadOff Road
Drivetrain4WD

Factory Specs

Battery ConnectorIC3, EC3
Front Shock Oil35wt
Rear Shock Oil35wt
Pinion Gear14T 32dp/0.8Mod
Spur Gear40T 32dp/0.8Mod
Wheel Hex Size12mm

Parts

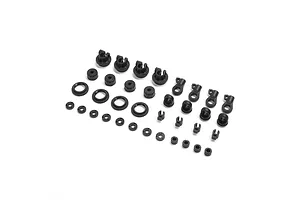

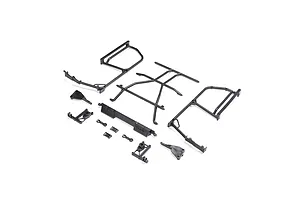

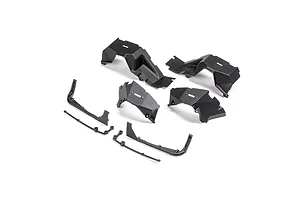

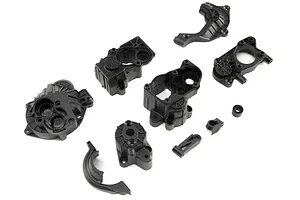

Top parts for this Axial SCX10 III CJ-7 Jeep RC Rock Crawler Electric 4WD 1/10 Scale RTR - Red

Shop all parts

Reviews (1)

5.0

Based on 1 review

  • 5 stars1
  • 4 stars0
  • 3 stars0
  • 2 stars0
  • 1 star0

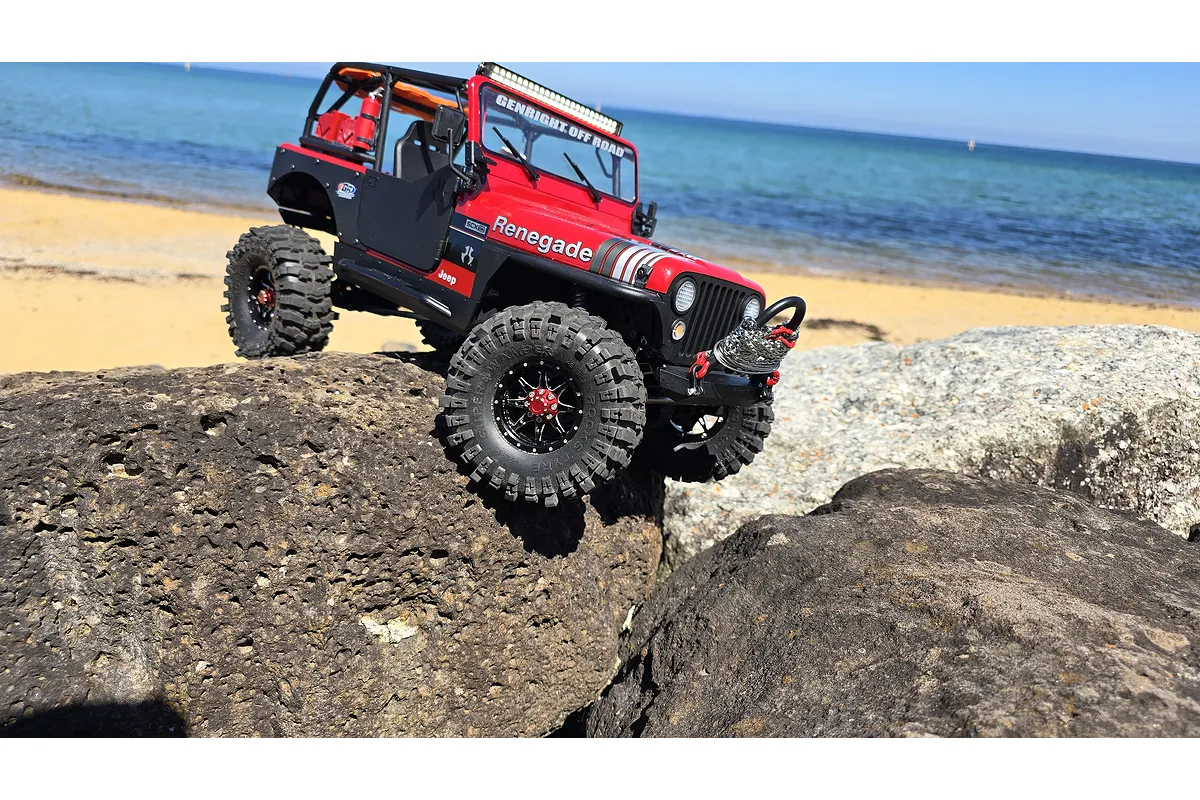

  • Wardes V
