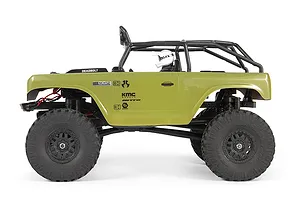

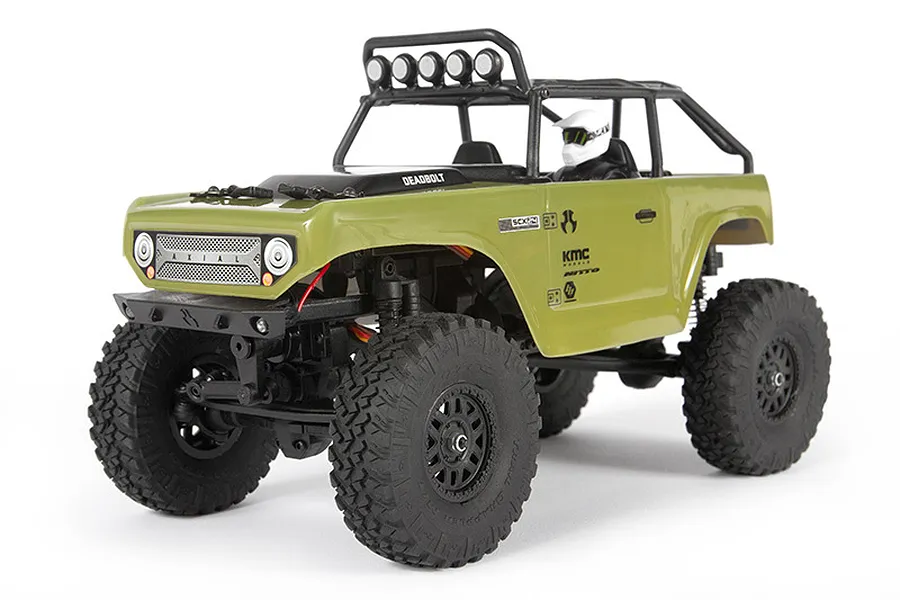

Axial SCX24 Deadbolt RC Rock Crawler Electric 4WD 1/24 Scale RTR - Green

Axial SCX24 Deadbolt RC Rock Crawler Electric 4WD 1/24 Scale RTR - Green

Videos

Axial SCX24 Deadbolt RC Rock Crawler Electric 4WD 1/24 Scale RTR - Green

Brand: Axial | MPN: AXI90081T2
discontinued
5.0
2 reviews
JST-PH
JST-PH
Also known as PH 2.0, PHR-2
Shop replacement & upgrade parts for this model
Shop Parts
Description

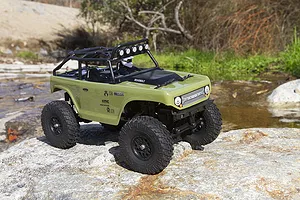

The SCX24™ Deadbolt™ 4WD is the first Axial® off-roader in 1/24 scale. At less than 8" long, it’s the perfect rig to take along on your hiking, camping, and other outdoor and indoor adventures — offering factory-assembled ease, scale looks, and confident handling on any trail.

Even new modelers driving the SCX24 chassis will be well-equipped to tackle tough climbs and rough trails. Like the larger SCX10™ II chassis, this smaller version uses plenty of steel components — from the C-channel frame rails to the front and rear axles and dogbones. The SCX24 chassis features a three-link front and four-link rear suspension with coil-over shocks and durable plastic suspension links. The worm gear drive setup permits a high ground clearance plus a low gear ratio that reduces torque twist.

Powered by an included 180-size motor and LiPo battery, the SCX24 Deadbolt features a narrow-stance body, bulging hood, realistic driver figure, and molded roll cage with realistic light bar, plus licensed KMC XD229 Machete Crawl wheels wrapped in Nitto Trail Grappler tires. The SCX24 Deadbolt comes 100% complete and ready to run.

Quick-Access Hinged Body
Quick-Access Hinged Body

The innovative hinged body system simplifies maintenance and battery swaps. Just remove two body clips, swing the body up, and you have instant access to the chassis and battery compartment. No more struggling with complex body removal — enjoy quick and convenient access whenever you need it.

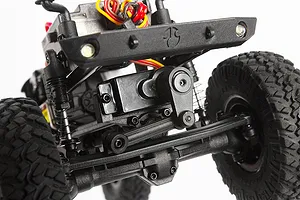

Solid Axles & Articulated Suspension
Solid Axles & Articulated Suspension

The SCX24™'s robust two-piece, moulded plastic solid axles deliver exceptional durability and off-road capability. Paired with a three-link front and four-link rear suspension setup, this configuration ensures maximum articulation and impressive handling on even the most challenging terrain.

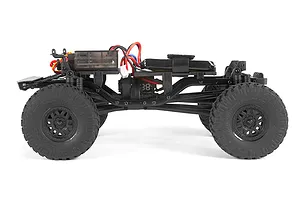

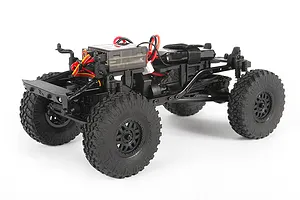

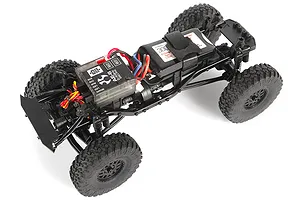

Steel C-Channel Frame Rails for Unmatched Strength
Steel C-Channel Frame Rails for Unmatched Strength

Inspired by the proven 1/10th scale SCX10™, the SCX24™ boasts rugged steel C-channel frame rails with bracing. This design ensures exceptional rigidity and strength, keeping your rig aligned and handling tough terrain with ease.

Dynamite 88T Motor: Torque for Tough Climbs
Dynamite 88T Motor: Torque for Tough Climbs

The Dynamite 88T brushed electric motor delivers ample torque to power through steep inclines. It's securely mounted on a sturdy steel motor mount, minimising flex and protecting your gears for worry-free off-roading.

Steel Axles for Trail Toughness
Steel Axles for Trail Toughness

The SCX24 utilises steel front and rear axles and dogbones to provide the mechanical toughness needed for any trail. These metal components ensure the machine can handle the pressure of intense rock crawling without losing power to the wheels. It is a rugged setup that delivers the raw power and strength required for daily backyard projects.

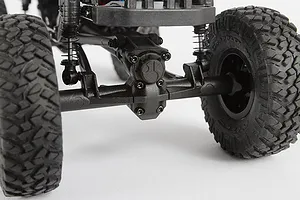

Worm Gears
Worm Gears

This crawler utilises worm gears in its front and rear differentials, efficiently transferring power to the axles while providing increased ground clearance for tackling obstacles with ease.

Coilover Shock Absorbers
Coilover Shock Absorbers

The SCX24™'s coilover shock absorbers, complete with simulated reservoirs and tough plastic suspension links, deliver the crawling prowess you expect from Axial®, even in a compact package. Experience smooth articulation and impressive performance on any terrain.

Splined Driveshafts for Maximum Flex
Splined Driveshafts for Maximum Flex

The driveline utilises strong front and rear axles and splined drive shafts to provide maximum strength and suspension travel. These tough driveshafts ensure the machine can handle the pressure of intense rock crawling without losing power to the wheels. It is a rugged setup that delivers the raw power and strength required for daily backyard projects.

Full Ball Bearings
Full Ball Bearings

The Axial 1/24 series of vehicles may be small, but they are packed with big features. You won't find any bushings slowing this rig down. Instead, the entire drivetrain spins freely on sealed ball bearings, ensuring smooth, efficient operation and long-lasting performance.

4-Link Rear Suspension: Precision & Control
4-Link Rear Suspension: Precision & Control

The SCX24™'s 4-link rear suspension geometry is engineered for optimal performance, minimising axle steer and torque twist. This translates to enhanced stability and predictability, allowing you to navigate challenging terrain with confidence.

SLT2 Radio System: Ready-to-Run Convenience
SLT2 Radio System: Ready-to-Run Convenience

The Spektrum SLT2 2-channel radio system delivers advanced control and convenience right out of the box. Fine-tune your driving experience with throttle/steering travel adjust and throttle limiting. Plus, the ready-to-run package includes AA transmitter batteries, so you can hit the trails without delay.

Features
  • Includes radio system, ESC and transmitter batteries
  • Includes motor and onboard LiPo battery
  • Realistic narrow-stance rock crawler body in olive green or red
  • Molded roll cage with realistic light bar
  • Realistic driver figure and many other scale details

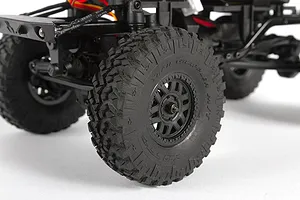

  • Officially licensed KMC XD229 Machete Crawl wheels
  • Officially licensed Nitto Trail Grappler M/T tires (S30 compound, large block tread)
  • Full-time 4WD
  • Splined and sleeved front and rear drive shafts allow for maximum suspension travel while keeping the power to the wheels
  • Steel front and rear axles, front stub axles and dogbones provide strength and durability
  • Rugged steel C-channel frame rails with bracing keep everything rigid and aligned
  • Front and rear axles consist of a two-piece, molded plastic solid axle design
  • 3-link front and 4-link rear suspension supply optimal handling
  • Coil-over shocks with simulated reservoir and durable plastic suspension links deliver proven Axial crawling performance
  • Front and rear differentials each house a worm gear setup to power the axles and create higher ground clearance; worm gear drive also provides a low gear ratio to reduce torque twist
  • Two LEDs in the front bumper for night driving
Included Items
  • Axial AX-4 2.4GHz, 3-Channel Radio System
  • Axial AS-1 Servo

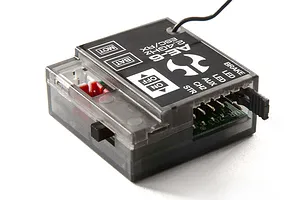

  • Axial AE-6 ESC/Receiver Combo
  • USB Charger (DYNC1062)
  • Dynamite 88T 030 Brushed Electric Motor
  • Dynamite 350mAh 2S LiPo 7.4V Battery Pack (DYNB0012)
  • 4 AA Batteries for the Transmitter
Videos
Specifications
Length
198mm (7.8")
Width
100mm (3.9")
Height
110mm (4.3")
Weight
220g
Wheel Base
133.2mm (5.2")
Ground Clearance
18mm (0.7")
Drivetrain
4WD

RC Car
Scale
1/24
Max LiPo Power
2S (7.4v)
Completion
Ready to Run
Skill Level
Beginner
Power Source
Electric Brushed
Chassis Type
Rock Crawler
On/Off Road
Off Road
Drivetrain
4WD
Factory Specs
Max LiPo Power
2S (7.4v)
Battery Connector
PH 2.0

Parts

Shop Parts
Shop replacement & upgrade parts for this model.
