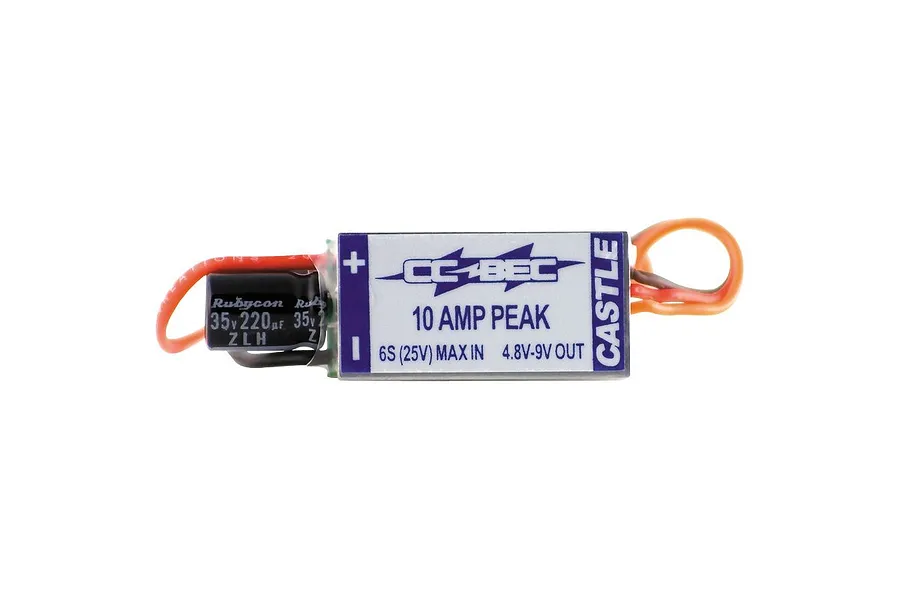

Castle Creations 5v-25.2v Input 4.8v-9v Output 10A BEC

Power Management

CC BEC (Battery Eliminator Circuit) is a small device that eliminates the need for a receiver battery. It draws voltage from the motor batteries and drops it to a voltage level that is suitable for your receiver and servos. This is required in applications which use high power servos, where the ESC does not have an internal BEC, or the existing BEC is inadequate.

The CC BEC is designed to operate at up to 6S LiPo with a 10A* peak servo load. Generally used for cars utilizing high powered digital servos. It is also useful in smaller airplanes using 4 standard non-digital servos or 6 micro servos. Perfect for 450 size or smaller helis. If you need more amperage or voltage capability, our CC BEC Pro is the way to go!

Eliminates the need for a separate battery for the receiver and servos

OVERVIEW

Our Battery Eliminator Circuit is a little device that eliminates the need for a receiver and servo battery pack. It draws higher voltage from the motor batteries and drops it to a voltage level that is suitable for your receiver and servos. This is required in applications which draw high power for multiple servos or use more than 3S motor packs, as most ESCs with linear BECs are not designed for these applications.

• Pre-set to 5.5V
• Current Output: Peak: 10 amps
• Continuous:
• <12 volts input = 7 amps*
• <24 volts input = 5 amps**Ratings are determined with a 5mph airflow on the BEC. Servo connectors are not rated for current in excess of 5 amps. Users are encouraged to replace the connectors if more than 5 amp currents are anticipated.

Output Voltage: Output 5.1 volts out of the package, user may set output voltage from 4.8 to 9 using the Castle Link (sold separately).

• Input Voltage: 5v to 25.2v (2S to 6S LiPo)
• Length: 1.2” (30mm)
• Width: 0.6” (15mm)
• Height: 0.4” (10mm)
• Weight: 0.4 oz (11 grams)
