Hobbywing High Voltage UBEC 9v-80v Input 5.2v/8.4v 25A/50A Output

Name: Hobbywing High Voltage UBEC 9v-80v Input 5.2v/8.4v 25A/50A Output
Brand: Hobbywing ESCs & Brushless Motors
SKU: HW-30606000
Price: 134.32 AUD
Availability: OutOfStock

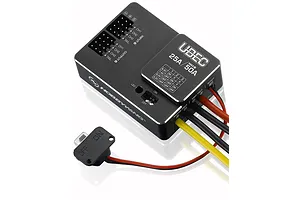

Hobbywing UBEC 25A/50A high voltage regulator unit with attached wiring and power switch on a white background.

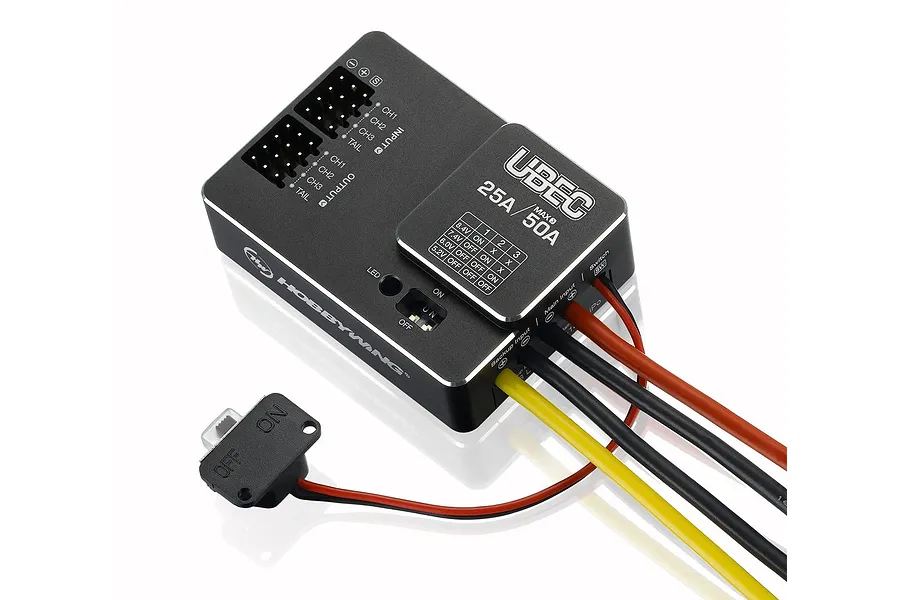

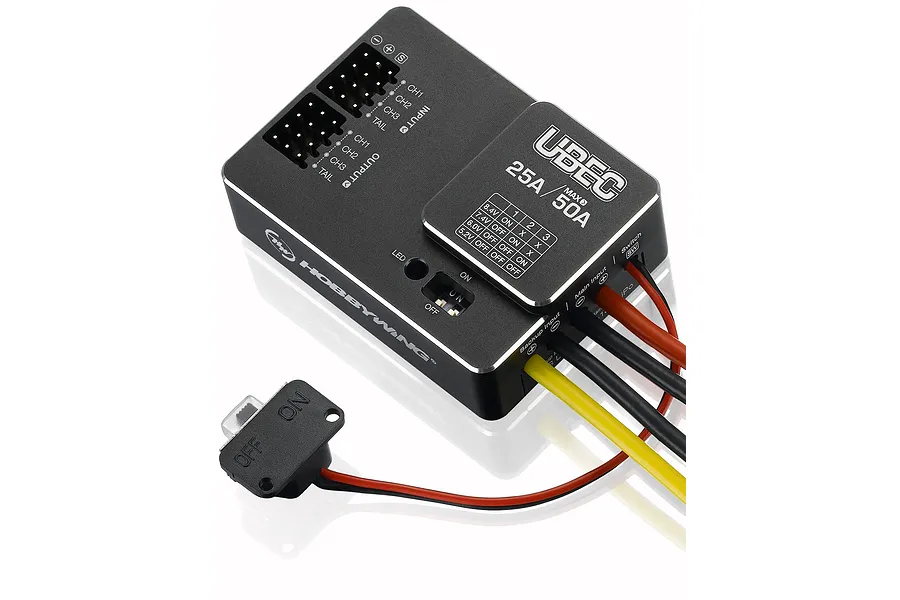

Hobbywing high voltage UBEC unit with 25A/50A output rating, featuring input/output ports, voltage configuration table, and an external power switch.

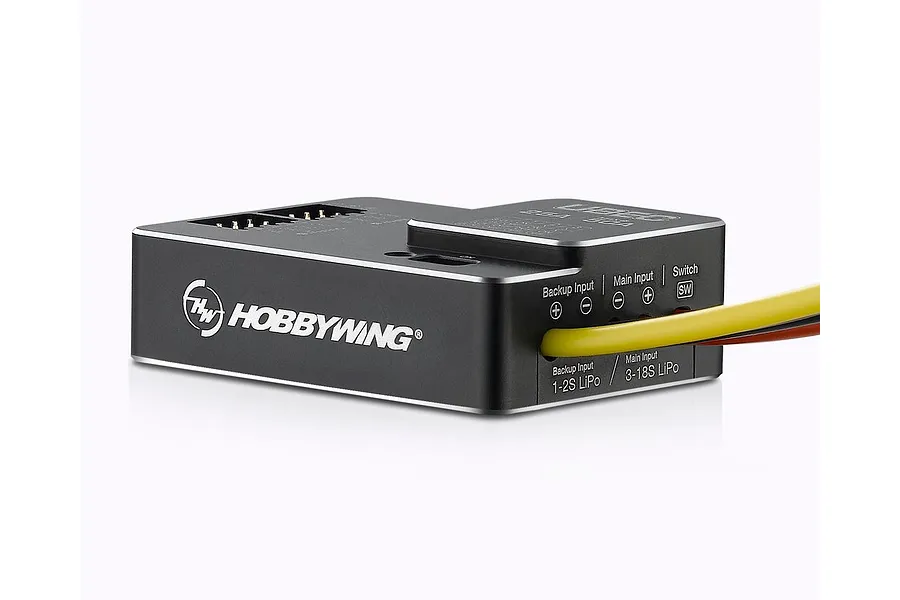

Hobbywing High Voltage UBEC module in a black metal casing with input and switch labels printed on the side.

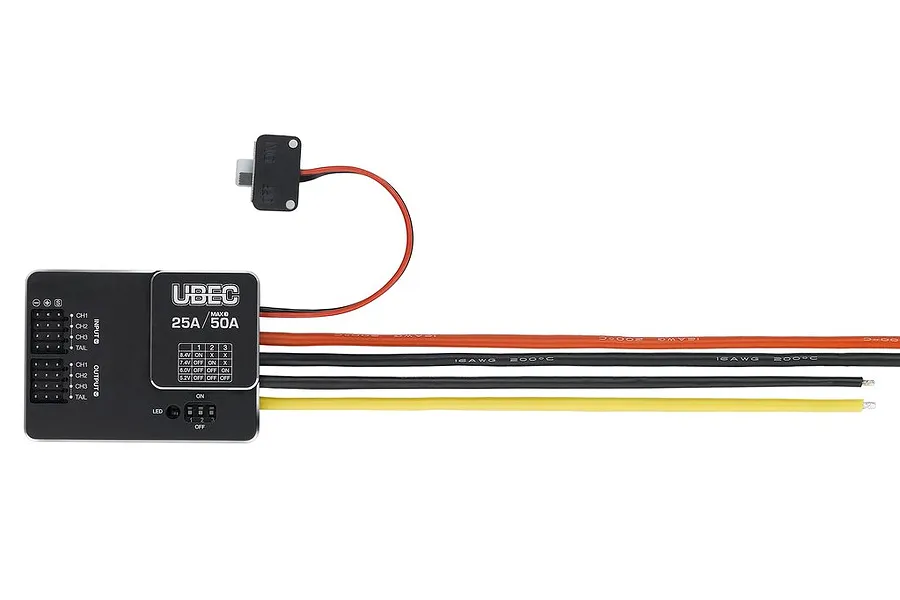

Hobbywing UBEC 25A/50A high voltage unit with input/output ports, voltage selection switches, and attached power wires and switch.

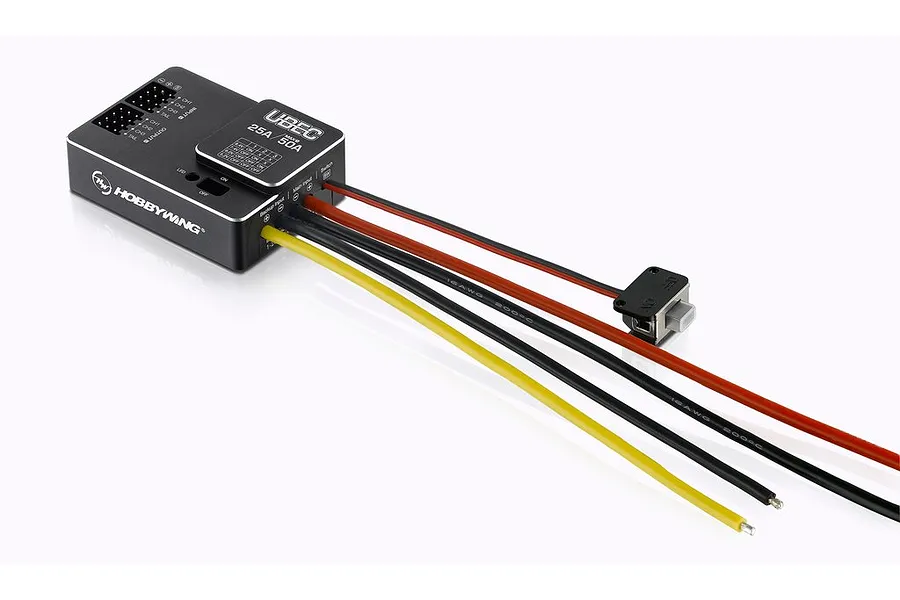

Hobbywing High Voltage UBEC 25A/50A unit with external power switch and attached input/output cables.

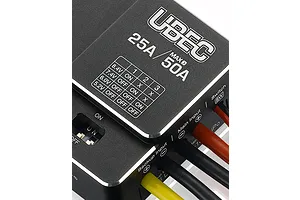

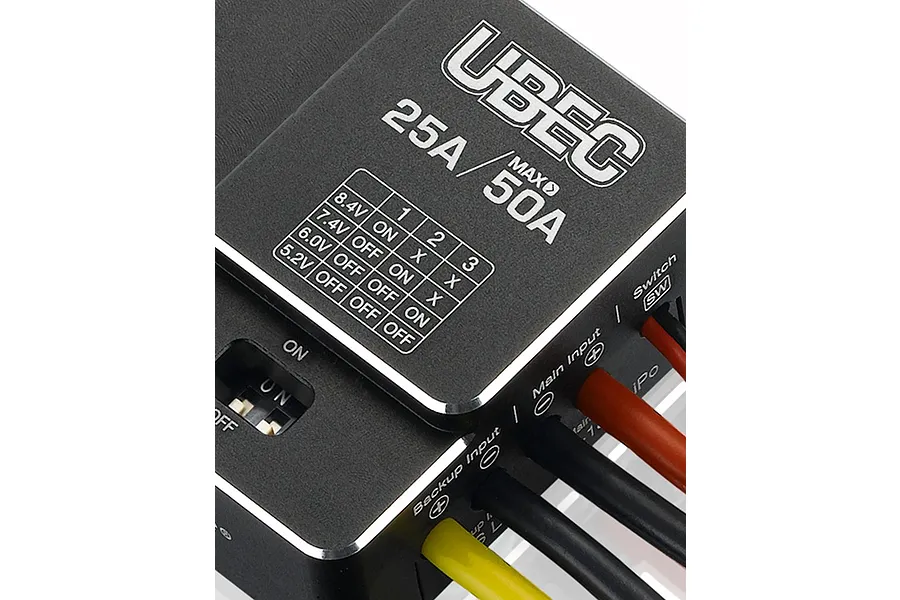

Close-up of a Hobbywing UBEC showing voltage configuration table and input/output wiring ports.

Hobbywing High Voltage UBEC 9v-80v Input 5.2v/8.4v 25A/50A Output

Brand: Hobbywing | MPN: 30606000

sold out

write a review

$134.32

or 4 fortnightly payments of $33.58 with

Hobbywing High Voltage Switch Mode UBEC, 9V–80V input, 5.2V/8.4V selectable output, 25A continuous / 50A peak.

Switch mode High Voltage (HV) UBEC
25A continuous / 50A peak output current
Wide input voltage range: 3S–18S LiPo (9V–80V)
Selectable output voltage: 5.2V / 6.0V / 7.4V / 8.4V
Compact size: 55 × 40.2 × 17.6mm, 74g

Add to Wishlist

Enter your suburb or postcode for delivery options

Enter your country for international delivery options

Description

Specifications

Mode: Switch mode HV
Continuous / Peak Current: 25A / 50A
Input Voltage (Main Power Supply): 3S–18S LiPo (9V–80V)
Input Voltage (Backup Power Supply): 1S–2S LiPo (3V–9V)
Output Voltage: 5.2V / 6.0V / 7.4V / 8.4V (Adjustable)
Input Wires (Main Power Supply): Red 16AWG 270mm × 1 / Black 16AWG 270mm × 1
Output Wires: 3P Vertical Pin Header; 60-strand PVC wire with two 3P-JR Male Connectors 100mm × 4 included
Input Connectors: No
Output Connectors: No
Size / Weight: 55 × 40.2 × 17.6mm, 74g
