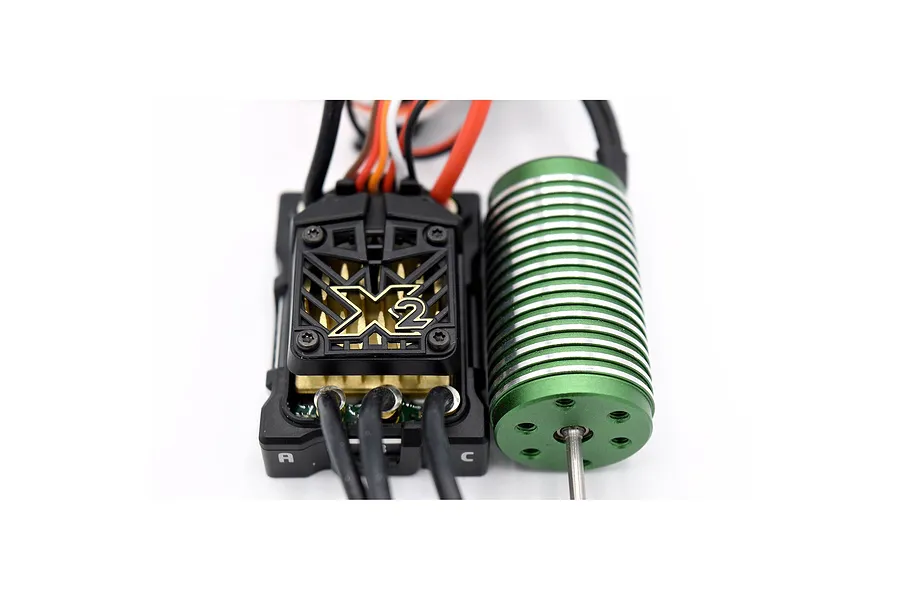

The Mamba Micro X2 is a refresh of Castle's popular 1:18 scale Mamba Micro X. This new ESC increases the maximum input voltage to 4S. Castle also added Data Logging and CRYO-DRIVE™ technology; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it boasts a 2 amp peak BEC, waterproof design, and Sensored Motor Support. This is the perfect upgrade for 1:18th scale 2WD or 4WD vehicles up to 2.25 lbs. The Mamba Micro X also works well in some 1:10th scale crawlers for low speed operation (no rock racing/hill climbing).

Castle Creations warrants this ESC for one (1) year from date of purchase against manufacturing and component defects. Warranty does not cover damages from abuse including incorrect wiring, over-voltage, overloading, improper gearing, improper motor selection, incorrect controller settings, insufficient batteries, or inadequate connectors. Products used in drag and speed run applications are not covered by this warranty.

• Input Voltage range: 2S–4S
• BEC: Adjustable 5.5V or 7.5V (2A Peak), default 5.5V
• Waterproof design
• Sensored Motor capable (with optional sensor harness)
• Additional settings and software updates available via Windows-based Castle Link software and USB adapter, or Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
• Convenient transmitter programming for six common adjustable settings
• Telemetry Ready (compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
• Auxiliary Wire Functionality allows on-the-fly adjustments such as Max Power and Max Brake
• Audible Alerts for calibration issues and error conditions
• Designed and manufactured in Olathe, Kansas; backed by a 1-year warranty

• 1x Mamba Micro X2 ESC
• 1x 0808-5300Kv Brushless Sensorless Motor
• 1x Quick Start Guide
• 1x Decal Sheet

Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
