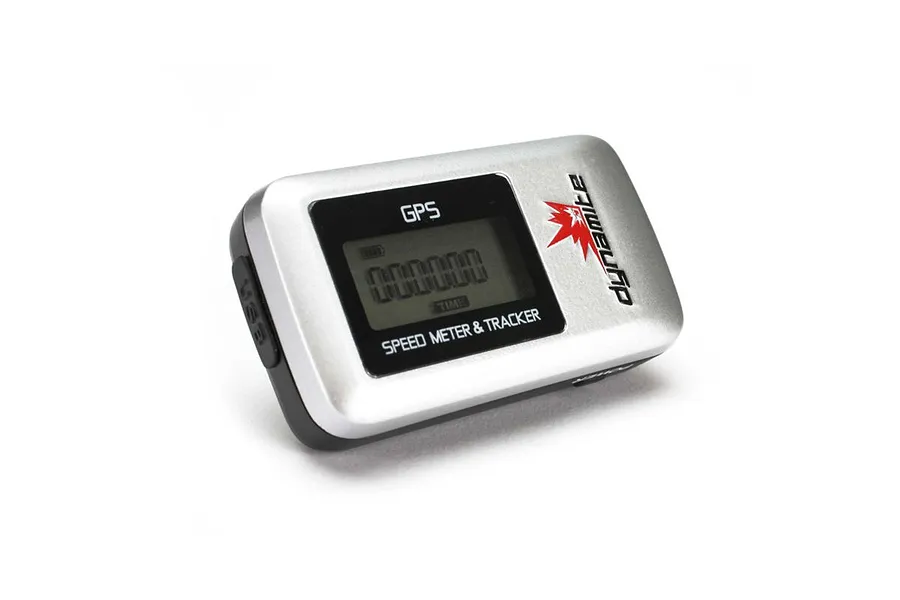

Dynamite

Dynamite Passport GPS Speed Meter 2.0

Part no. DYN4403

DiscontinuedWrite a review

This product has been discontinued.

Contact us

Overview

Dynamite's GPS Speed Meter and Tracker provides car/truck, boating and air enthusiasts with a compact, portable and easy to use GPS device for tracking everything from top speed reached to locations of their model.

The Dynamite GPS Speed Meter 2.0's compact size and ultra-light weight allows for it to be utilized in various applications including everything from large scale aircraft to 1/10th or smaller radio control cars/trucks/boats.

Thanks to the unit's built-in WASS/EGNOS/MSAS/RTCM (Global Positioning compatibility by country or region), the unit can be used anywhere in the world. The unit uses a 10Hz refresh rate providing an extremely fast response to changes in the model's position while the unit's low power consumption provides the user with up to 4 hours of uninterrupted tracking time.

The unit's LCD screen provides real-time data feedback and its waterproof design allows for use in virtually all weather conditions. You can also use the Dynamite GPS Logger software to map your drive, flight, jog, swim, etc. using Google mapping products.

The LCD screen will display the average, current, and peak speed, as well as current and max altitude, total distance, and GPS coordinates.

Features

  • Track: Location, speed, altitude and much more
  • Compatible with RC planes, helis, cars, trucks and boats
  • Compact, lightweight size allows for an easy fit in most RC applications
  • Built-in high-capacity LiPo Battery — 4 hours continuous tracking pending conditions
  • USB cable included for charging
  • PC Interface for mapping on Google map products
  • Record and download GPS map data (See Support for GPS Logger download)
  • Can be used in real-world applications worldwide
  • Reads speeds up to 560 MPH (900 KPH)
  • Switch between Metric and Imperial units using PC software

In the box

  • USB Cable
  • Speed Meter

Specifications

Concurrent receptionGPS and GLONASS
ReceiverL1, 1575.42 MHz
Satellite Signal Reception Sensitivity-167 dBm
Update Frequency1–10Hz
Antenna TypeBuilt-in
Dimensions (L x W x H)65mm x 40mm x 20mm (2.6 in x 1.6 in x 0.8 in)
Weight45g (1.58 oz)
Operating Temperature0°C to +40°C
Storage Temperature-10°C to +70°C
Operating Humidity5% to 90%
Built-in Flash Memory1MB
Built-in BatteryInternal High-Capacity 200 mAh LiPo
Operating timeup to 150 minutes
Recording Time at 1Hzup to 18 hours (default setting)
Recording Time at 10Hzup to 2 hours
MaterialPlastic
Input Voltage5V (to charge internal battery)
Input ConnectorMicro USB charging port
