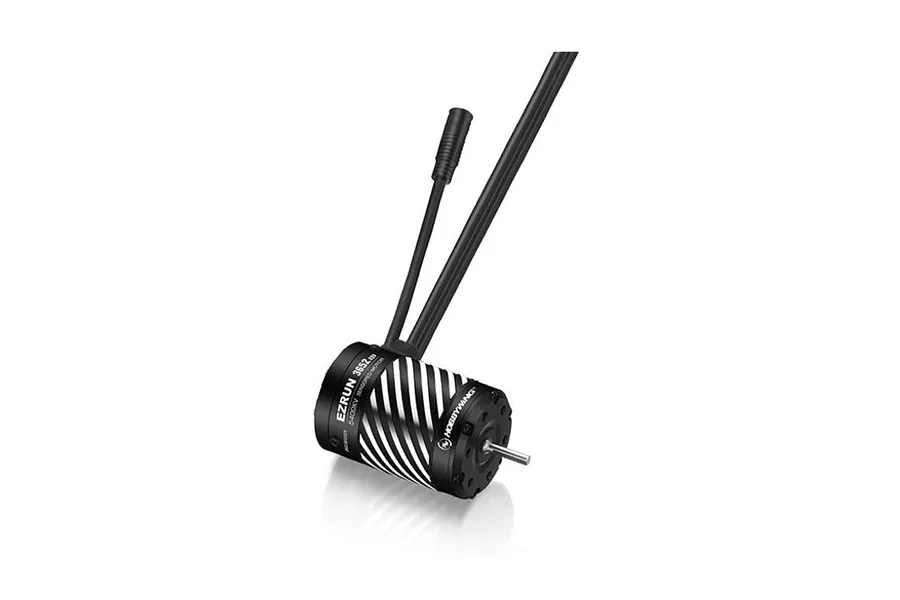

EzRun 3652SD-3300KV G3 Brushless Sensored Motor
EzRun 3652SD-3300KV G3 Brushless Sensored Motor
Brand:
Hobbywing
|
MPN: 30402603
$119.76
or 4 fortnightly payments of $29.94 with
HobbyWing EzRun 3652 3300KV brushless motor with patented staggered-pole rotor and built-in temperature sensor for 1/10 scale vehicles.
- Hobbywing-patented staggered pole rotor for smooth, precise control
- Built-in temperature sensor for ESC-integrated motor protection
- Up to 90% efficiency with advanced thermal control technology
- O-ring sealed and CNC machined aluminium housing for durability
- Rebuild-able design for long-term cost-effective maintenance
Pay later with
Want more than 1?
We'll send it today
When ordered within the next
hms
What does Next Dispatch mean?
Pay before 1pm Melbourne time on a dispatch day and your order ships the same day.
This is dispatch time, not delivery time — couriers still take their usual transit days.
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Description
The HobbyWing EzRun 3652 motor features an innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented), delivering low cogging effect and torque pulsation for improved control feel around corners. The built-in temperature sensor and sensor port protect the motor from damage due to overheating when pairing with an EzRun Max10 or Max10 SCT ESC.
Features
- Innovative 4-pole-8-magnet "staggered pole" rotor
- Built-in temperature sensor and sensor port
- O-ring seal fitted between the front end bell and motor case
- Special design motor case (the end attaches to the front end bell) isolates inner coils from outside to protect winding from being damaged by overlong screws
- Special technology for temperature control for less heat and more efficiency (efficiency rate of up to 90%)
- CNC machined aluminium housing, high purity copper windings and advanced rotor structure
- Rebuild-able design for easy routine maintenance
Specifications
-
Scale
- 1/10th
-
Brushed/Brushless
- Brushless
-
Sensored/Sensorless
- Sensorless
-
Pole Count
- 4
-
KV Rating
- 3300
-
LiPo Cells
- 2-3S
-
No-load Current (A)
- 4.3
-
Timing
- 0 Degrees (Fixed)
-
O.D. (mm)
- 36.00
-
Length (mm)
- 52.00
-
Shaft Diameter (mm)
- 3.175
-
Weight (g)
- 218
Motor
-
Type
- Brushless
-
KVRPM (Revolutions Per Minute) per Volt
- 3300KV
-
LengthLength of the motor can in mm
- 52mm
-
DiameterDiameter of the motor can
- 36mm
-
Shaft Diameter
- 3.175 (1/8")mm
