FASSTEST SYSTEM

• The 16IZ transmitter adopted the bidirectional communication system FASSTest. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels (linear 16 channels + switch 2 channels) 2.4 GHz dedicated system.

S.BUS2 SYSTEM

• By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.

USB SIMULATOR CONTROL

• The T16IZ offers USB C compatibility for simulator control when used with Windows OS Joystick function.

COLOR TOUCH SCREEN LCD

• T16IZ has an updated HVGA 4.3 inch, full-colour backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.

MULTI HOLDER

• T16IZ Offers Multi holder near the antenna/charging port. It allows for accessories to be mounted using an M3 style screw.

VOICE TELEMETRY

• The T16IZ allows for audible telemetry data to be read aloud for easy understanding of crucial parameters while flying.

SECURE DATA (SD CARD)

• Model data files can be stored on optional microSD card. The microSD card is also used when updating the software/features of the T16IZ.

HIGH CAPACITY LITHIUM POLYMER BATTERY (2000 MAH)

• The high capacity 2S Lithium Polymer battery gives you extended flight time.

EDITING

• The touch panel and two enter keys allows you to edit your model in the manner that is easiest for you.

FUNCTIONS

• The internal processor the response time. Most of the mixing functions are operated by curves which give you very precise settings.

STICK

• Each stick offers our reliable single ball bearing for each axis. With our high cycle potentiometer this allows for finer and more precise operation.

VIBRATION FUNCTION

• Low voltage and other alarms are generated by a vibration motor. Alarms or vibrations to be used can be selected by the owner.

R7108SB

• The system comes with the R7108SB S.Bus2 Dual Antenna Diversity receiver featuring bi-directional communication.

---

Transmitter:

• Transmitting Frequencies: 2.4 GHz
• Protocols: FASSTest/FASST/T-FHSS/S-FHSS
• Power Requirement: 7.4 V LT2F2000B Lithium-polymer battery

Receiver:

• Size: 24.9 x 47.3 x 14.3mm
• Weight: 12g
• Operating Volatge: 6.6V LiFe

---

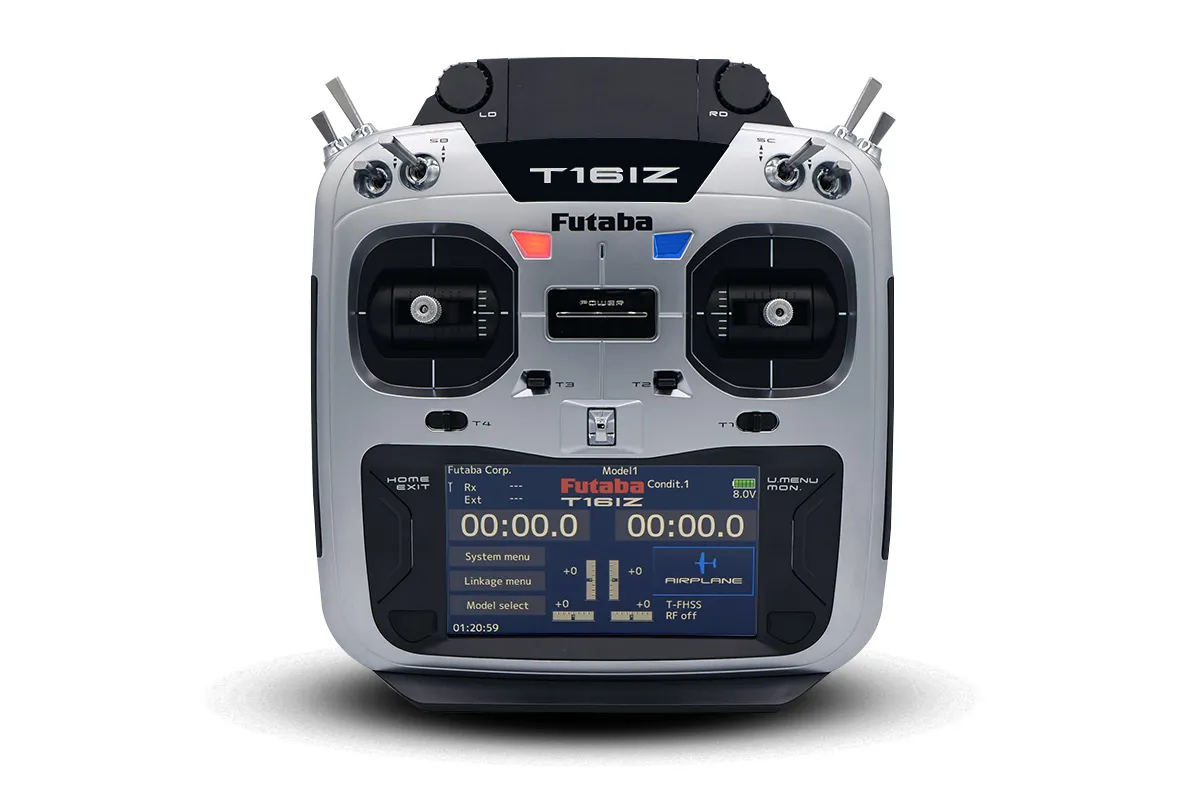

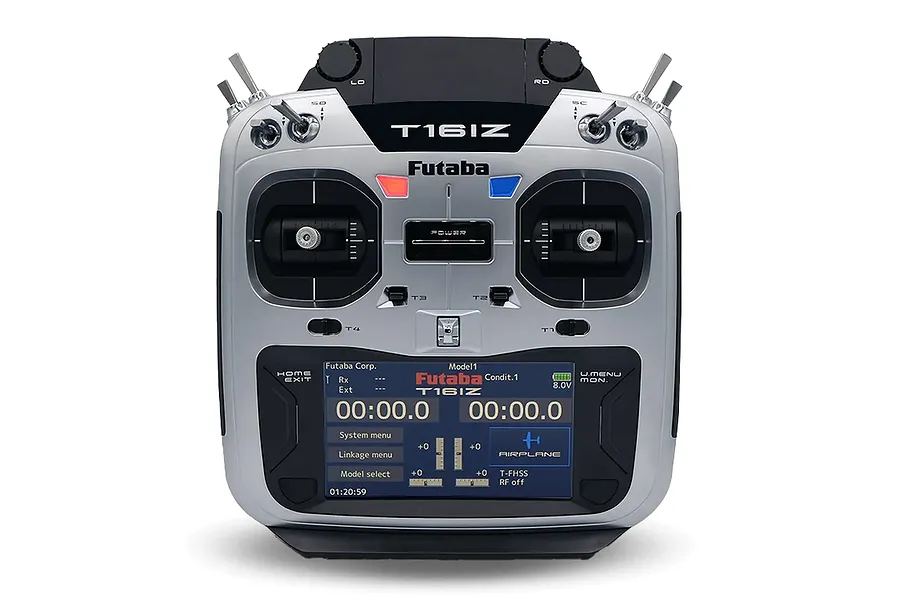

• T16IZ Transmitter
• R7108SB Receiver
• LT2F2000B Lithium Polymer Battery and USB cable for charging
• Neck Strap
• Manual (Printed short version. Find full version here)
