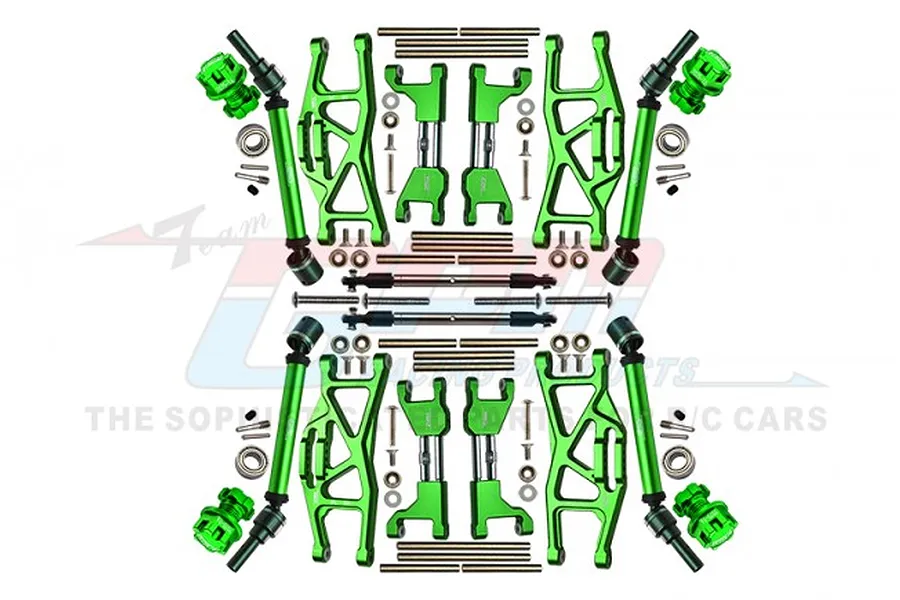

GPM Green Aluminium Complete CVD Driveshaft & Suspension Upgrade Kit
Brand: GPM Racing
|
SKU: TXMS100N-G
Description
This upgrade kit is designed to widen the wheelbase for better stability of the chassis. Made with high-quality, lightweight, high tensile strength aluminium 6061 T6, it provides better support and durability.
![Constant Velocity Driveshafts](https://cdn.hobbiesdirect.com.au/catalog/Descriptions/Features/Shortcodes/CV-Drive-Shafts-Gif_500.gif)
Constant Velocity Driveshafts
High-performance CVD (Constant Velocity Drive) Driveshafts allow a driveshaft to efficiently transfer power at a variable angle, at constant rotational speed, without an appreciable increase in friction or play. The reduction in friction provides a damping effect on the suspension system and can improve handling on rough terrain, and at high speeds.
Features
- Widens the wheelbase for better stability
- Made with high-quality aluminium 6061 T6
- Delrin collars minimise the gap between parts and strengthen fitting
- Multiple positioning holes for shocks
- Adjustable suspension and wheel angle
- Anodised for a durable finish
- Upgraded from cross head to CVD swing joint
- Harden steel joint with alloy 6061 T6 body
- Axle increased from 6mm to 8mm
- Vehicle track becomes 20mm wider on each side for better stability
Included items
Description | QTY |
---|---|
Front & Rear Upper Suspension Arms | 4 |
Front & Rear Lower Suspension Arms | 4 |
CVD Driveshafts | 4 |
Aluminium Hex Adapter | 4 |
Aluminium Wheel Lock | 4 |
Turnbuckles | 2 |
4x33mm Stainless Steel Pin | 4 |
4x43mm Stainless Steel Pin | 4 |
3x8mm Fine Thread Countersunk Head Screw | 12 |
3mm Stainless Steel Washer | 12 |
4x38.5mm Stainless Steel Pin | 4 |
4x63.5mm Stainless Steel Pin | 4 |
4mm White Delrin Shim | 2 |
3x20mm Fine Thread Button Head Screw | 2 |
3x18mm Fine Thread Button Head Screw | 6 |
5x5mm Grub Screws | 4 |
8x16x5mm Bearing | 4 |
2.5x14.8mm Pin | 4 |
4x2.5x17mm Screw Pin | 4 |
